25 CoreBench - Standard Block
Print Profile(2)
Bill of Materials
- Rondelle D16mm x 1,2mm x 4:
Description
25 Core Bench is a modular 25mm bench dog hole system, designed to be compatible with 20mm accessories, while also protecting our workbenches and offering greater versatility
An economical, customizable alternative and part of an evolving ecosystem, with interchangeable adapters and dedicated accessories
Boost Me (for free)
Make me happy and give me a BOOST!

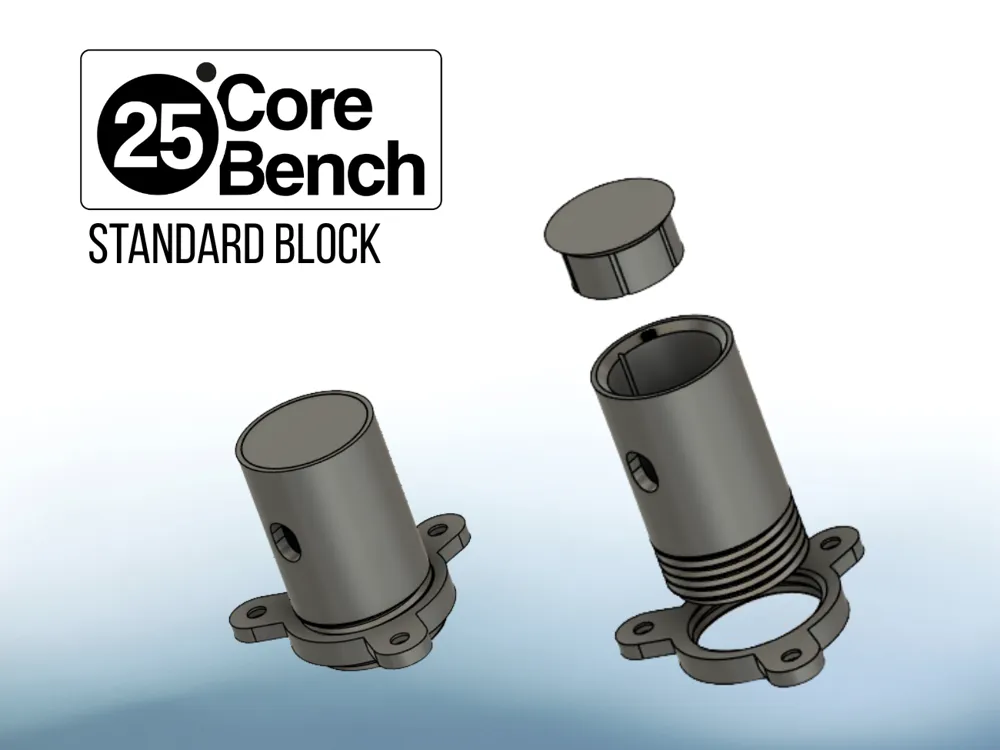

Standard Block
This block is the basic component of the system

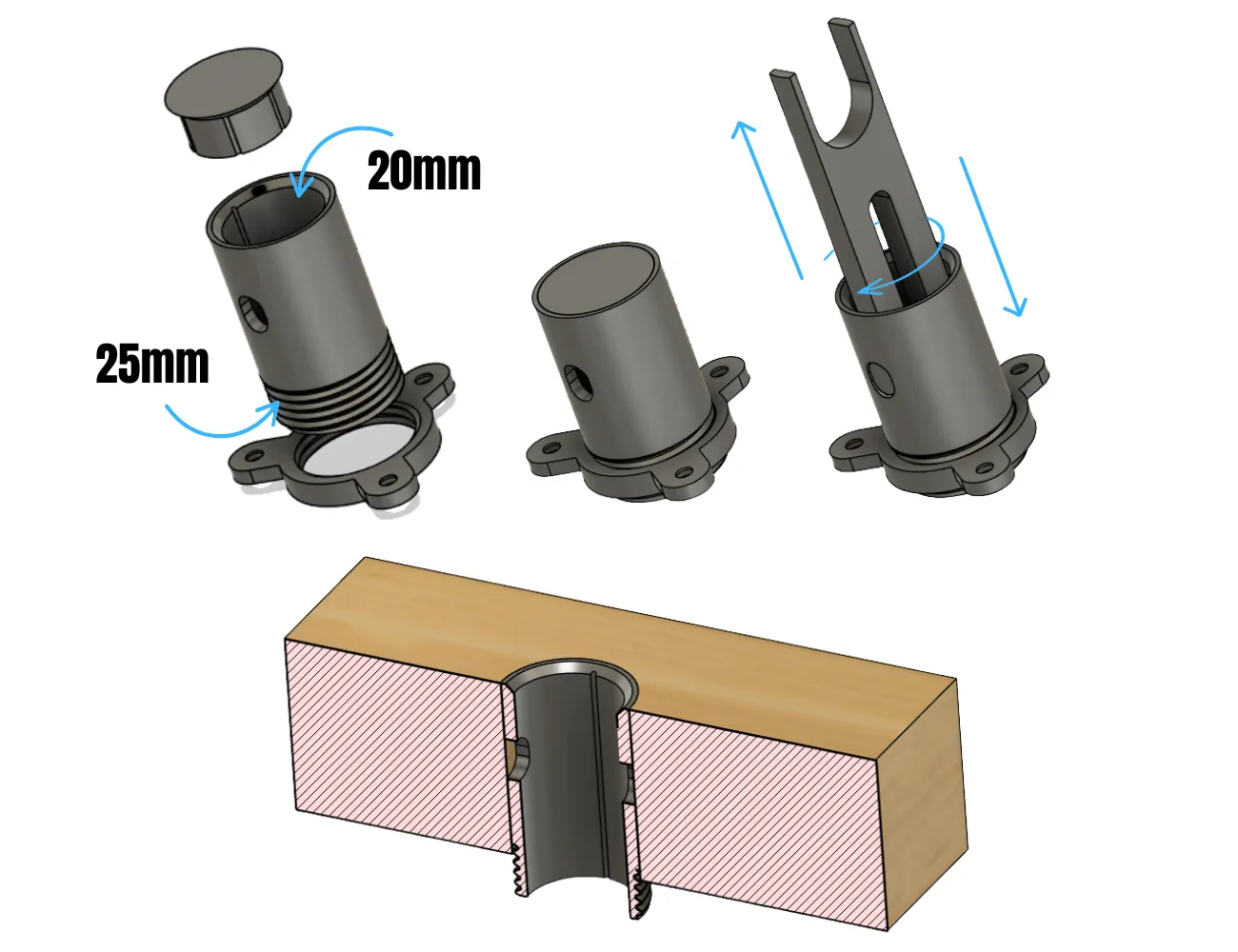

The outer diameter is 25mm, while the inner diameter is slightly larger than 20mm to allow effortless insertion of accessories

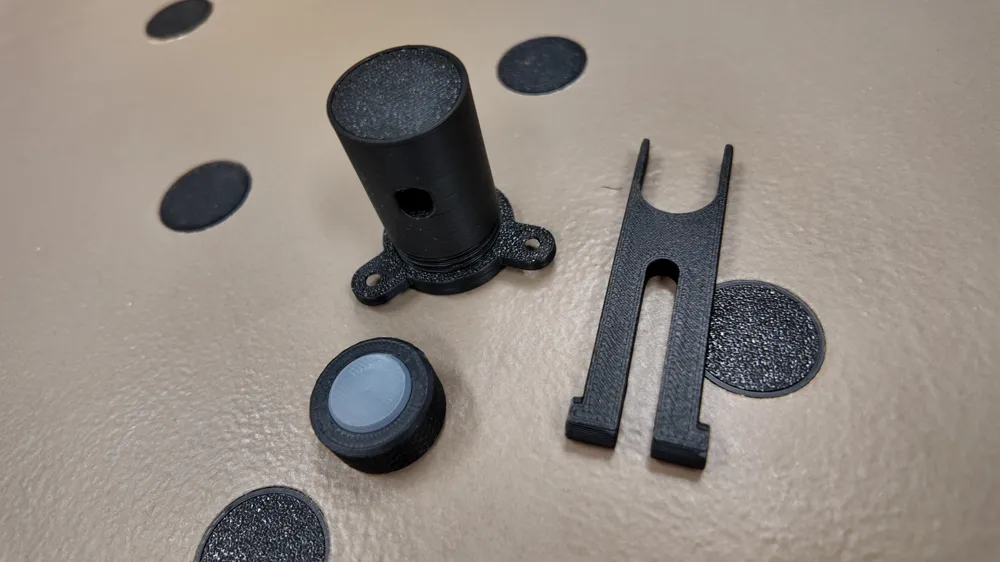

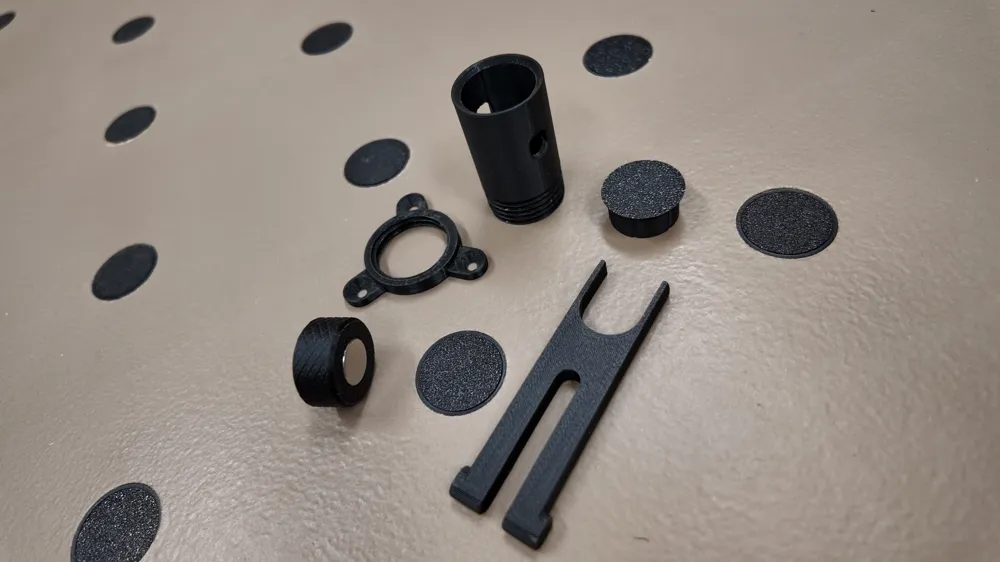

It is fixed beneath the workbench with a threaded collar; once positioned, there will be no need to remove it again, as the adapter can be unscrewed and removed from the top surface of the bench using the multifunction key
Why 25mm ?
- Using the standard block brings the hole back to the classic 20mm and thus compatibility with the MFT world (did you think I was crazy?), but in this way, it can be replaced if and when it gets damaged, protecting the workbench

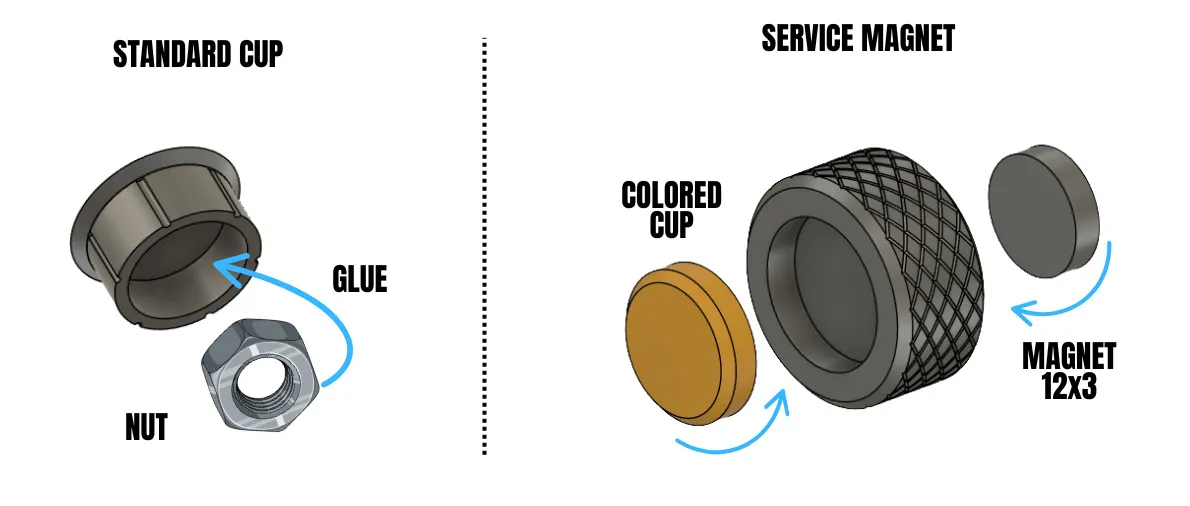

- The caps (with internal M8 nuts or 16mm diameter washer) perfectly close every gap, are stable, and can be removed with a 12x3mm magnet
PLA is excellent and not very yielding, as well as being economical (in the profile you will find enough walls to make it solid)
I tested ABS and PA6-CF, which are excellent, but I personally did not find them necessary
