Description

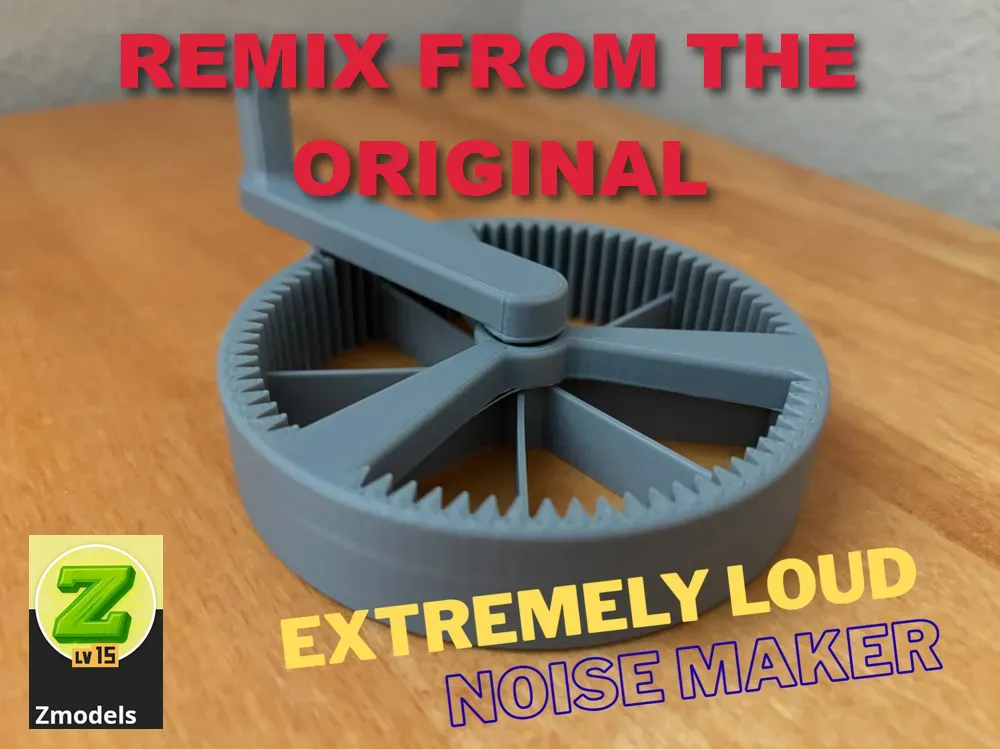

This model is a remix from “Zmodels” https://makerworld.com/en/models/1649451-extremely-loud-noise-maker#profileId-1743722
It needs neither glue nor additional screws for assembly or disassembly
Also, no support is needed for printing. The case can be printed with 3 walls and approx 30% infill, but the rest should have 4 walls and up to 100% infill. In my opinion, the best choice of filament is PLA Tough+

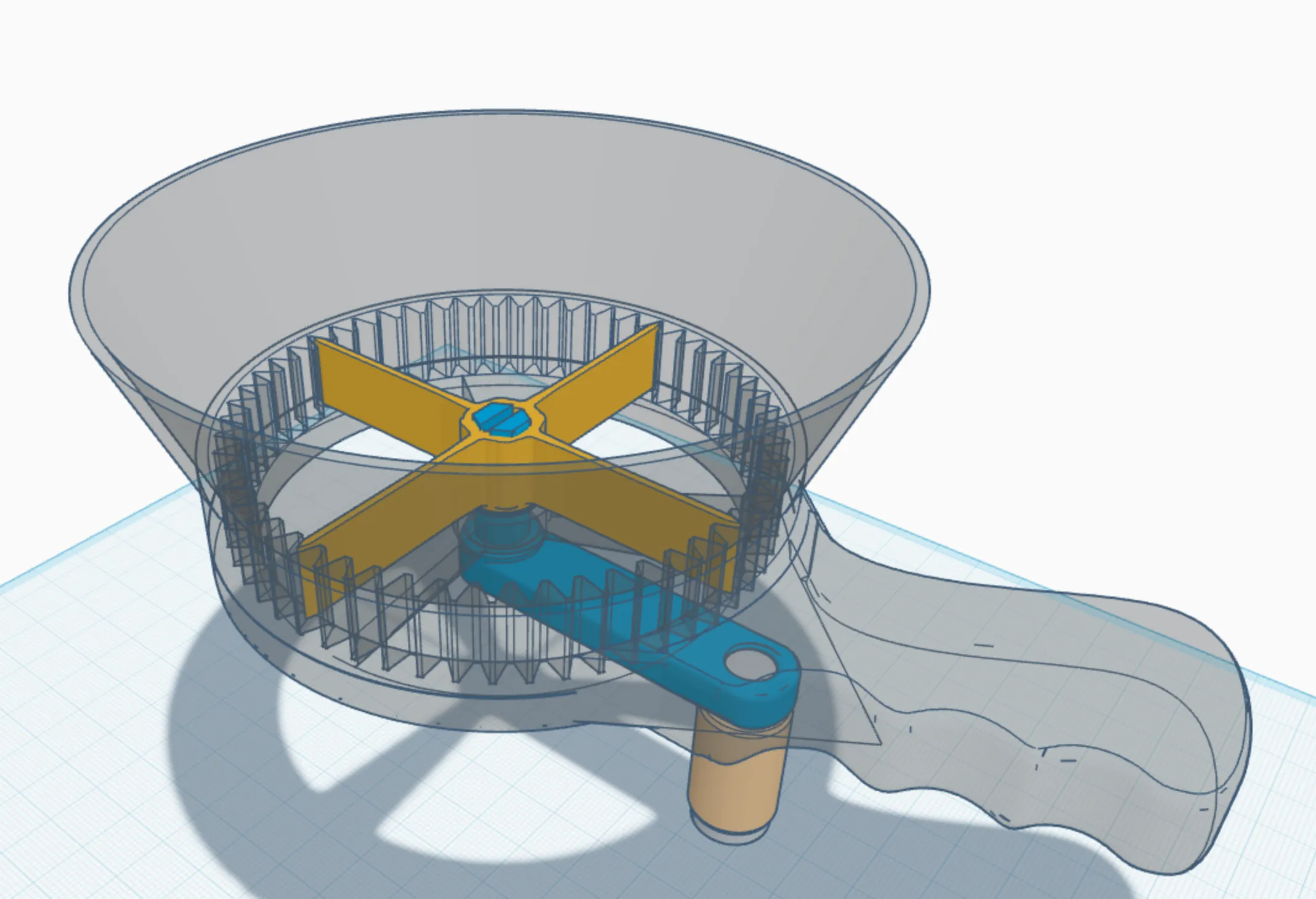

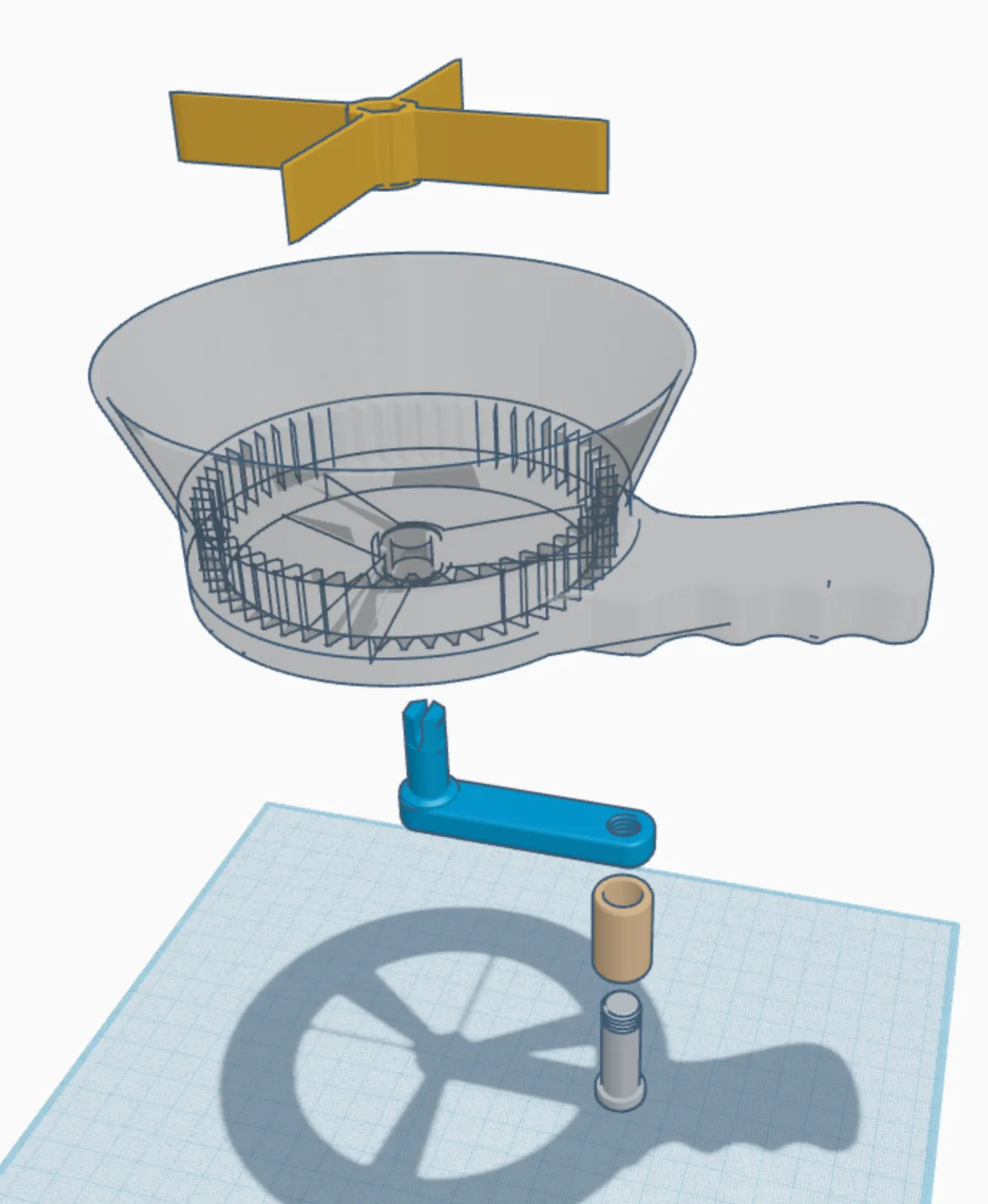

Initial assembly can be a bit difficult. You just need to be careful with the fins, as the bore has a hexagon halfway on one side and a round hole on the other. You must assemble it so that the round hole rests against the housing
Also, the handle screw has a left-hand thread, so turn it counter-clockwise!!
Since it is so easy to disassemble, different materials and thicknesses can also be tested for the fins to see if it makes it even louder
Many thanks to “Zmodels” for letting me publish the modified model
Have fun printing and making noise ;-)
