Description

If this design is useful to you, a like helps me create more 🧡!

---

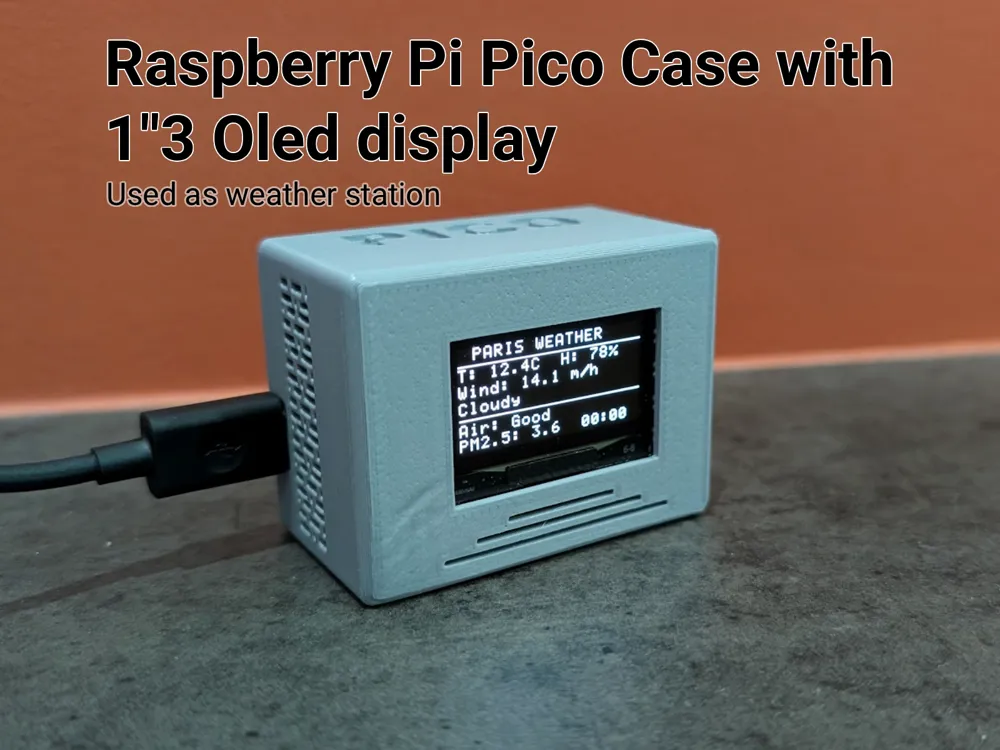

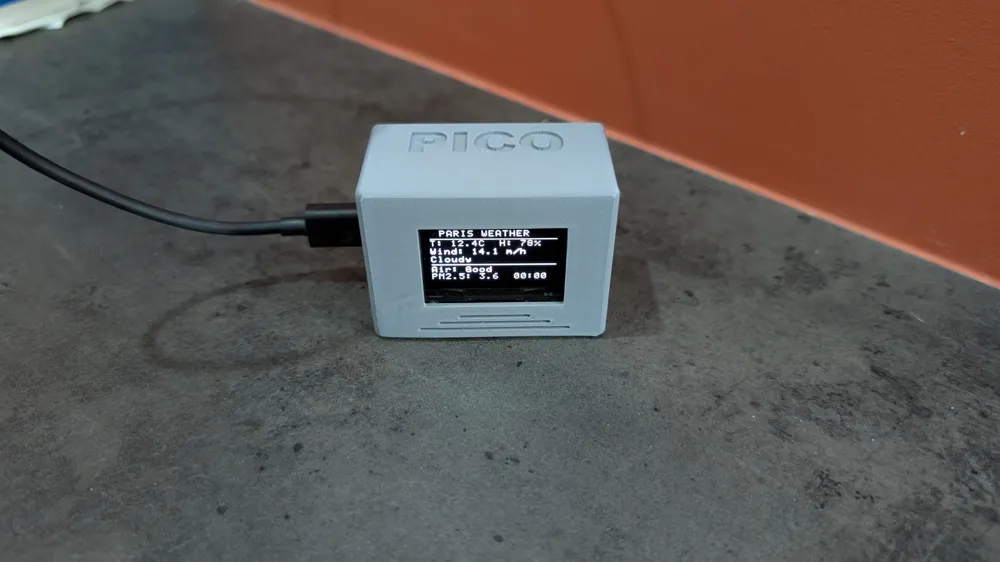

3D printable enclosure for Raspberry Pi Pico W with SSH1106 OLED screen (128x64 I2C).

Size:

58mm wide
44mm tall
33mm deep

Design:

Cutout for OLED display
Ventilation slots on sides
USB cable hole
Screw mounting

You'll need:

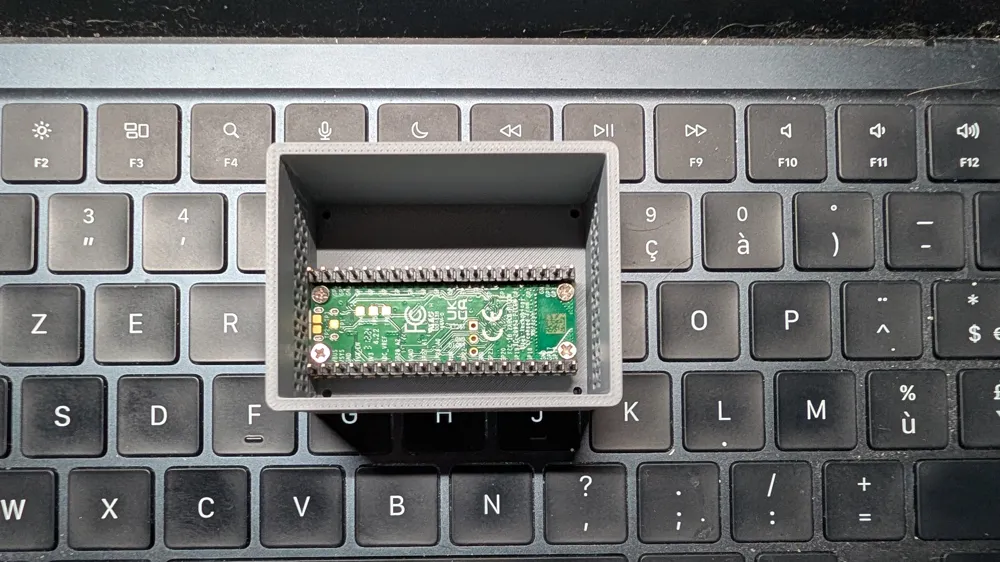

4x M2x4 screws (mount Pico)
4x M2x3 screws (mount screen)
4x M1.4x4 screws (close case)
4x 10cm jumper wires (I2C wiring)

Example code on GitHub: Here Weather station project using Open-Meteo API.
