Description

Content has been automatically translated.
Show original

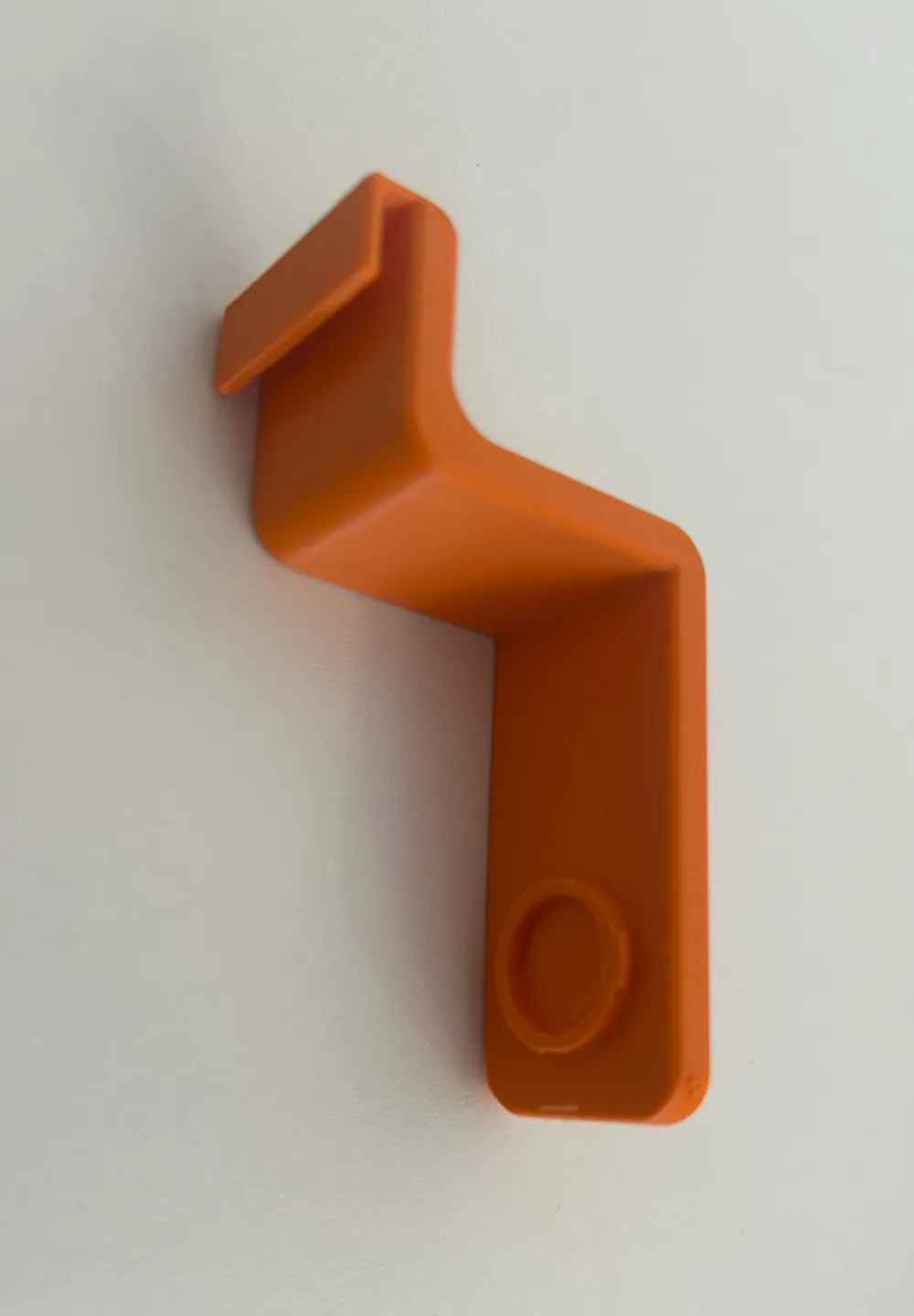

This mount is based on an idea for attaching a remix that I first tried. However, since I only wanted to check in sporadically with this addition and the cable bothered me a bit, I used a Blink outdoor camera (gen 3) that I still had left over. This works without a cable but has a different type of attachment

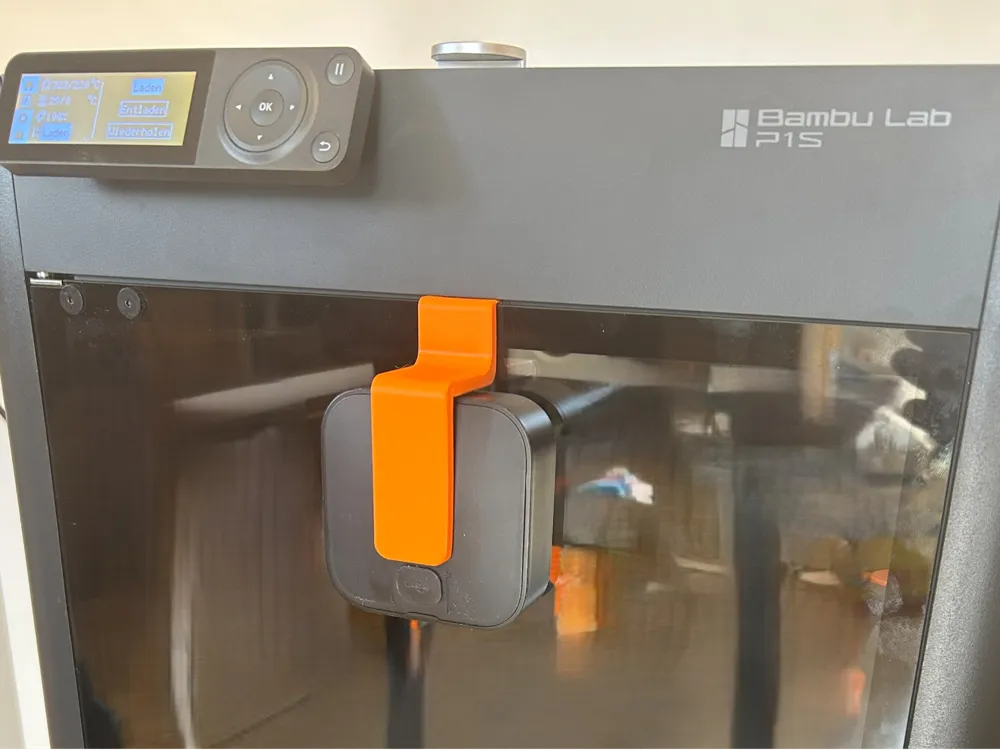

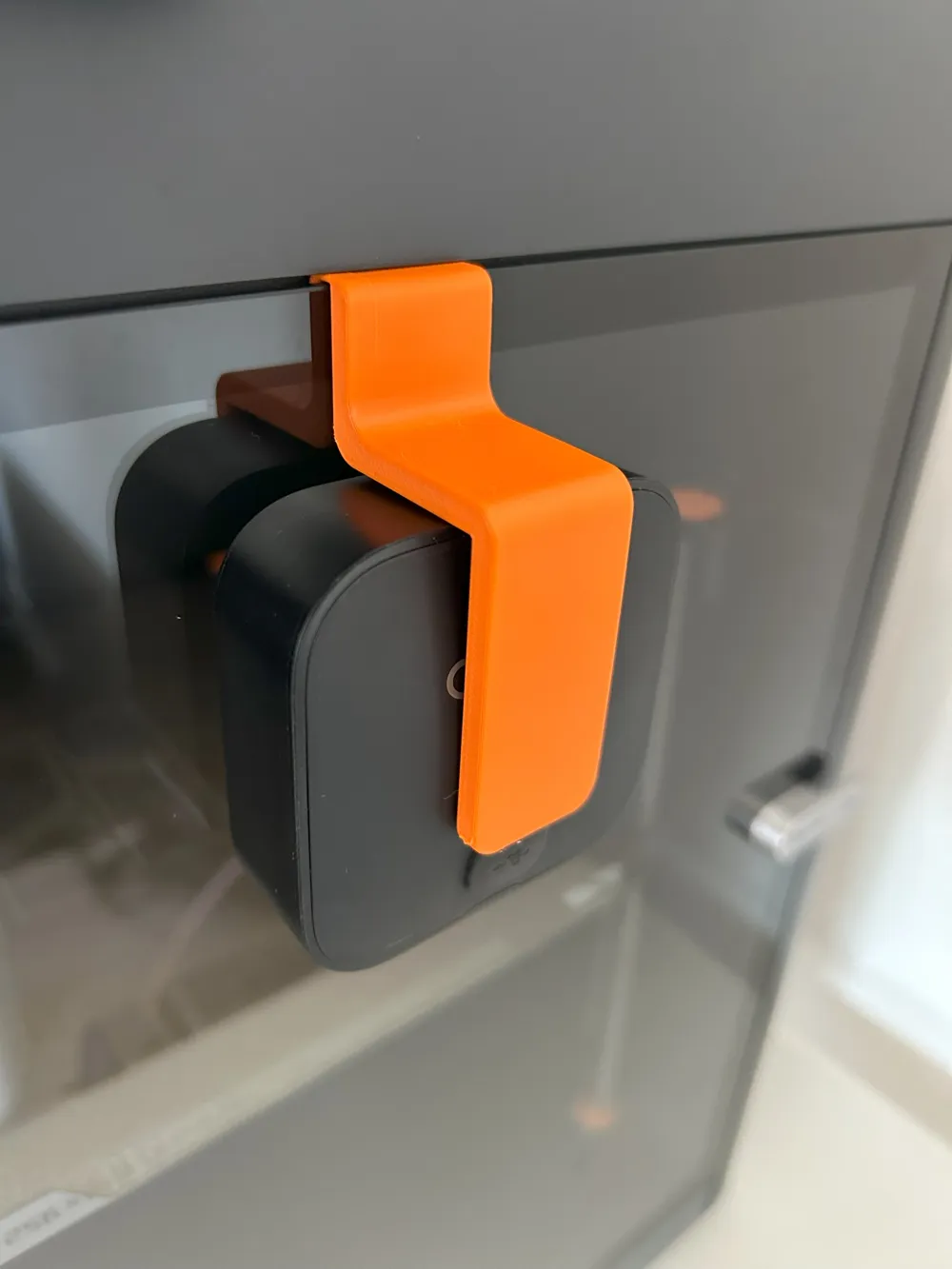

Since it is only hung in the door, it can be used on both the P1S and the X1C and aligned as desired on the edge. It is a really very simple print. As an addition, I later simply glued some rubber nubs onto my camera to minimize vibrations from the printer and the resulting blur when focusing. Feel free to write to me with your opinion if you have problems with the X1C or other occurring defects. This construction has been running smoothly for almost 3 months for me now. If you already own a new generation of the camera model and can give me feedback on the compatibility of the mount, I would be very happy and would also make adjustments if necessary so that it can also be used here



I printed it in PETG with a layer height of 0.16 and 4 walls. However, I will also upload the print profile for PLA. I printed it once and tested the hold. Everything was okay here too



Anyone who has a Blink indoor camera without a cable should be able to use the mount in the same way, as the camera body seems to be the same, but again, your feedback is welcome here

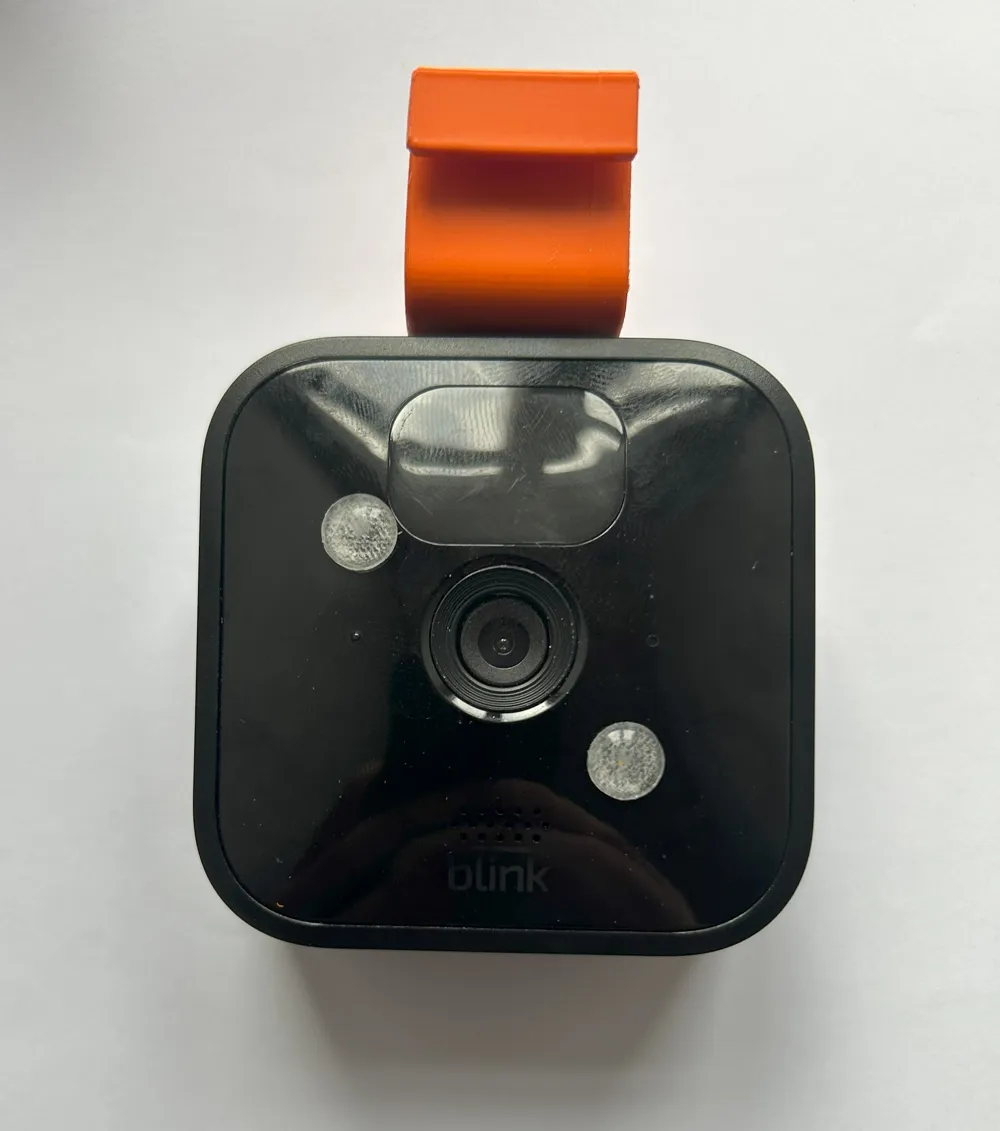

The rubber nubs for vibration dampening mentioned above can be seen in a picture; these can be bought very cheaply in drugstores or hardware stores, or they can also be found on Amazon under this term
