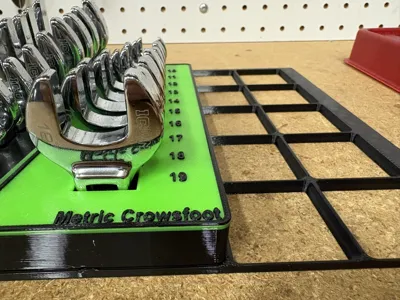

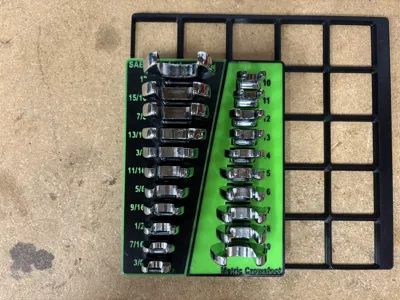

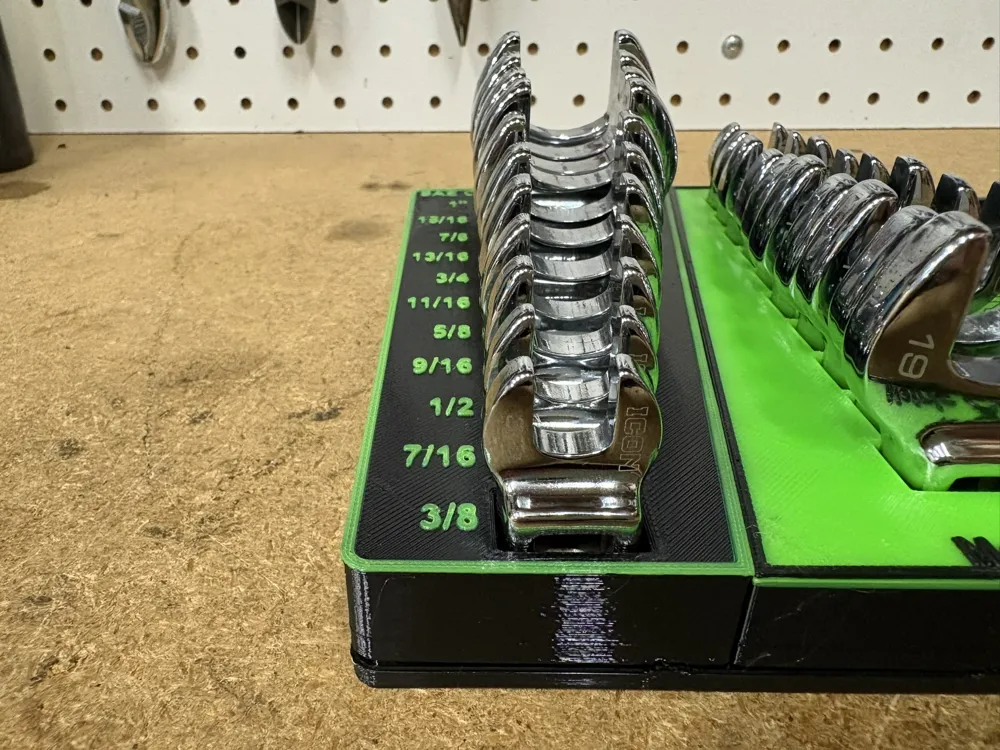

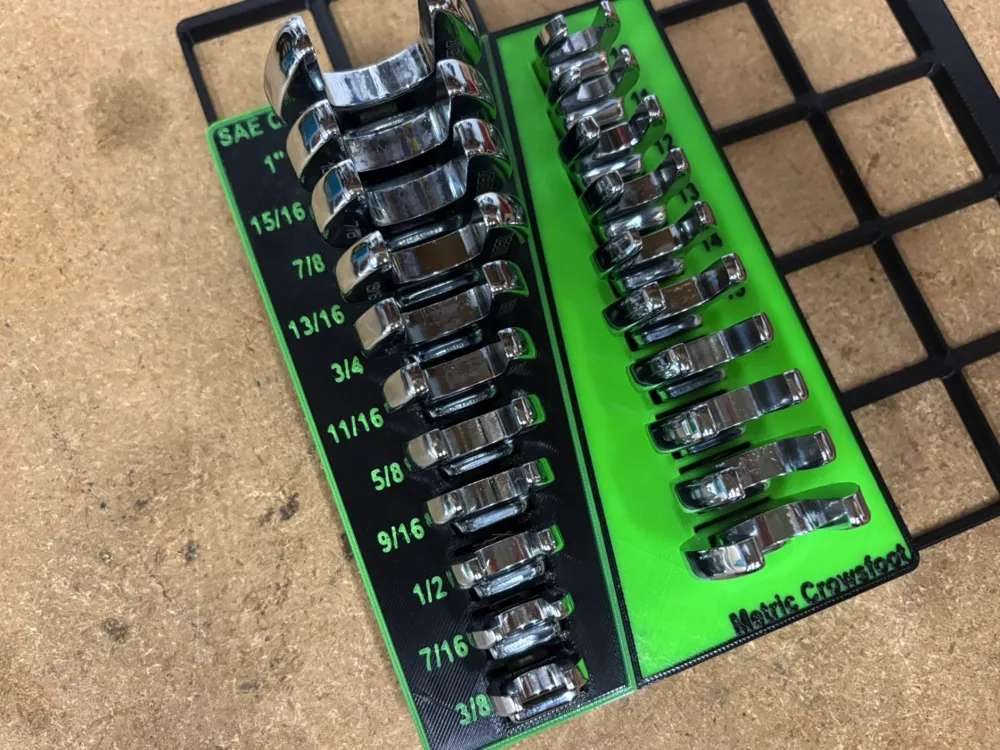

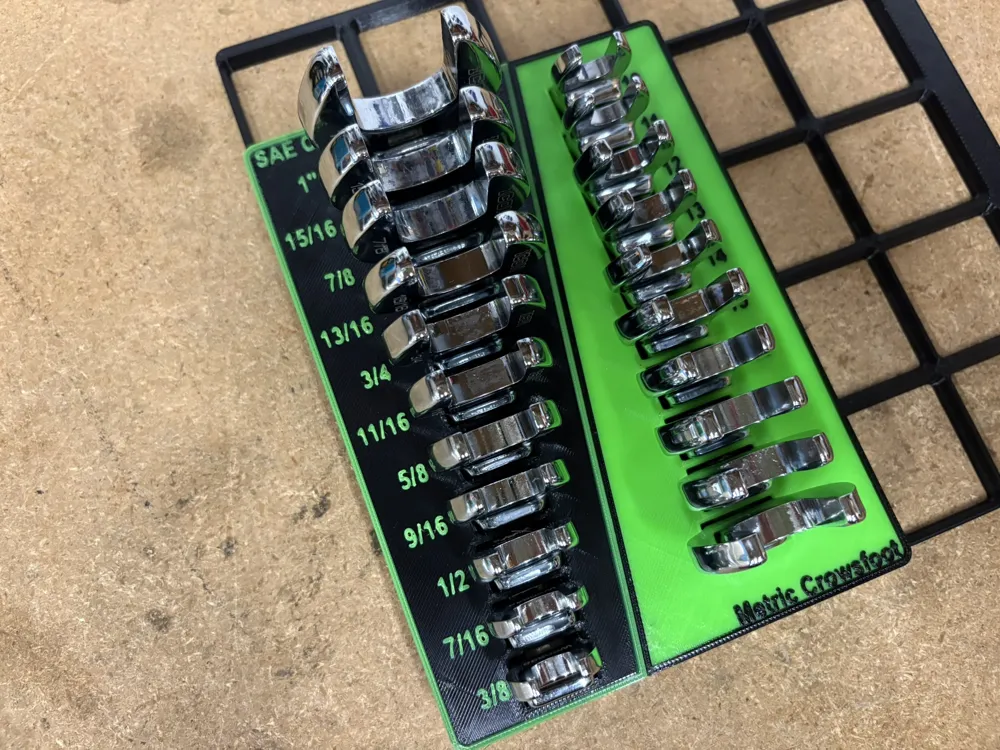

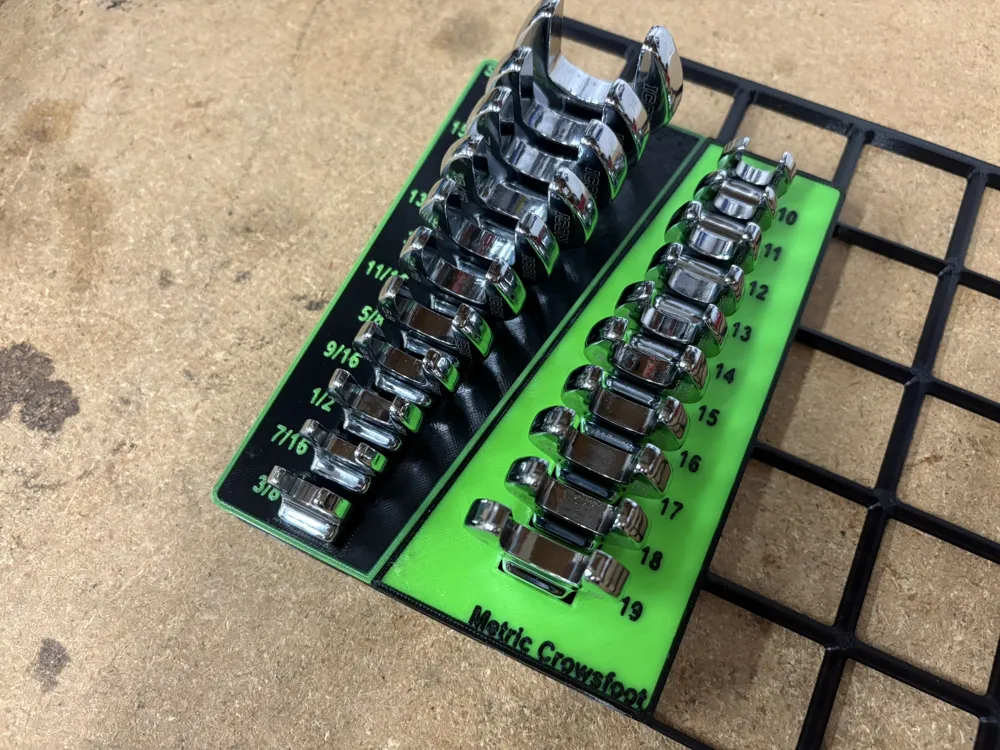

ICON Crowsfoot 3/8" Wrench Holder Gridfinity

Gridfinity compatible holder for the ICON (Harbor Freight) 3/8" crowsfoot wrenches in both Metric and SAE, models 56832 and 56831 respectively.  Fits in a 3U x 4U Gridfinity layout, which saves over 70% of the space of the manufacturer's holders and still fits in a thin tool drawer.  The 8mmx2mm magnets at the bottom of each hole do a reasonable, but not perfect, job of cutting down on the rattling.  Although the magnets press fit in, the attraction to the tools is so strong that they tend to pull out, so I recommend a drop of super glue in each hole prior to inserting the magnets.

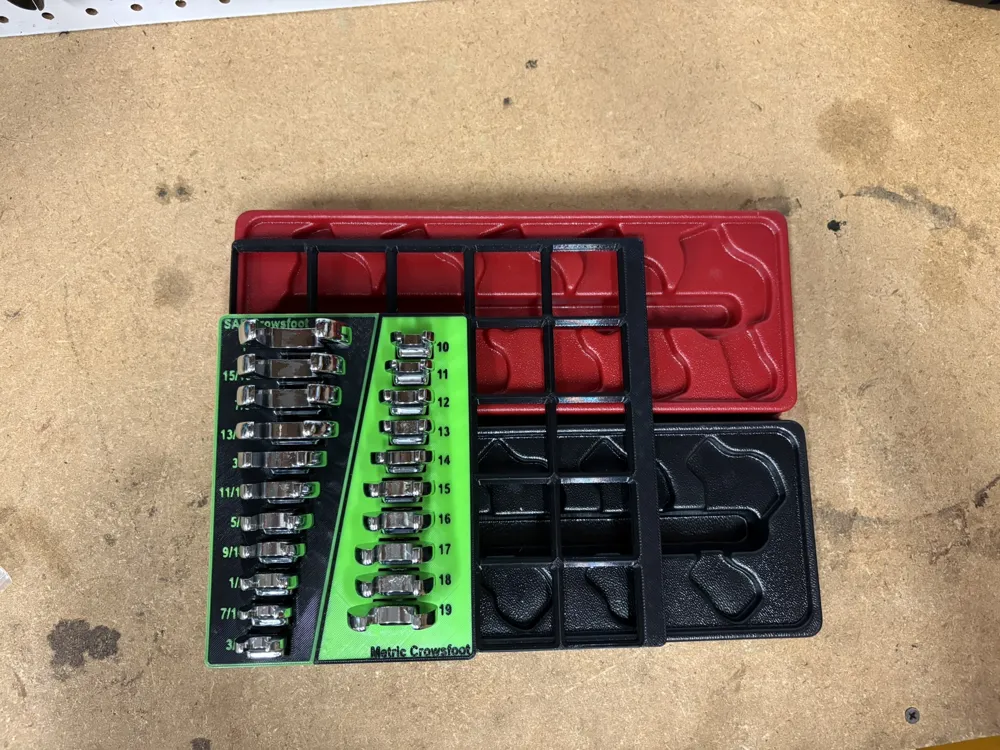

This holder is different than most because the wrenches don't cover the labels and all of the wrenches stay within the boundary of the holder (some other designs hang over).  Typically my designs have the smallest size in the front and largest in the rear, but I compromised and laid out the metric largest to smallest from front to rear to optimize the layout.  This prints as two pieces and are held together by the Gridfinity grid; so if you want to use it standalone, you will want to print a 3U x 4U Gridfinity grid.  I also included, but did not use, 6mmx2mm magnet holes on the bottom to maintain compatibility with magnetic Gridfinity grids.

The font (5mm, Arial Narrow Bold) and layout matches my many other socket holders if you want matching socket holders.
