AOS UL10 Cine V5 – Center Camera Mount

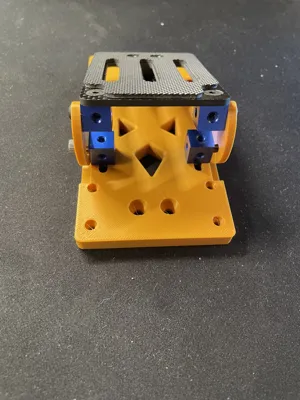

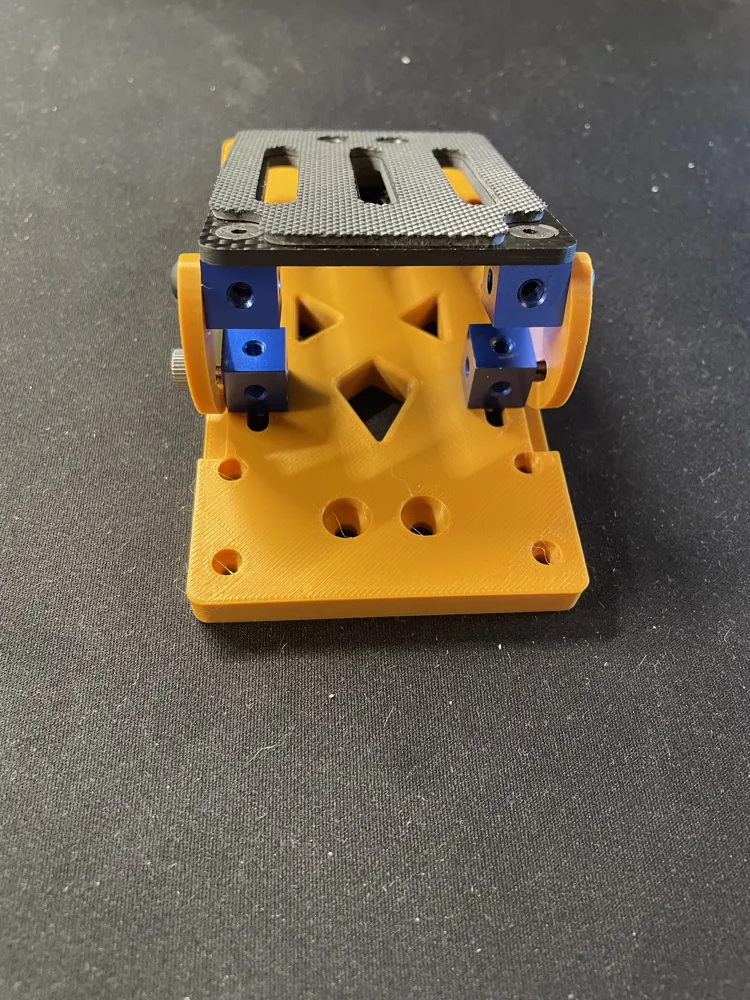

This is a custom center camera mount designed specifically for the AOS UL10 Cine V5 frame.
Print Recommendations
- Material: Use a strong filament. Minimum PETG is recommended, but Nylon or Carbon-reinforced filamentsare preferred for maximum strength and durability.
Design Features
- Utilizes several original components included with the AOS UL10 Cine V5 frame kit.

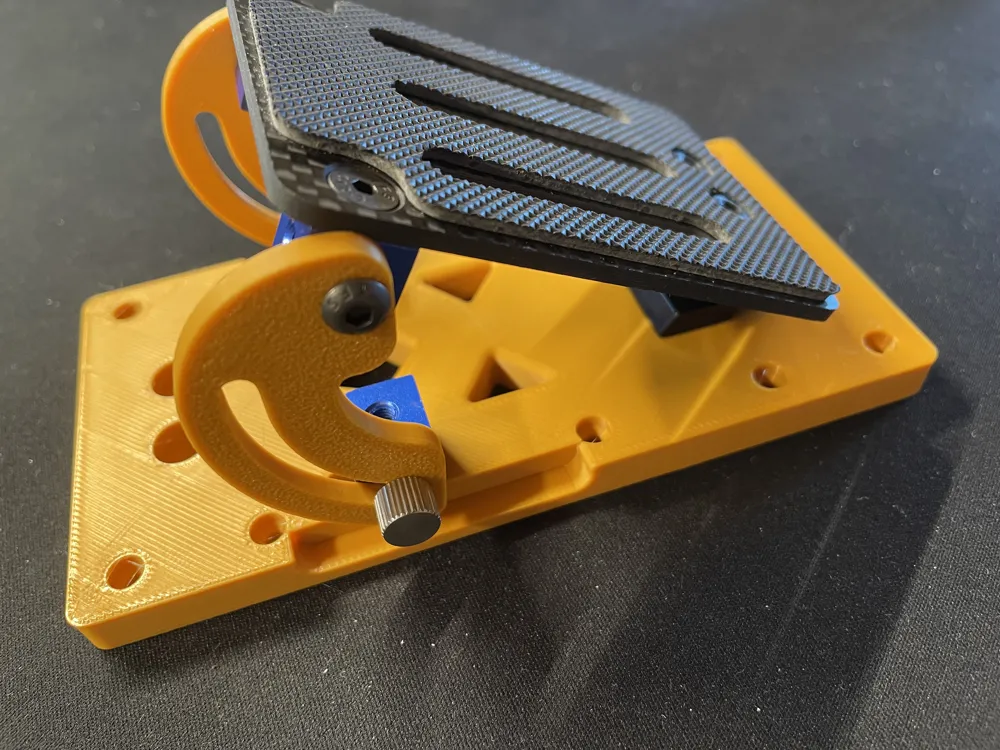

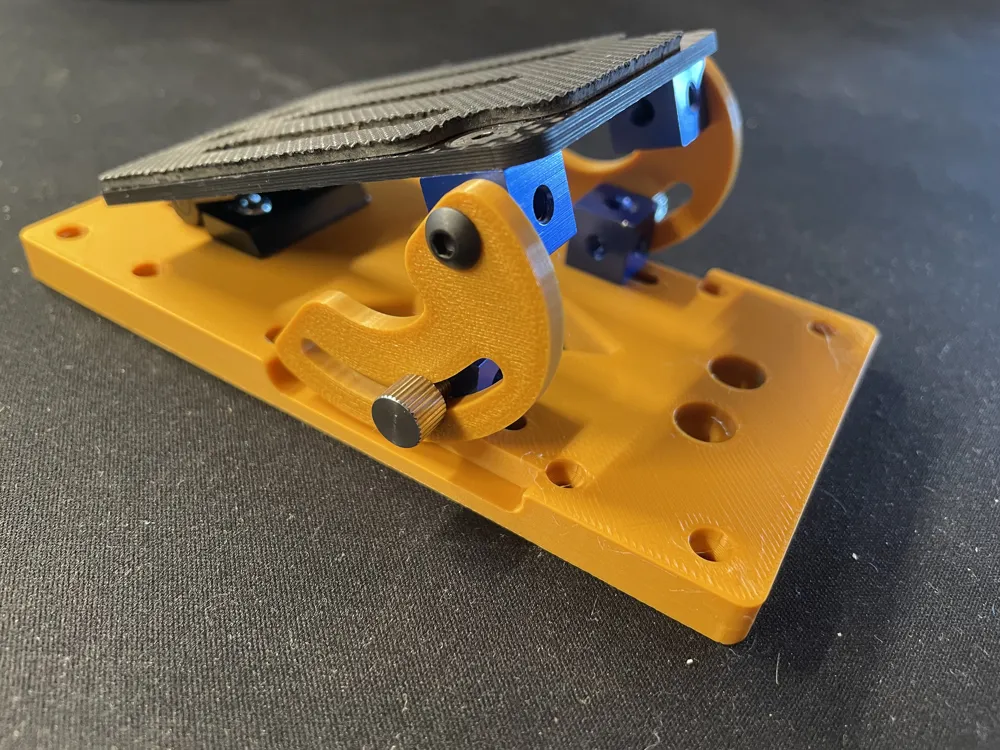

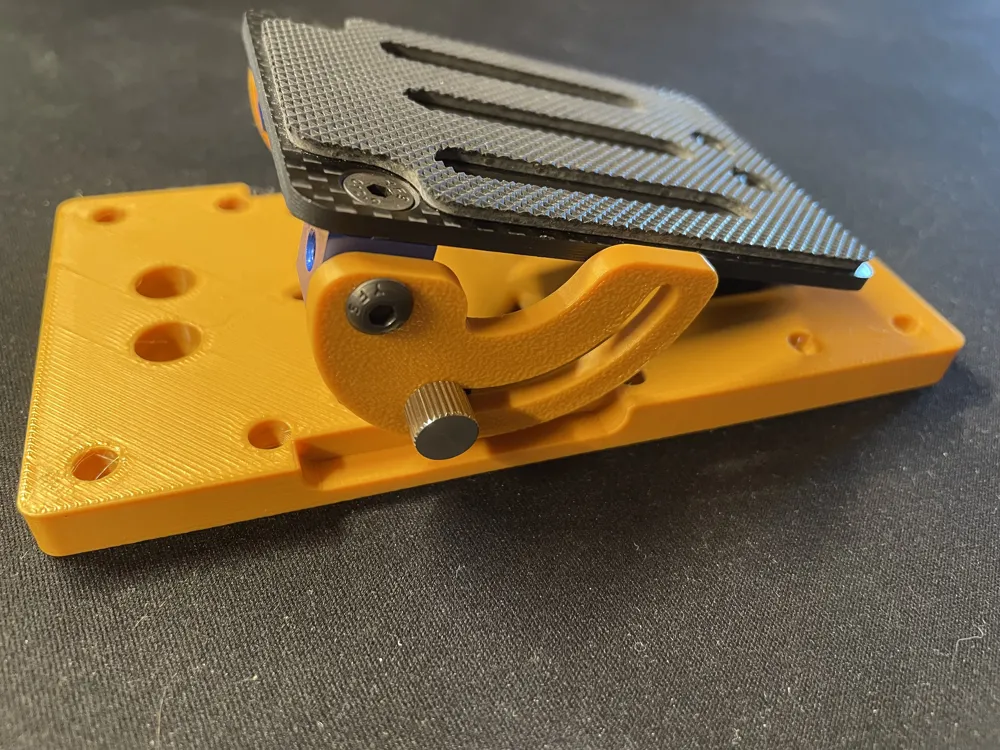

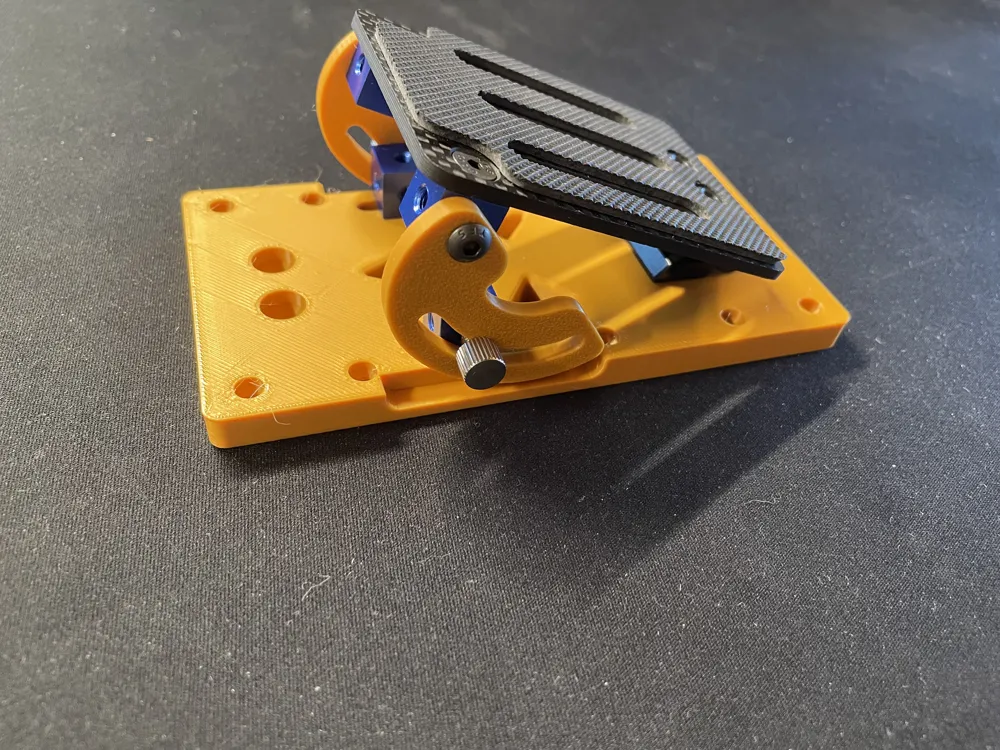

- Compatible with the carbon fiber camera plate, hinge system, and threaded cubes from the stock frame.

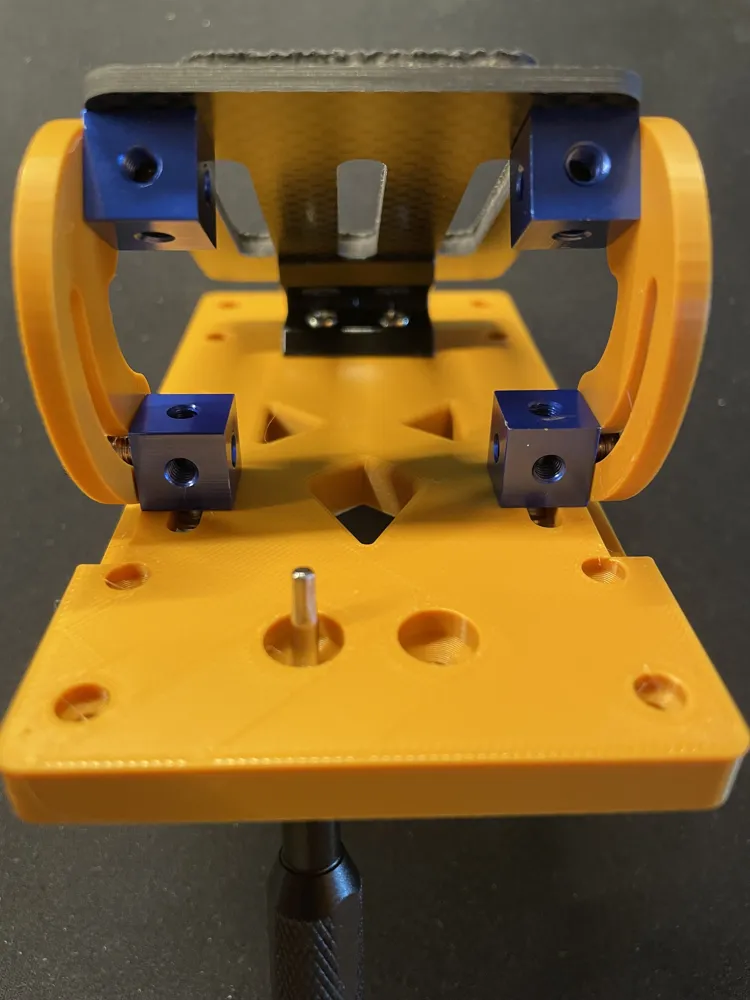

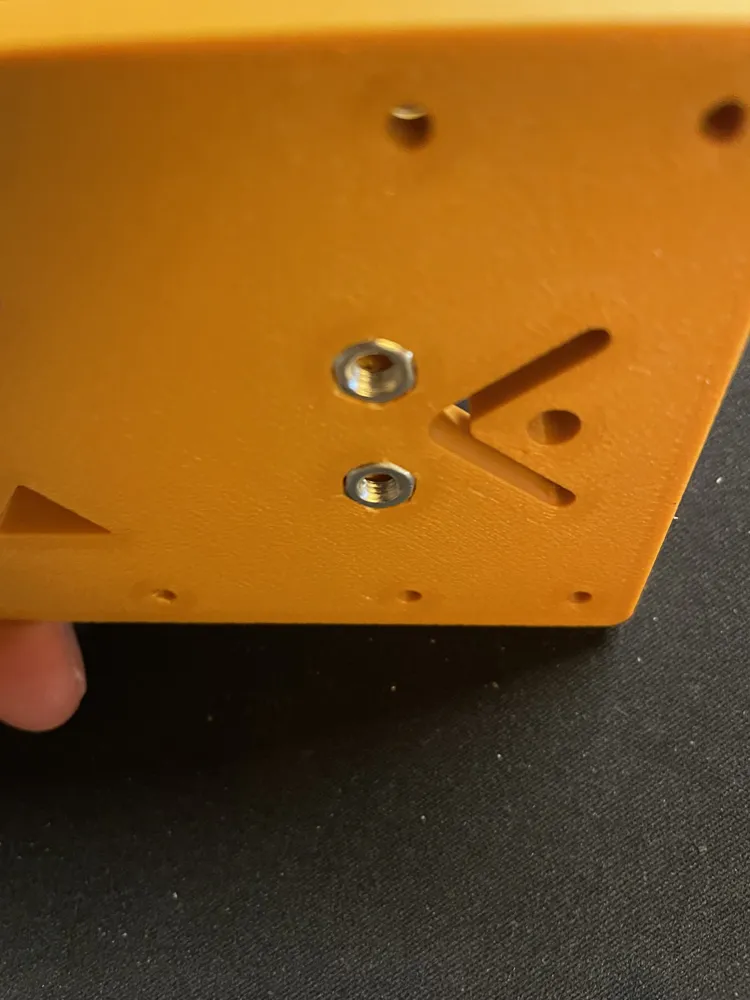

- The mount is designed to hold M4 hex-nuts directly inside the print. Simply insert the nut into the slot and pull it in place using an M4 screw with a washer. This creates a secure and durable fastening point.
Part List (additional to AOS frame kit)
- 4 × M4 hex-nuts
- 4 × M4 × 10mm screws
- (All other required hardware is included in the original AOS frame kit)

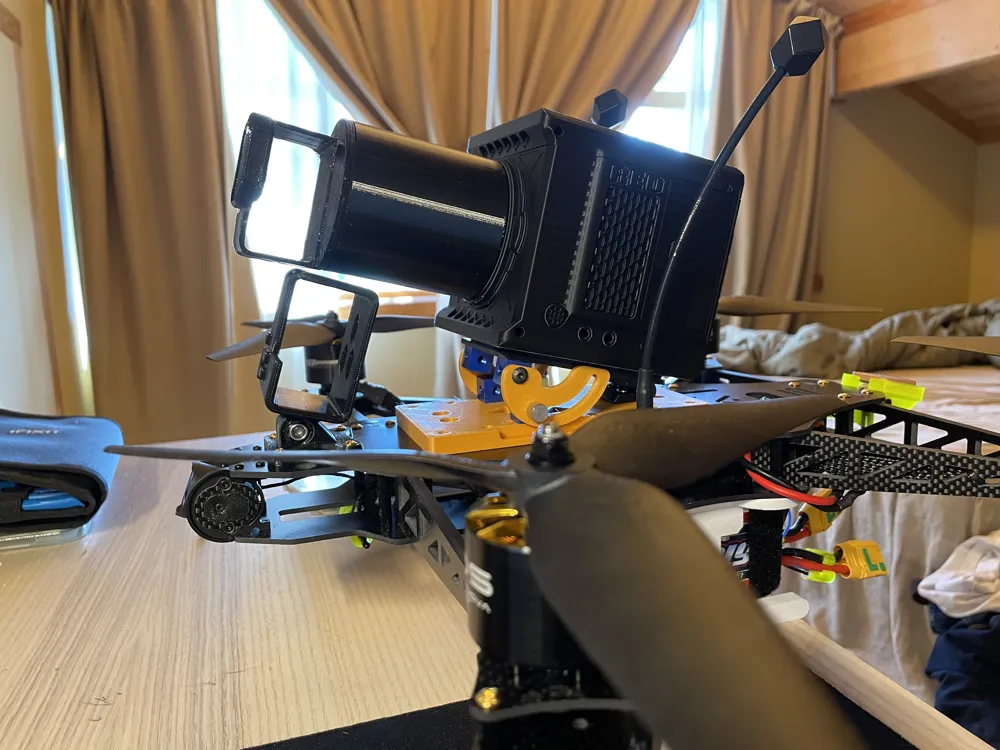

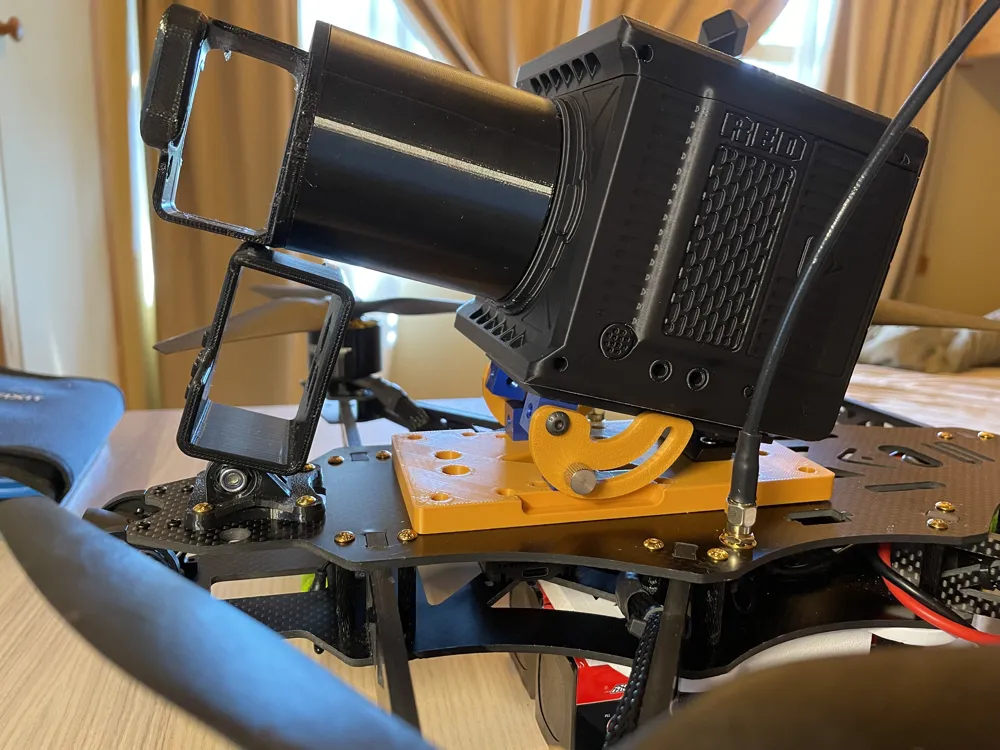

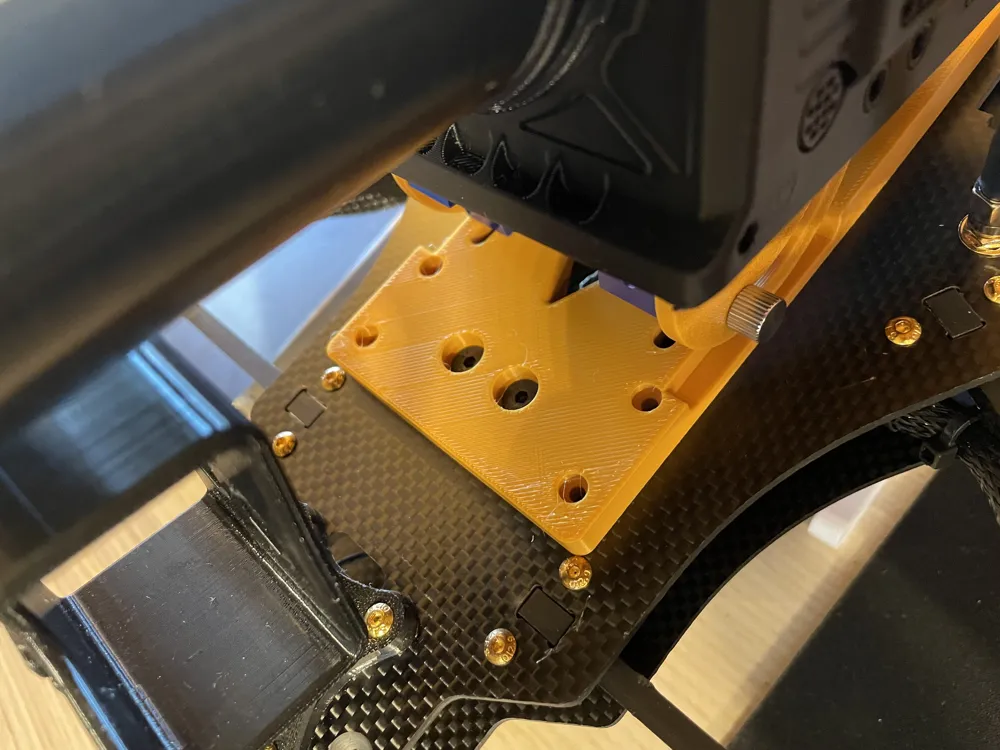

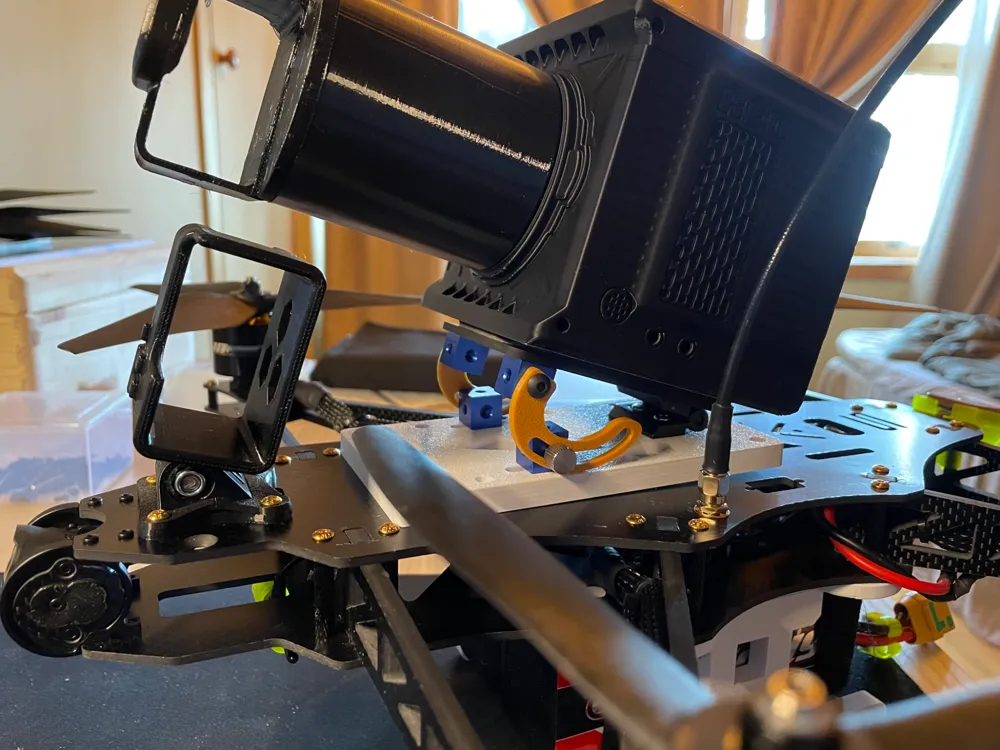

This mount allows a more solid and central camera installation, giving you stable footage while still keeping the build modular and serviceable.
