3-inch full-range speaker - bass reflex type
Print Profile(2)
Description

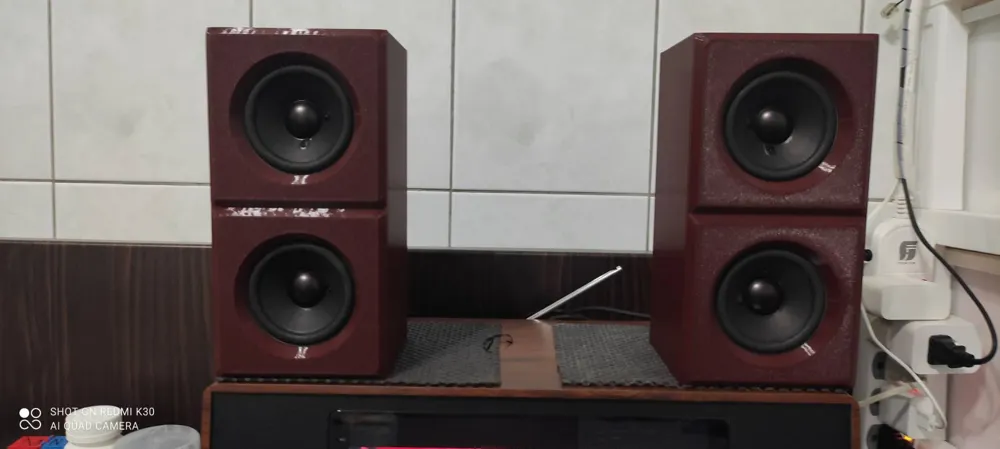

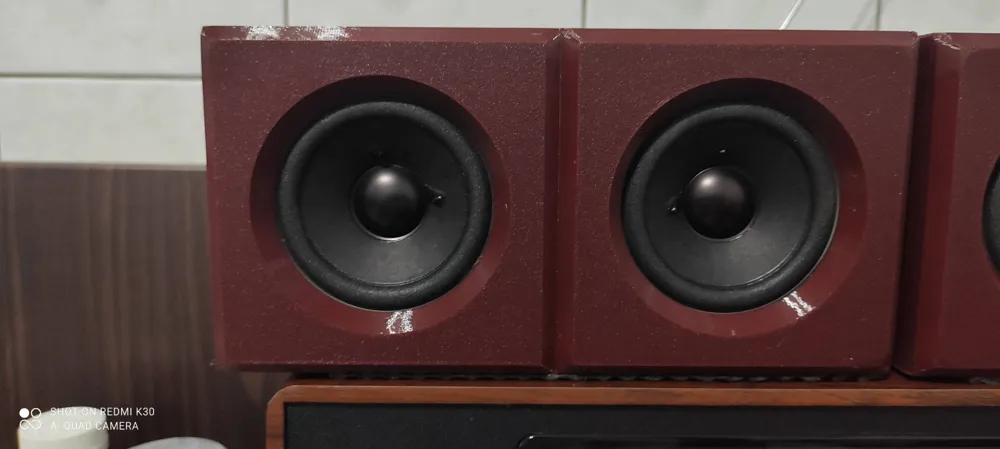

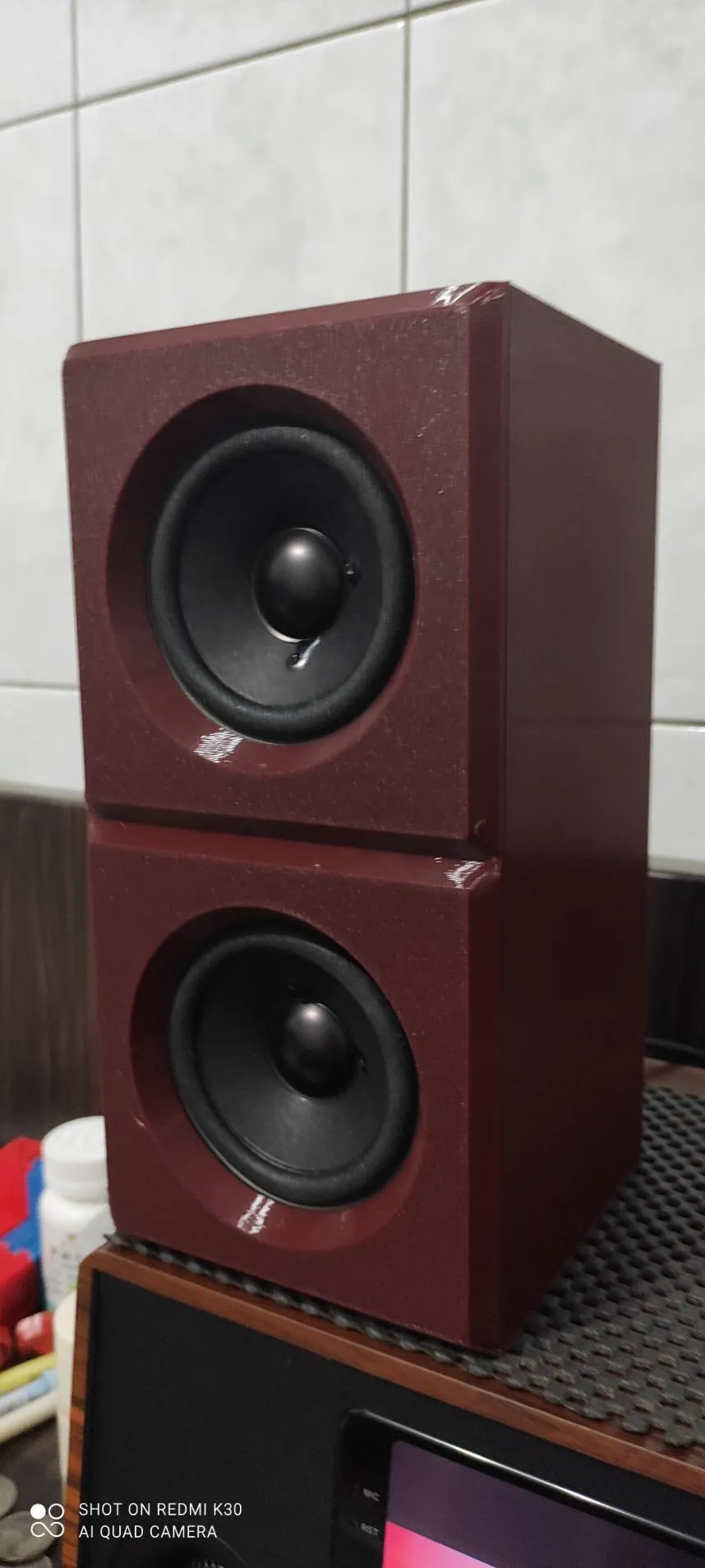

This is a 3-inch dual-driver bass-reflex passive speaker.

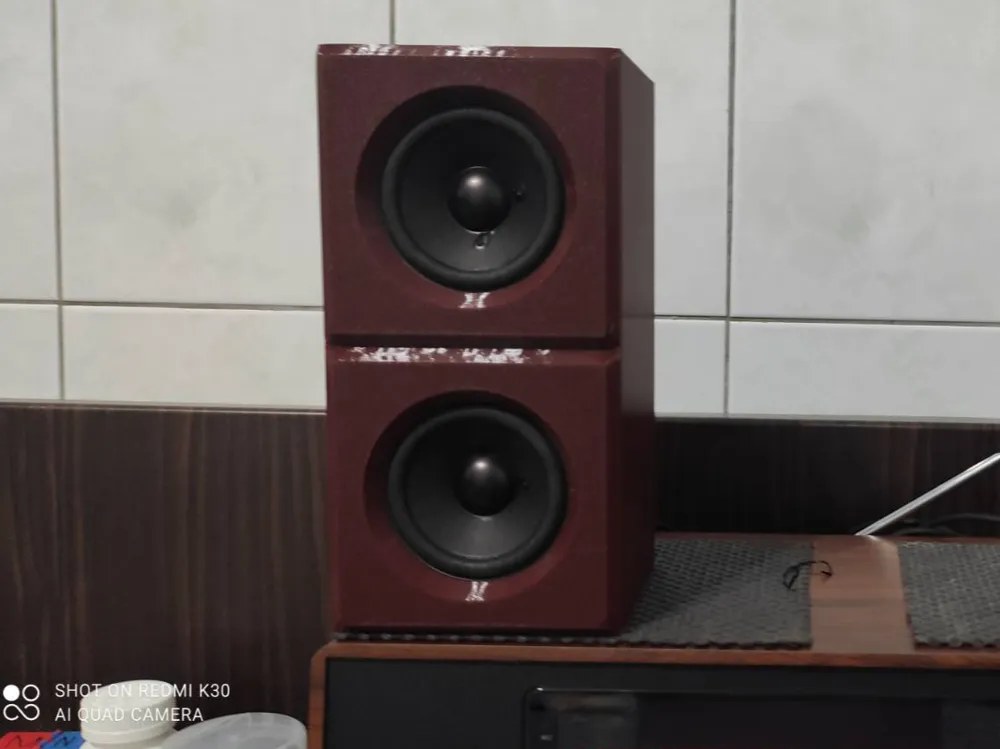

The speaker dimensions are width 110mm, height 220mm, depth 110mm,

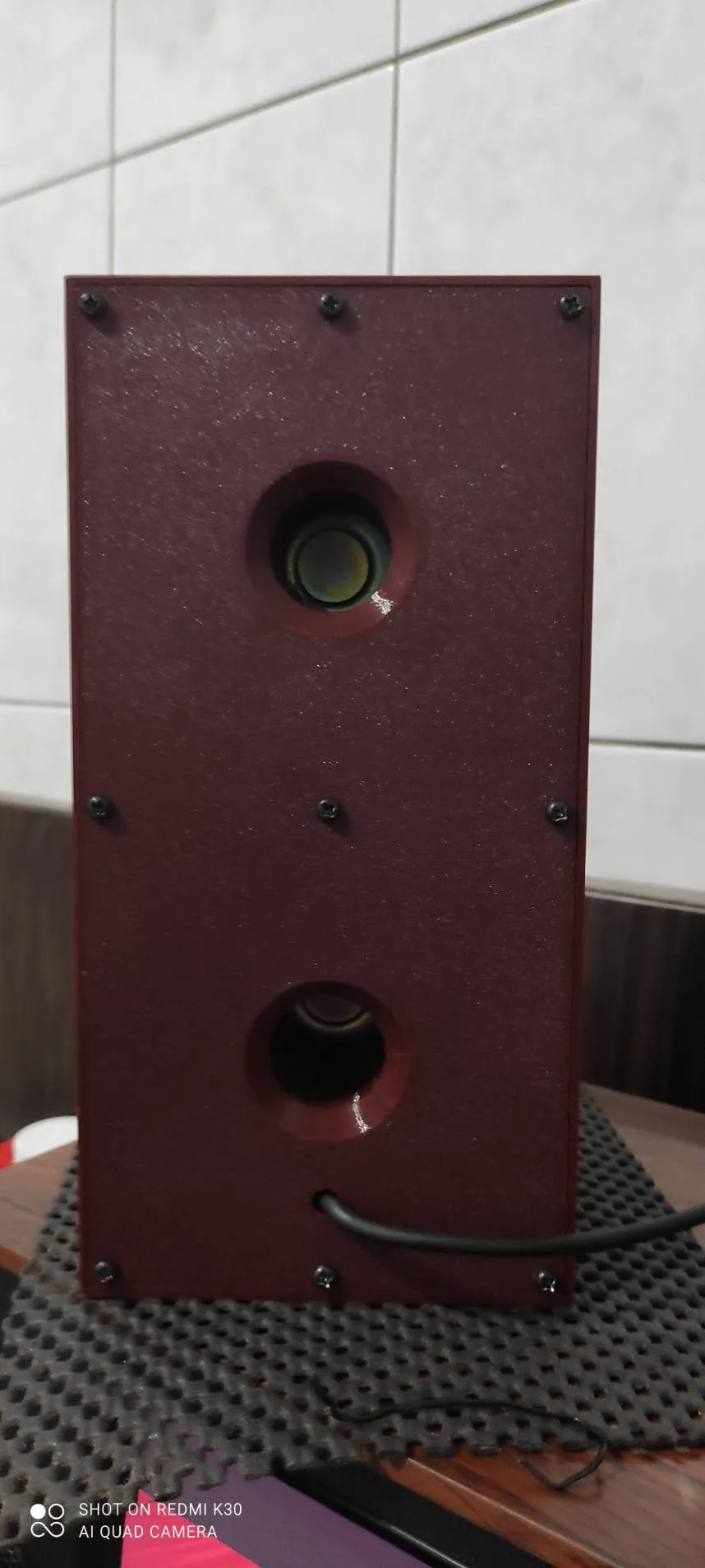

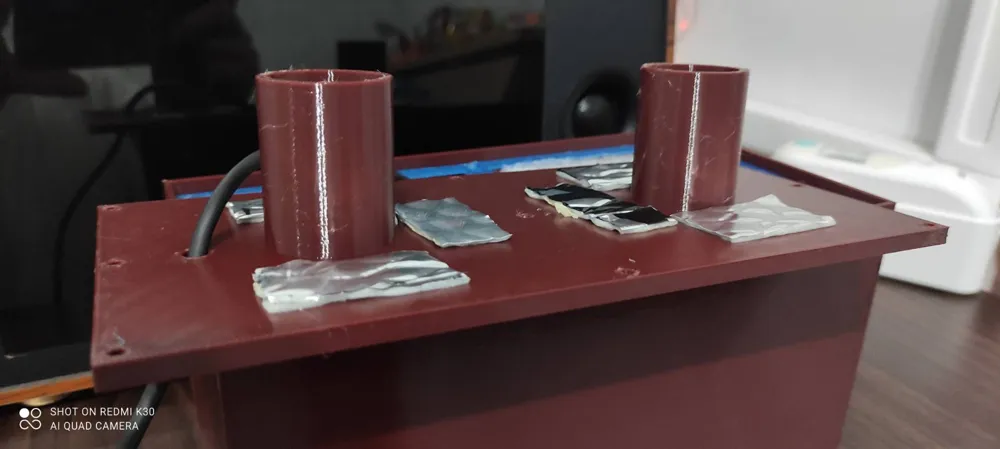

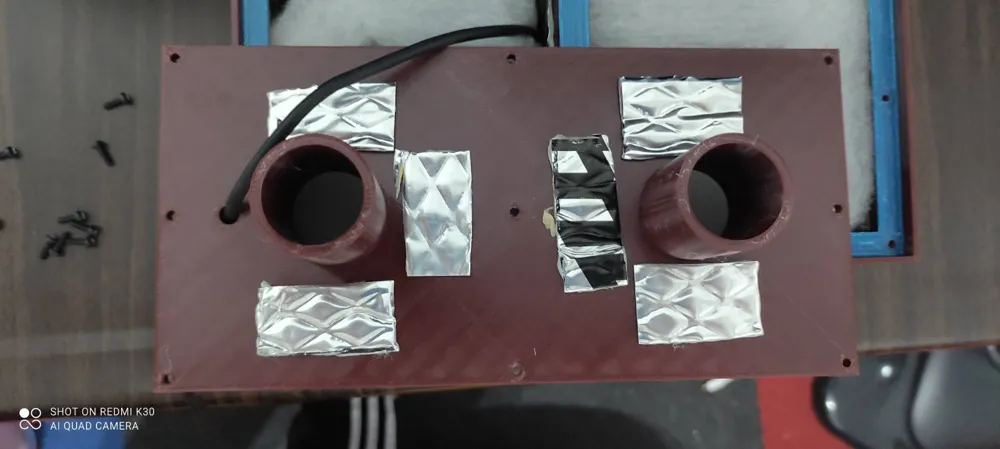

The bass reflex port diameter is 26mm, length 45mm,
The speaker cutout is 70mm, and the diagonal screw hole distance is 83mm,
Please use fixing screws with a diameter of 2.5mm-3mm
The 3-inch driver height cannot exceed 52mm

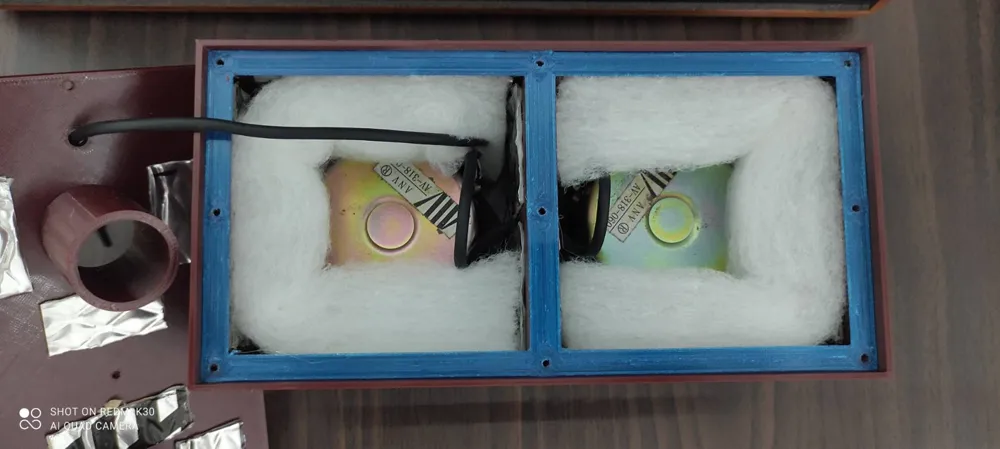

The speaker has 2 independent chambers, so the installed drivers will be less likely to affect each other.
