Squirrel feeding bench for the garden

Squirrel feeding bench for the garden

Description:

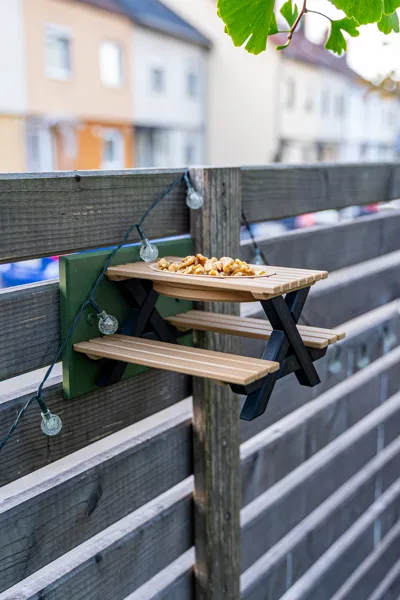

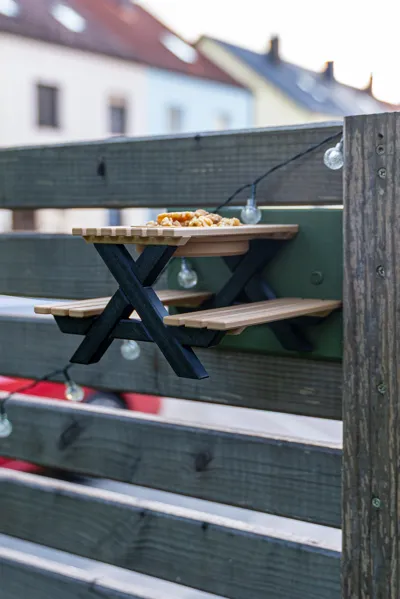

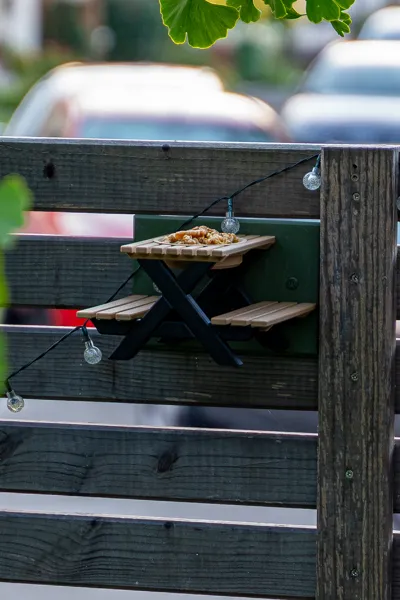

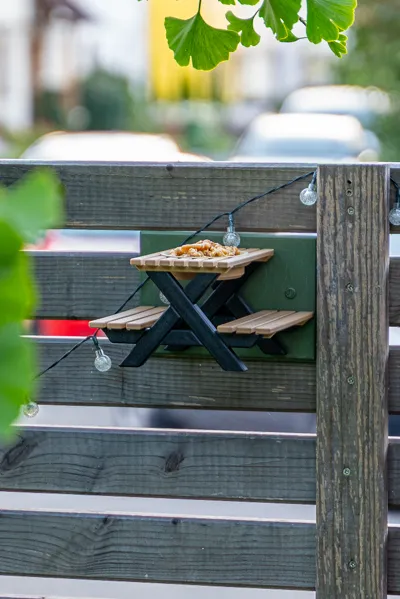

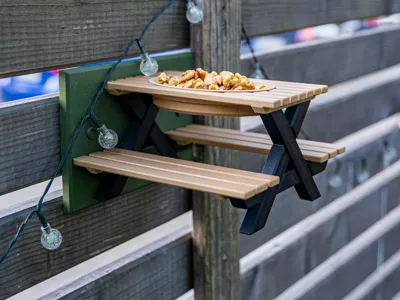

This 3D printable feeding station is a small garden bench with a table and bowl for nuts or other treats. Perfect for squirrels to refuel after a long day.

All parts can be printed individually (e.g., 0.2mm layer, 10% infill, 2 walls) and, if desired, designed in multiple colors – even without a multi-color printer. I printed them in PLA; PETG or other materials are also possible.

Assembly Instructions (Step by Step):

1. Preparation
   – Check that the plug connections (nubs/adjustment pins) are free of filament residues.
2. Assemble table frame
   – First, position the two table legs crosswise.
   – Glue the first bench on one side. Make sure the overhang of the bench points outwards.
3. Attach second bench
   – Now attach the second bench on the other side.
   – Check that both benches are at the same height and symmetrical.
   – Tip: The side with the adjustment pin belongs where there is no overhang.
4. Mount tabletop
   – Insert the tabletop into the legs with the designated plug pins.
   – Here, too, the overhang should be on the opposite side of the adjustment pins.
   – additionally glue to obtain a stable connection.
5. Insert bowl
   – The designated recess in the center of the table accommodates a small bowl for nuts or feed. Simply insert it.

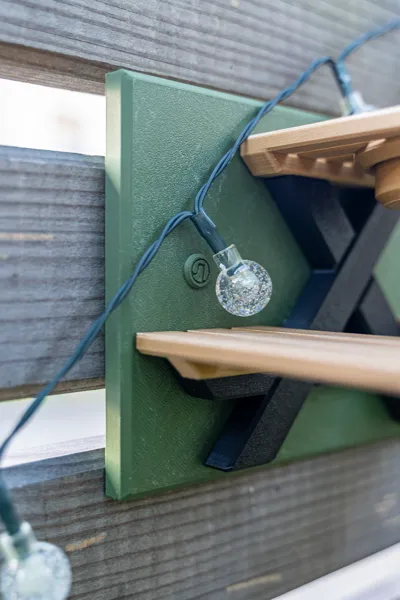

6. Attach base plate
   – The finished bench-table element is glued or plugged onto the base plate.
   – Then attach the base plate with screws to the fence, tree, or a wall.
   – Cover caps for the screws are provided to ensure a clean look.

The small squirrel feeding station is ready! 🐿️
