Description
Content has been automatically translated.
Please change the print profile yourself!!! If you don't know how to change it or can't change it well, please learn and practice more, thank you.

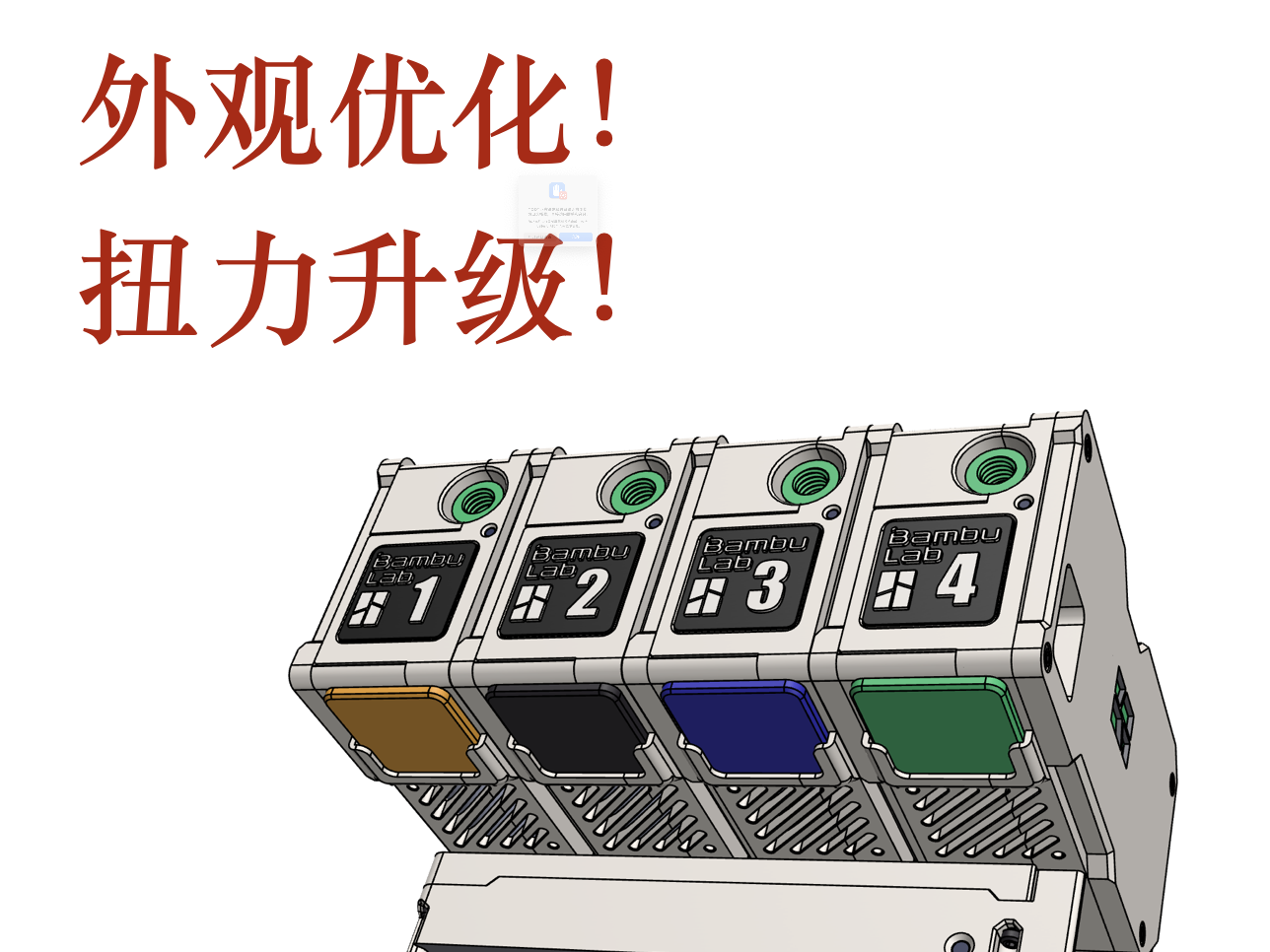

In this dual micro bmcu, 20122a and 242a gears are used to achieve greater transmission force.
A grease filling port has been added at the worm gear, allowing grease to be added without disassembly.

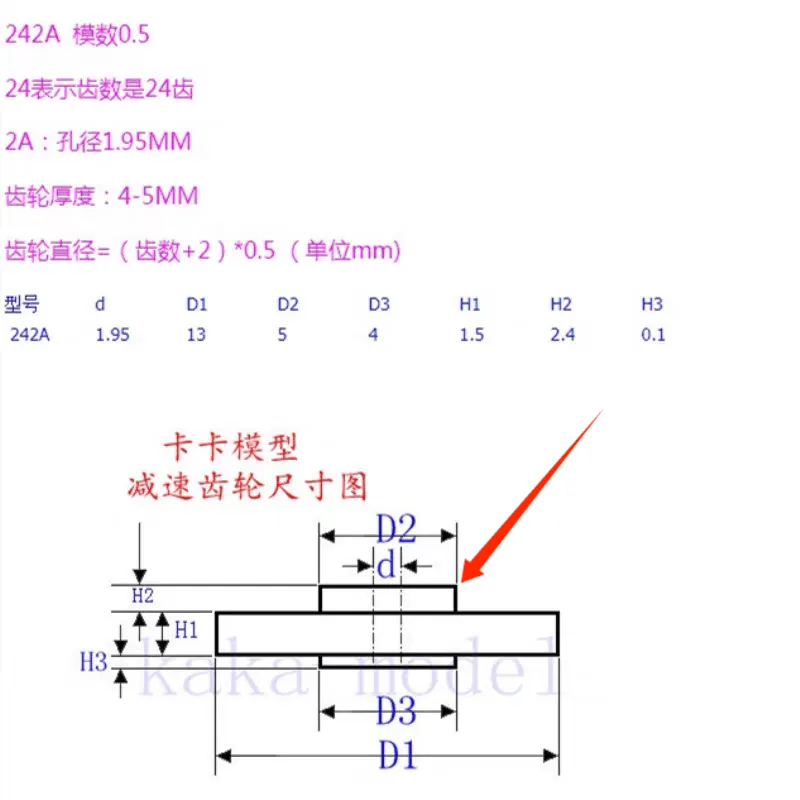

Please be sure to use the thickened version of 242a gear

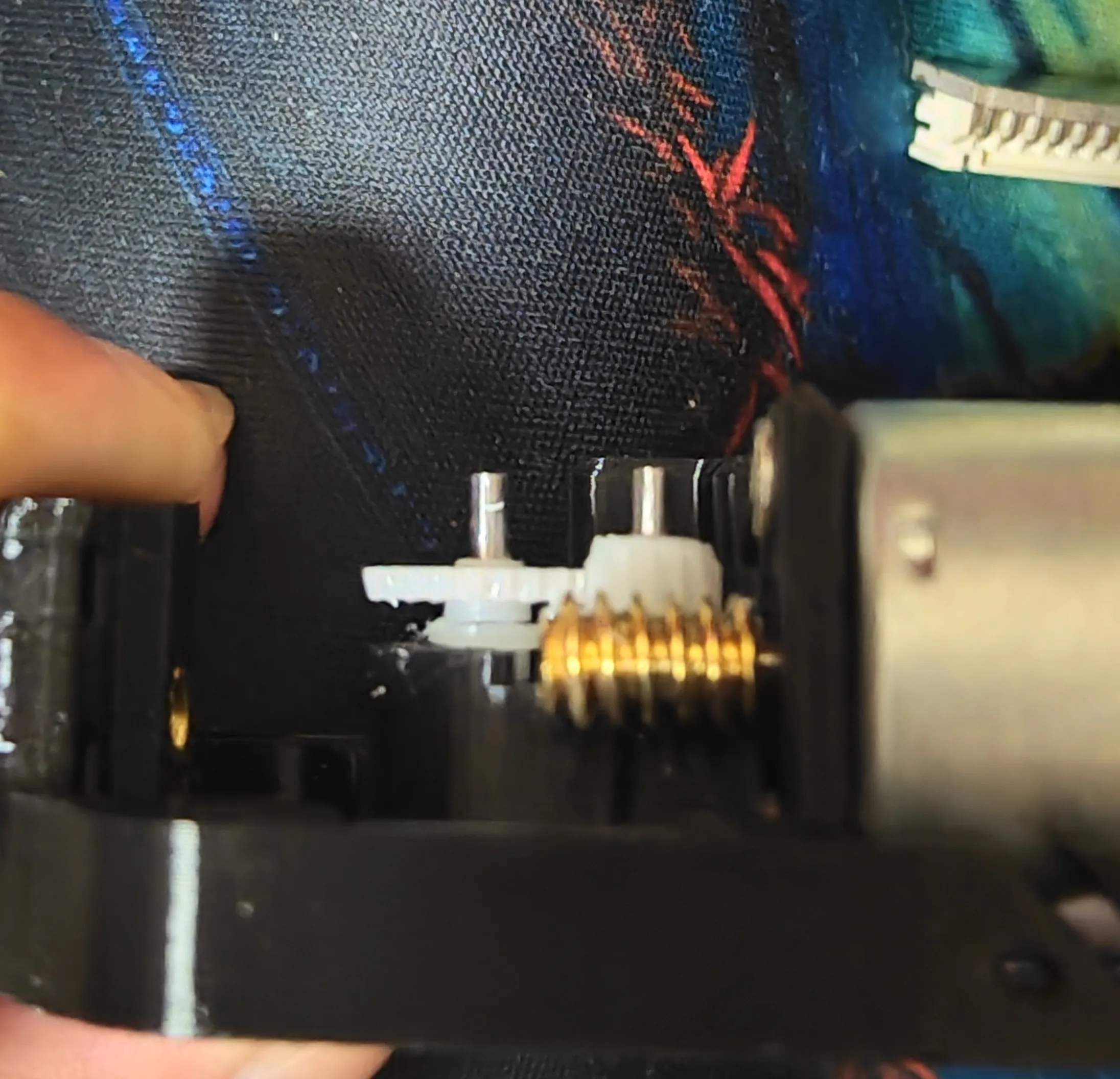

The gears should be arranged as shown in the figure below
If using the regular version of 242a gear, please place D2 (arrow pointing) facing up as shown in the figure below (It would be even better to add a 2-4-1 nylon washer on top of D2)
Otherwise, the gears will abnormally wear due to high torque (as shown in the figure below)
