Masking Tape Soft Edge Tool

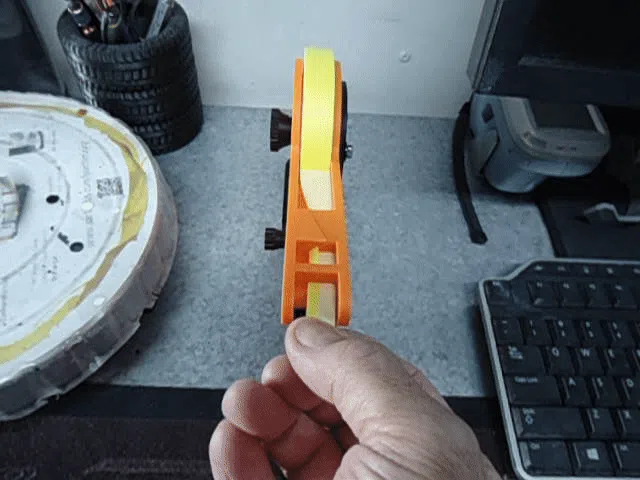

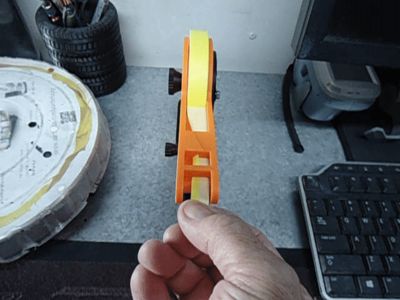

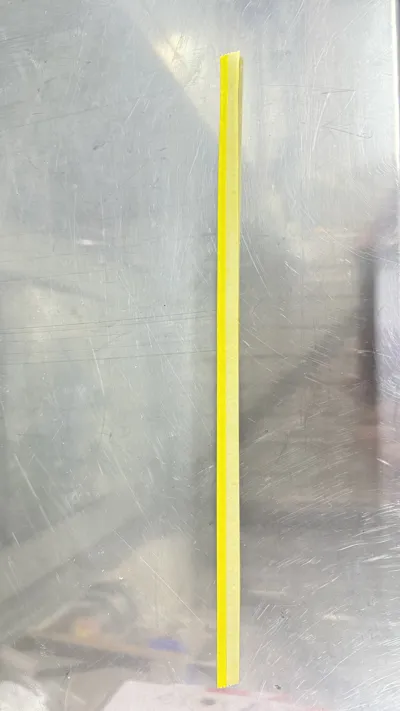

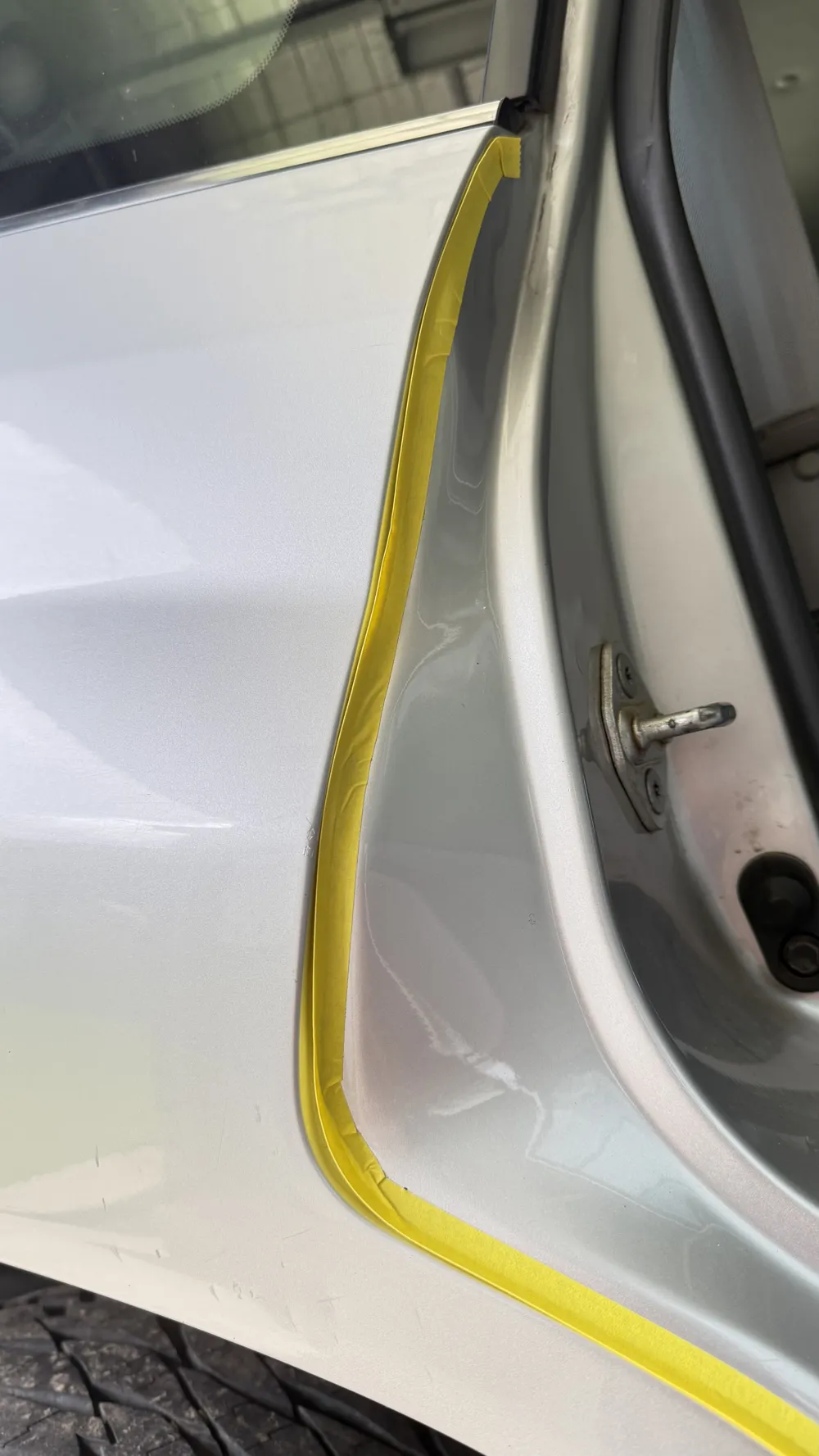

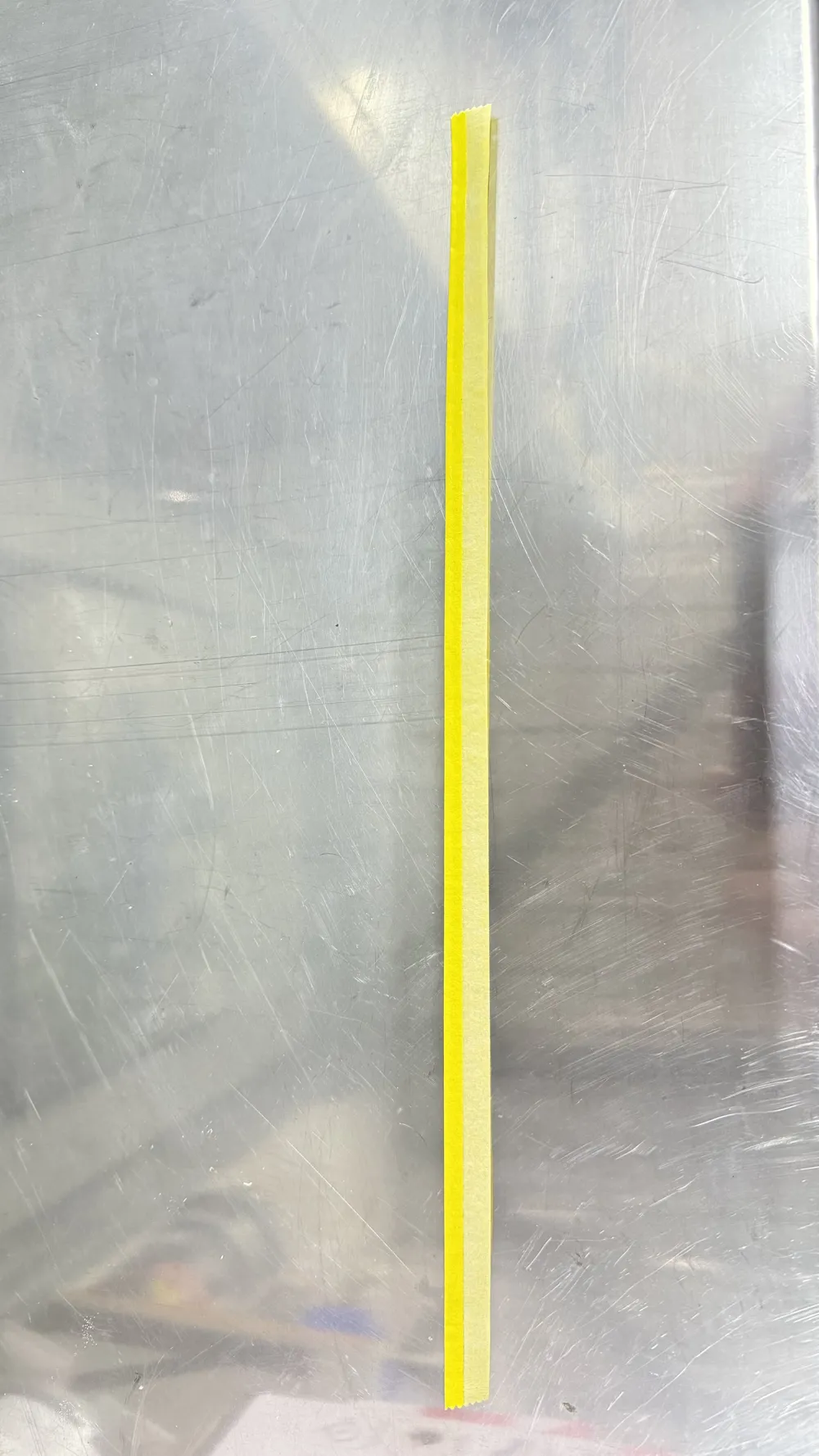

This tool is designed to fit a roll of 18mm masking tape and transforms the tape into a soft edge used in the automotive spray painting industry. I've tested multiple brands of marking tape, and all worked good in the tool.

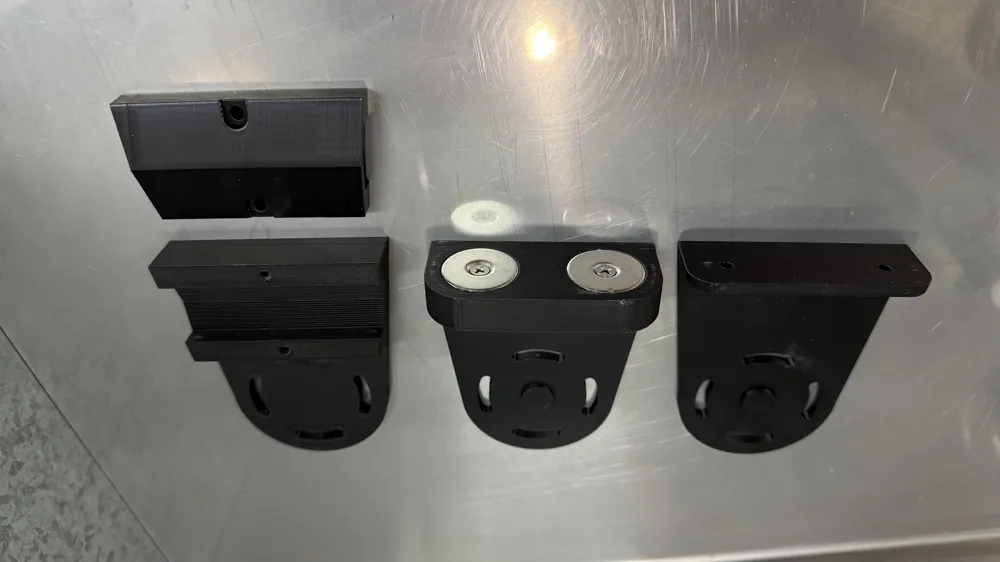

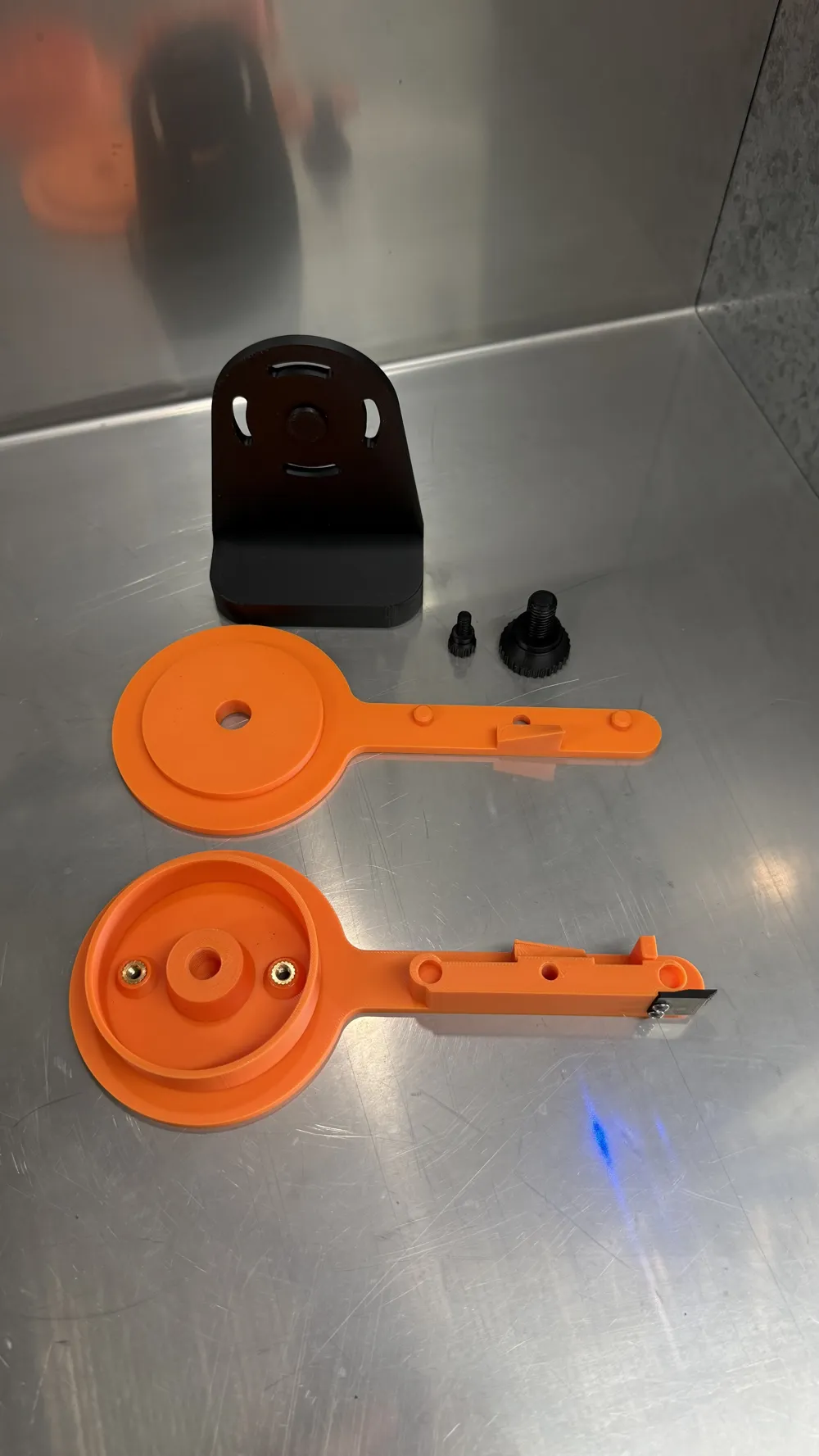

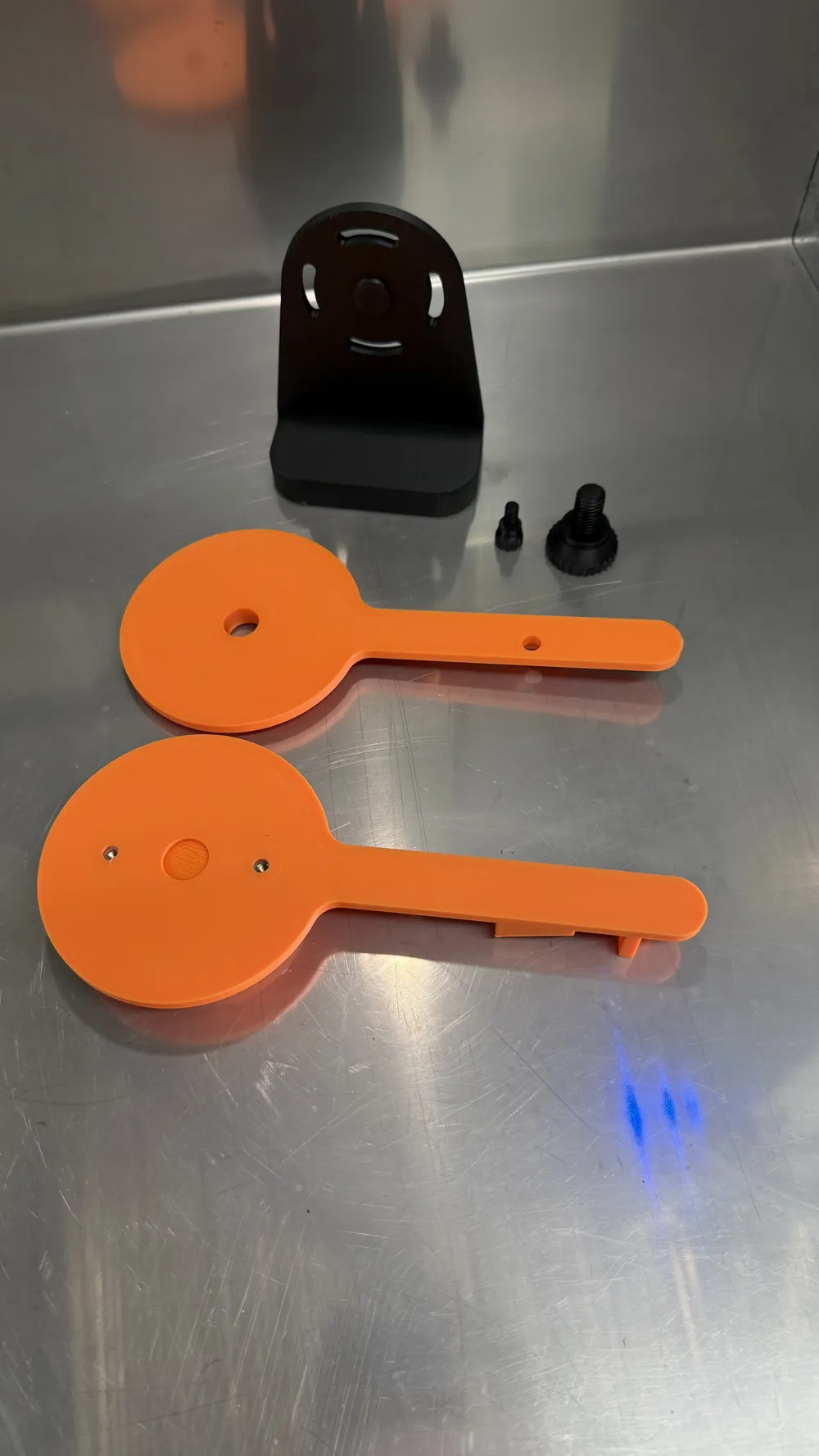

There are three mounting brackets to choose from, screw down, magnetic or clamp on and a handy removable cutter.

The screw down will simply screw onto a surface using metal or wood screws.

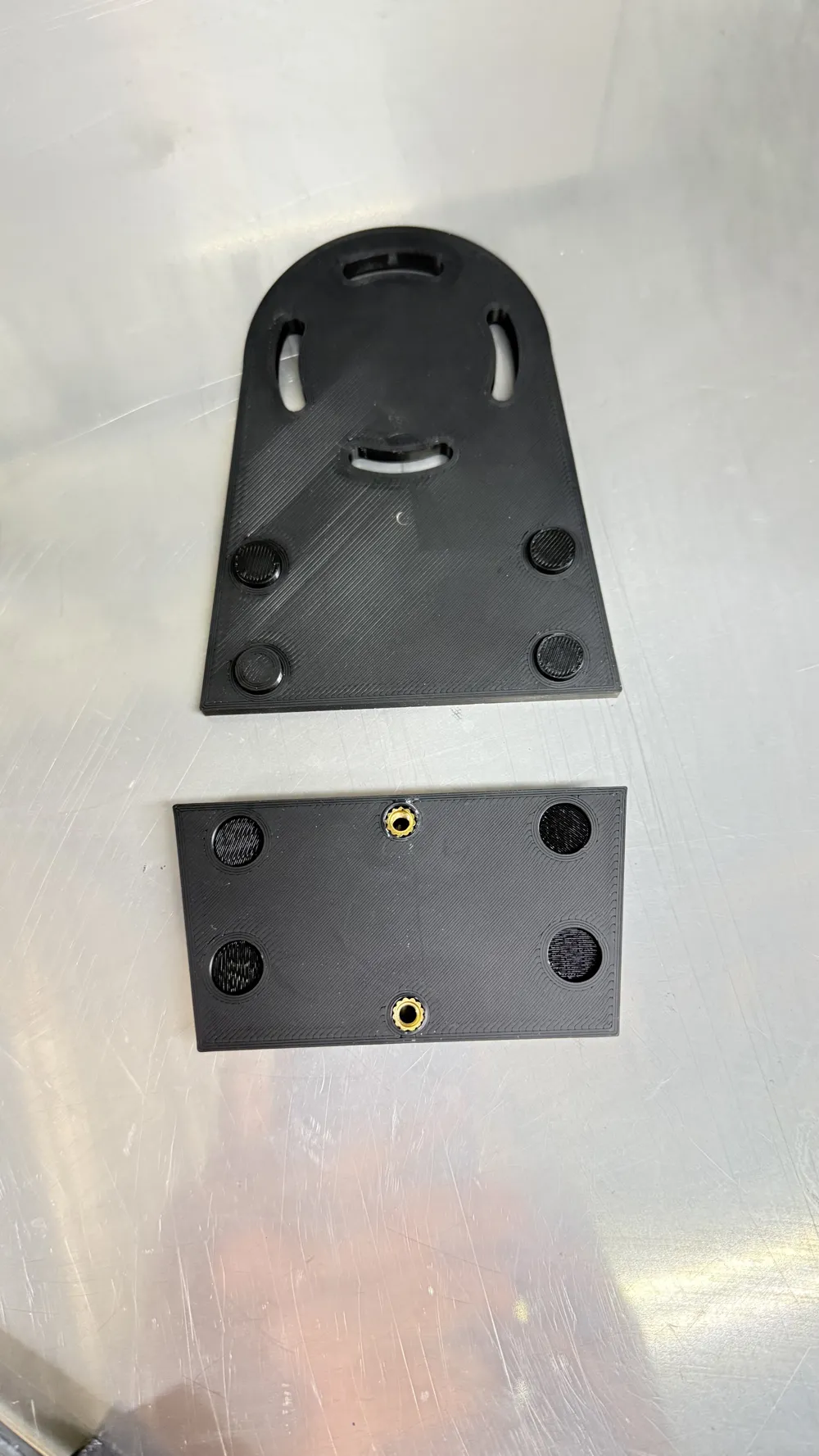

The magnetic uses screw in 30mm x 5mm magnets, held in place with countersunk screw.

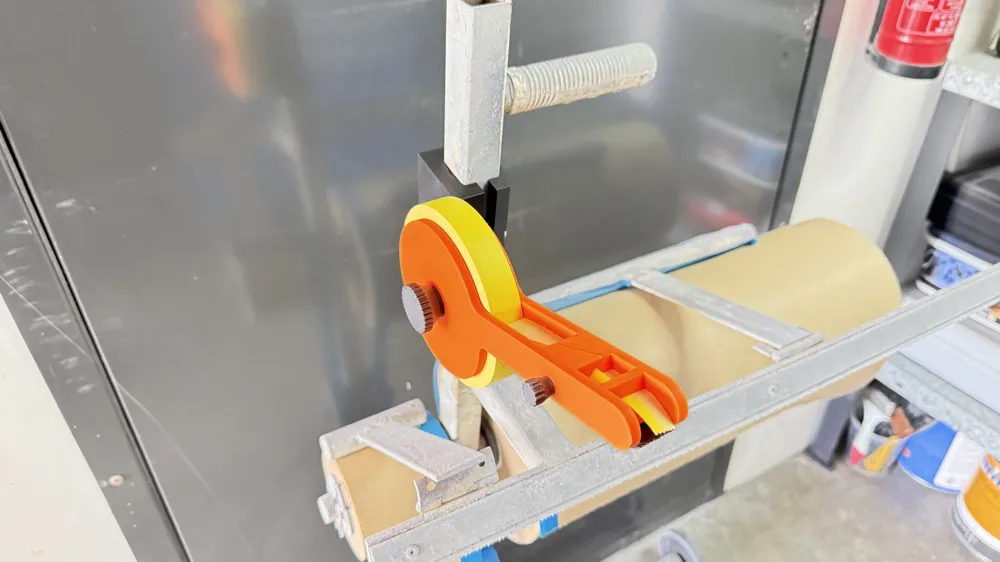

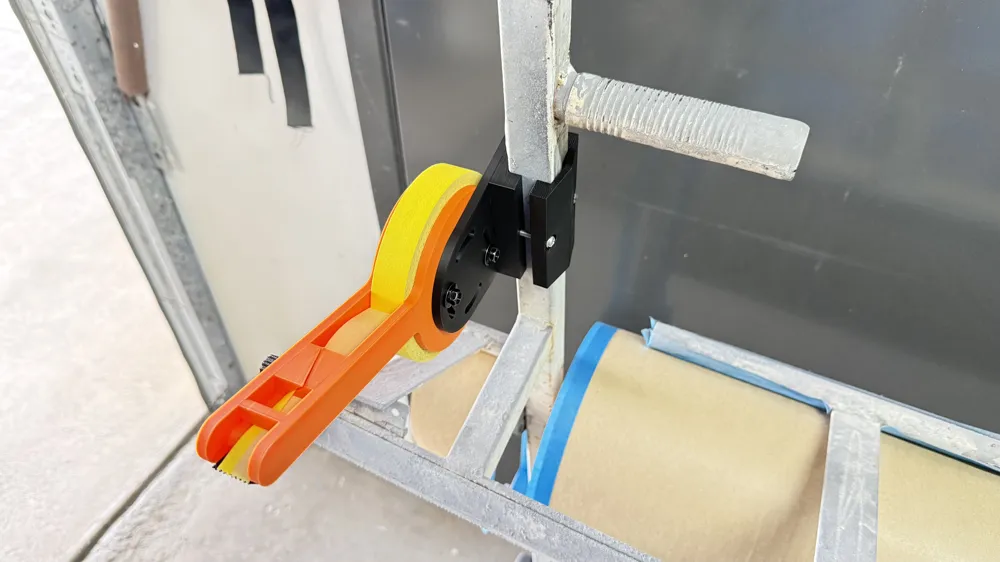

The clamp on requires two m4 heat nut inserts then two m4 screws, clamping size is 25mm square or round tube.

You will need two m5 heat inserts that get fitted from the inside of the tool to hold the brackets on

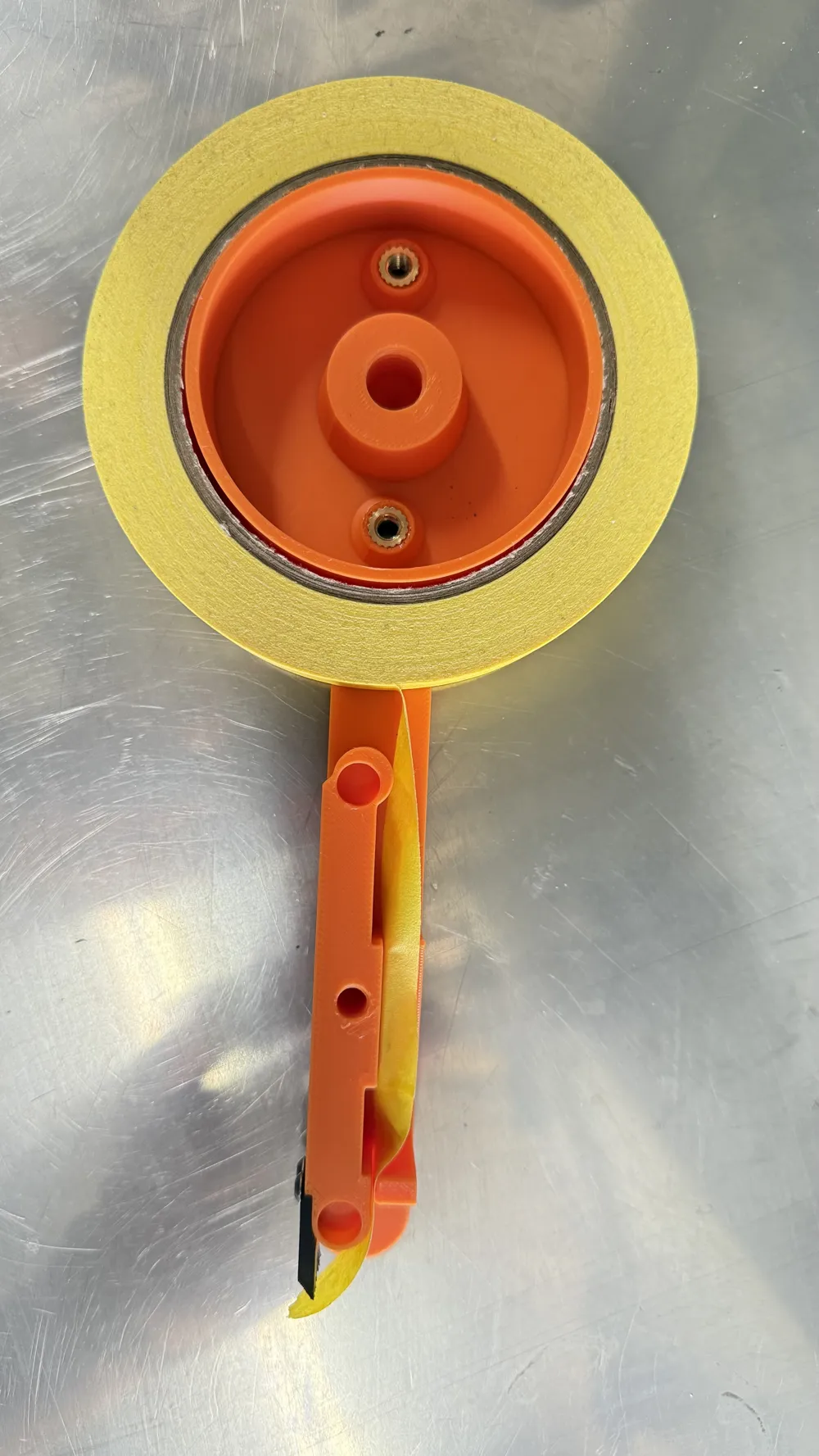

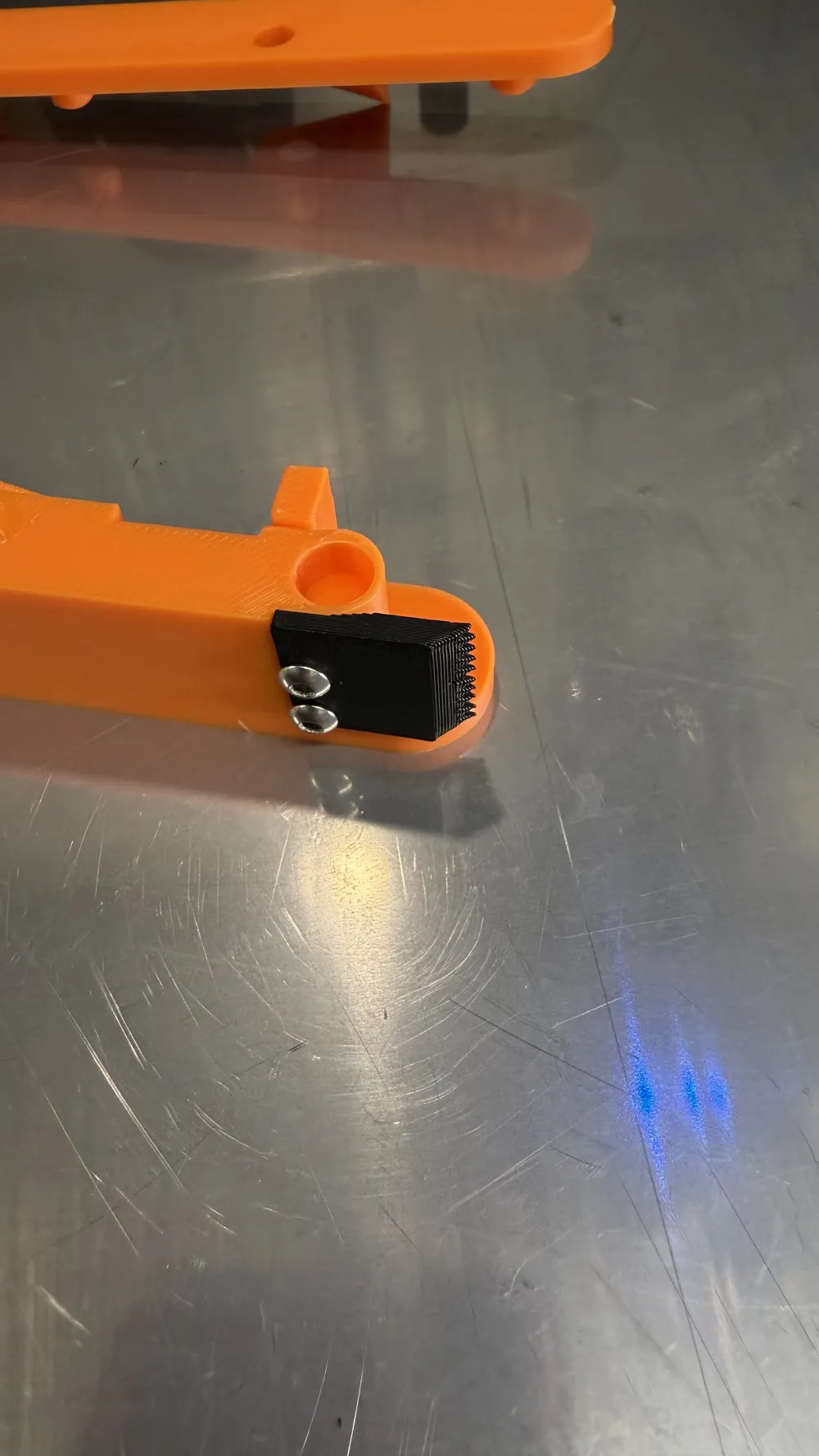

plus, two m3 heat inserts fitted into the tool to hold the cutter on, I used m3 x 7mm screws for this.

All brackets are adjustable to suit various mounting positions.
