Project Overview
Magnetic connectors are components that achieve quick connection and separation through magnetic force, becoming popular accessories for electronic devices due to "convenience, safety, and durability"
They use the magnetic force of built-in magnets to precisely align male and female connectors, completing current or signal transmission. Compared to traditional plug-in types, they do not require tedious alignment and are suitable for confined spaces or blind operation scenarios
The advantages of using them are significant: first, they prevent incorrect insertion and damage, avoiding wear and tear on interfaces from forceful plugging and unplugging; second, they prevent accidental disconnection, as the adsorption is stable and they automatically separate when pulled by external force; third, they are convenient and efficient, requiring less effort for frequent plugging and unplugging
Currently, they are widely used in fields such as consumer electronics, industrial equipment, and drones, such as charging ports for FPV drones and laptop power connectors, providing flexible and reliable solutions for device connections
Bill of Materials
- Round magnet 6x2 Quantity to be determined according to the drawings below

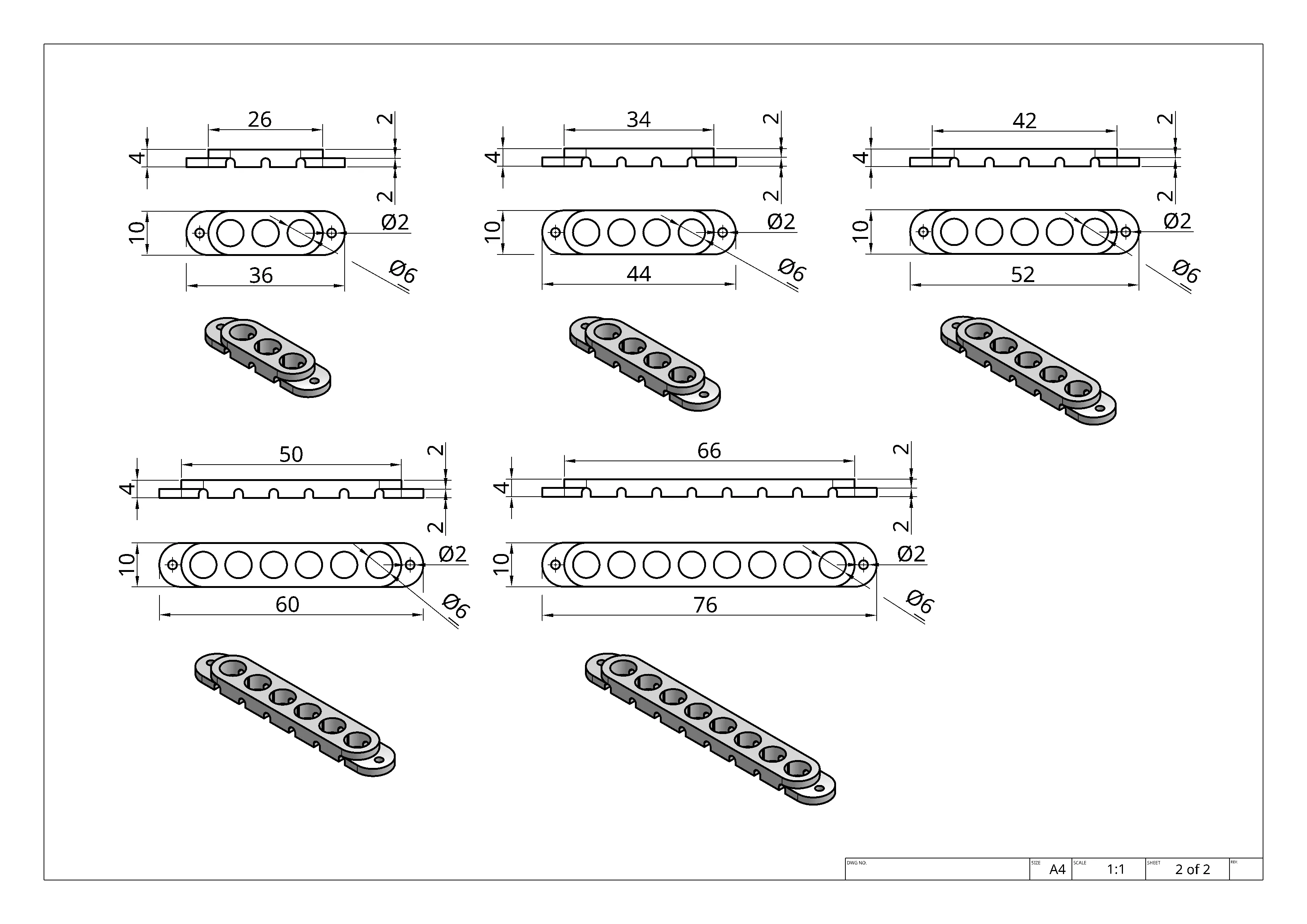

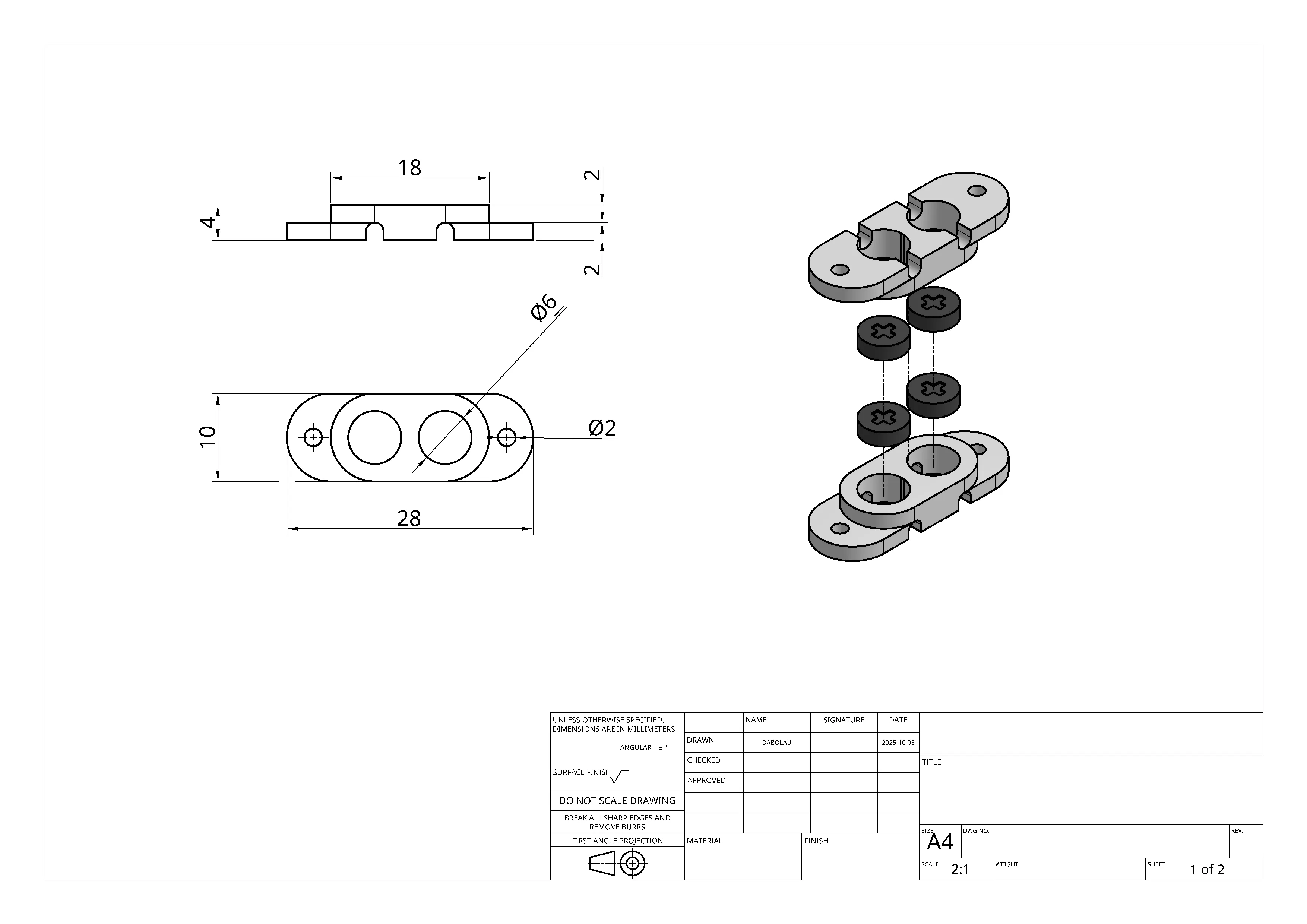

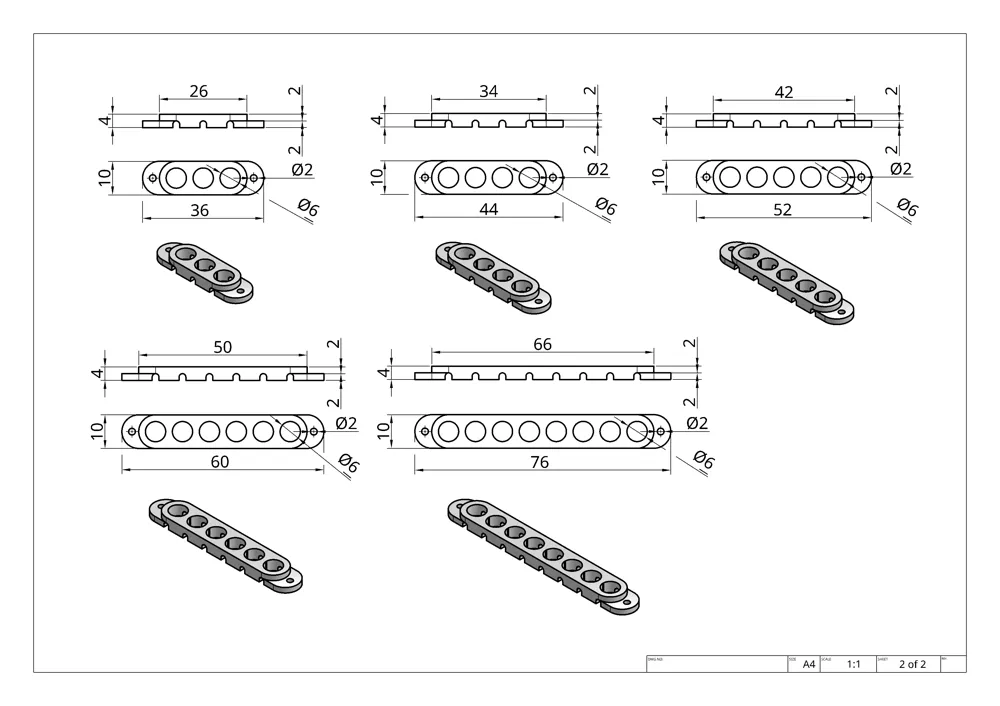

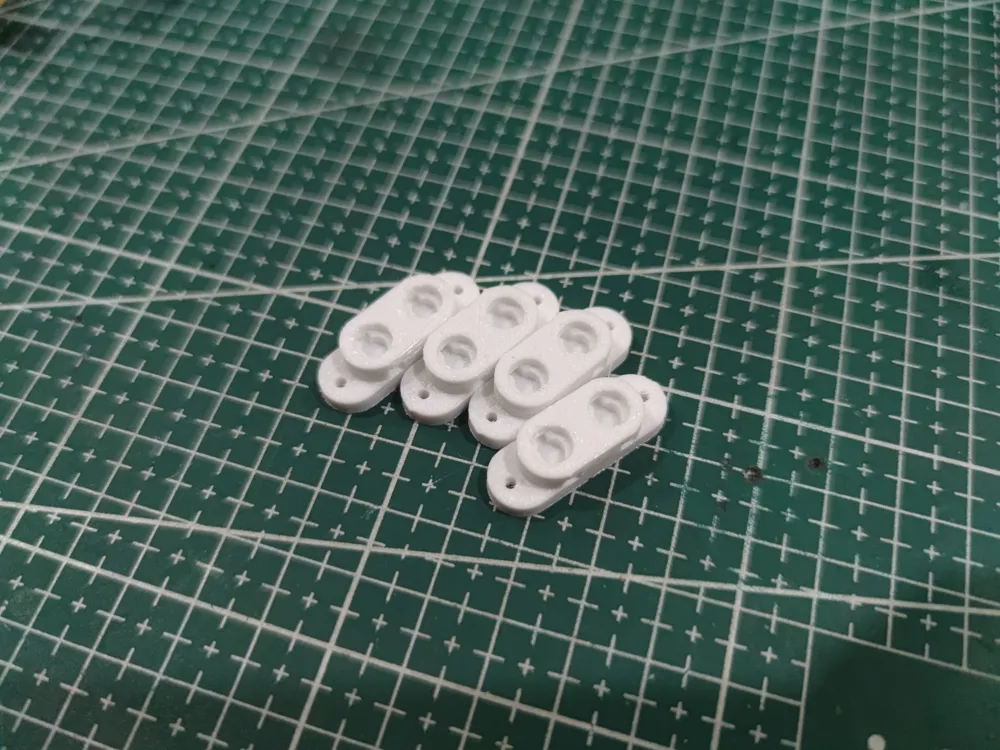

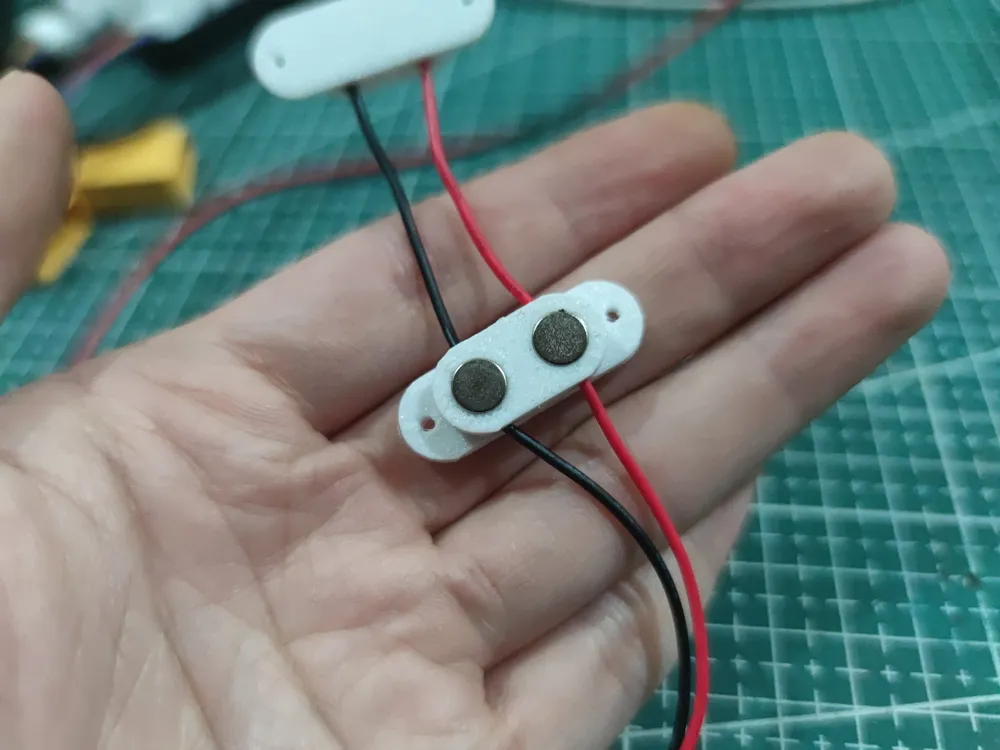

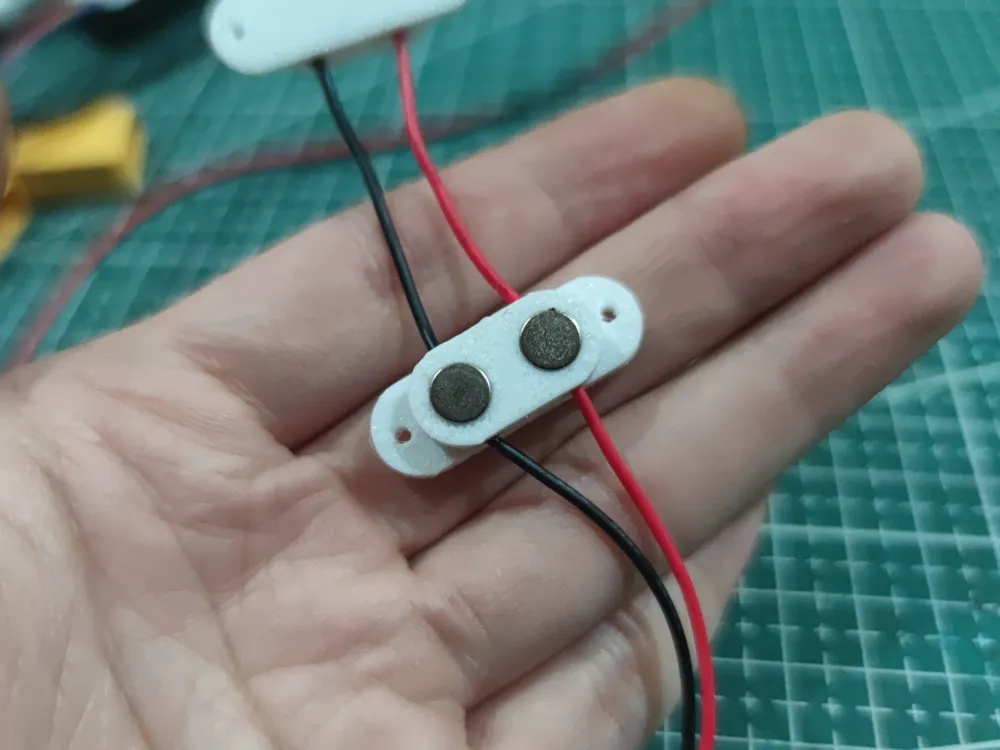

MagneticConnectorV1

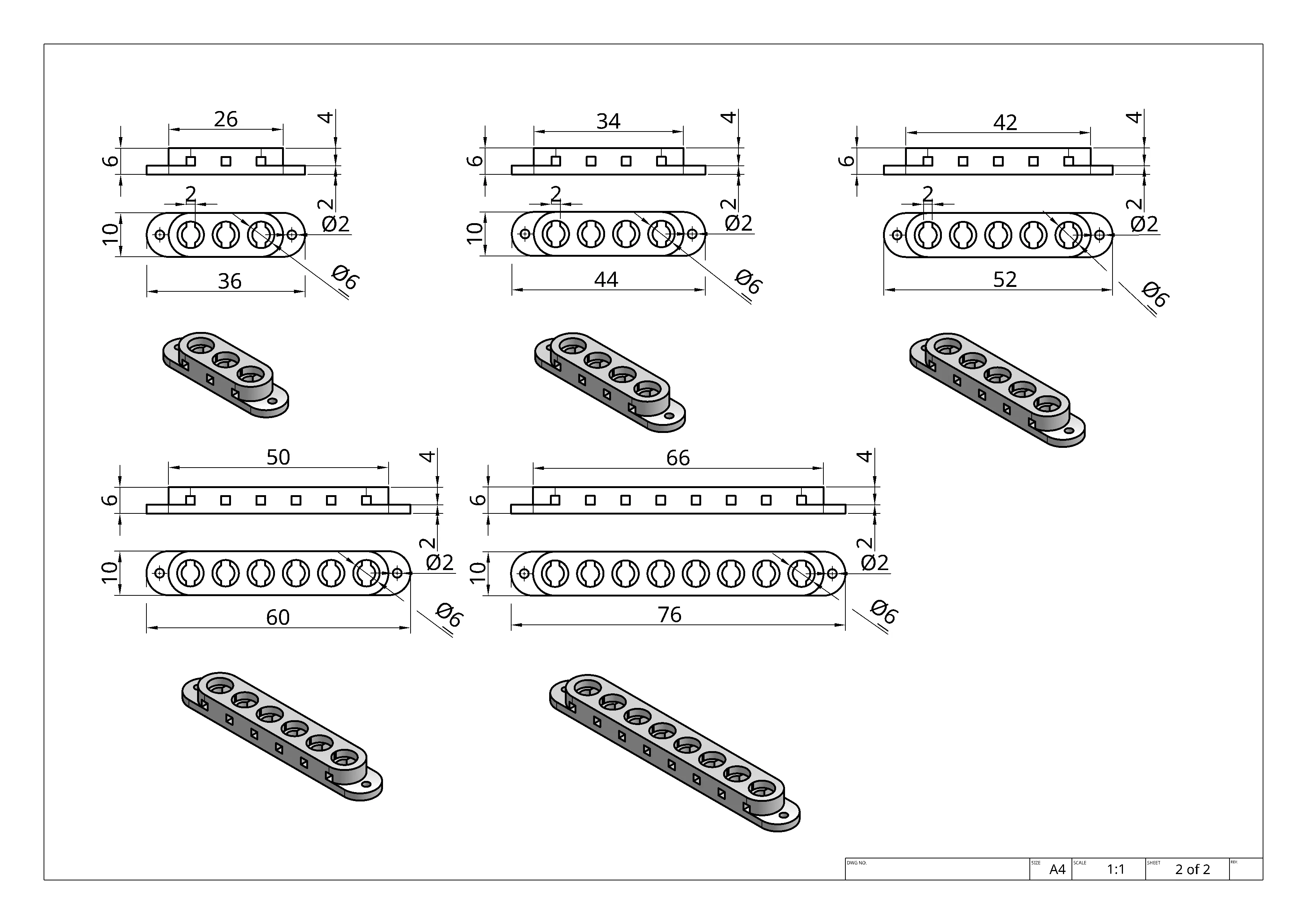

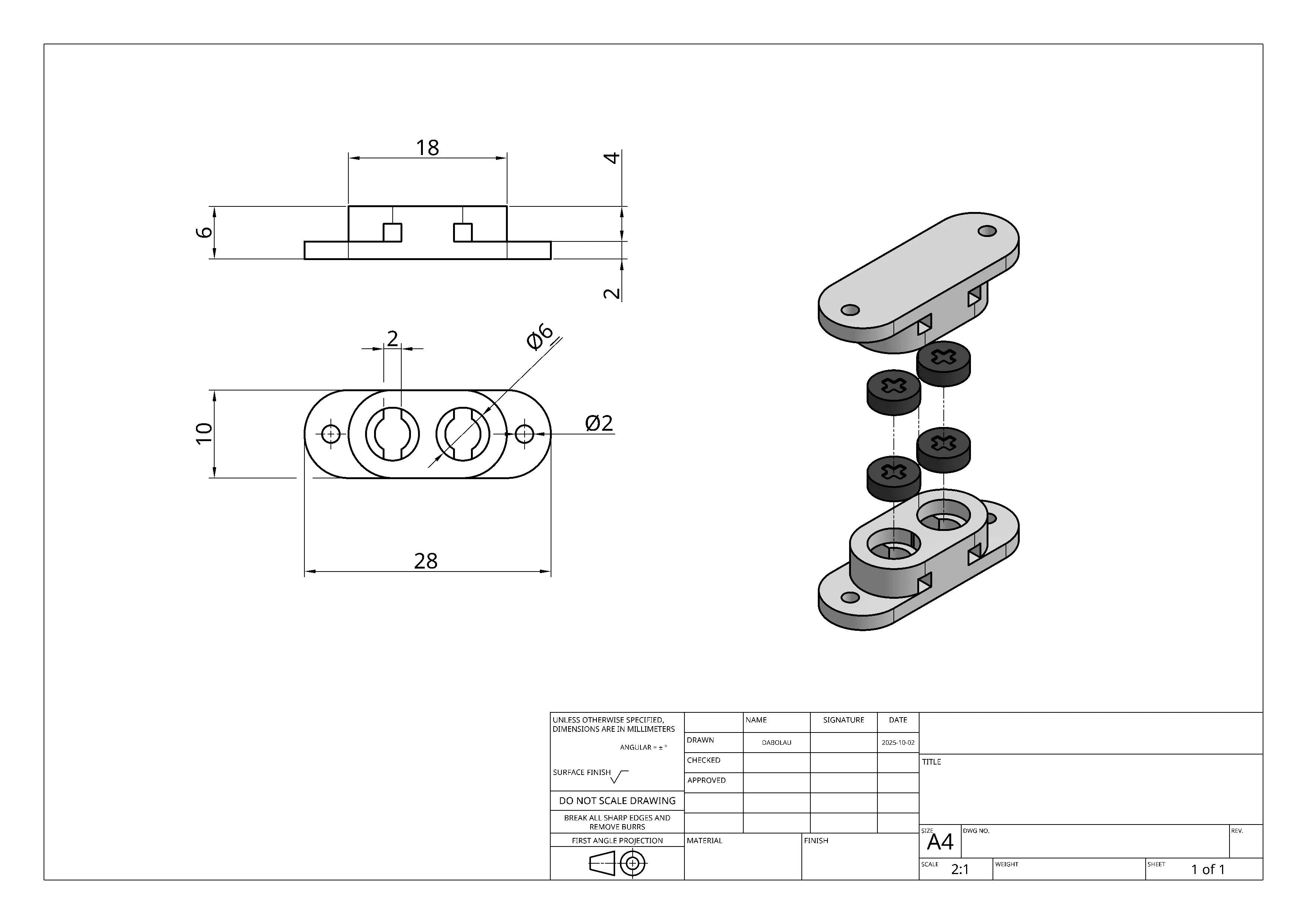

MagneticConnectorV2
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
