Tier1 Holster Snap Connector

Tier1 Concealment snap connector replacement.

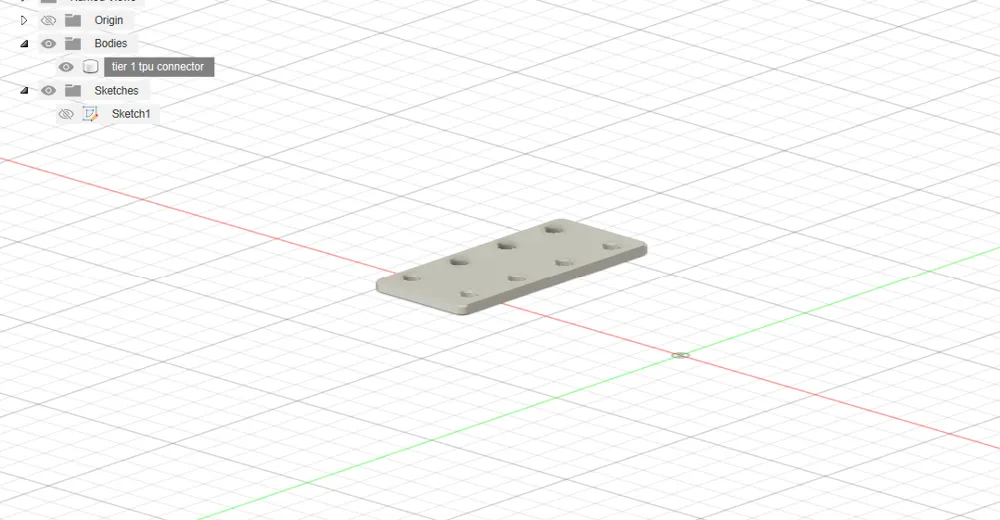

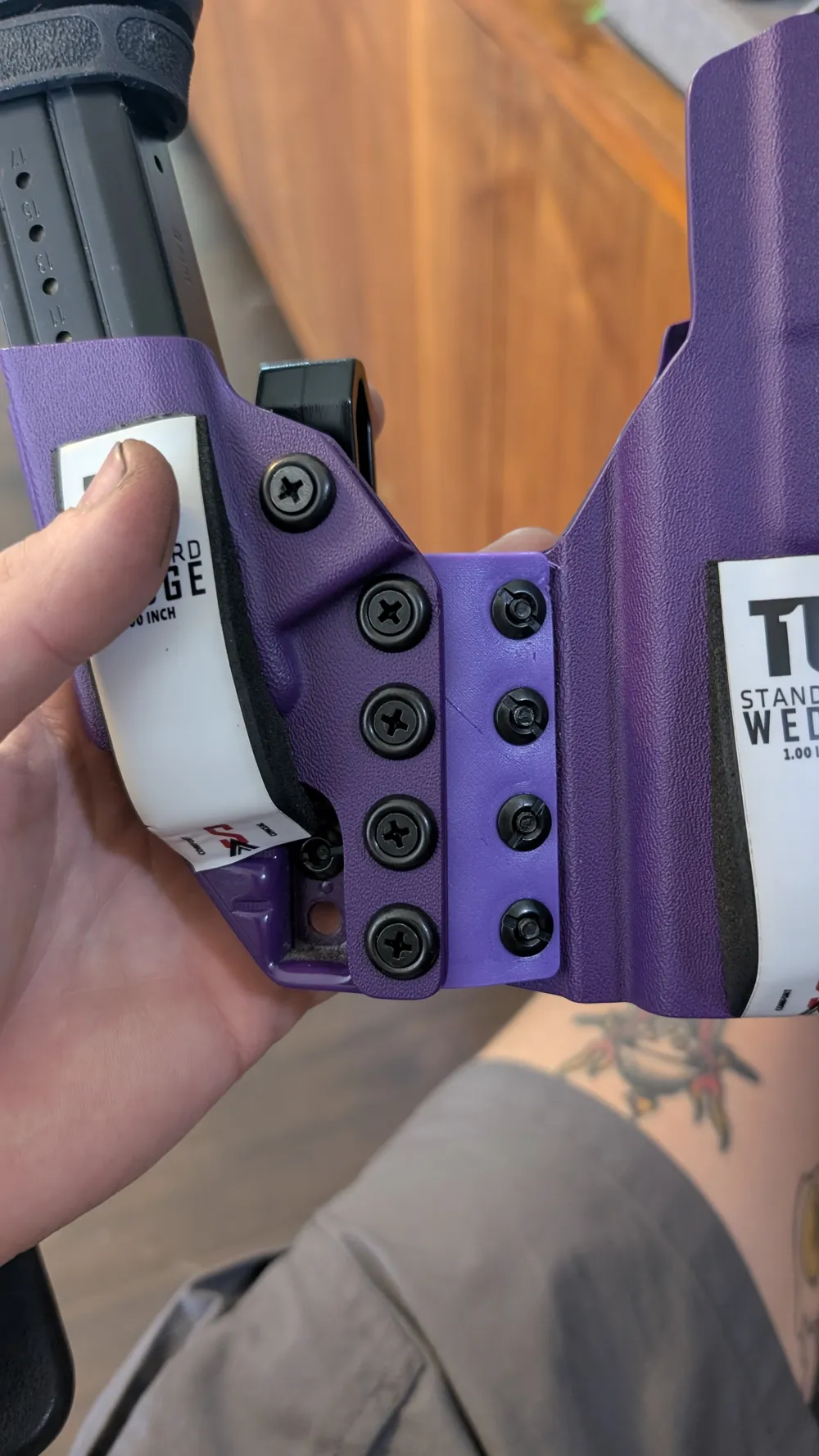

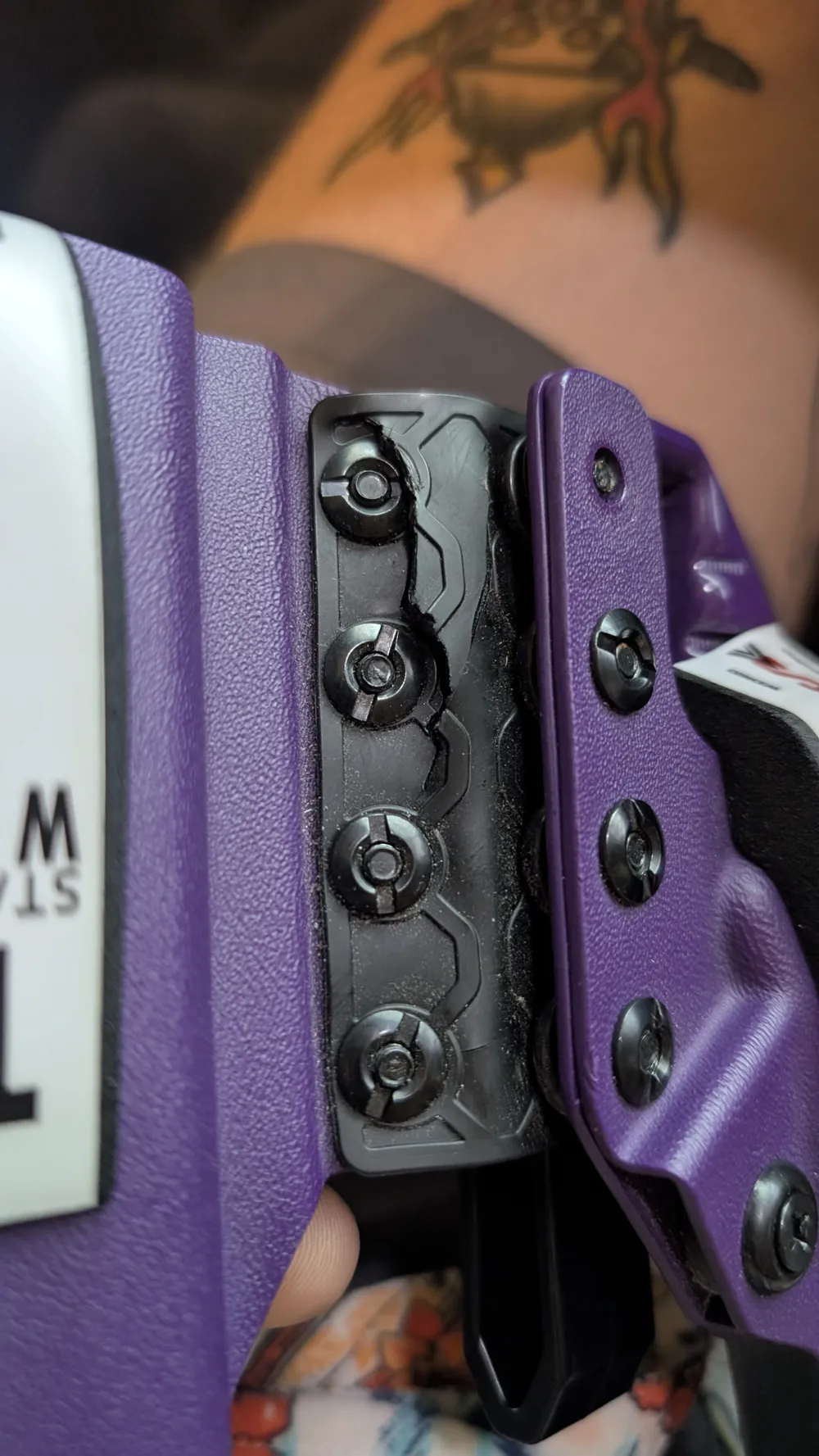

I had my T1 holster for about a year before the rubber connector that joins the sidecar and holster together decided to fall apart (see photo). I was able to get a replacement through customer service but I knew the new one would fall apart as well. I modeled up a connector to be printed in tpu and I have been using it for awhile now with no issues.

Model info:

Direct replacement

3mm thick

Quick print

Print info:

1 wall (adding more causes the walls to separate from infill overtime)

100% infill (for strength and longevity. still flexible)

.20mm layer height
