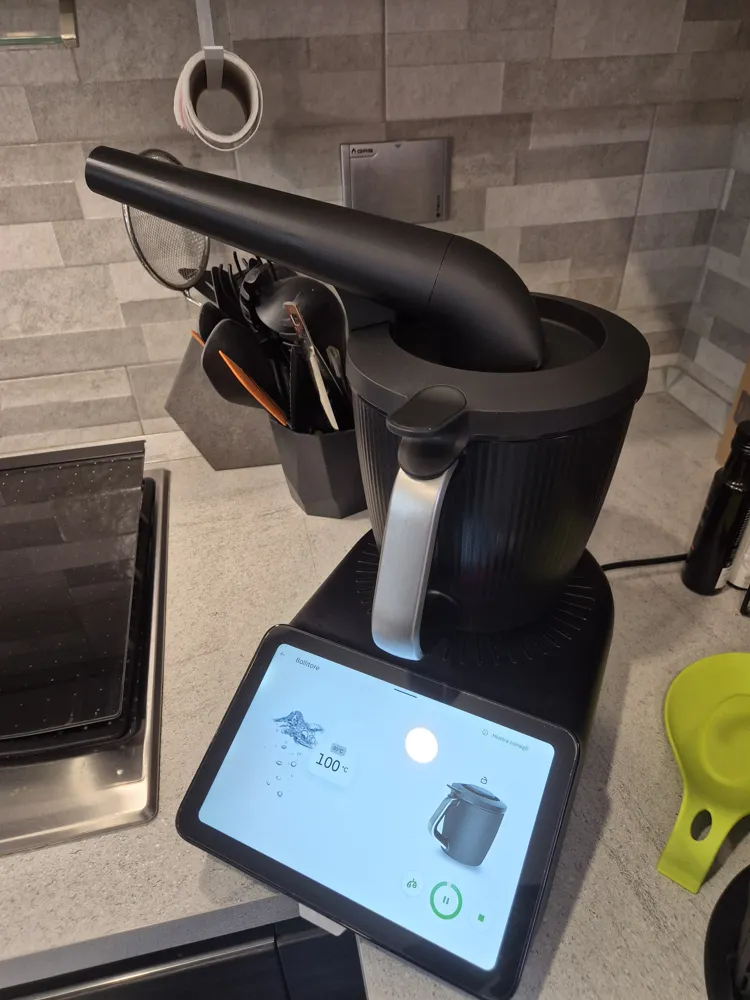

Steam Diverter Thermomix TM7

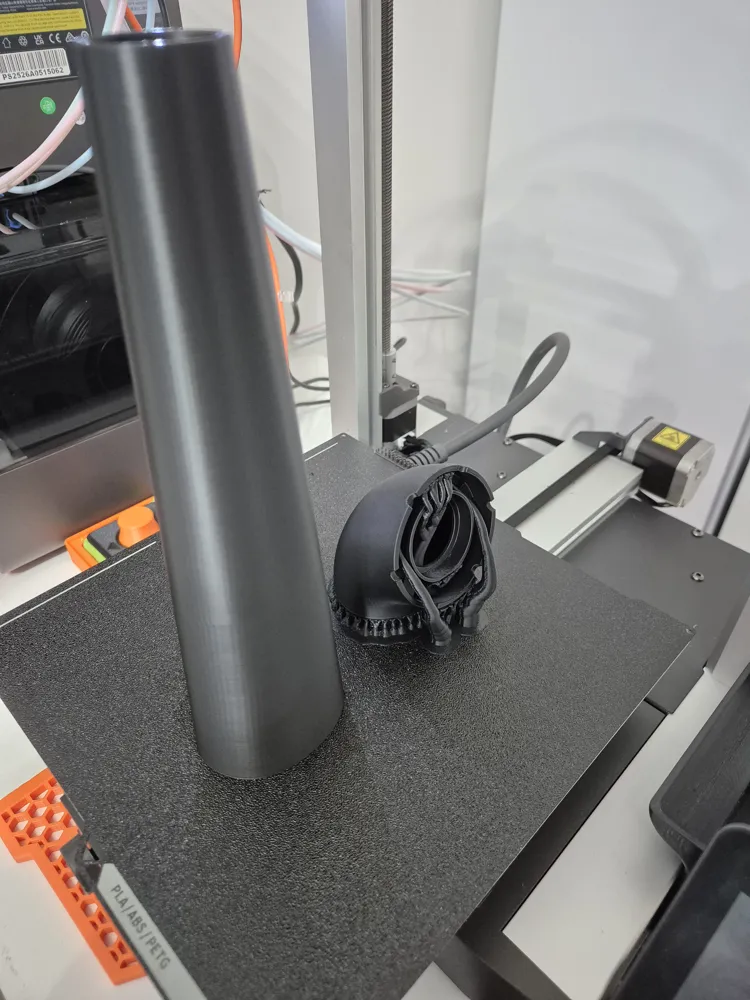

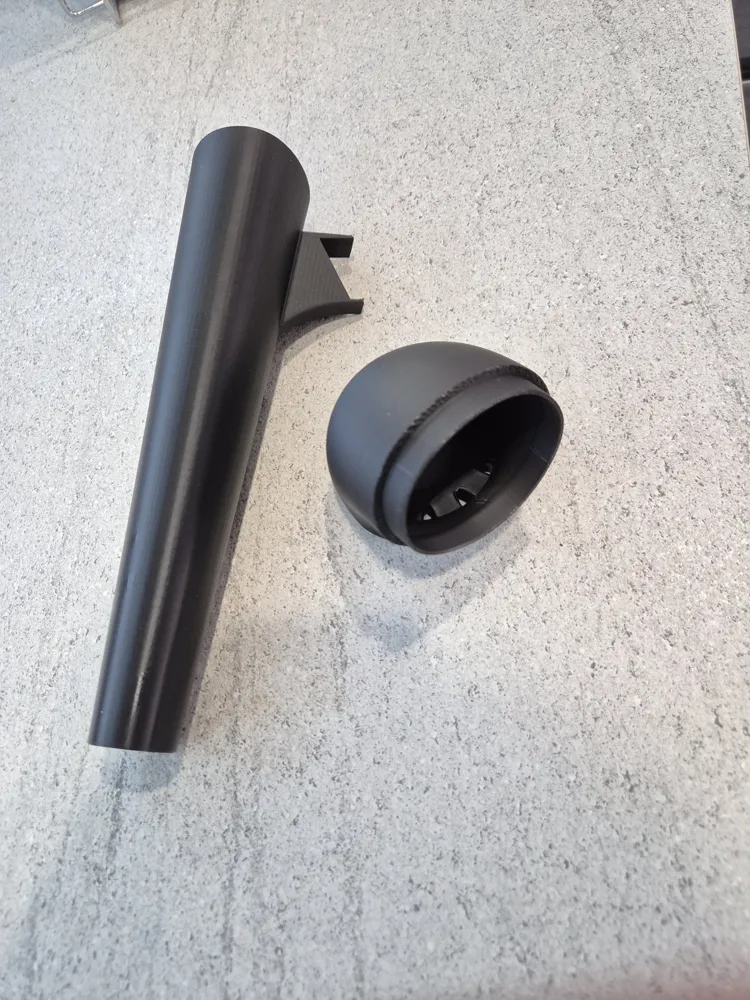

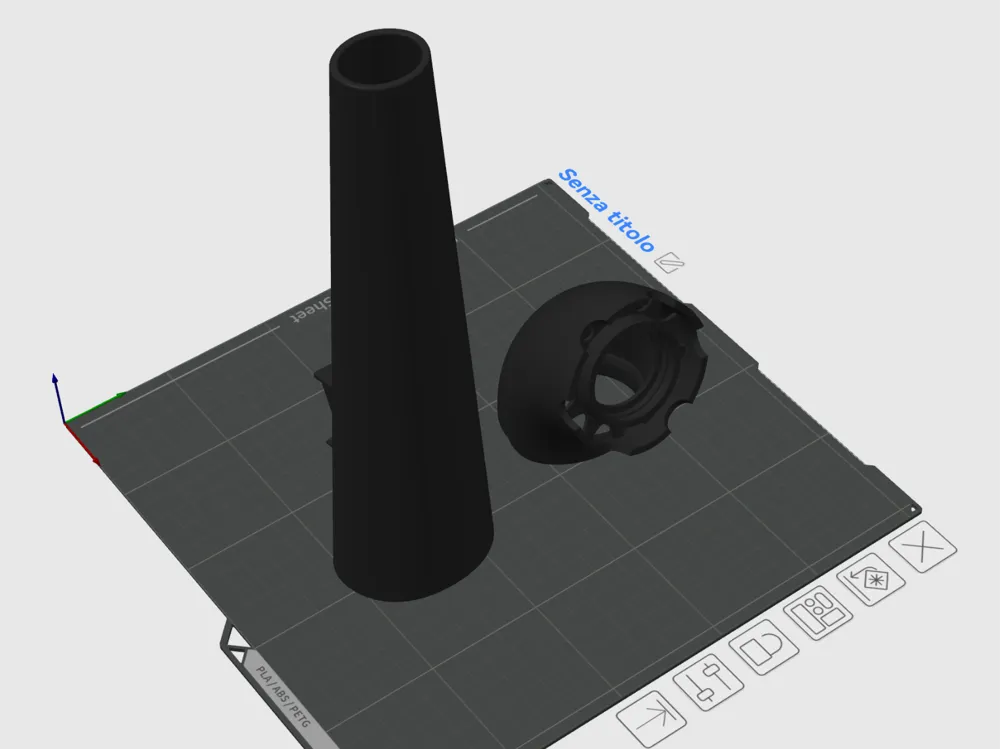

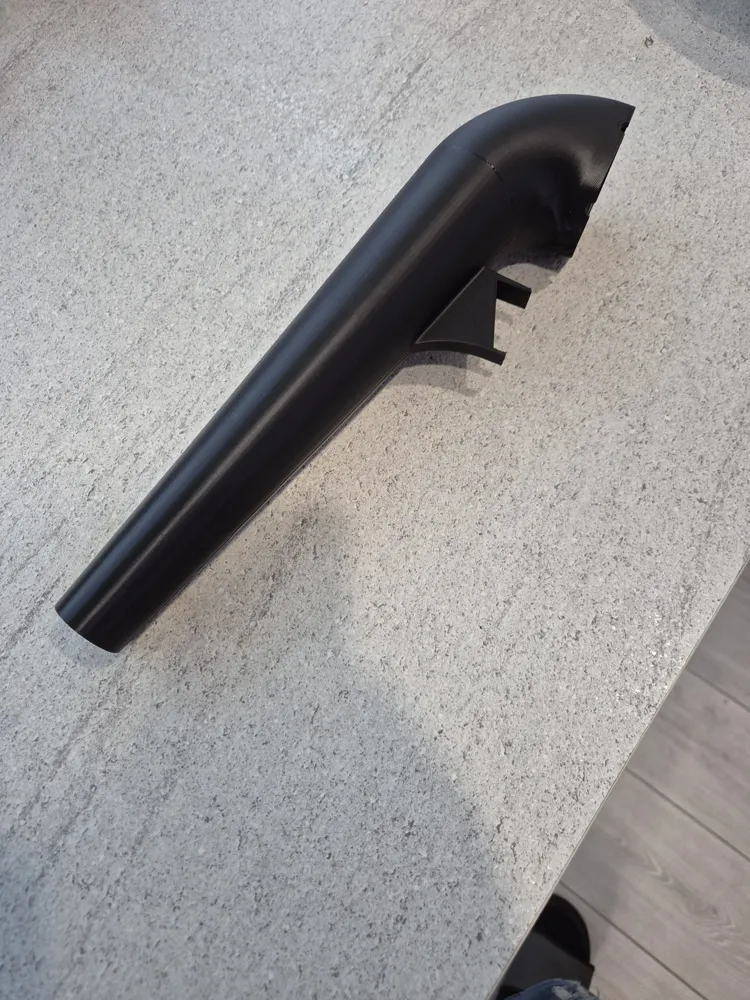

I designed the diverter in two parts to minimize the need for supports and to achieve the longest possible nozzle for my printer The two parts interlock, but can be glued together if desired (naturally, with high-temperature resistant adhesives) Naturally, the printing material must also be resistant to the temperatures reached by the steam, unless you want to end up with an abstract sculpture of a seal sleeping on a beach (ask me how I know :P)

I recommend printing with PC, but I would appreciate it if someone could confirm through testing that it also works well with other filaments like ABS, ASA, etc

UPDATE

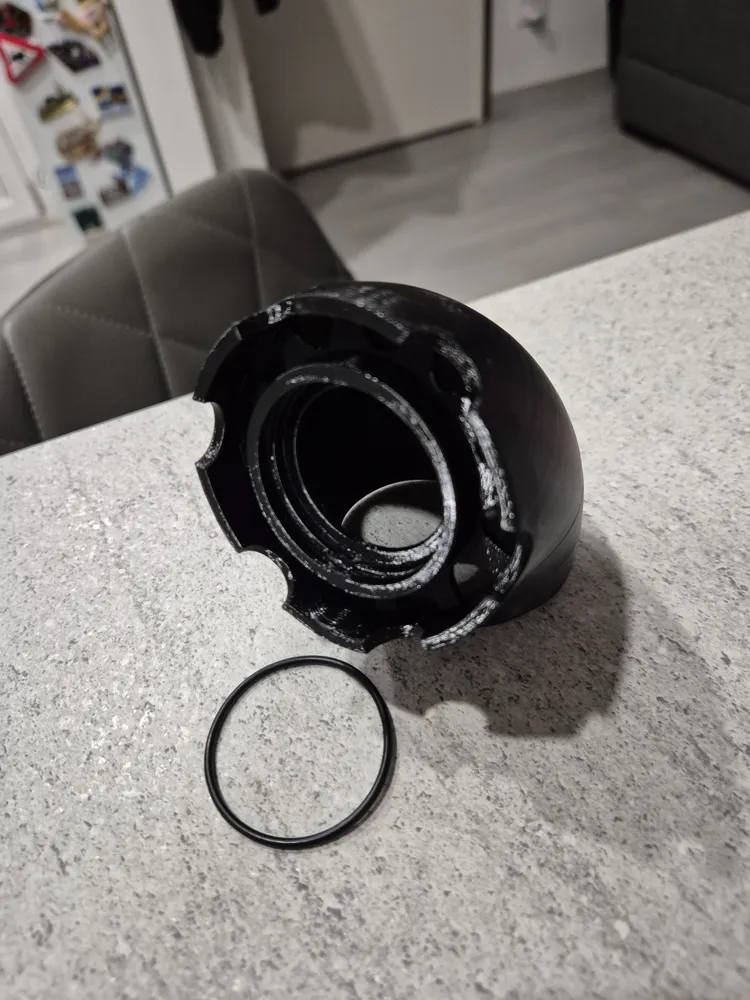

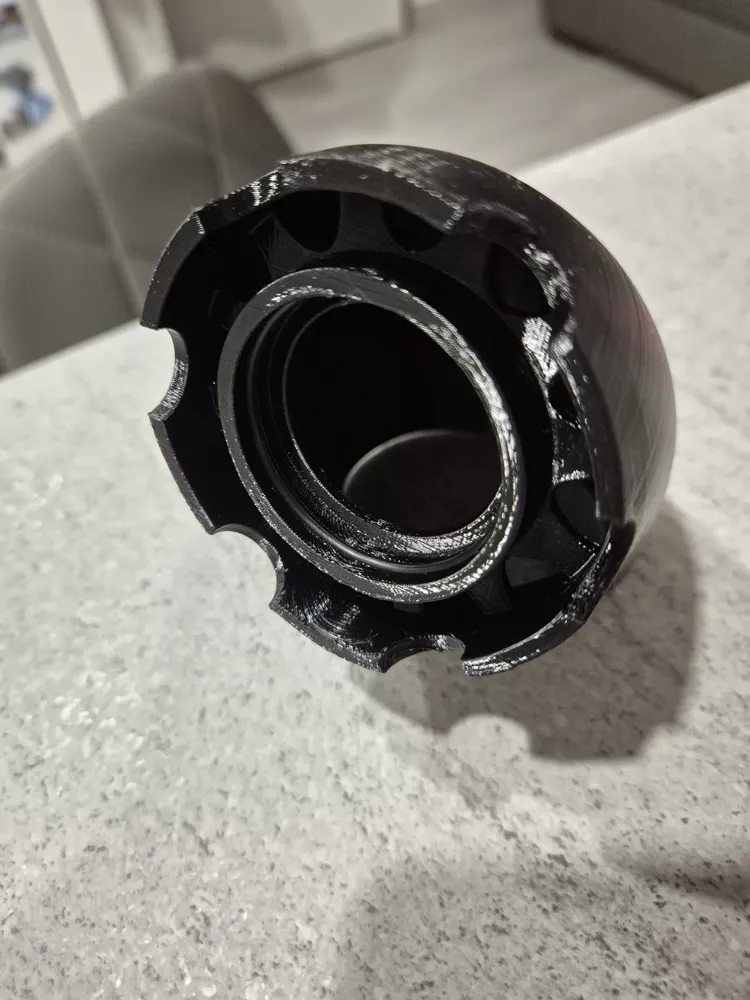

After further tests, I noticed that the steam flow moves faster, allowing more external air to enter from below, so I enlarged the holes in the lower part Following a request, I also added an O-ring, which is optional for use but ensures even better adhesion The O-ring dimensions are 43mm outer, 39mm inner, 2mm diameter

The dimensions of the lower part have not changed, so if you have already printed the entire file, you only need to replace the updated piece
