Vesper Marine / Garmin Cortex H1 H1P Dock SunCover
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
51 min
1 plate
Open in Bambu Studio
Boost
1
4
1
0
1
1
Released
Description

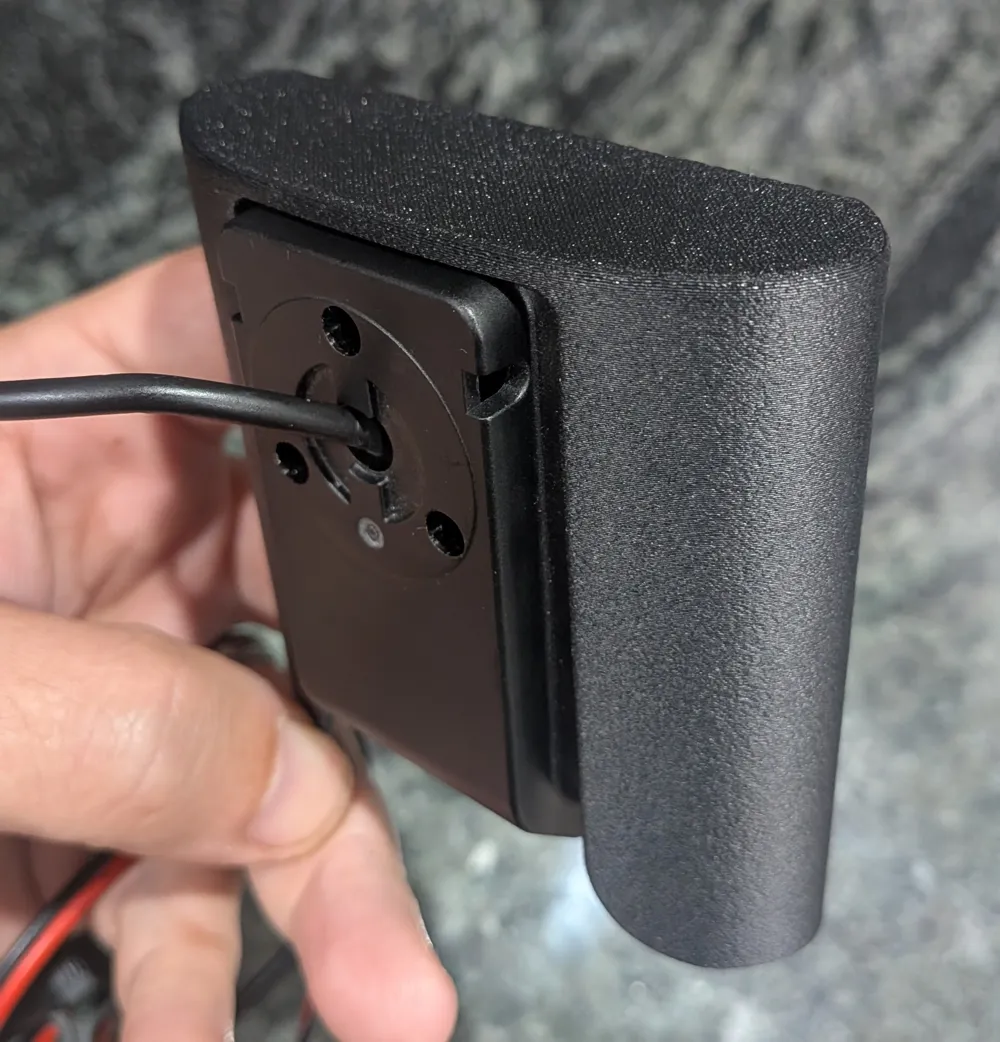

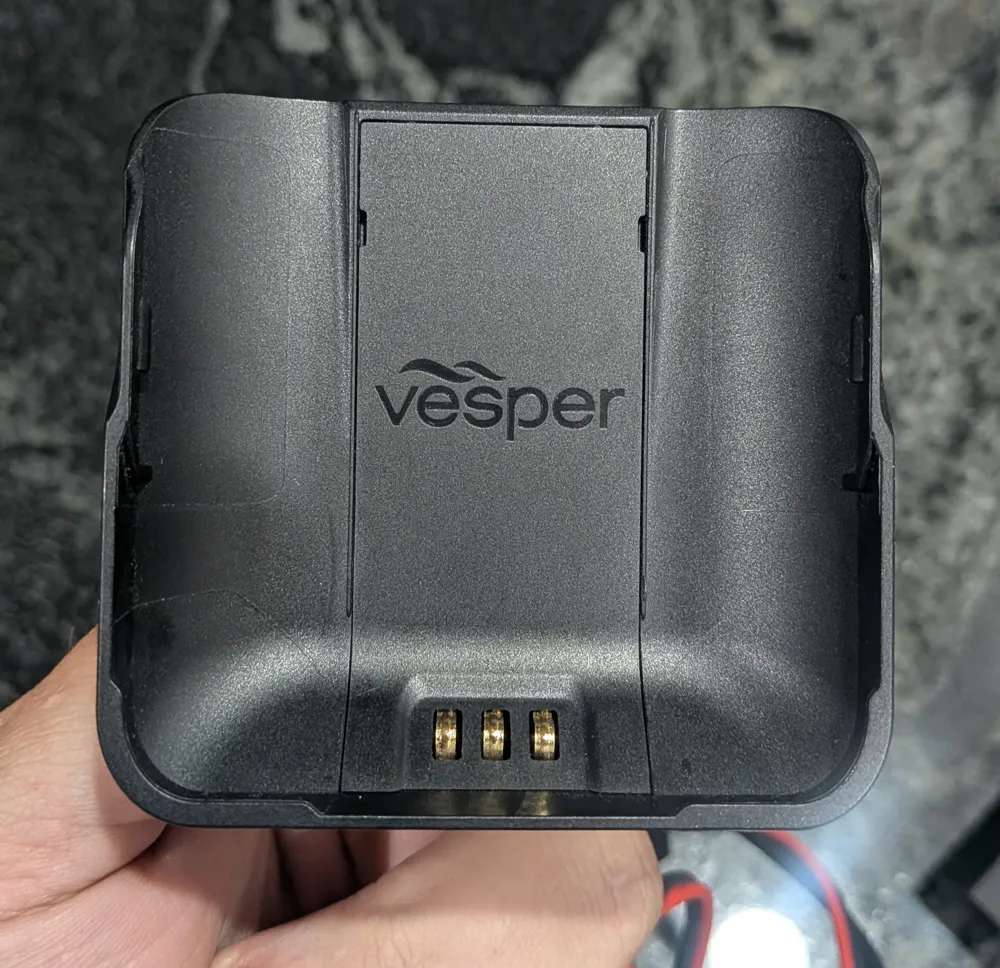

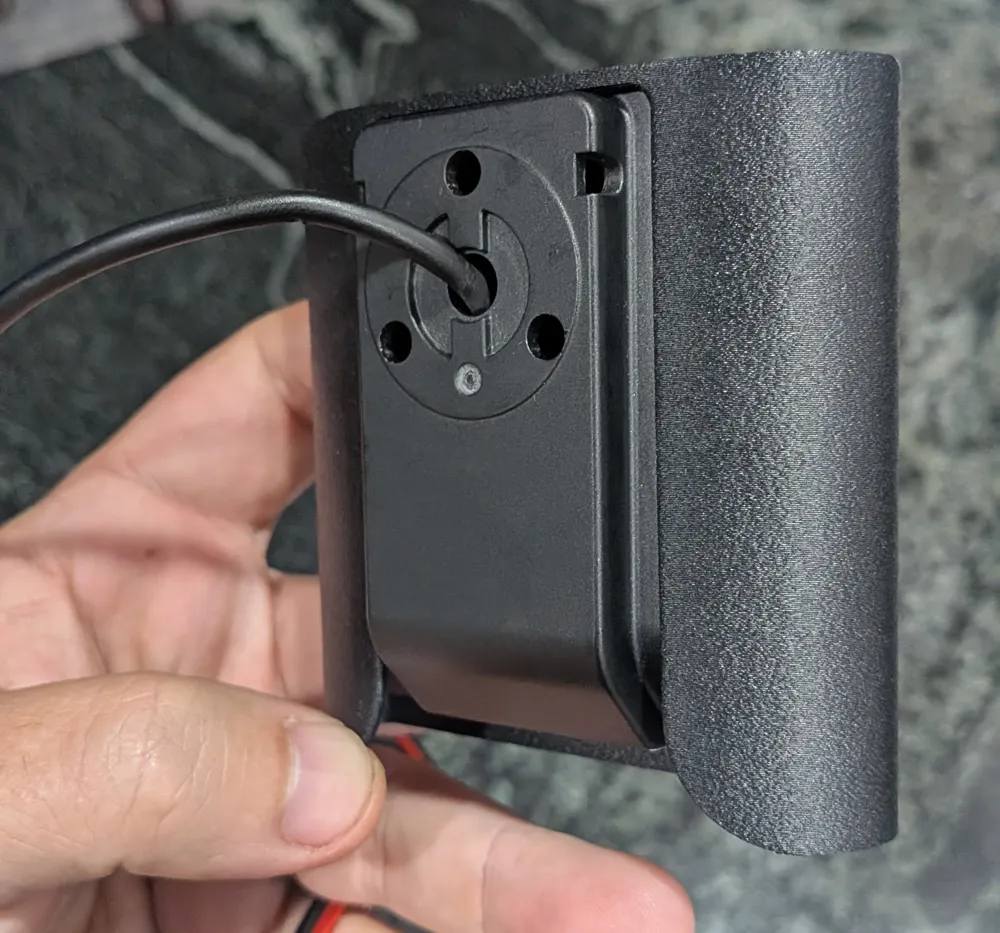

I put a H1P dock into my cockpit and wanted a sun cover for when its not in use. A quick search didn't find one so I made one.
You can find the model at OnShape here: https://cad.onshape.com/documents/3a48e8572ea6744066fa6d06/w/768d213812273b10f85a8ae6/e/d5ac1e52ada772de5e12b56c?renderMode=0&uiState=68dccd106edc7971e0750924
I really should have only designed half of it and mirrored it but I didn't so its a bit asymmetrical. But the first print fit well enough that I'm calling this done enough.

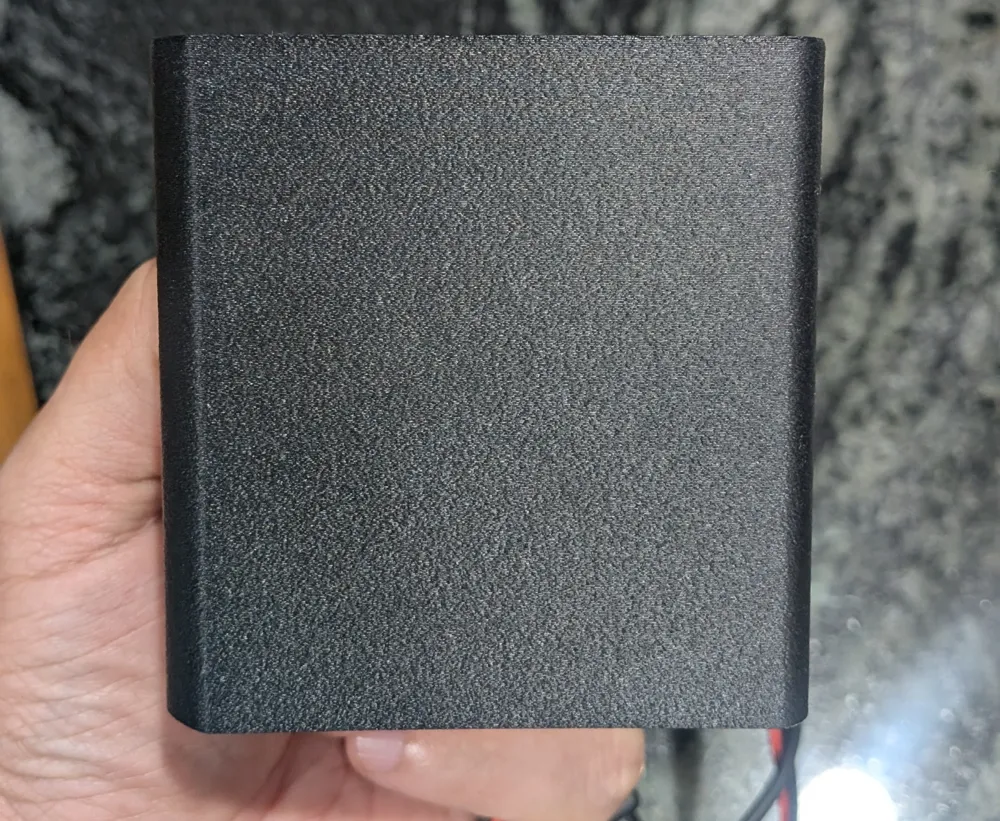

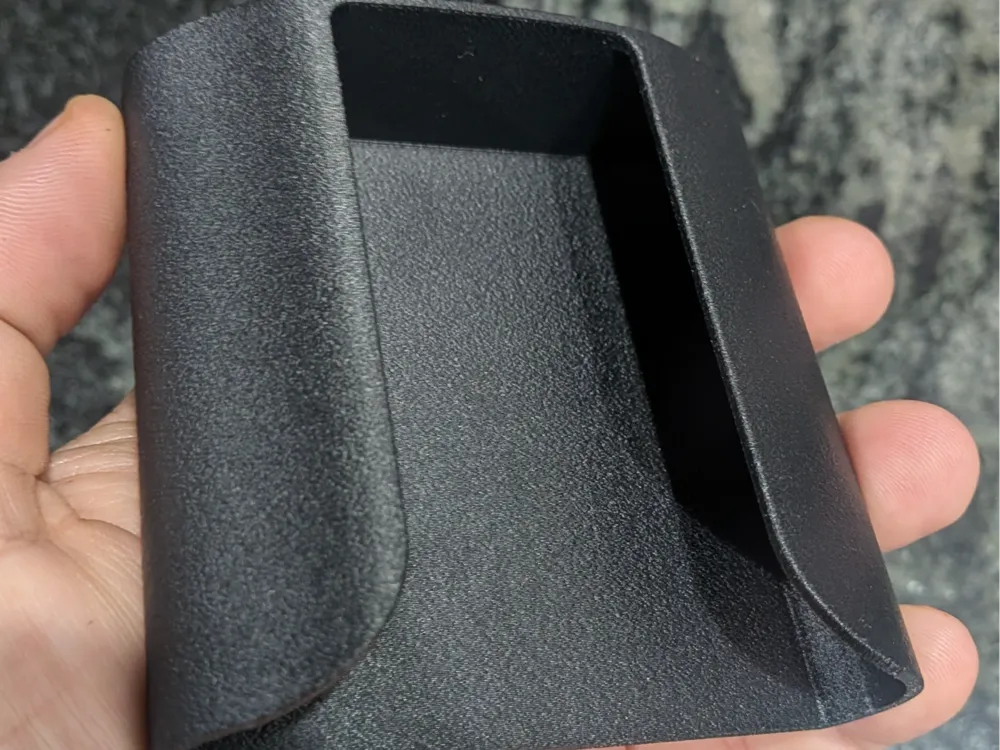

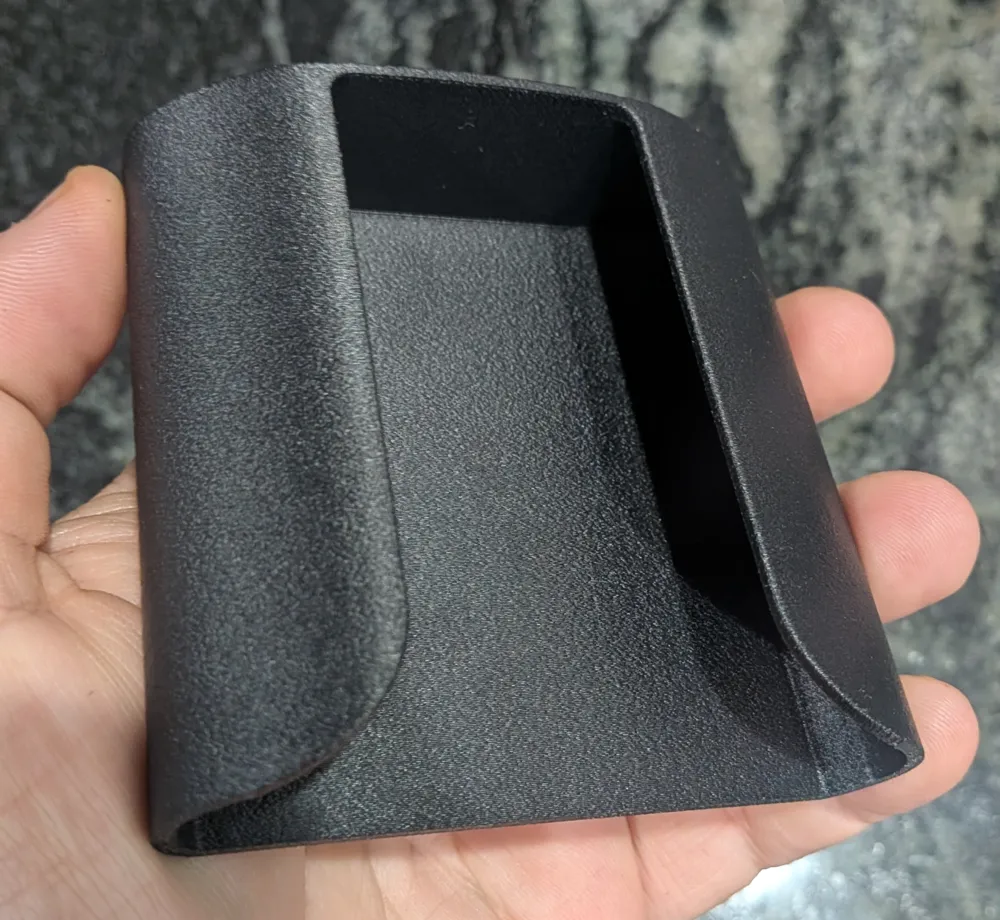

I printed it on its top using a textured PEI plate in ABS-GF. I really like the way the ABS-GF almost gave it a fuzzy skin kind of look. The big lead in makes it very easy to put on and take off.
Hopefully this helps someone else!
