Type 003 Aircraft Carrier Fujian - Electric Launchable Version

The new Type 003 is almost complete... Your support is much appreciated

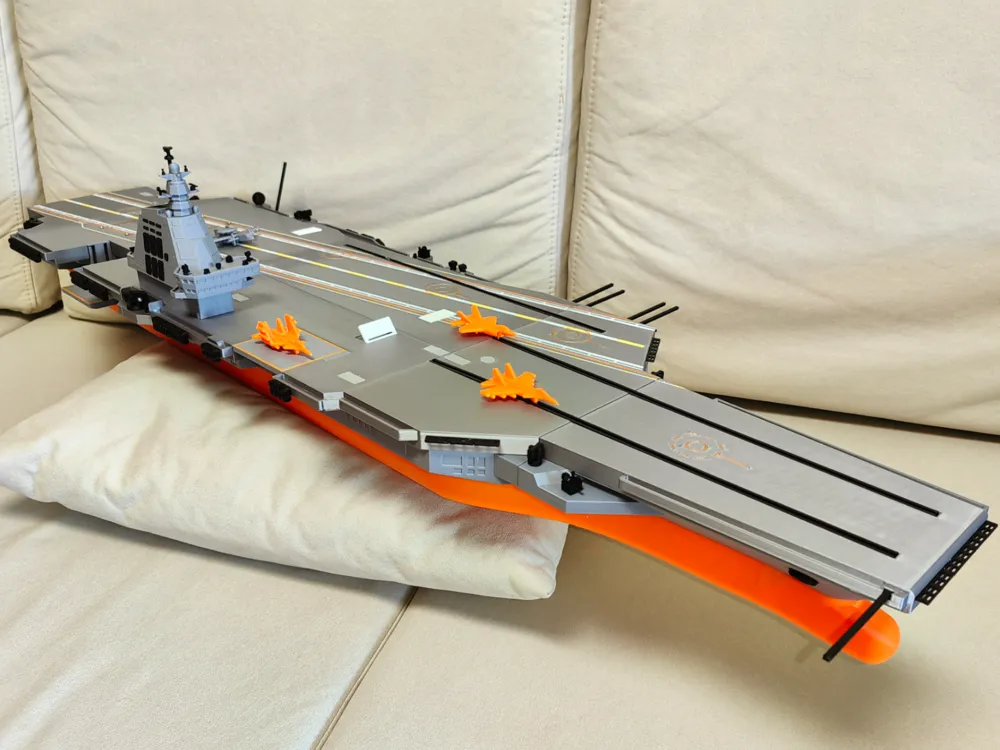

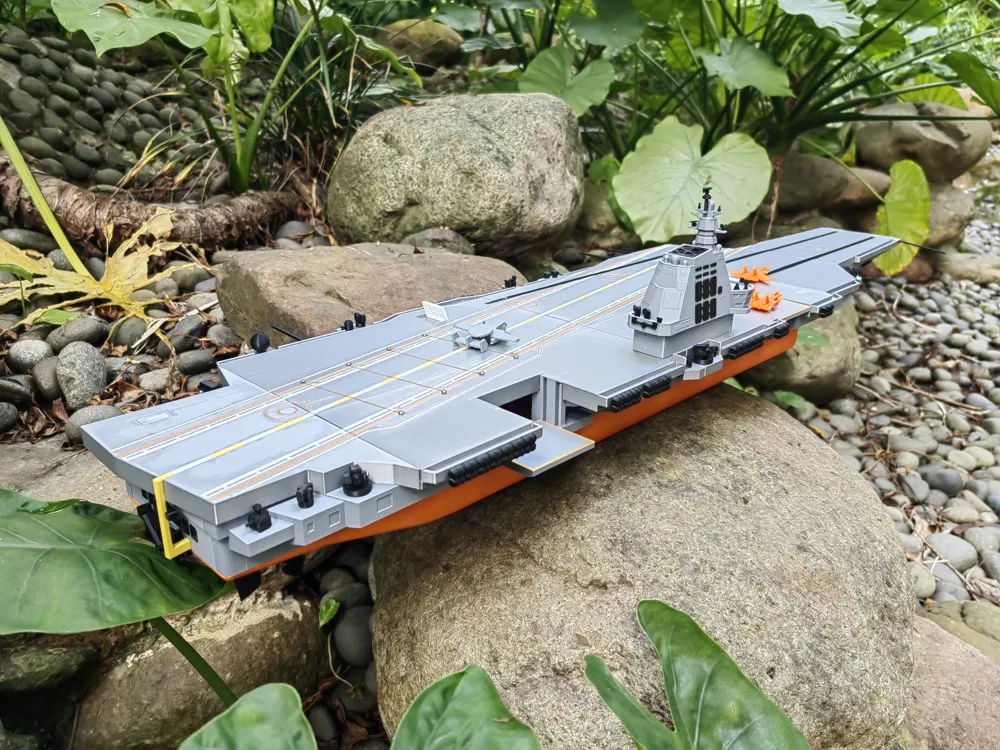

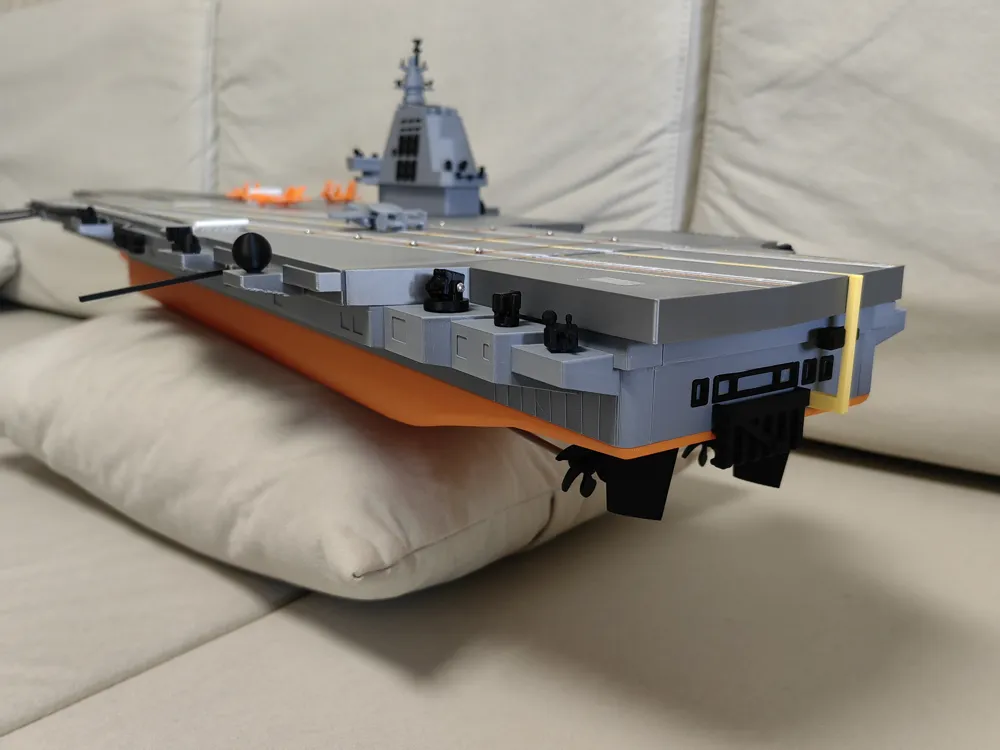

The model has an overall length of 911mm, uses approximately 2000 grams of material, and took 2 days and 5 hours to print.

Each weapon system on the ship can rotate independently and requires 100 M3x10 screws, B-7000 glue, and a small number of M2x6 and M2x12 screws (M2 screws are optional and can be replaced with glue or toothpicks) (B-7000 is better than other glues; if glued incorrectly, it can be disassembled and re-glued).

(If you want the model to be launchable, you need to perform sealing modifications and other work yourself. If it's not for launch, you don't need to purchase the following electrical accessories.)

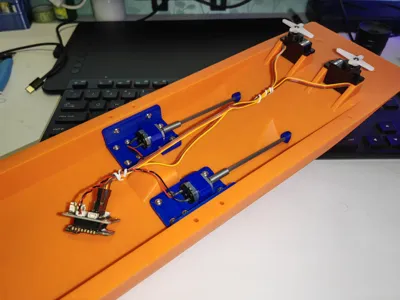

The finished product has already been designed with installation positions for motors and other electrical components.

Electric Accessory Guide

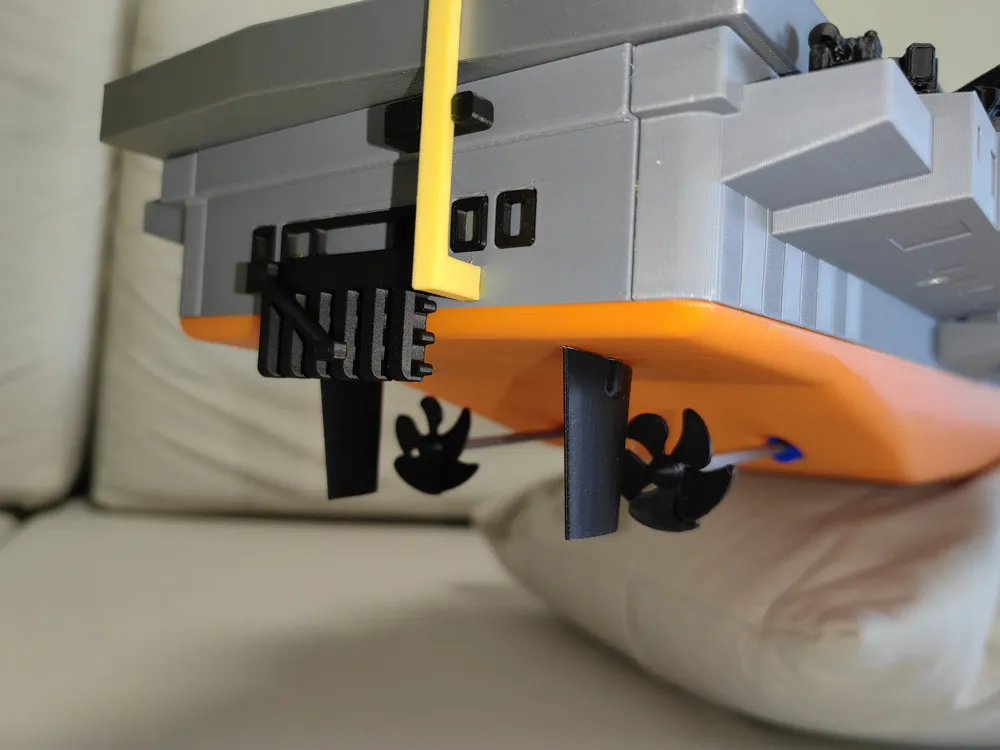

2 cylindrical rods, 3mm in diameter and 150mm long, used as propeller shafts.
8 miniature bearings, 3x6x3 with seals.
It is best to purchase the above accessories together, otherwise, it would be awkward if the rods don't fit through the bearings.
For remote control electrical components, use the Bambu Lab Beginner Remote Control Kit - CyberBrick Beginner Hardware Kit - ZK004.

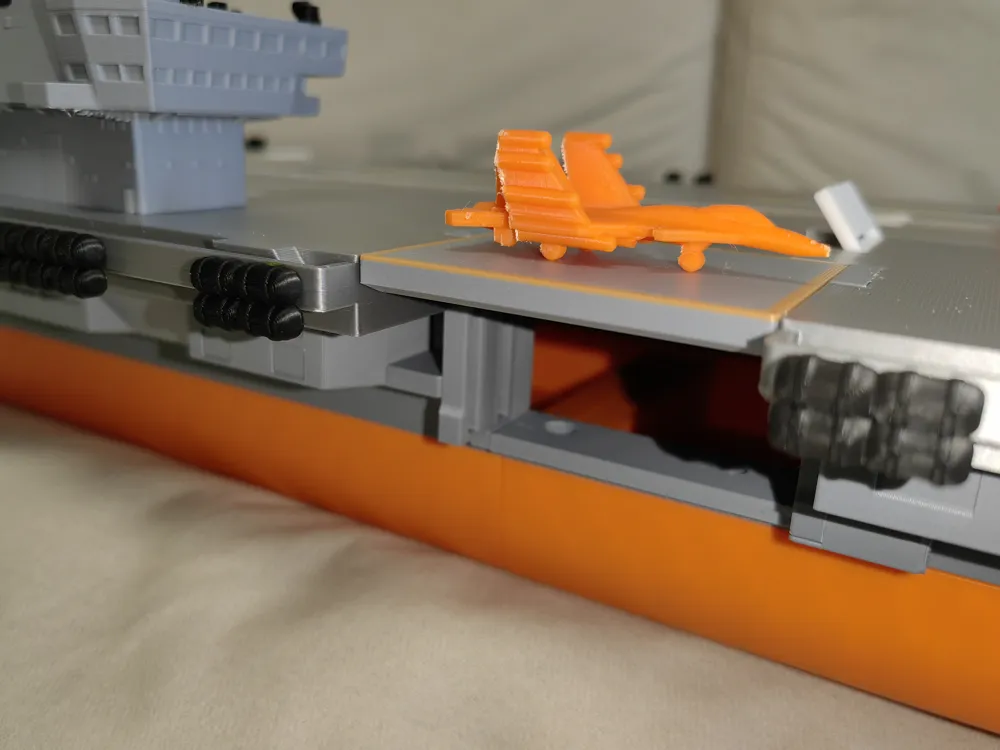

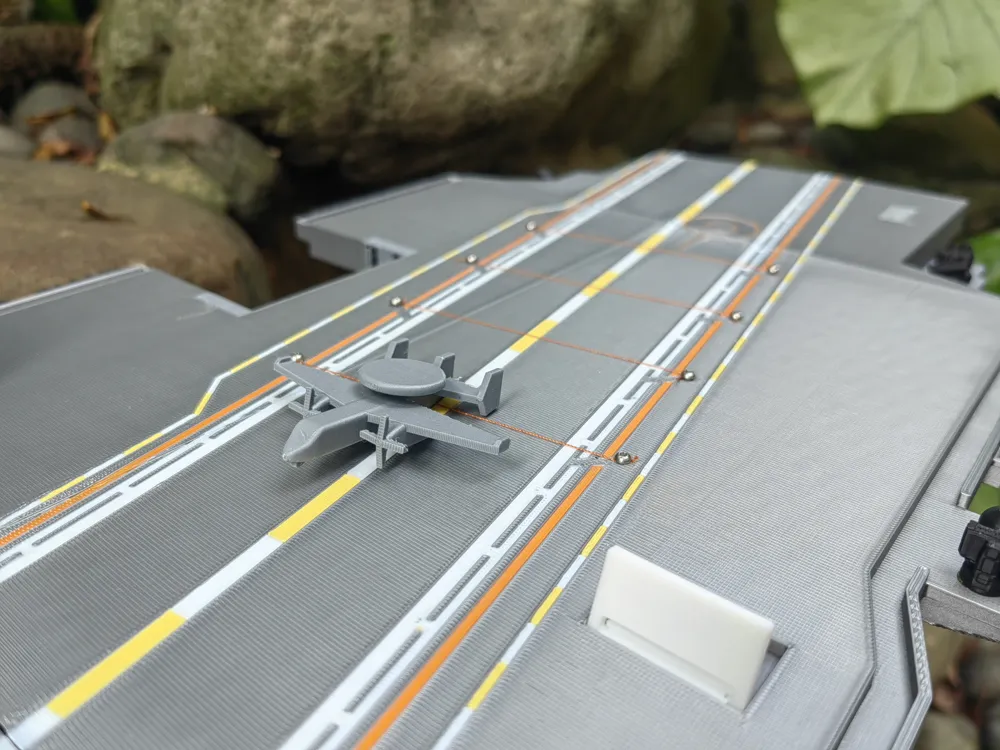

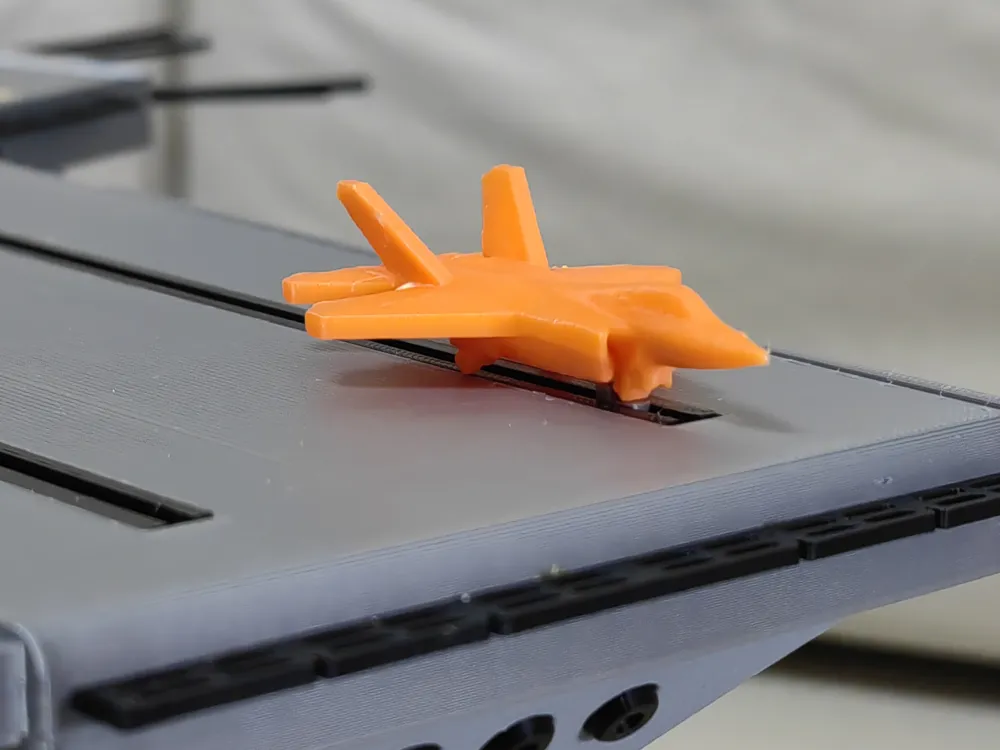

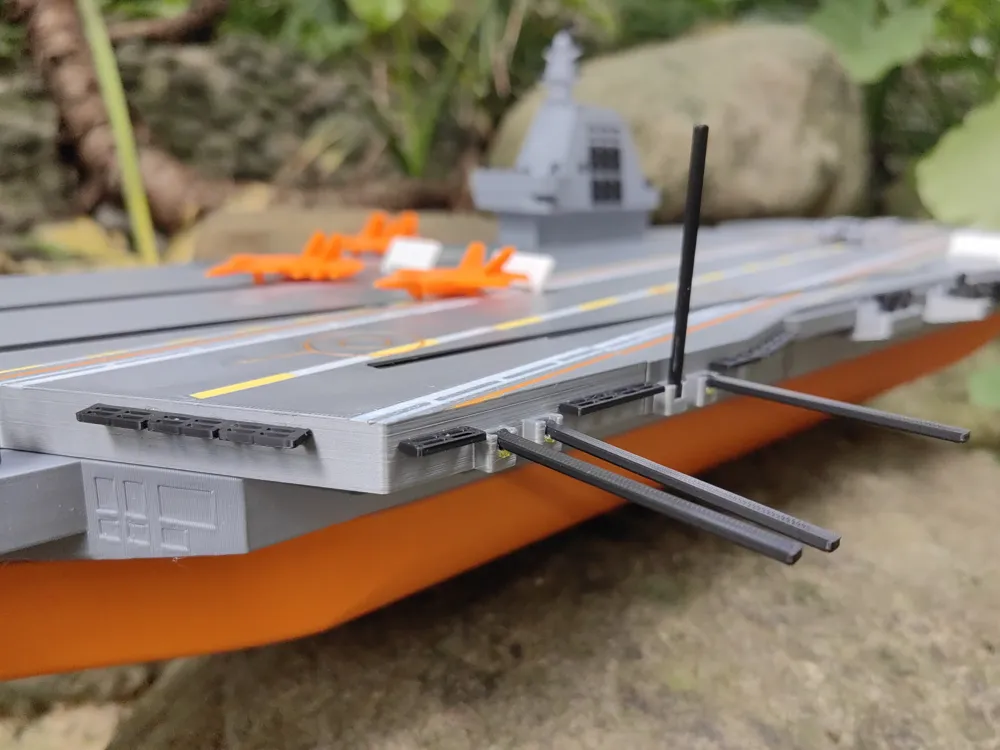

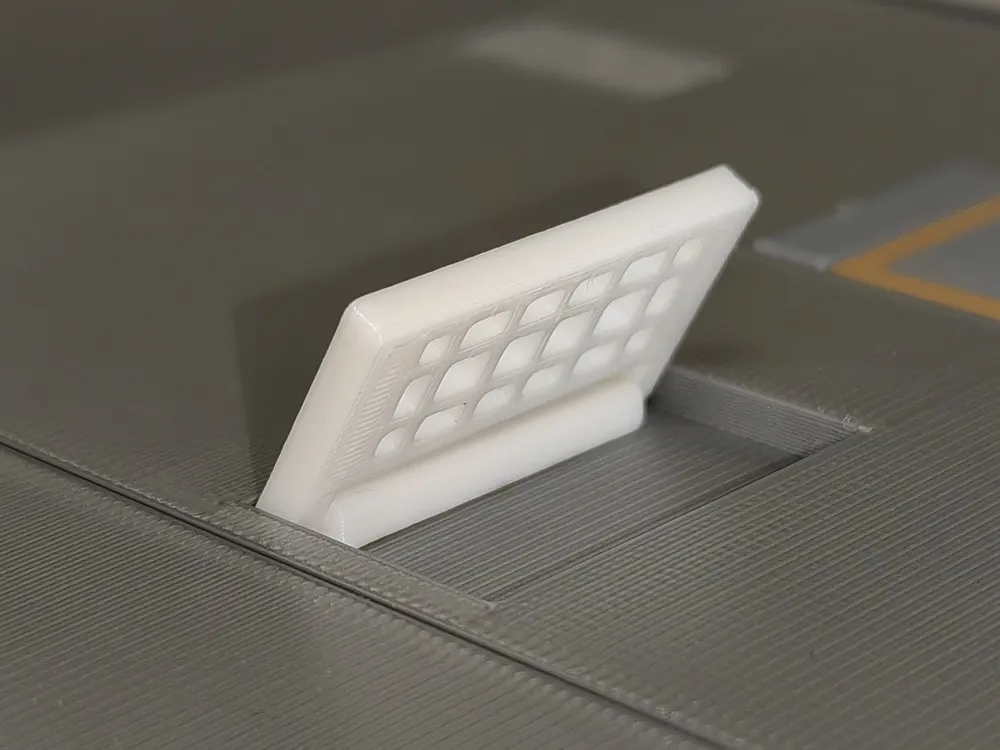

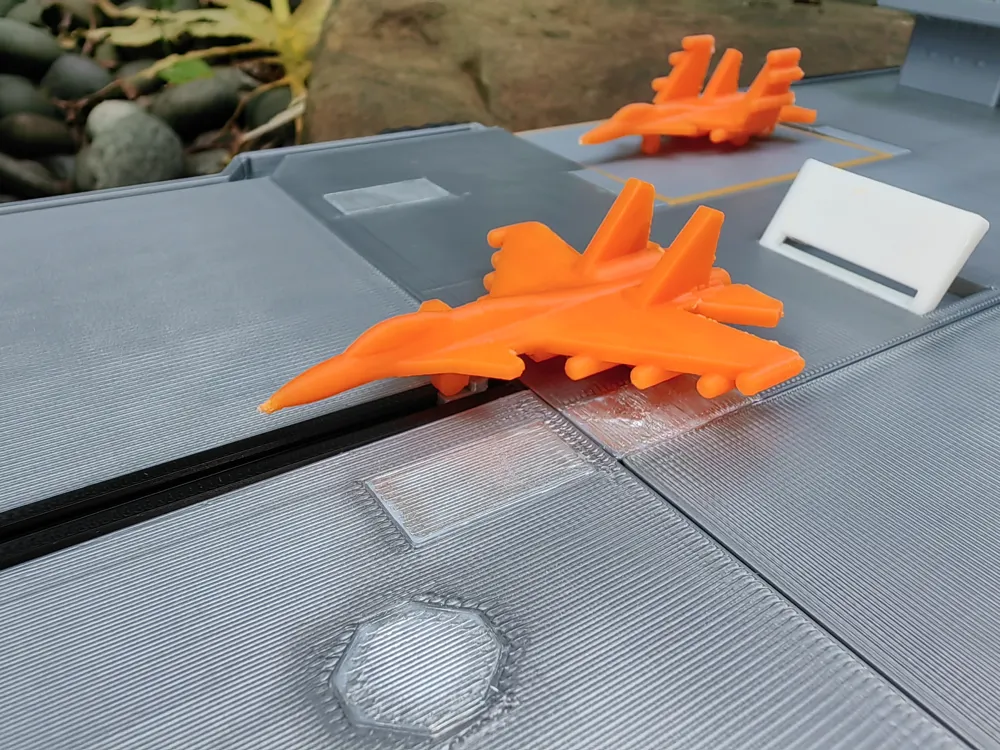

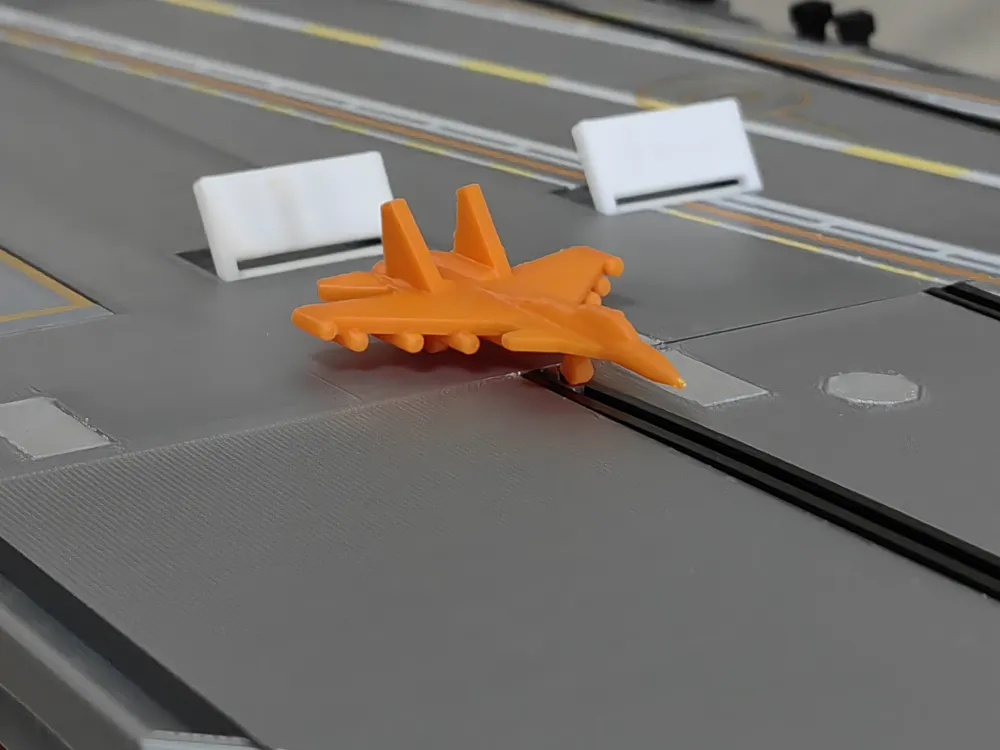

Elevators, blast deflectors, weapons, aircraft catapults, side antennas, and more are all movable. It has a large hangar where aircraft can be placed.

Assembly is simple; follow the installation tutorial. Due to material shrinkage and print accuracy, sand and apply glue if necessary, and press firmly.

Tested with P1SC printer, low-temperature stable build plate, Bambu Lab PLA Basic, 0.2mm layer height, 2 walls

If you like my work, please help by following, liking, downloading, and boosting.

The static version's installation tutorial is ready. If anything is unclear, feel free to ask in the comments section.

I need to conduct various tests before releasing the electric version, which may take some time. Those with experience in modifying models for launch can contact me to discuss details such as sealing for launch and debugging electric steering programs.
