Strong Angle Bracket 45°- 90° / M6 - 1/4-20 Slots
Print Profile(1)
Bill of Materials
Description

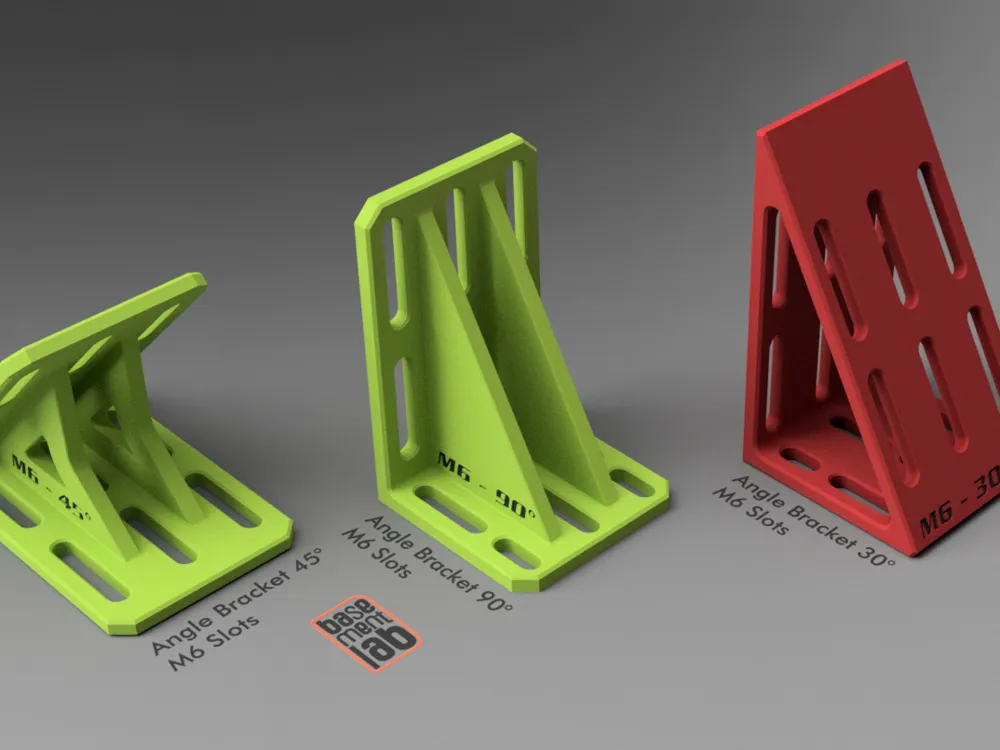

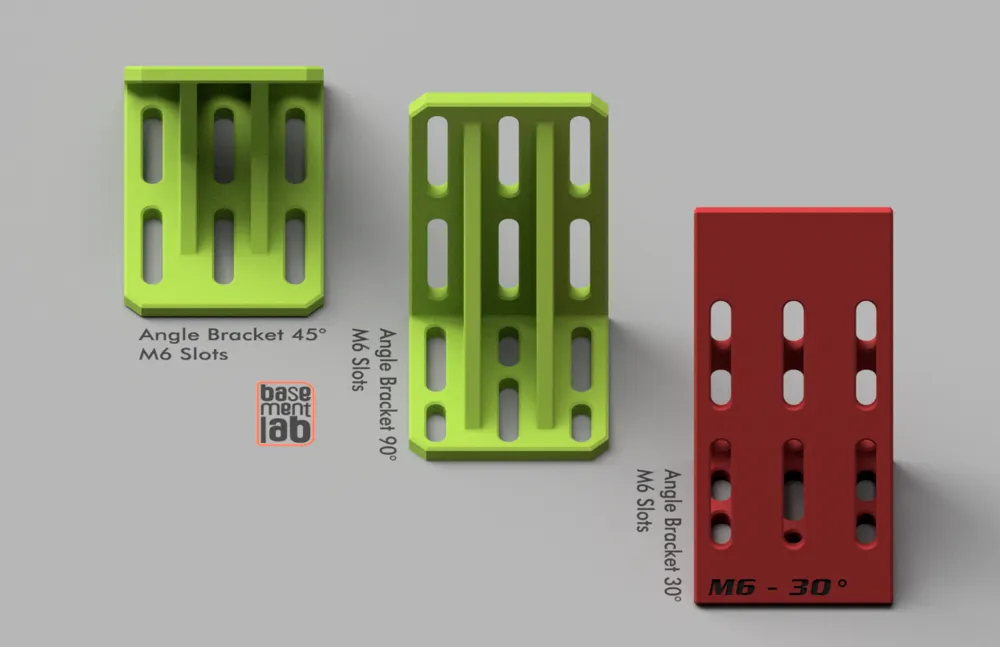

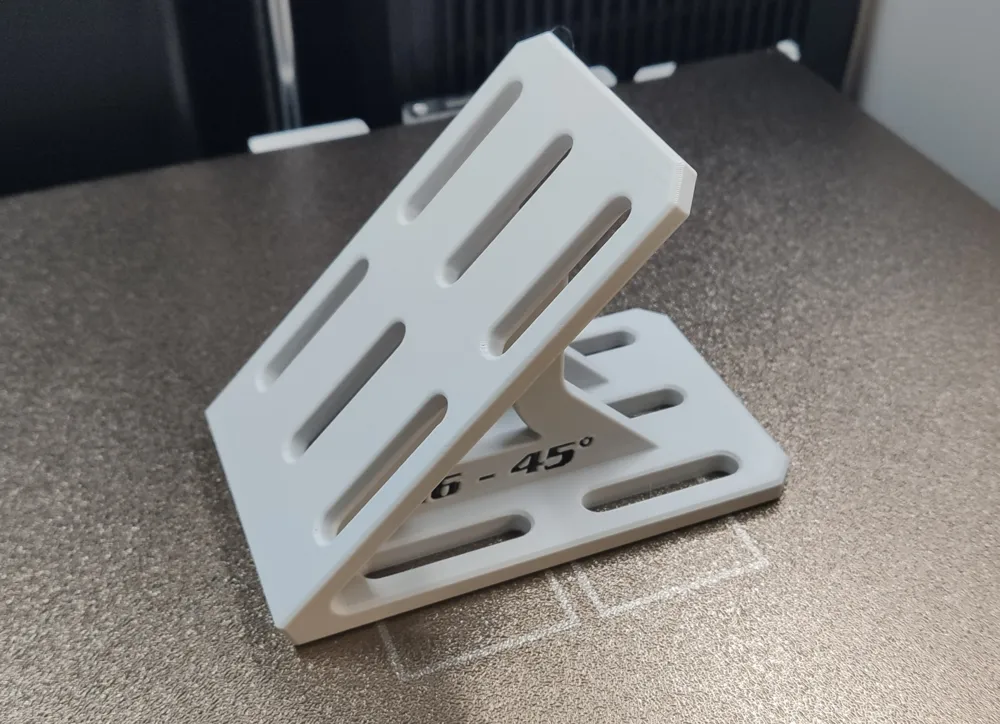

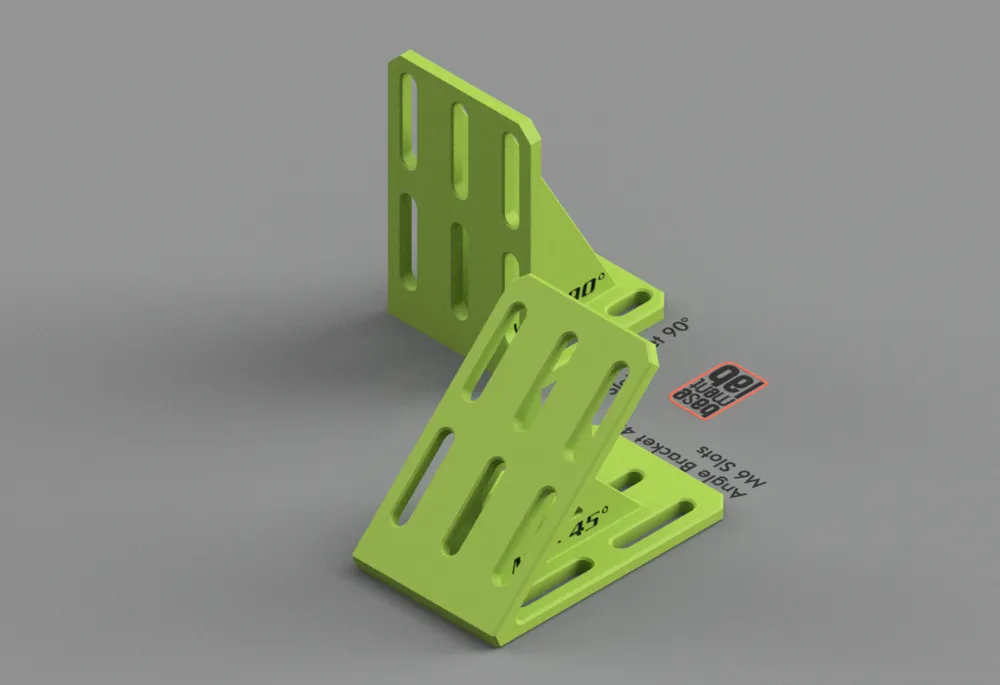

Strong Angle Bracket, 45°- 90° M6 - 1/4-20 Slots
The Bracket is a rigid angled mounting plate, available in 45° and 90° configurations.
It features slotted faces for adjustable positioning and is compatible with both 1/4-20 (imperial standard) and M6 (metric standard) threaded mounting bolts
Overall dimension:
- 30° - 74.5X126X70MM (UPDATE)
- 45° - 88.5x118x70mm
- 90° - 71x112x70mm
For the highest strength, the recommended filaments are: PA (Nylon), PC (Polycarbonate), ABS, ASA, PETG, PLA CF
| Filament Type | Strength Class | Key Characteristics |
|---|---|---|
| PA / PA-GF | Very High | Tough, impact-resistant, durable |
| PC / PC-GF | Very High | High tensile strength, heat resistant |
| ABS / ASA | High | Good mechanical strength, UV resistant (ASA) |
| PETG | Good | Strong, durable, easier to print than ABS |
| PLA-CF | Good | (Nota: Increased stiffness but reduced impact resistance) |
