Motorized rear-view camera (for Volvo S60 S80 P2)
Print Profile(0)
Description
UPD 16.02.2026: uploaded rod.stl and mount.stl with reinforced connection
Mechanized drive for a rear view camera Volvo S80 1998-2003 (non restyling only) and maybe Volvo S60 2001-2009 (need to chek)
Use MicroServo (MG90S or similar)
Screws:
2.2x6mm - 16 pcs
Axis: any metal 1.5mm stud
Camera: this model is disigned for square camera from GreenYi. (https://aliexpress.com/item/4000811526233.html)
But the sizes are quite standard and there are many similar cameras with the size 23x23x25mm
See my github project for MCU-control: https://github.com/ssssmileeee/servoCam

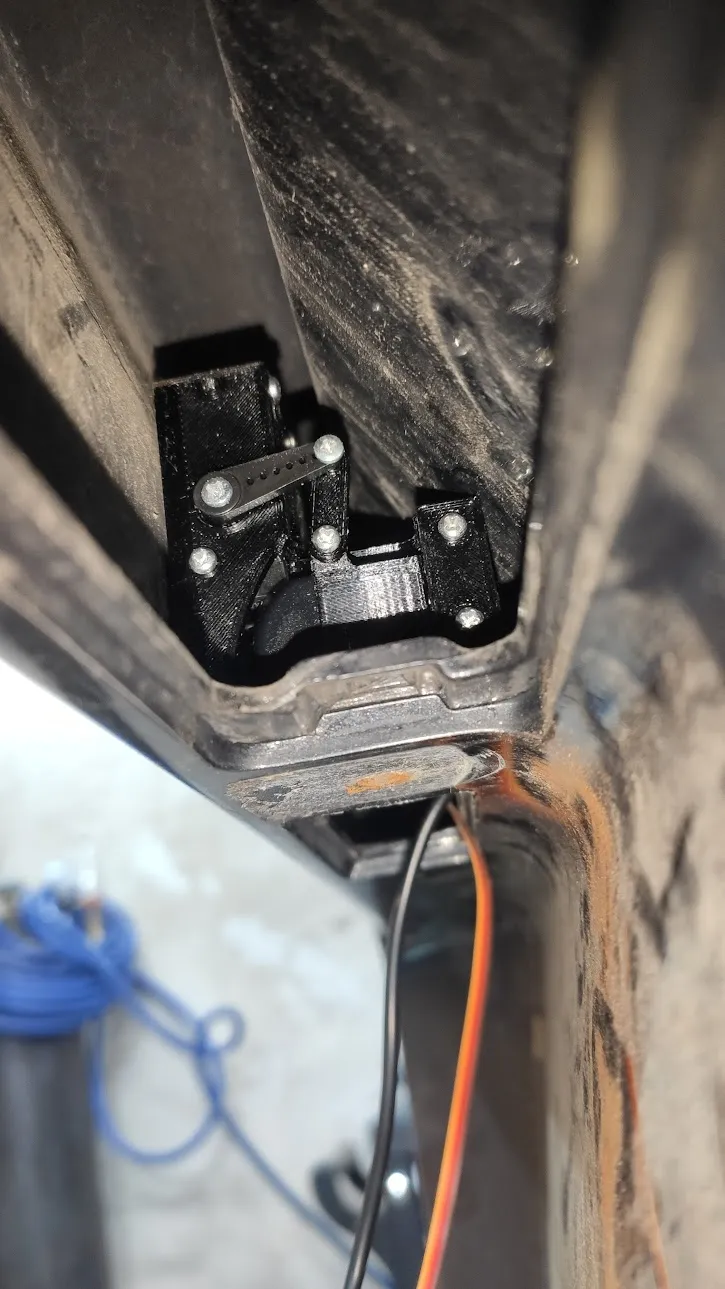

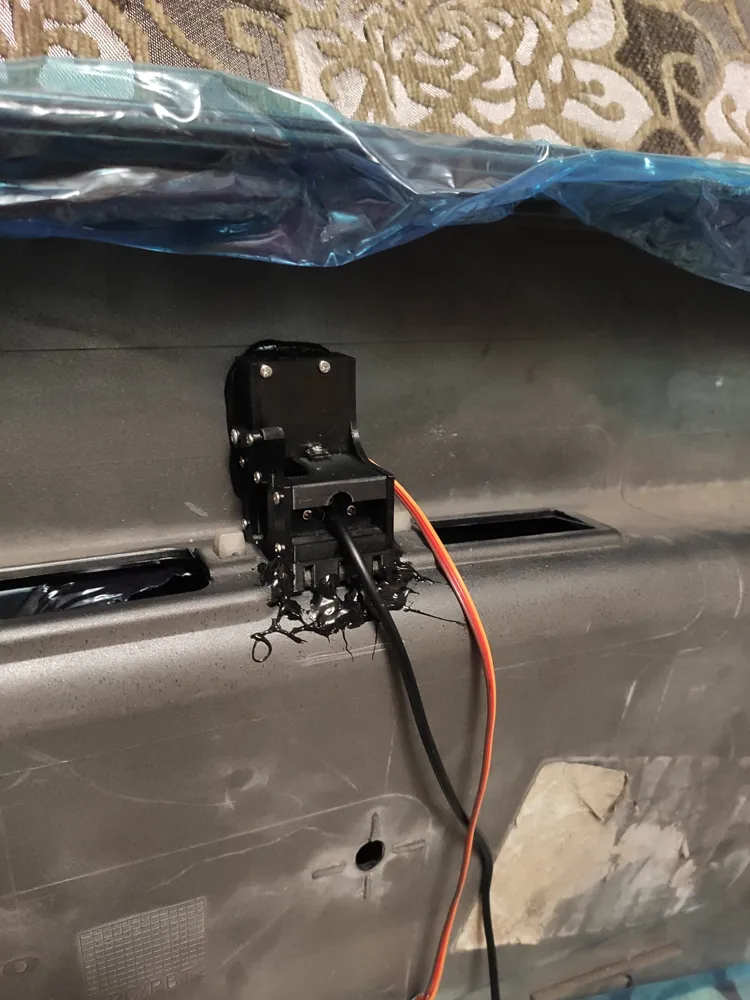

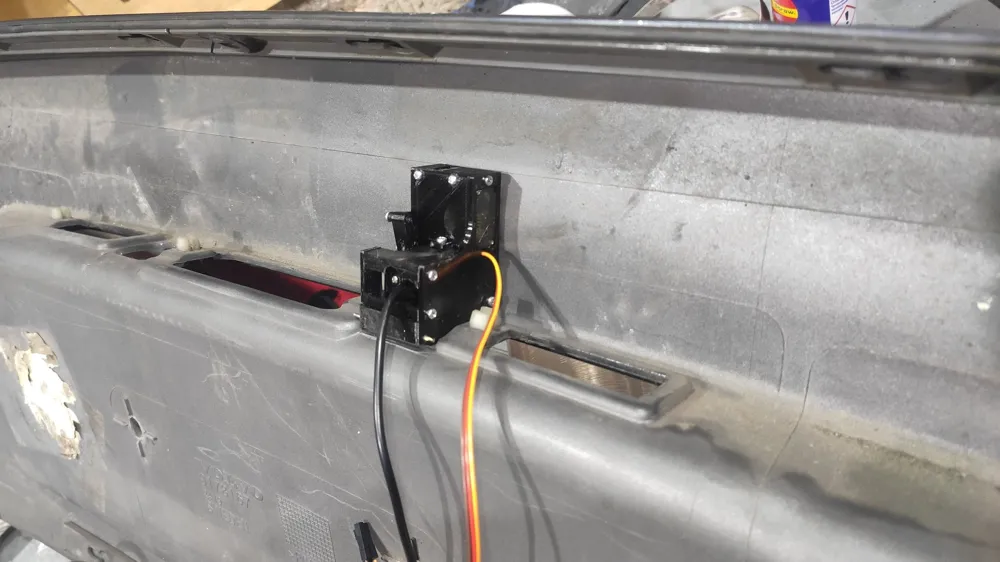

To install cut a hole using "cutting layout.stl" and simply apply adhesive or sealant.
More in installation article: https://www.drive2.ru/l/673321680470283788
Overview on my youtube: https://www.youtube.com/shorts/ocGXa4qNAKs
