CUBEUNi-Railroad Track Switch - BRIO/Lillabo
Print Profile(1)
Bill of Materials
Description
I plan to reorganize the projects，so name it “Real Rail”, because I will try to make it close to the real system.
CUBEUNi-Real Rail- Track/Facilities/Trains by CUBEUNi MakerWorld: Download Free 3D Models
I created this project based on the real railroad/track manual swith.
The parts of a turnout are known by different names in different jurisdictions.

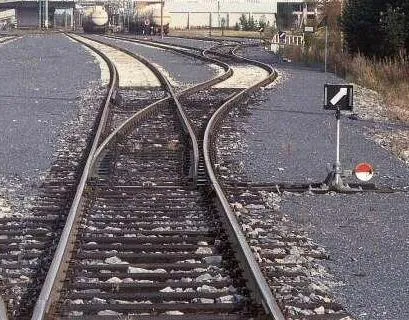

The most common type of switch consists of a pair of linked tapering rails, known as points (switch rails or point blades), lying between the diverging outer rails (the stock rails). These points can be moved laterally into one of two positions to direct a train coming from the point blades toward the straight path or the diverging path. A train moving from the narrow end toward the point blades (i.e. it will be directed to one of the two paths, depending on the position of the points) is said to be executing a facing-point movement.
【From wikipedia】
You can check the gif

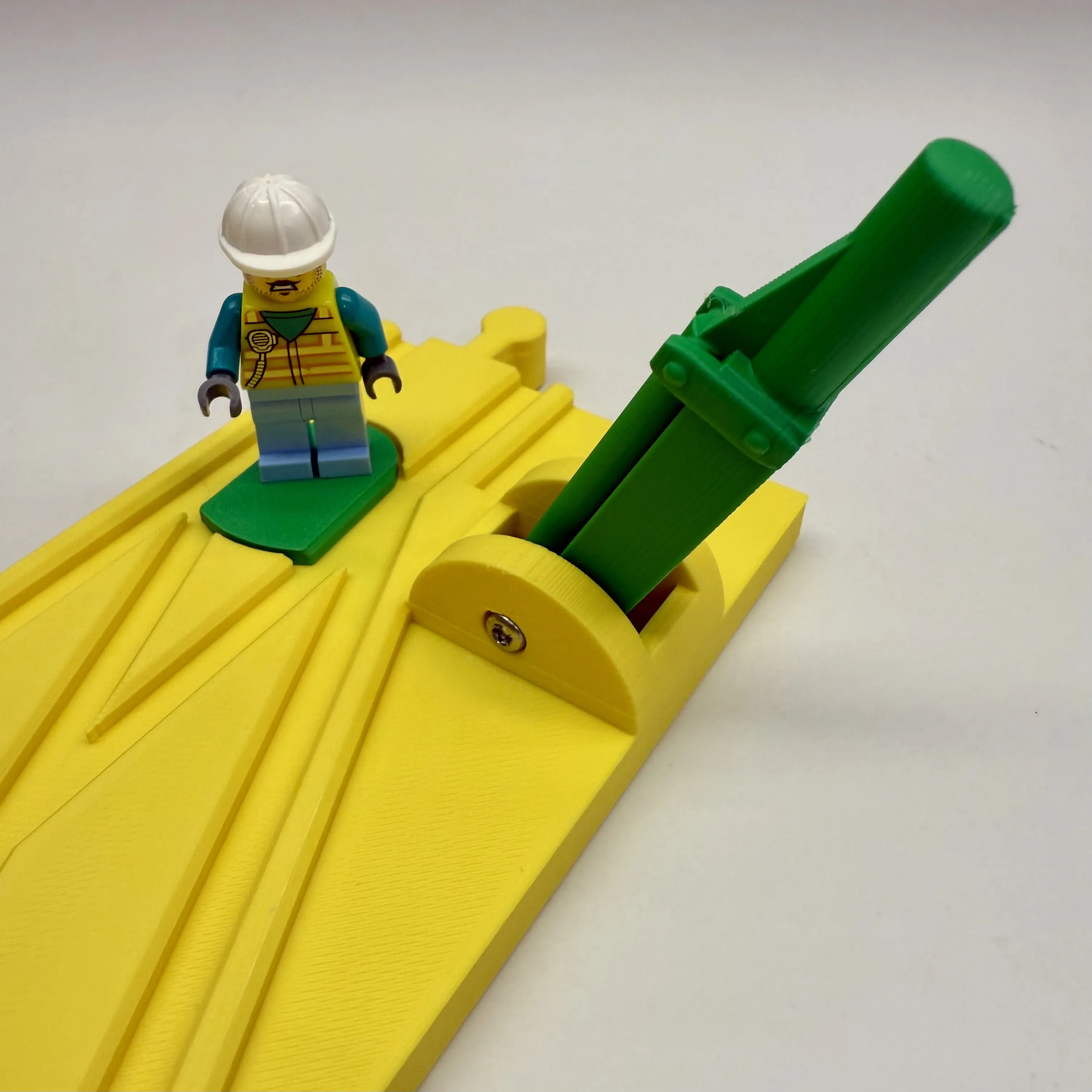

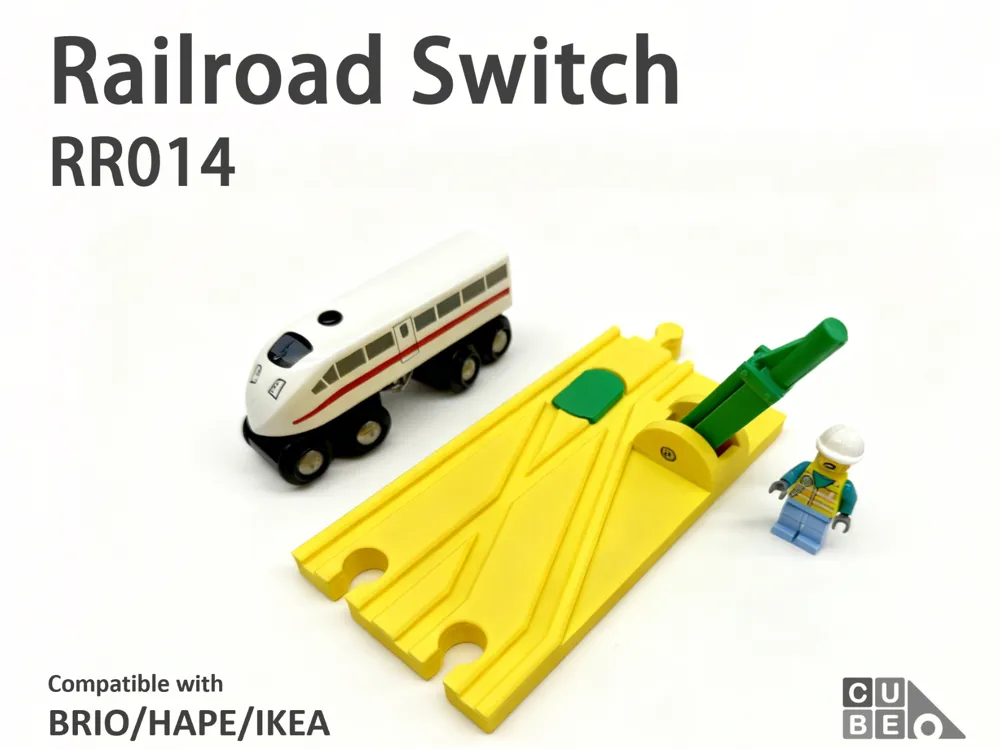

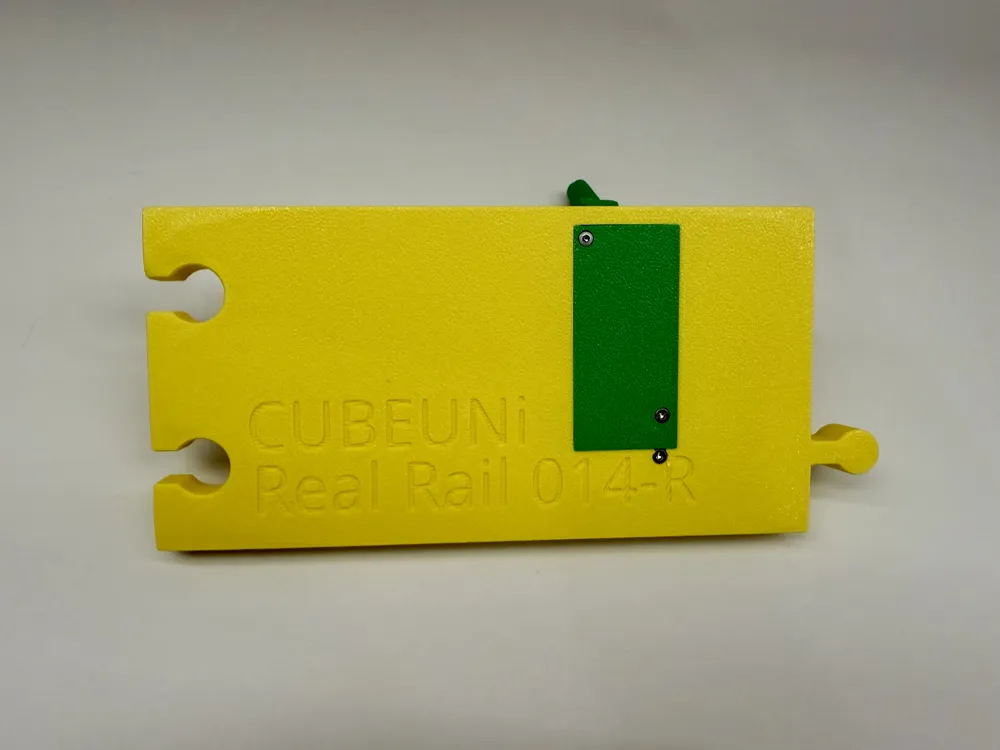

So this is my design

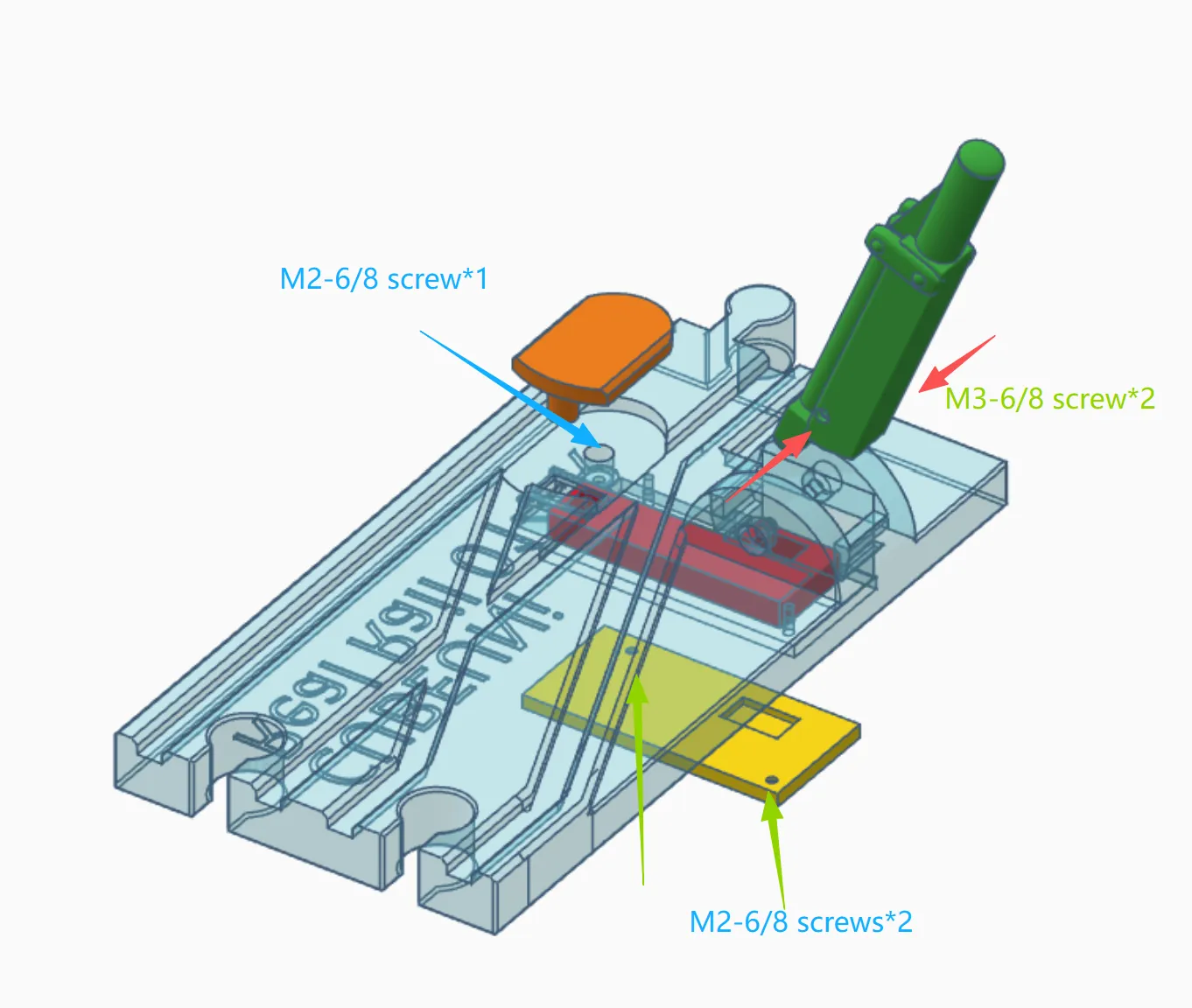

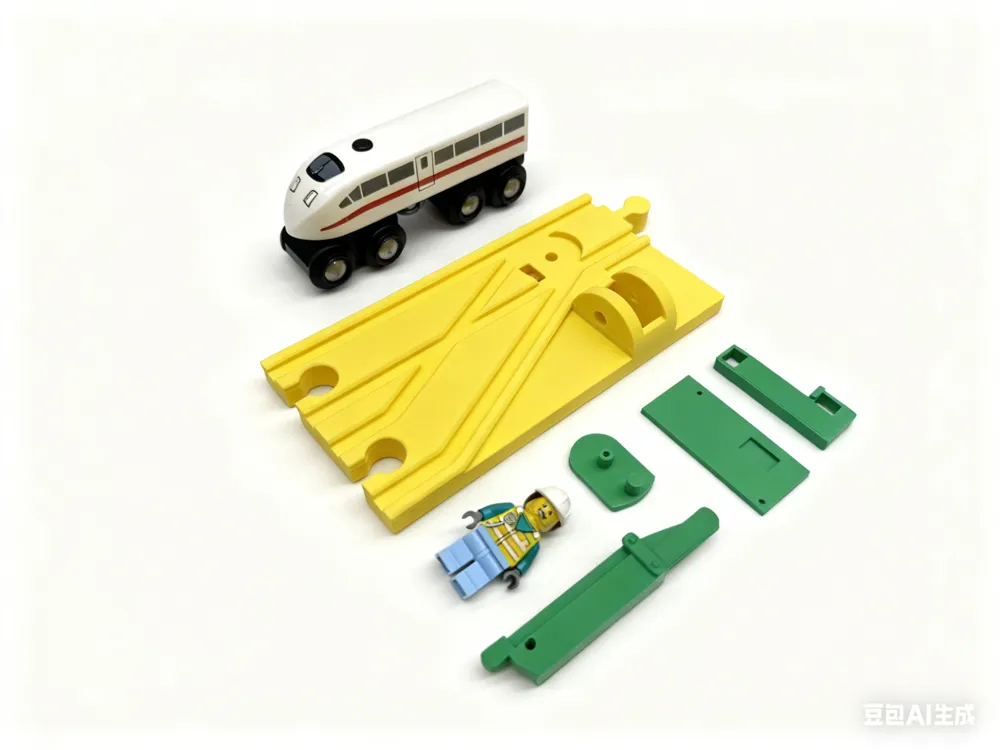

You need M3-6/8 screws 2， M2-6/8 screws*3 to assemble it.
very easy and interesting.

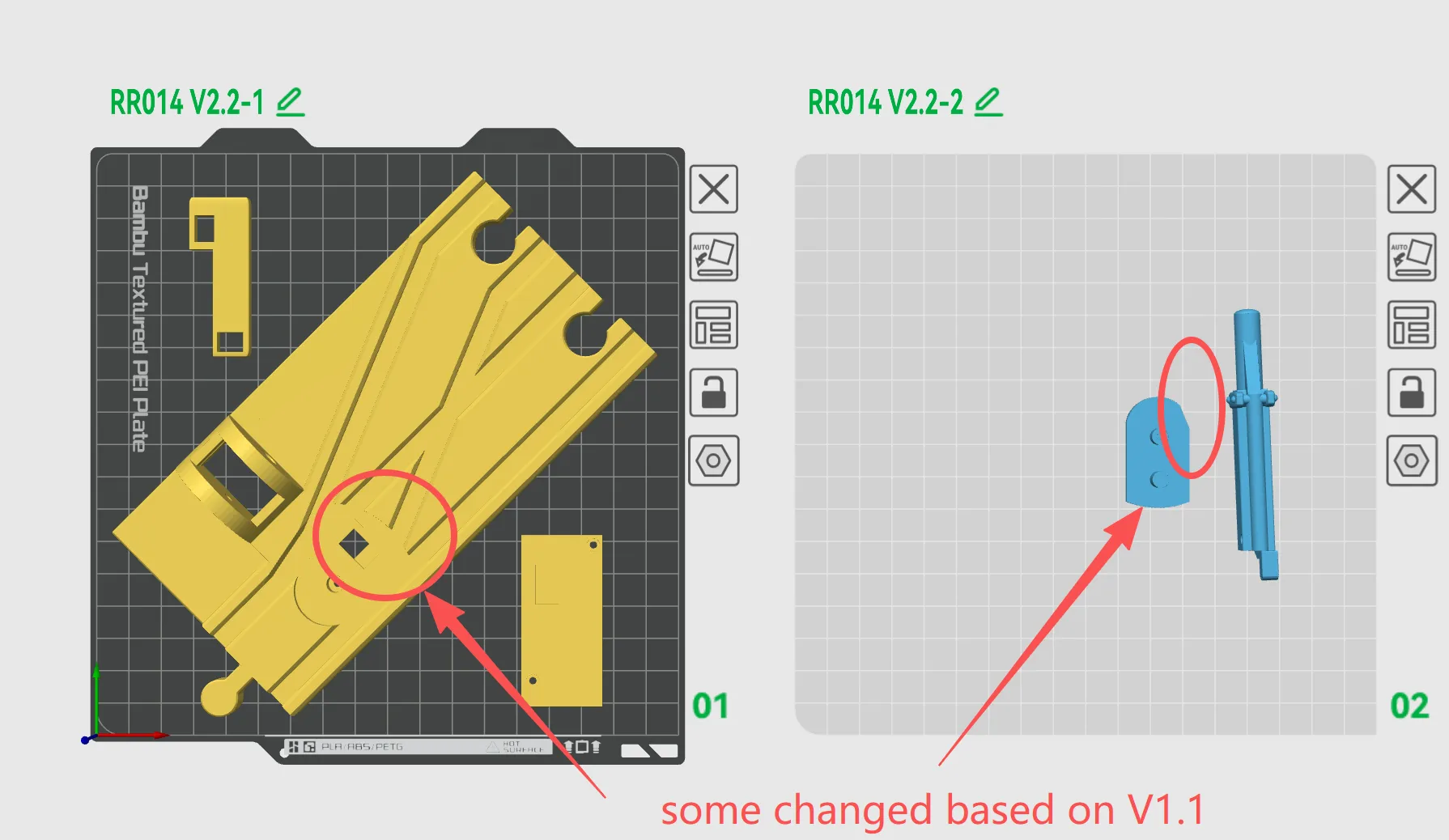

V2.2 did some change，so HAPE trains can pass easily
If you like it, could you give me a free Boost ? Thanks
