Desktop PCB Assembly Station (Low-Profile)

Desktop PCB Assembly Station – Low Profile

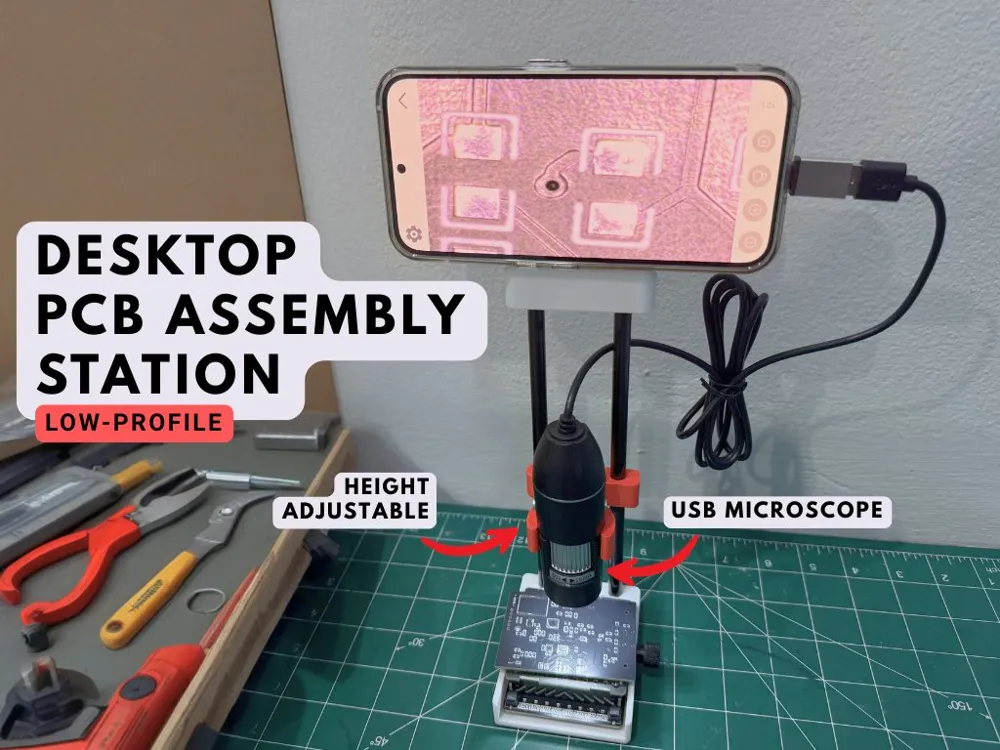

This compact desktop PCB assembly station, designed for electronics hobbyists, makers, and professionals. The setup is kinda easy it features a USB digital microscope mounted on a 8mm carbon rod so it height adjustable


Components:

• All 3 parts included. print it in PETG as i reccomended
• 2x 200mm 8mm Carbon Rods
• A Phone
• USB Microscope (https://www.aliexpress.com/item/1005007170983568.html)

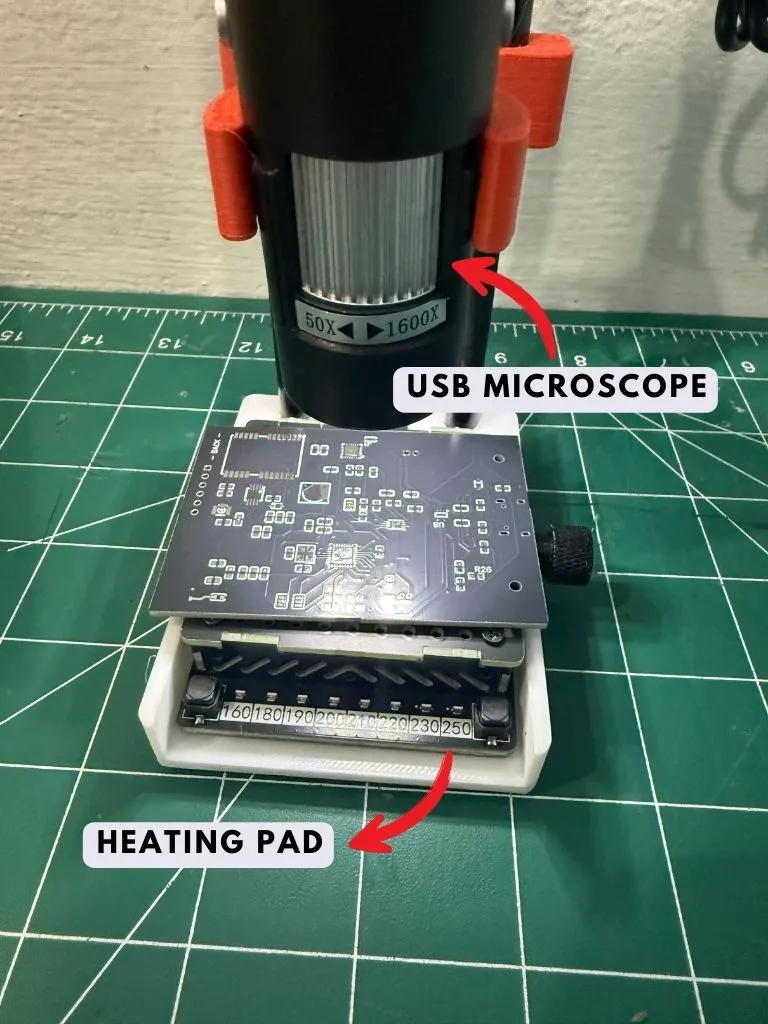

• Heating Pad (https://www.aliexpress.com/item/1005008848459046.html)  this one have very small size of heat area, I use another aluminium plate put it on top with thermal grease to expand the heating area.

Assembly:

• Print all the 3 parts
• Insert both of the carbon rods onto the base

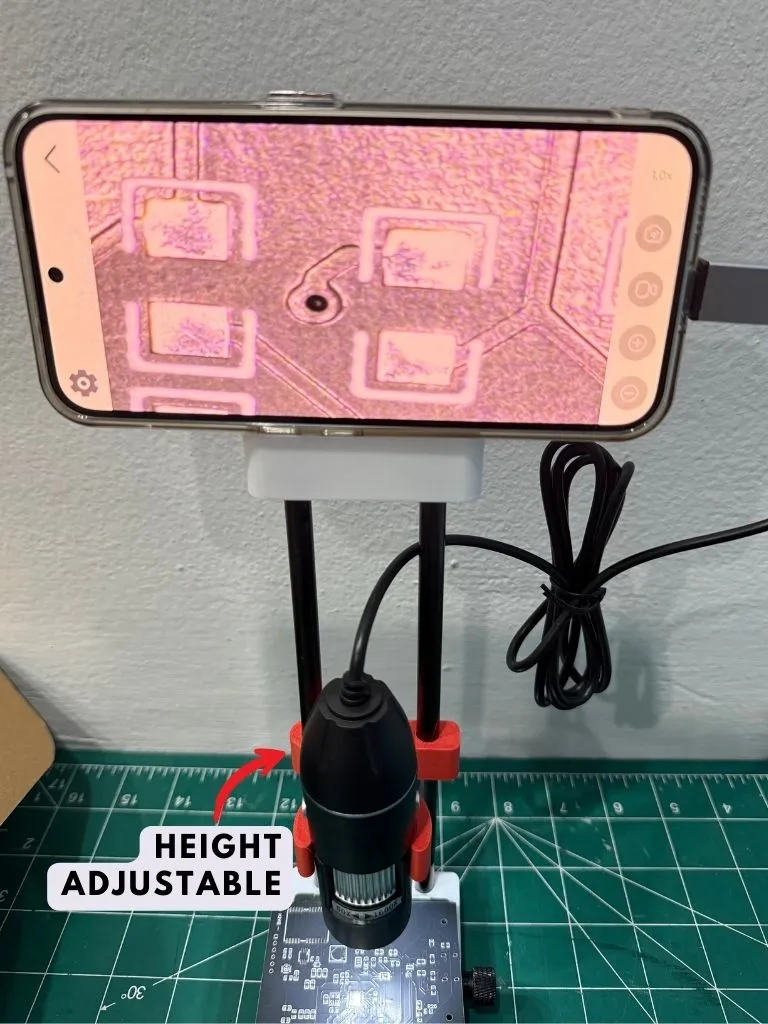

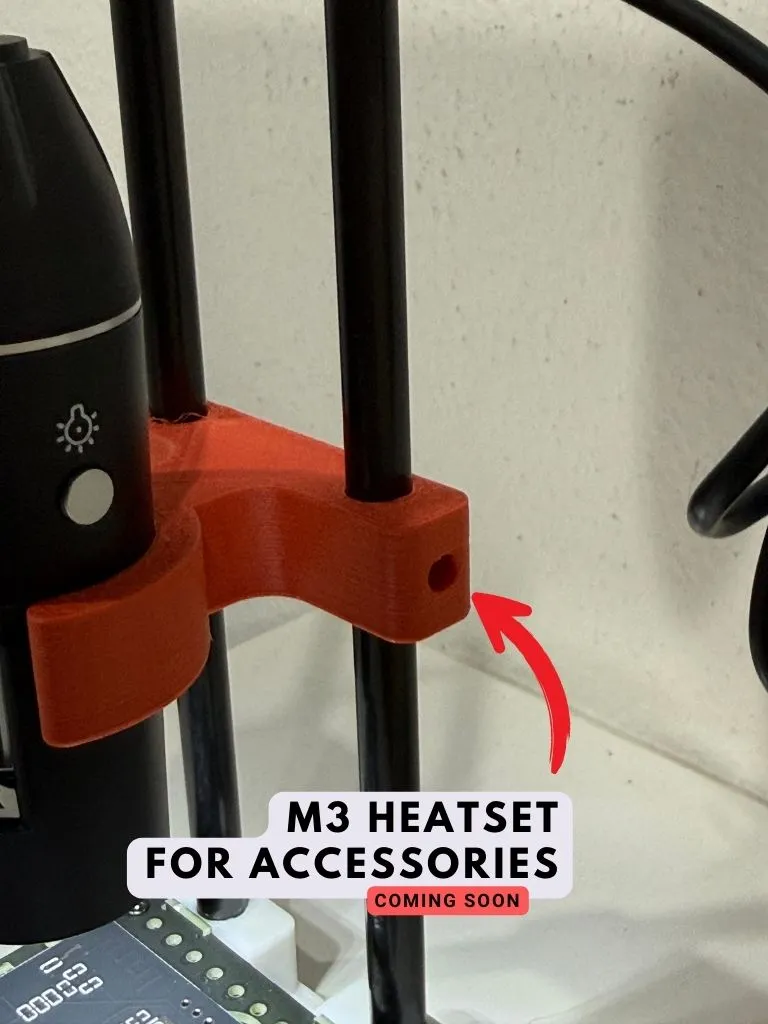

• Insert the Microscope Mount into the rods it supposed to be moveable but when you stop moving it suppose to hold on
• Put the top mount onto the rod and make sure it tight.

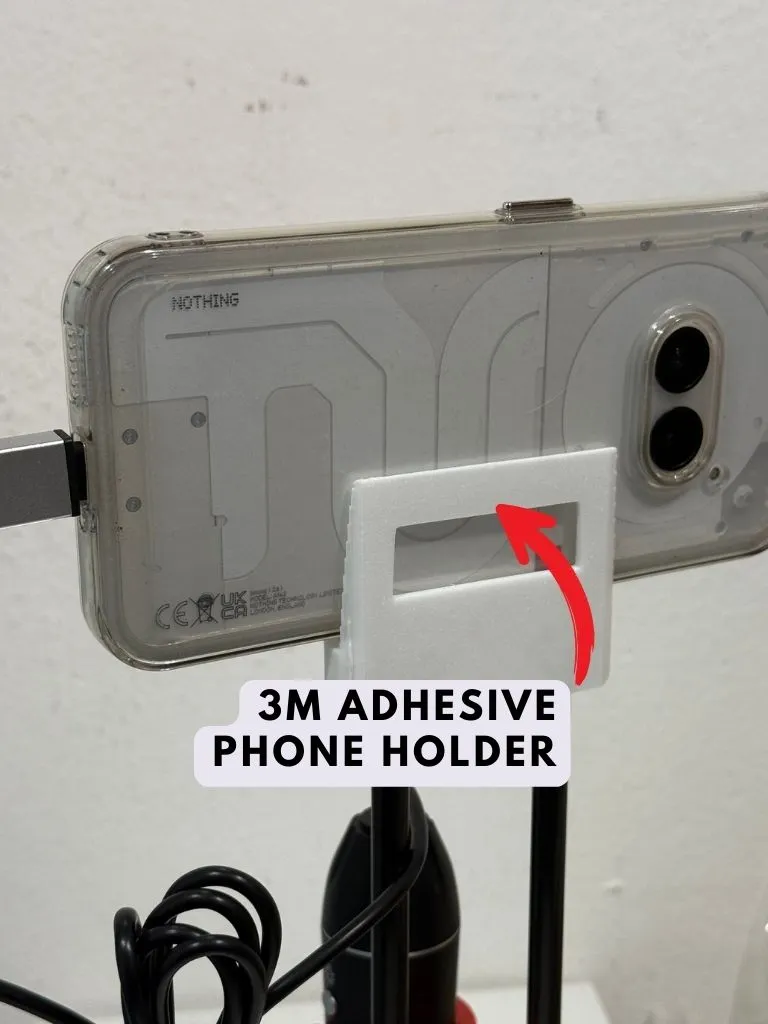

• use your phone stick it on the top mount using 3M VHS or smth else.
• Snap the microscope onto the mount
• Connect the USB cable and install the apps according to mandarin instructions of the camera.

The low-profile design saves workspace while keeping your tools and boards easily accessible.
