Description

Content has been automatically translated.
Show original

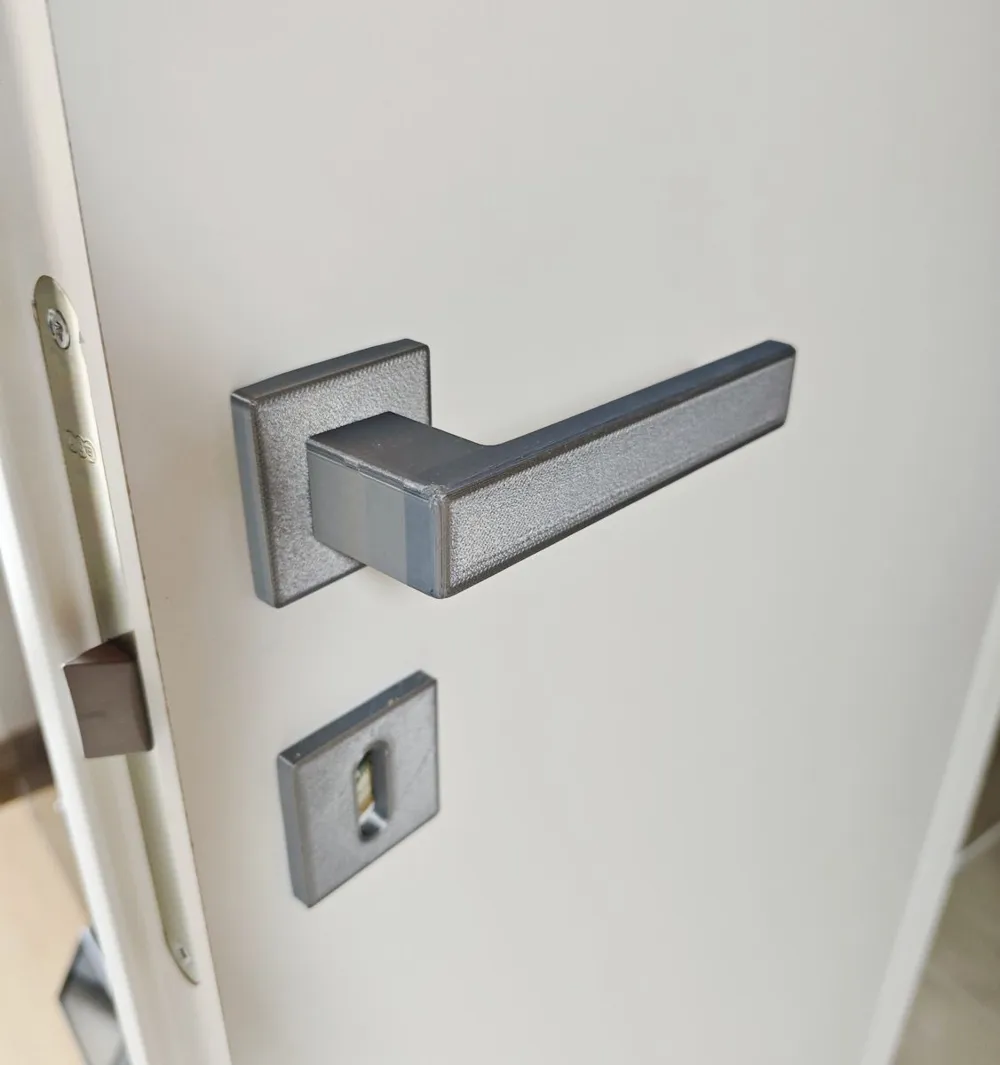

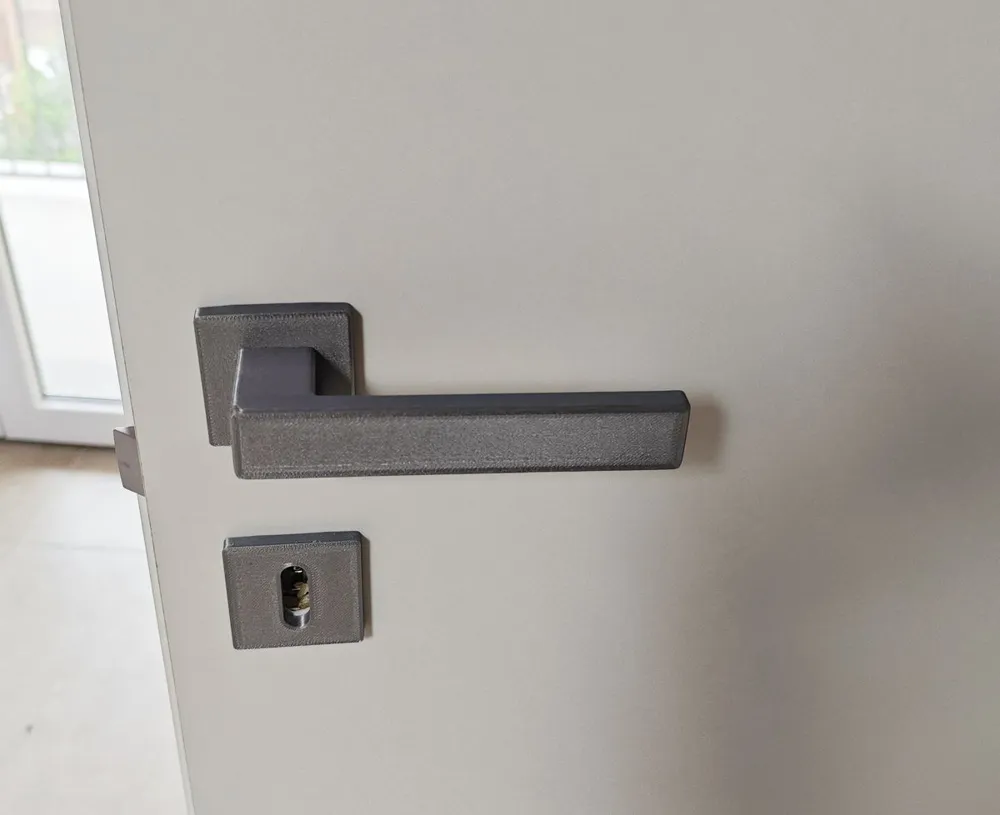

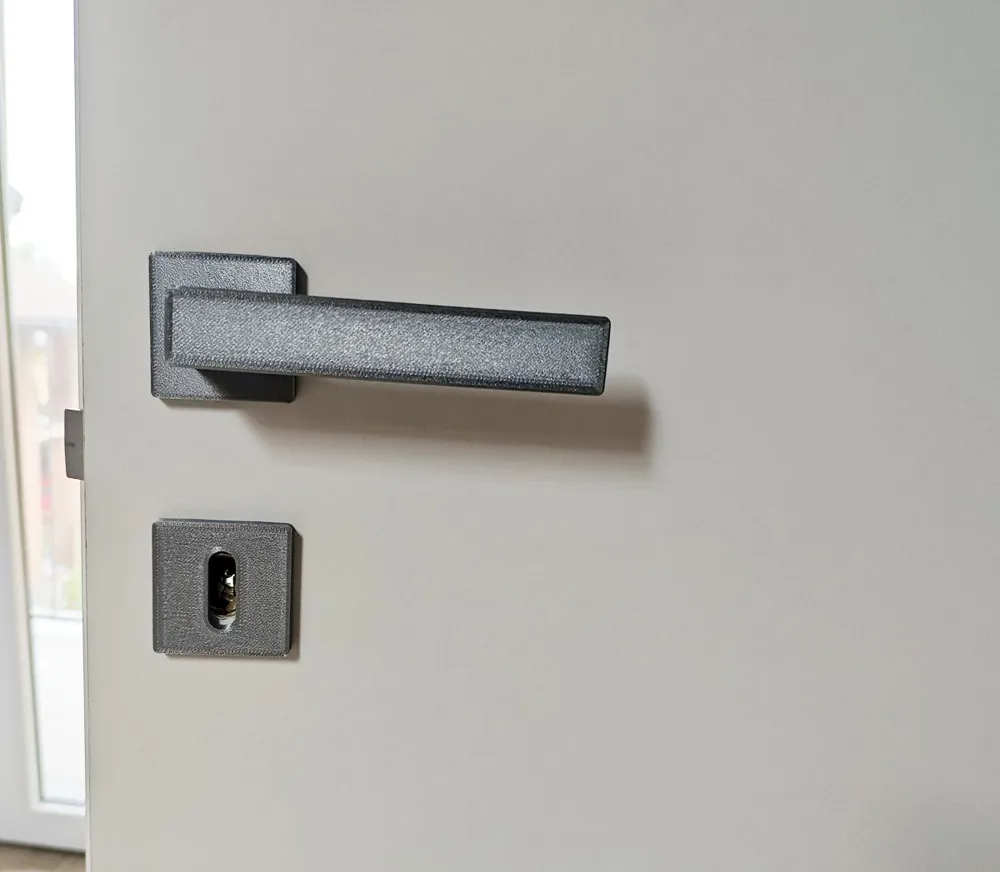

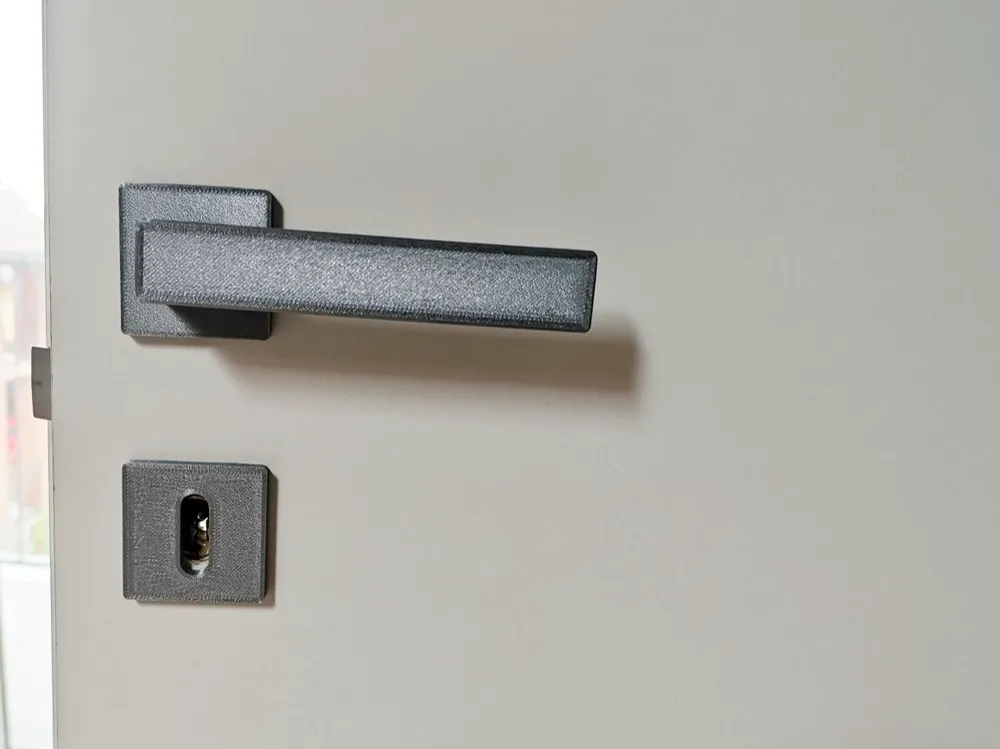

I installed the doors at home, but we haven't chosen the handles yet.
I decided to print some temporary handles so we wouldn't get locked in the room

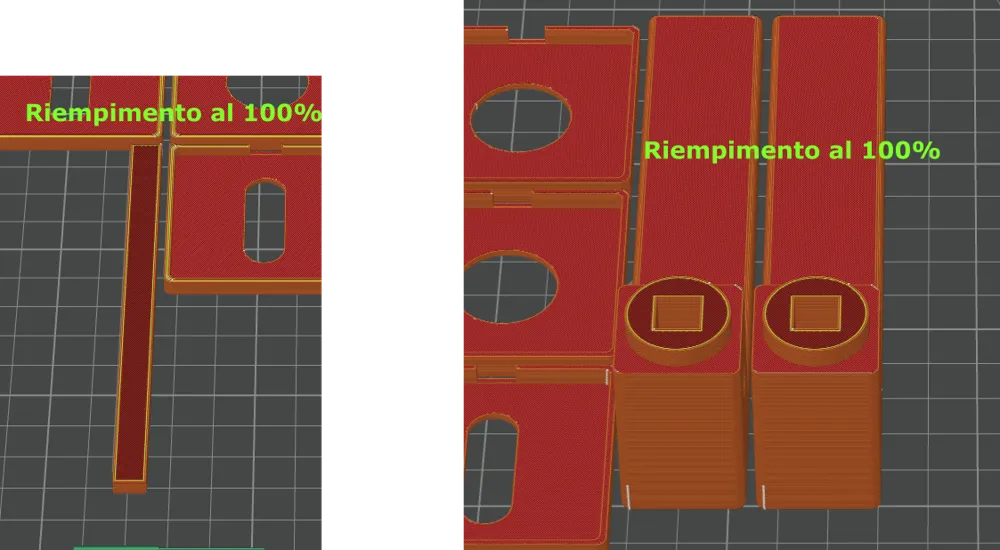

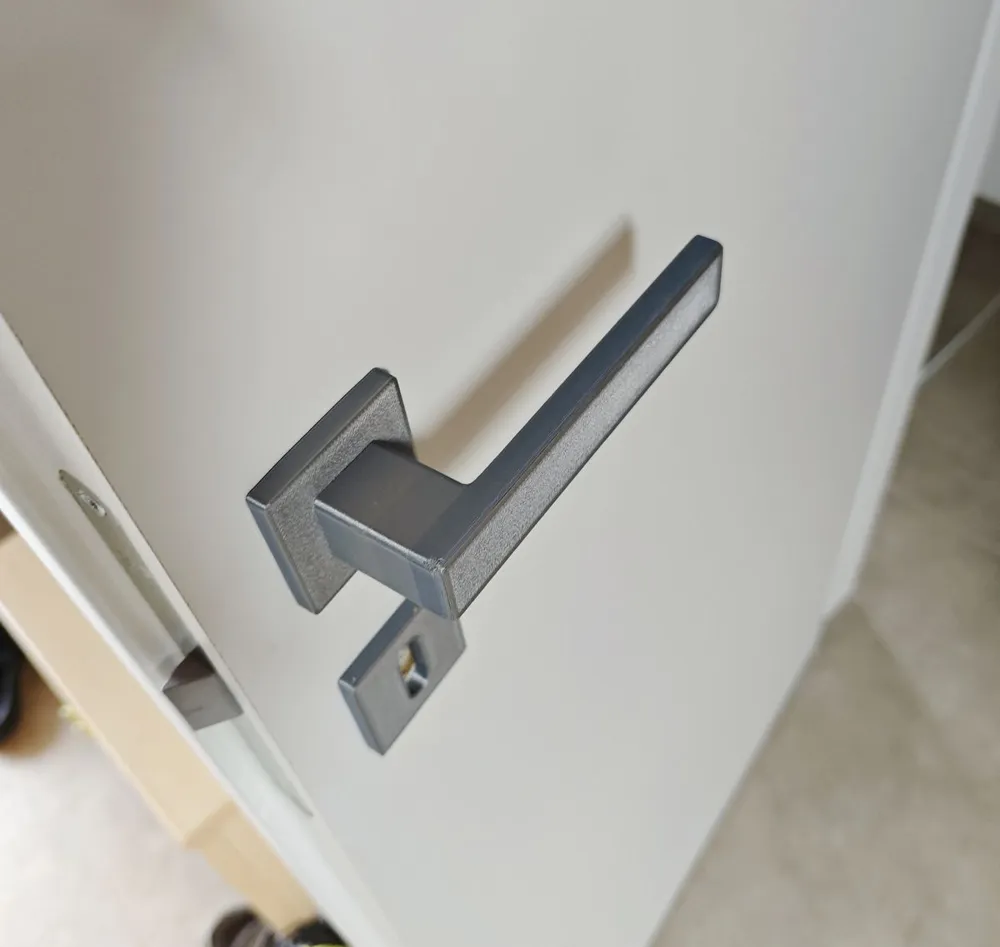

The handle works well, I used PLA silver silk, the problem is the 8mm square pin must be printed with 100% infill otherwise it won't hold
Modify the length of the square pin according to the thickness of your doors, mine are 45mm,
I made the screw hole afterwards using the handle as a reference

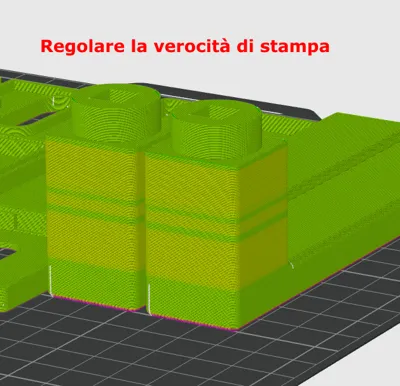

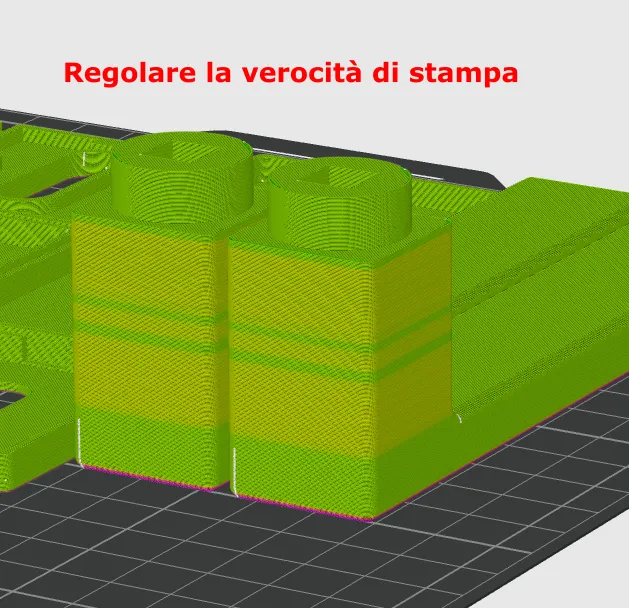

if you don't want the lines from speed changes, lower it in the slicer

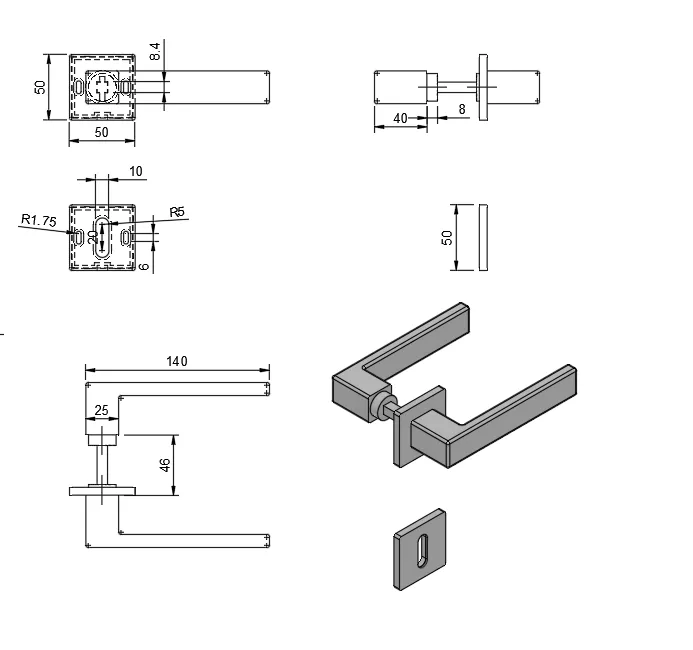

I am attaching the step file for modifications based on the door each one possesses
