Description

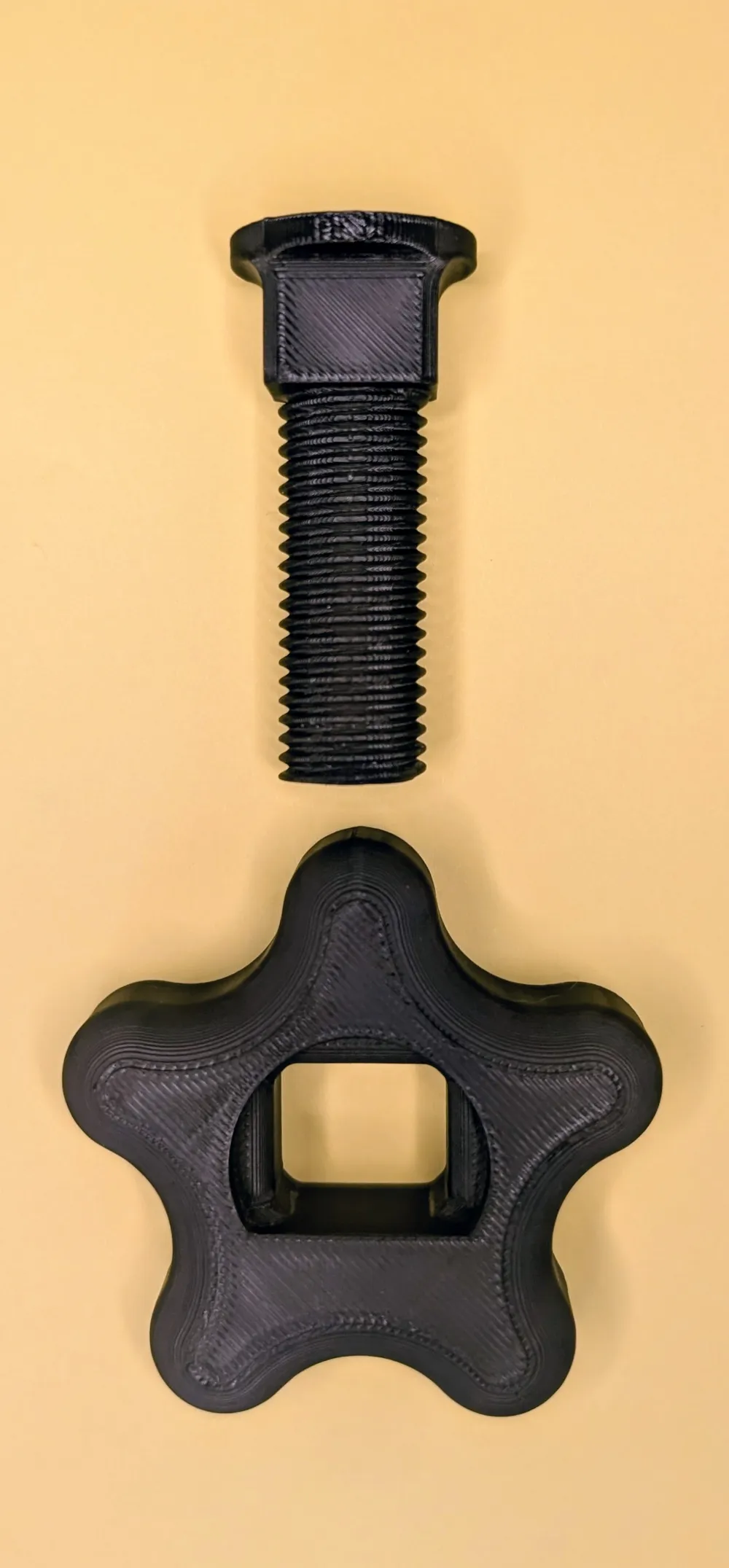

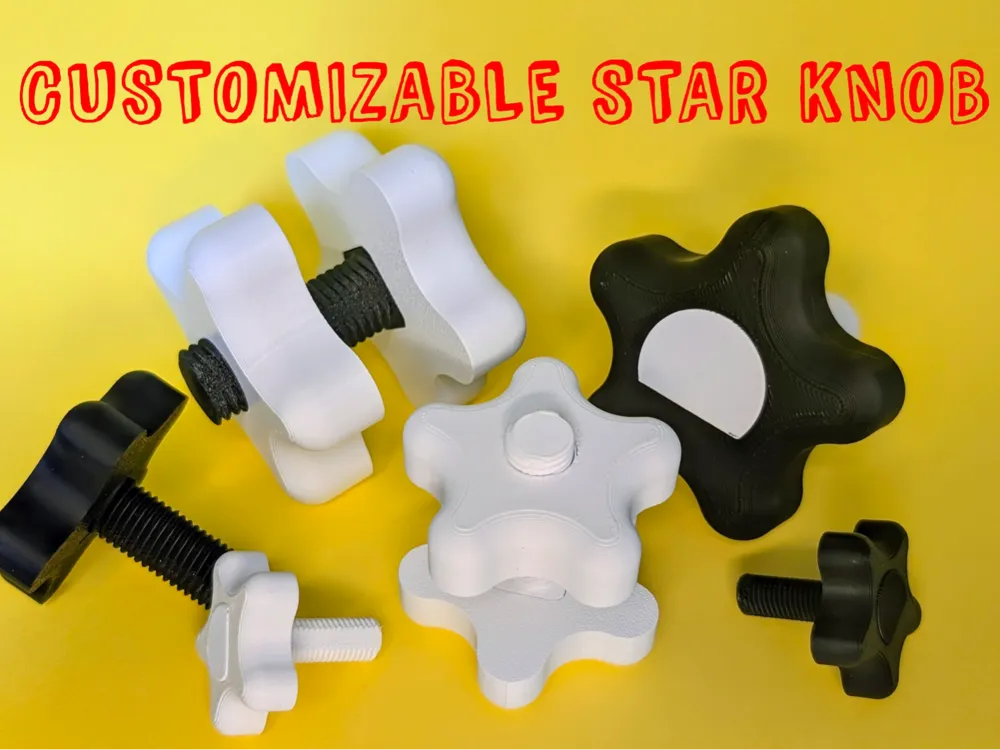

Here is customizable star knob in 2 parts for your projects that need fixing elements.
These screw are strong and well adjusted.
Customization as per following settings :
Diameter of the screw and nut

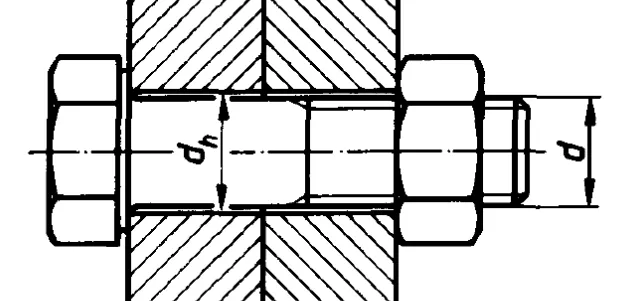

The diameter you want, be careful, your passage hole must be slightly larger.
For exemple : diameter of screw 10 mm, your passage hole must be 10.1 mm
Pitch of the screw and nut

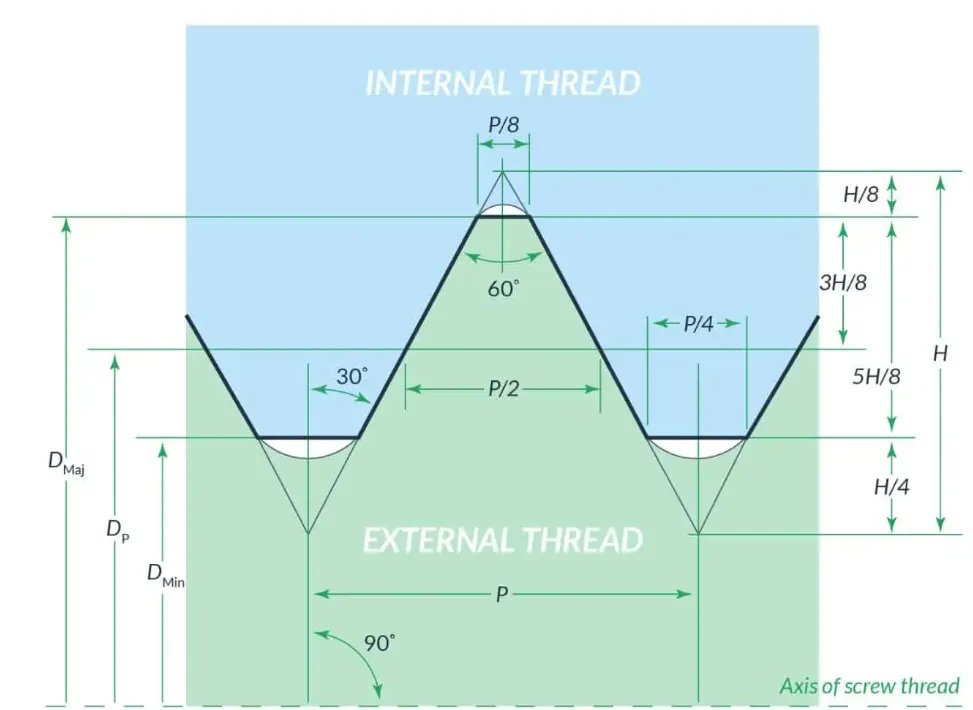

Pitch is the distance between a screw's threads. The pitch should not be too much in relation to the diameter.
For exemple : Don't do a screw diameter 5 mm with pitch of 20 !
Dimensions are in accordance of following picture :
Total screw lenght
The lenght of the screw under the head.
Functionnal screw and nut version here :
https://makerworld.com/en/models/1695689-customizable-manual-screws-and-nuts#profileId-1797918
