Description

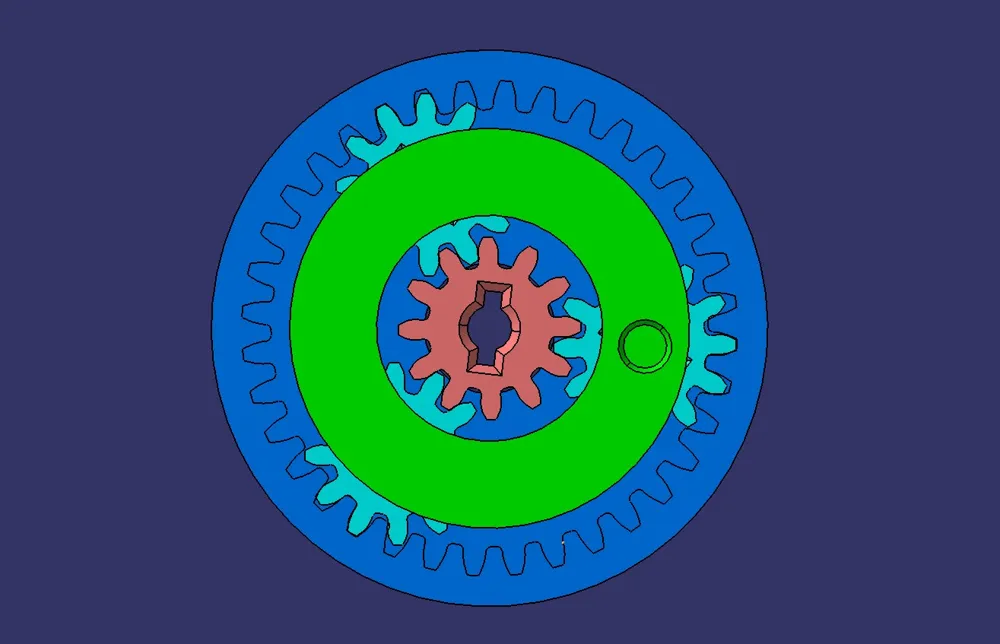

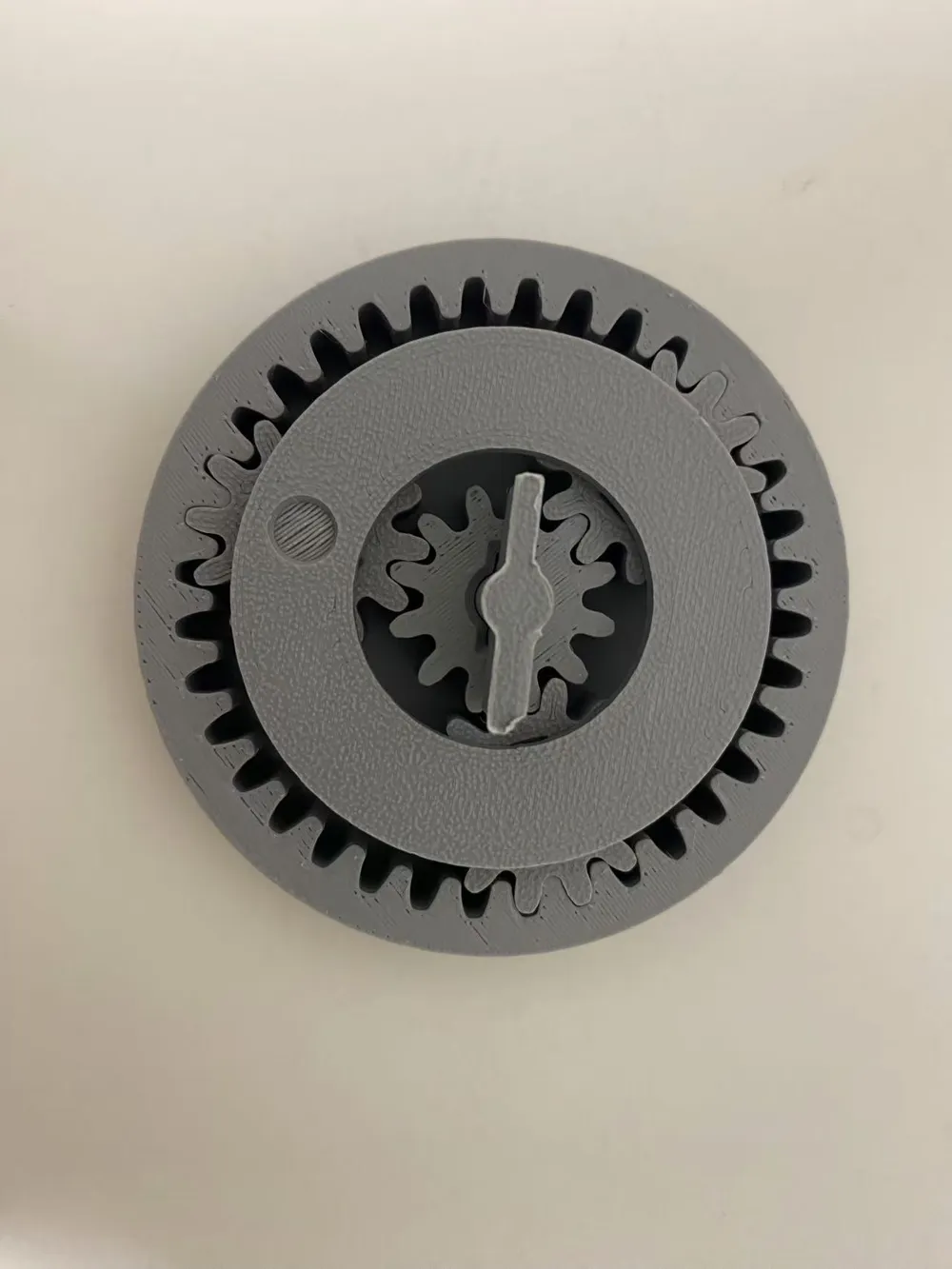

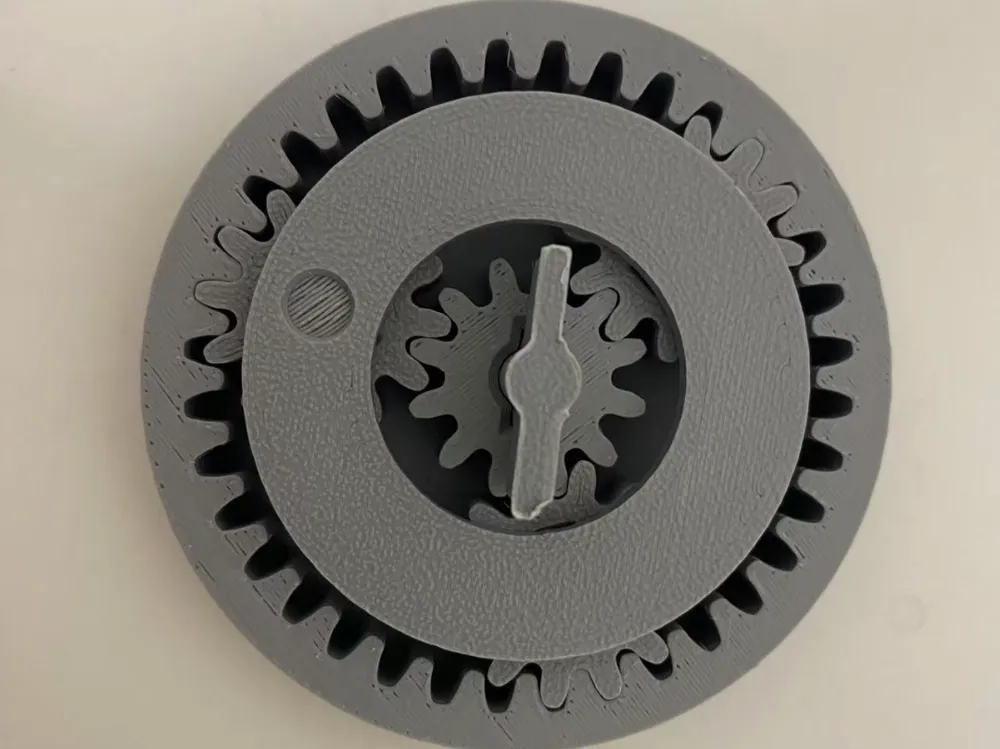

This model is a typical planetary gear reducer model, replicating the structure and function of a planetary gear system; the structure includes the sun gear, planet gears, planet carrier, and ring gear; this structure is widely used in engineering, capable of achieving high reduction ratios, compact size, and efficient power transmission. By fixing the three different components in different ways, different reduction ratios can be achieved, serving as a teaching tool or for understanding planetary gear reduction systems.
This model is a classic planetary gear reducer that replicates the structure and functionality of a planetary gear system. Its structure includes the sun gear, planet gears, planet carrier, and ring gear. Widely used in engineering applications, this system is capable of achieving high reduction ratios, a compact footprint, and efficient power transmission. By fixing any one of the three different components, different reduction ratios can be realized, making it an excellent tool for education and for understanding planetary gear reduction systems.
To learn how to calculate planetary gear ratios, see(99+ private messages) Understanding Planetary Gear Reducers - Zhihu
