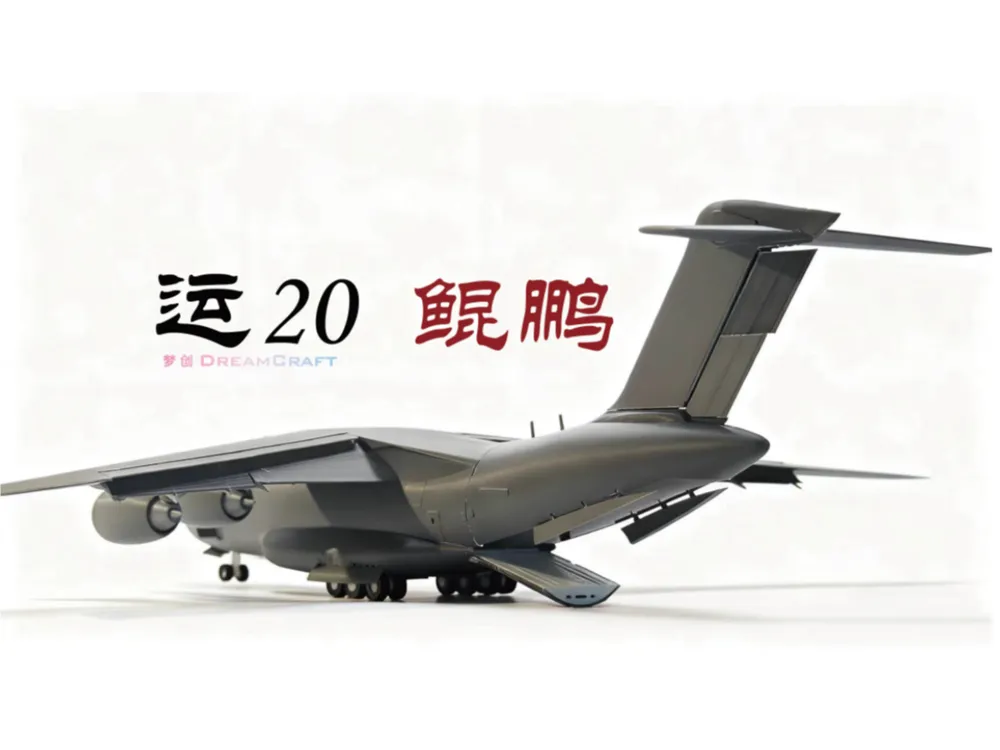

Chinese Y-20B transport aircraft with full internal structure
Print Profile(3)
Description
Boost Me (for free)
Boost to speed up updates

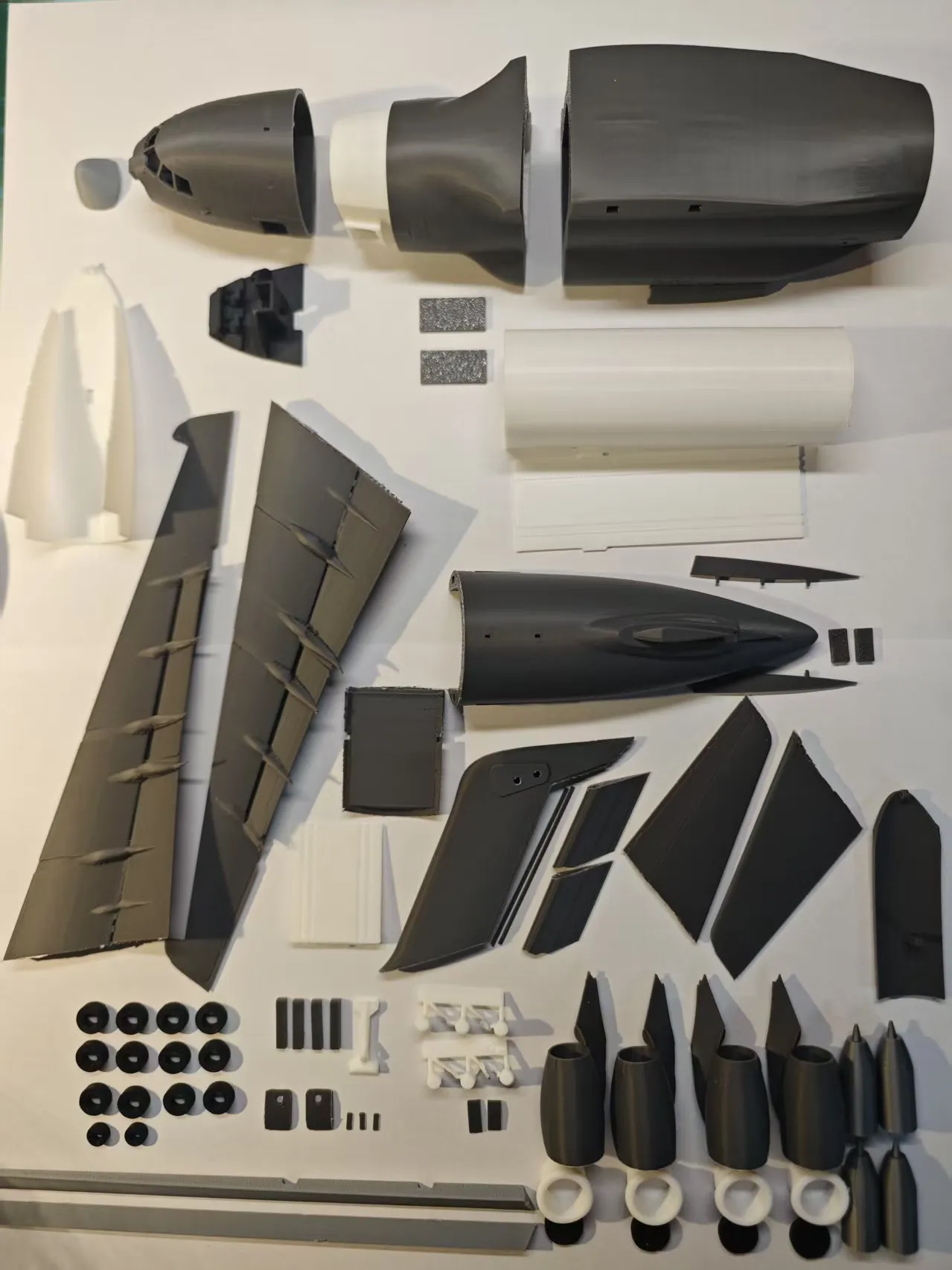

This model took a lot of time to design and contains 70+ parts
2025.10.15. Update:
Modified the wings of the three print profiles to have a larger first layer contact area, added brim to increase printing success rate
V1.1 Update Notes:
Thickened the main landing gear, merged tail gate A and fuselage C to reduce manufacturing difficulty, and divided into two versions: tailgate open and closed, simply print one of your choice.
Tip: plate 7 contains two sets of wings, one with flaps retracted and one with flaps extended, simply choose one set to print according to your preference, do not enable sport mode when printing wings
Prototype Introduction:
The Y-20B is China's Air Force WS-20 engine improved strategic transport aircraft. It has a maximum takeoff weight of 220 tons, a payload capacity of 66 tons, a range of 8000 to 11000 kilometers, possessing stronger carrying capacity and longer range, and officially debuted at the military parade on September 3, 2025.
Model Introduction:

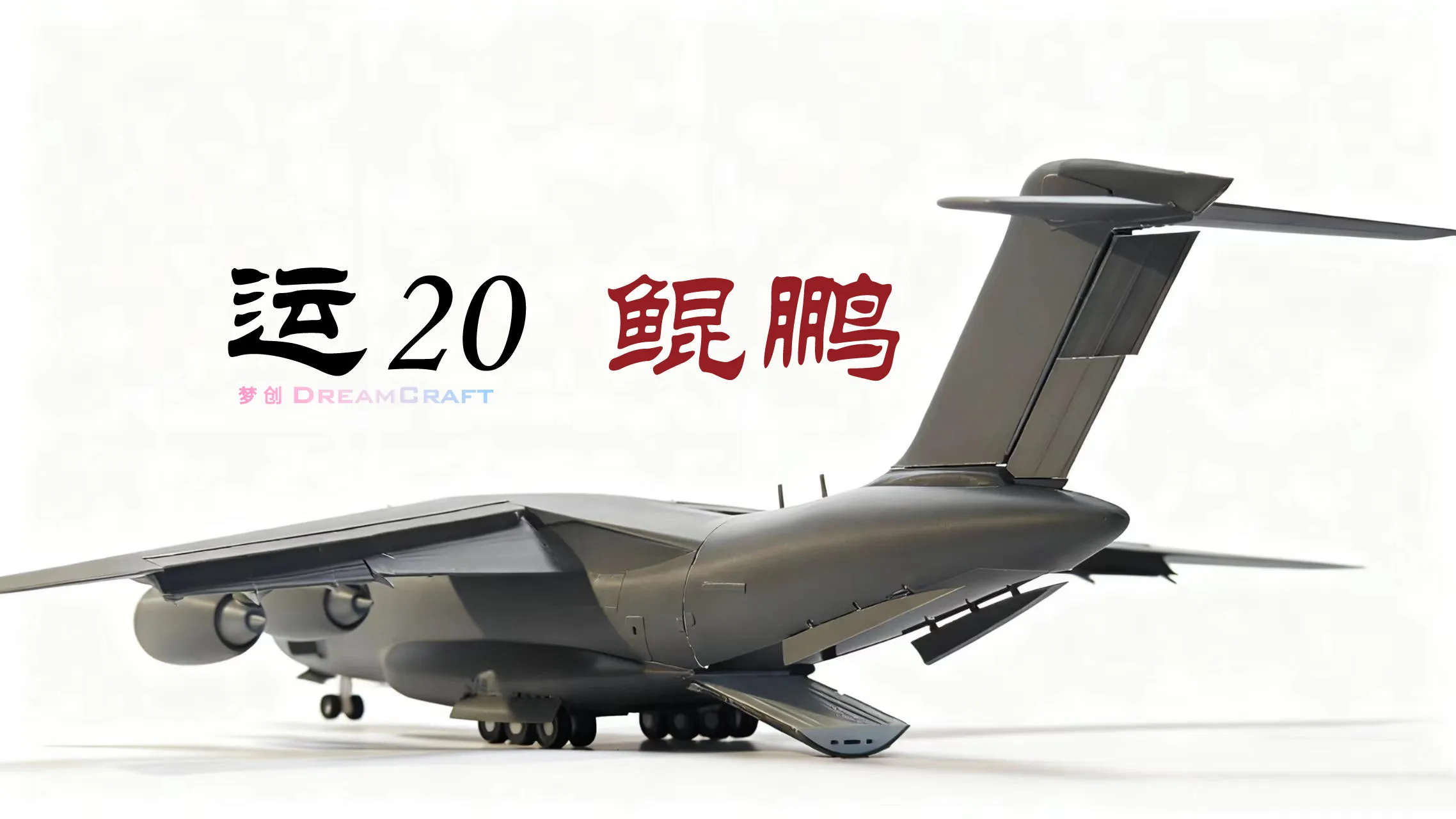

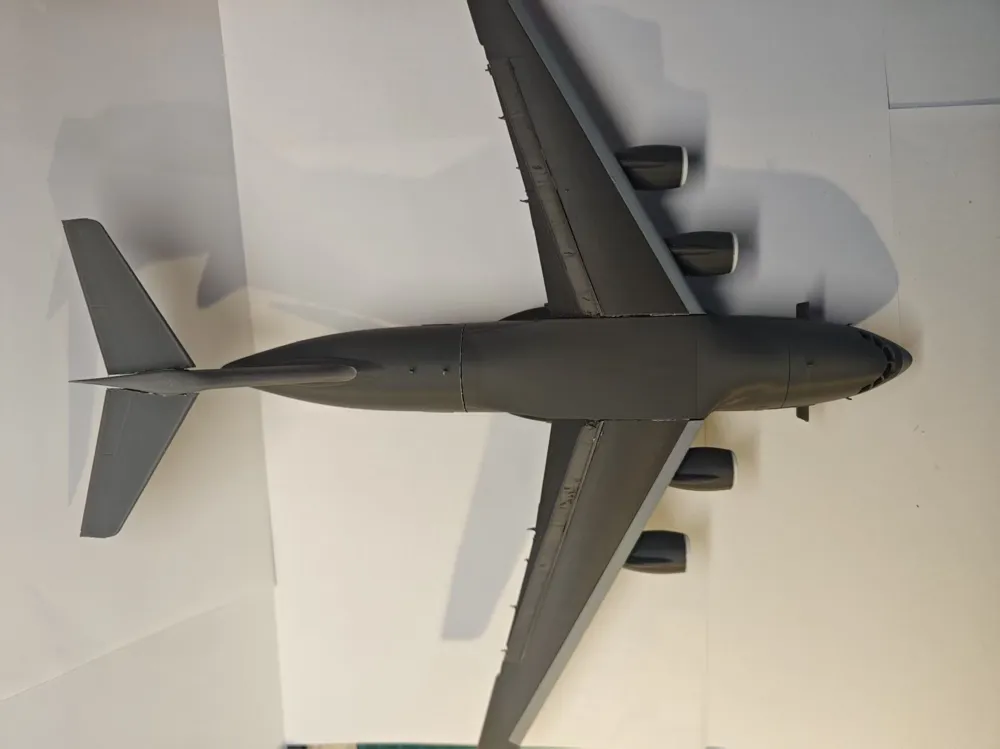

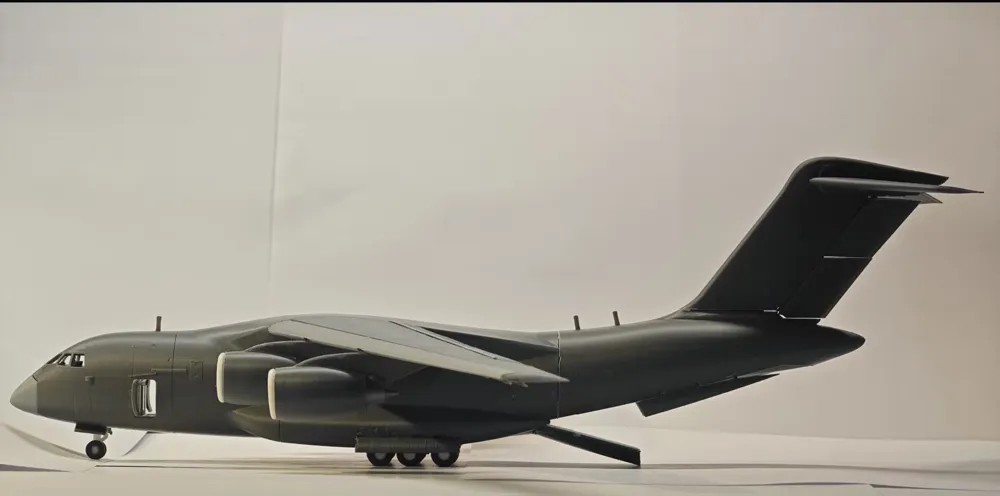

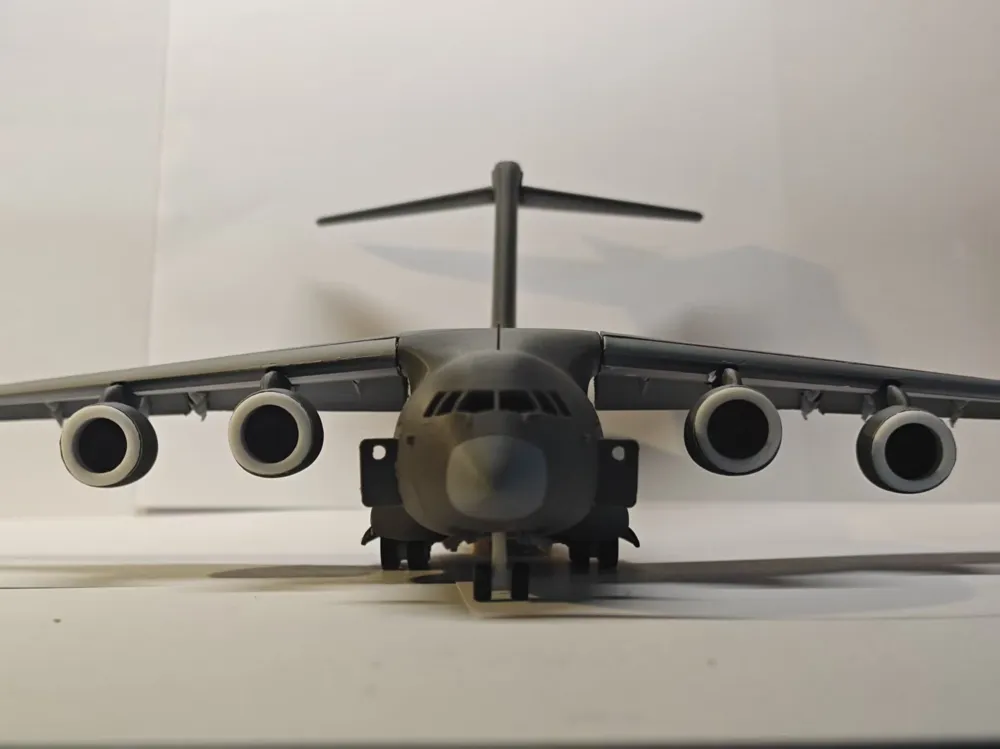

Model scale 1/144, overall length approximately 326mm
The model requires glue, most parts have locating pins for easier assembly

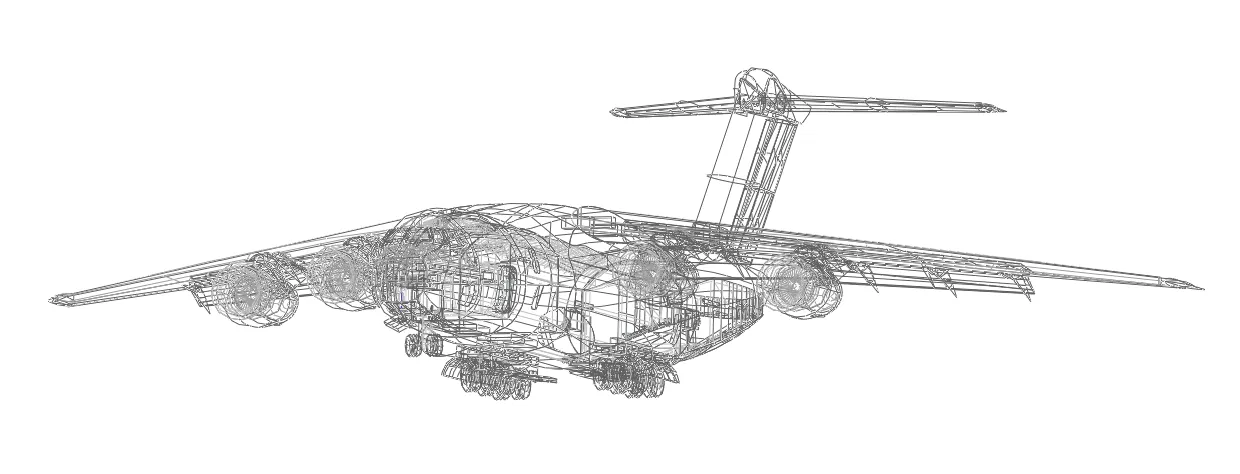

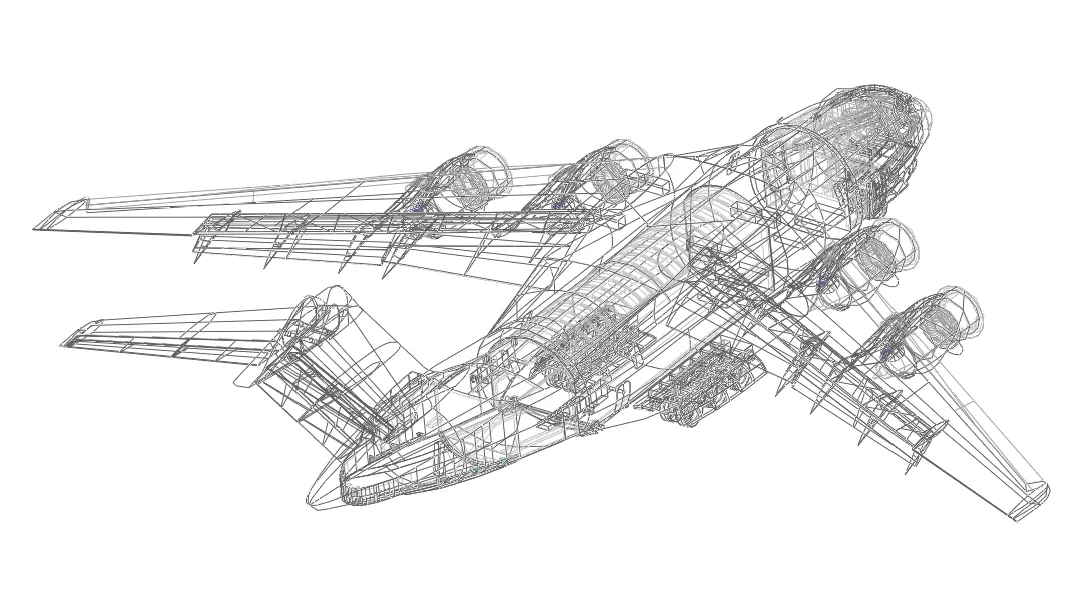

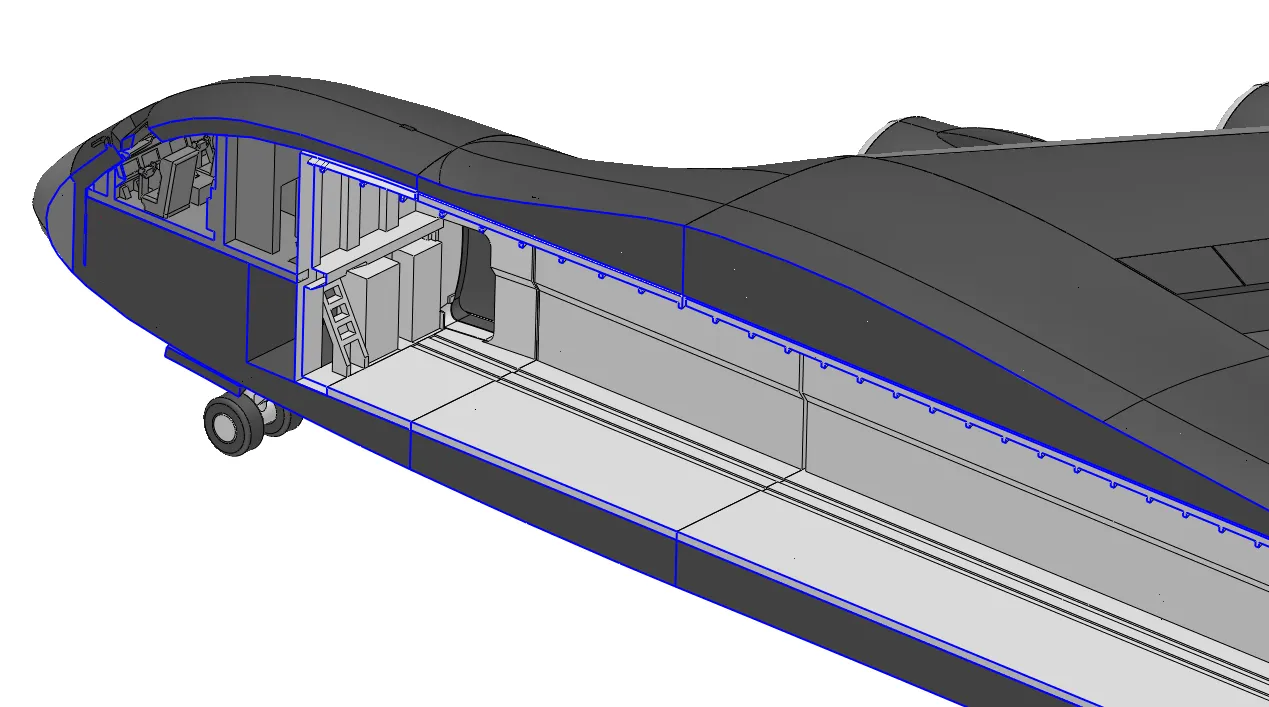

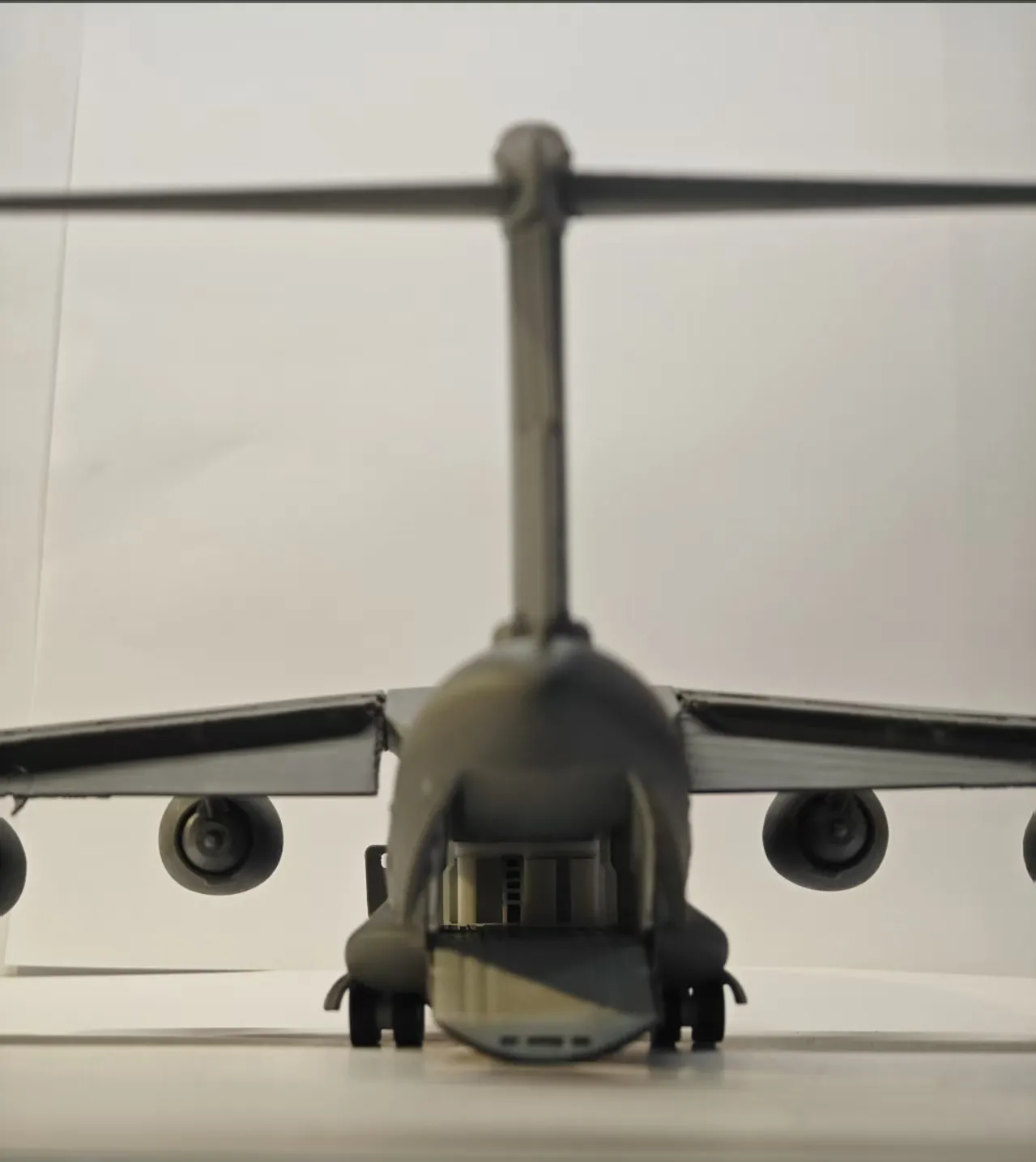

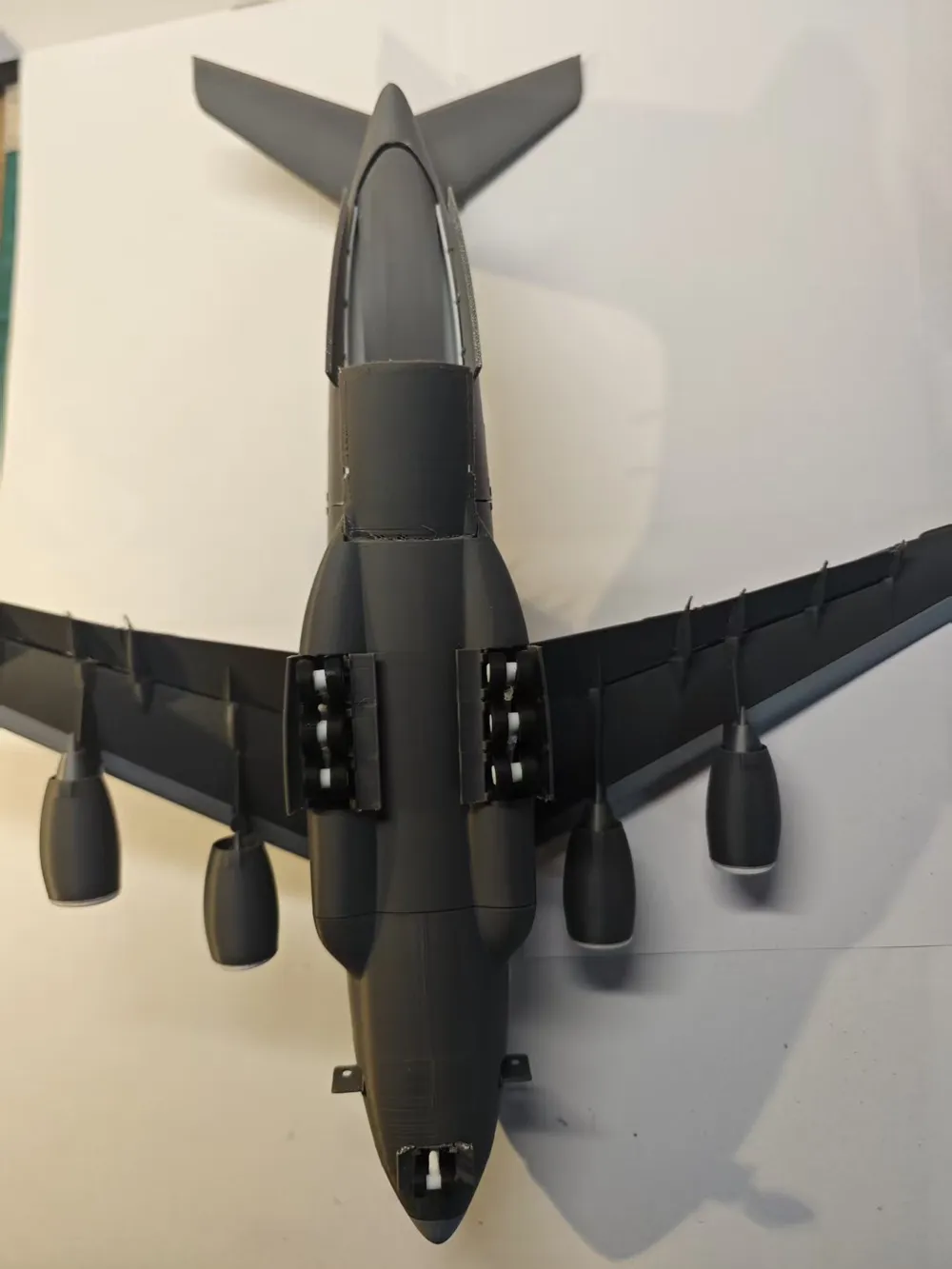

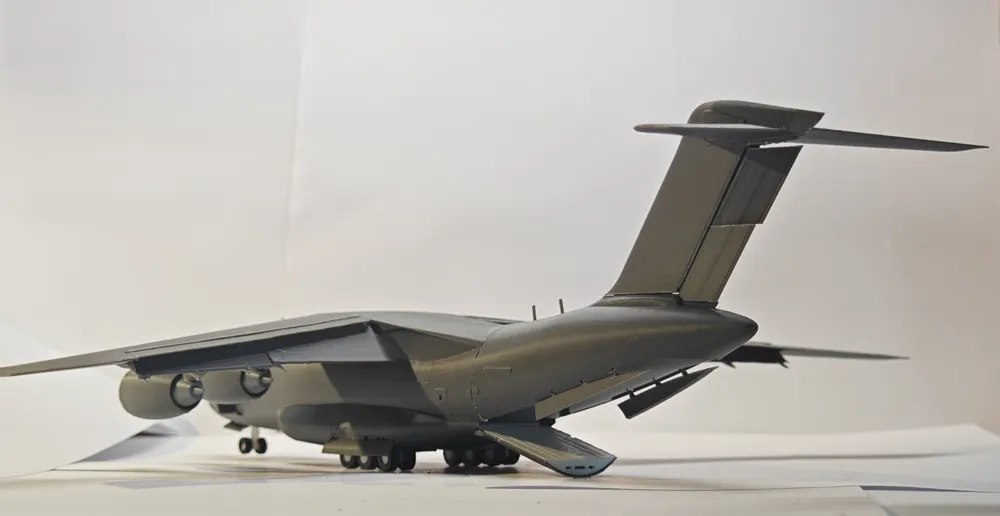

The model features a full interior design, including a cockpit and cargo hold, and the hatches can be optionally built in open or closed states
Please refer to the PDF for assembly instructions
