- This kit offers 4 plates with various accessories to fit on the Traxxas UDR's spare driveshaft.
This kit offers exceptional modularity, and can also be combined with official GoPro parts.
- Print with PLA TOUGH+ which offers good strength, it is still recommended to print with PETG or ABS for better strength and durability on rough terrain.
in this complete kit you will need:
x11 Ø5 mm cap nuts
x2 Ø4 mm nuts
x2 metric screws (domed cylindrical hex head / hex head / round Phillips head) 20 mm to 30 mm long.
Used REF:
Ref: 82583064 - 15 STANDERS steel nuts, Ø5 mm
Ref: 82582887 - STANDERS domed cylindrical hex head metric screw, Ø4 x L.20 mmPossible Configuration :

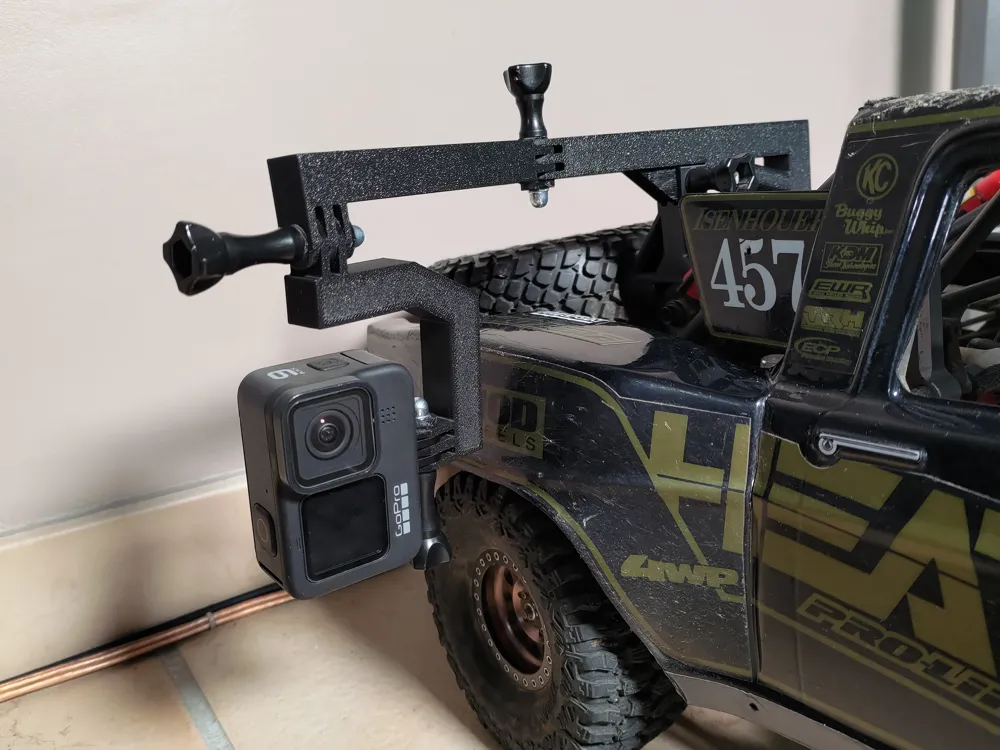

Bracket A Configuration:

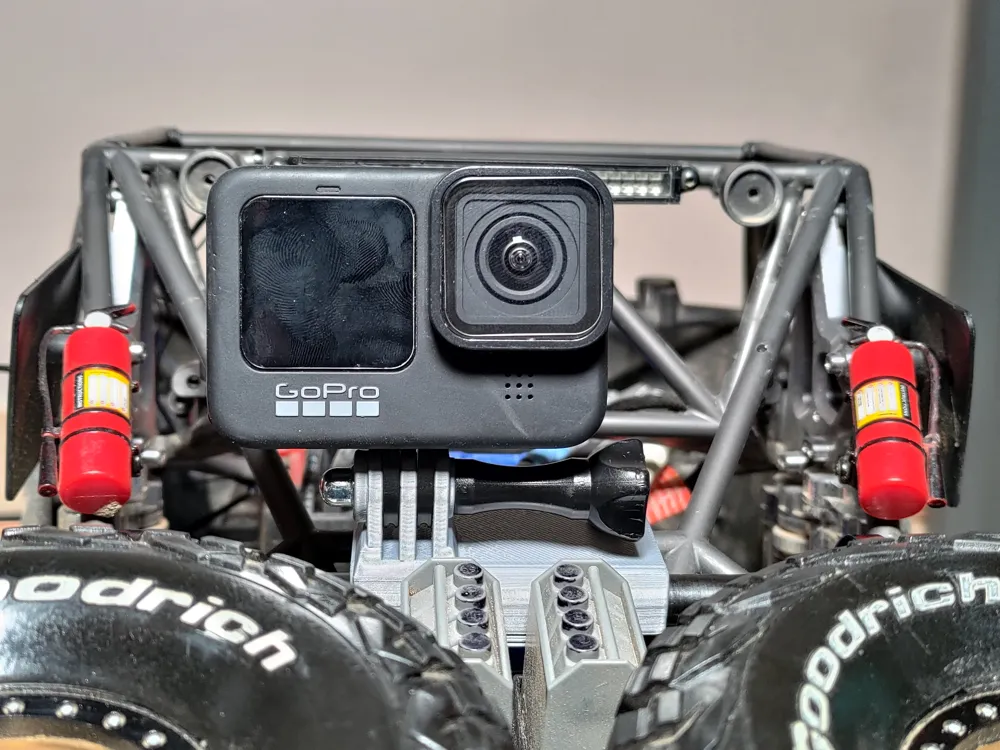

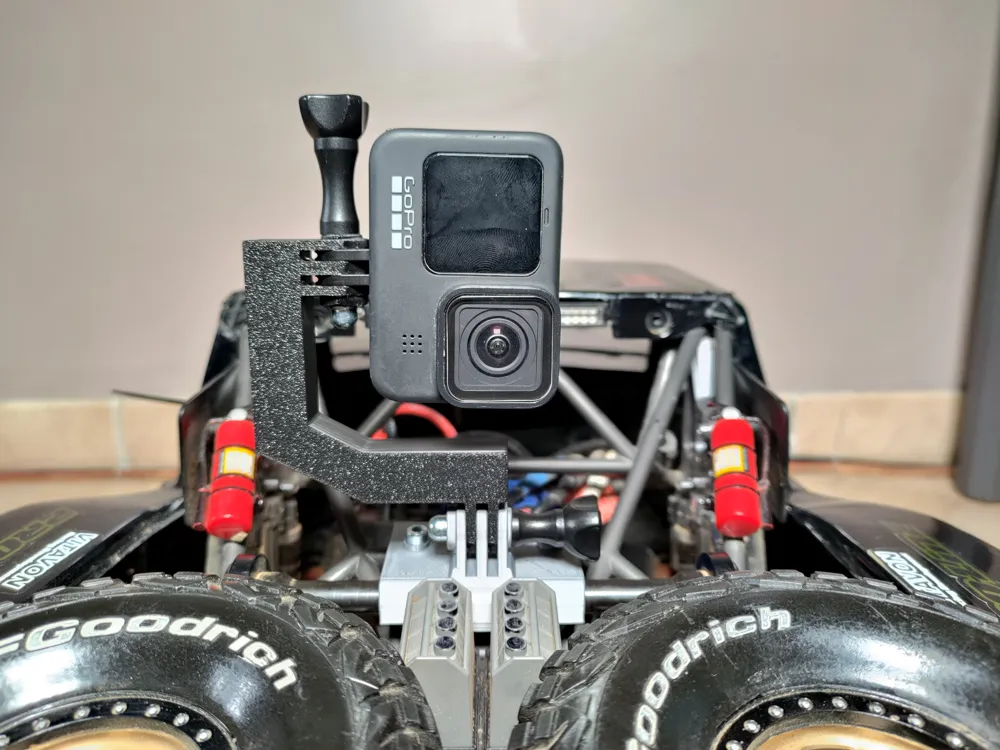

- Use part 1 to use the GoPro vertically and keep a centered image, whether in rear or front view.

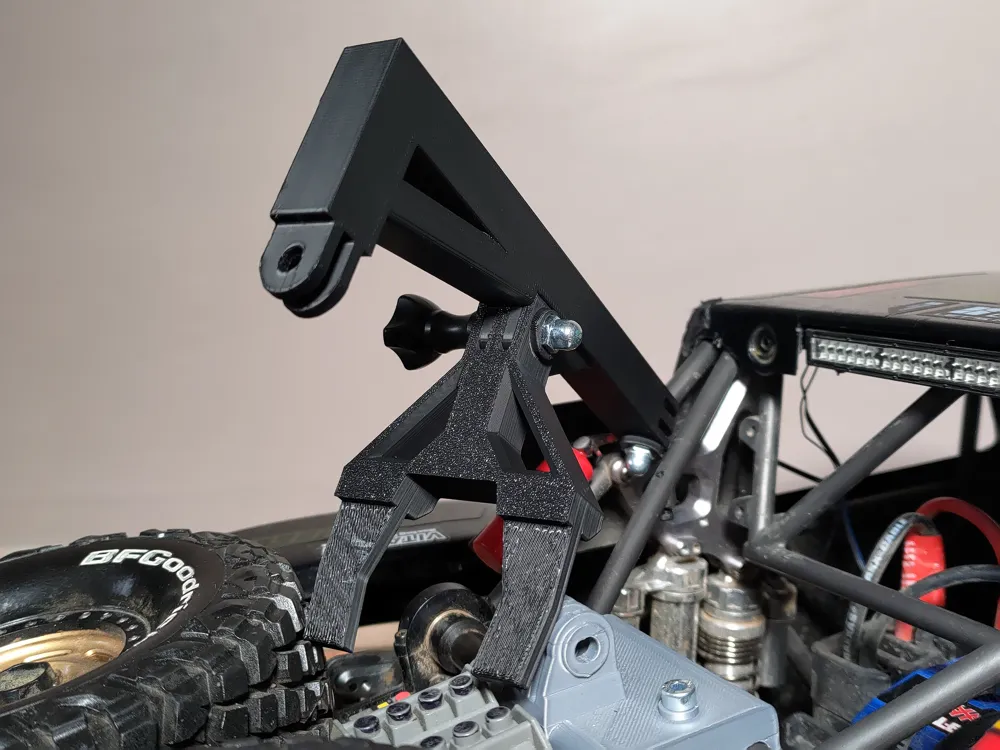

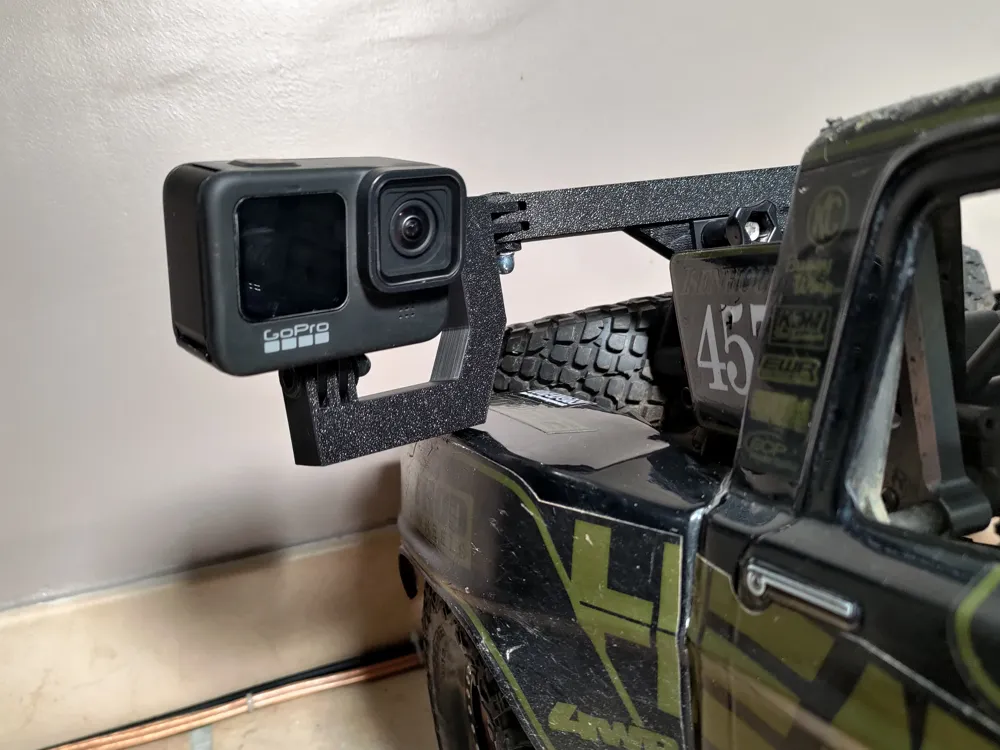

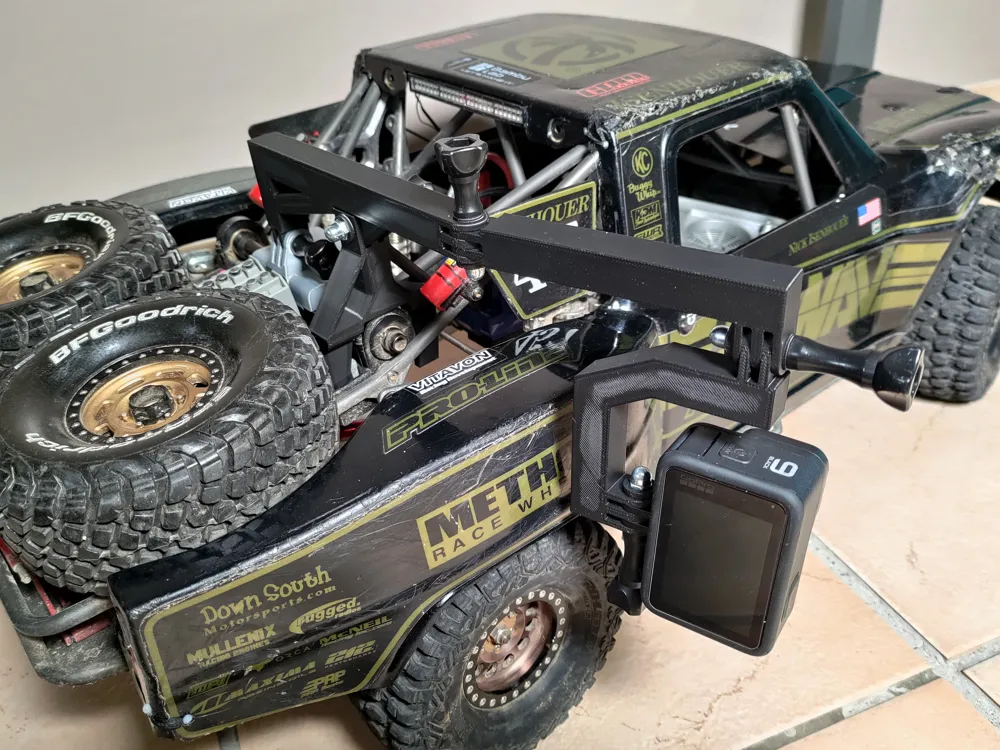

- Use parts 2. 3. 4. + Bracket For off-vehicle use and to film the ground, the wheels vertically or horizontally, several configurations are possible by combining the parts provided with the GoPro. Can be used on the right or left.

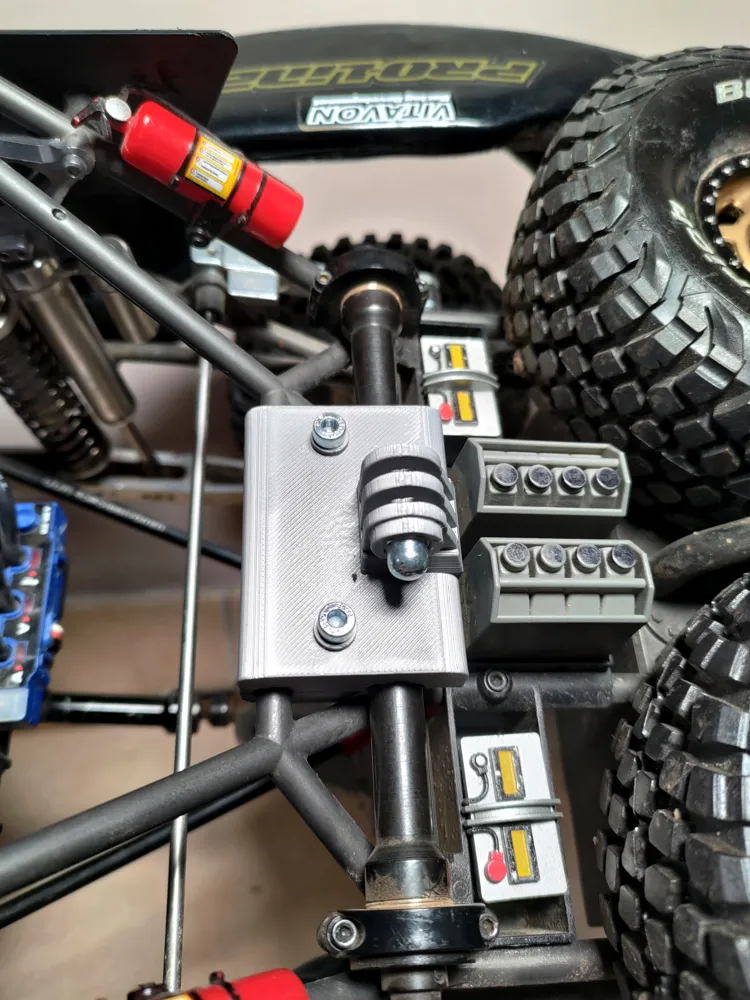

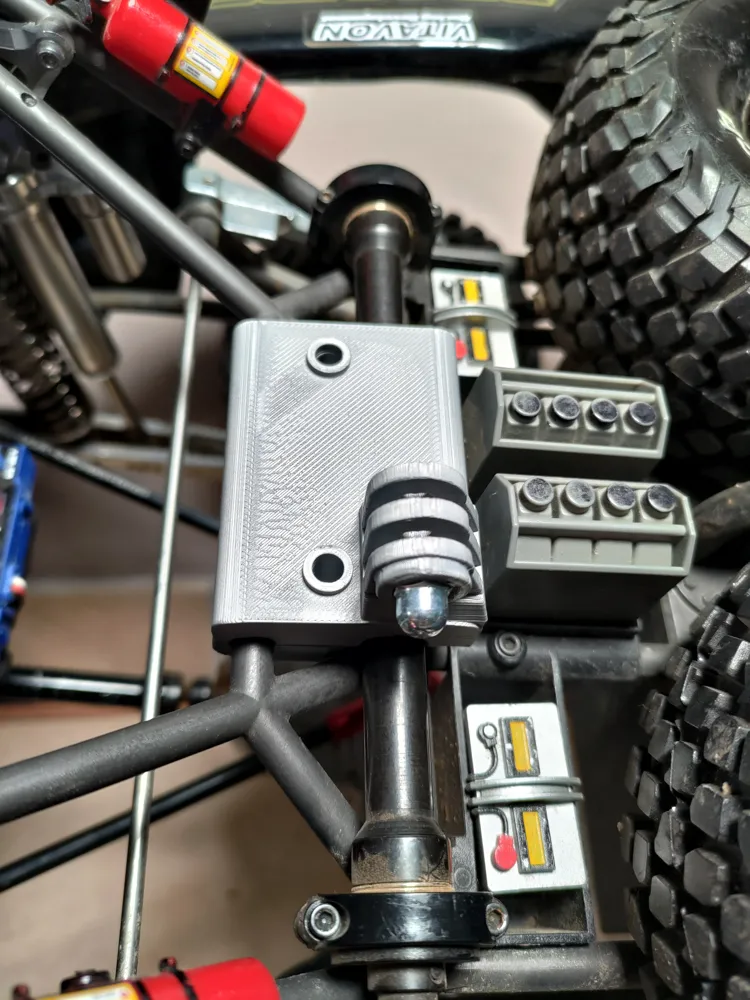

Bracket B and C Configuration:

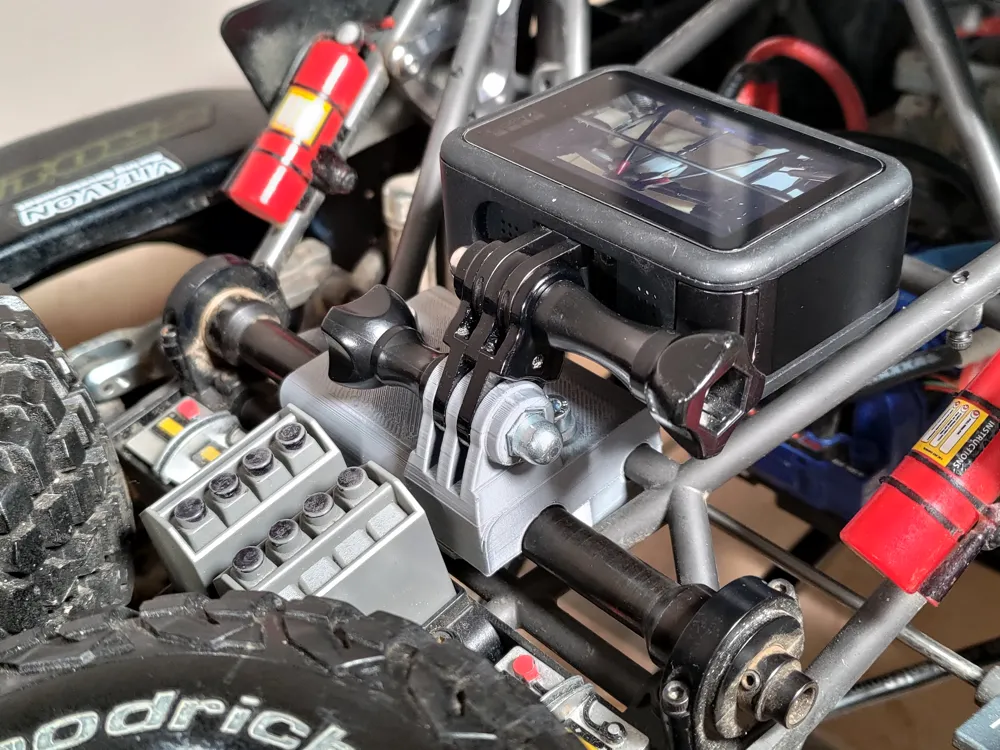

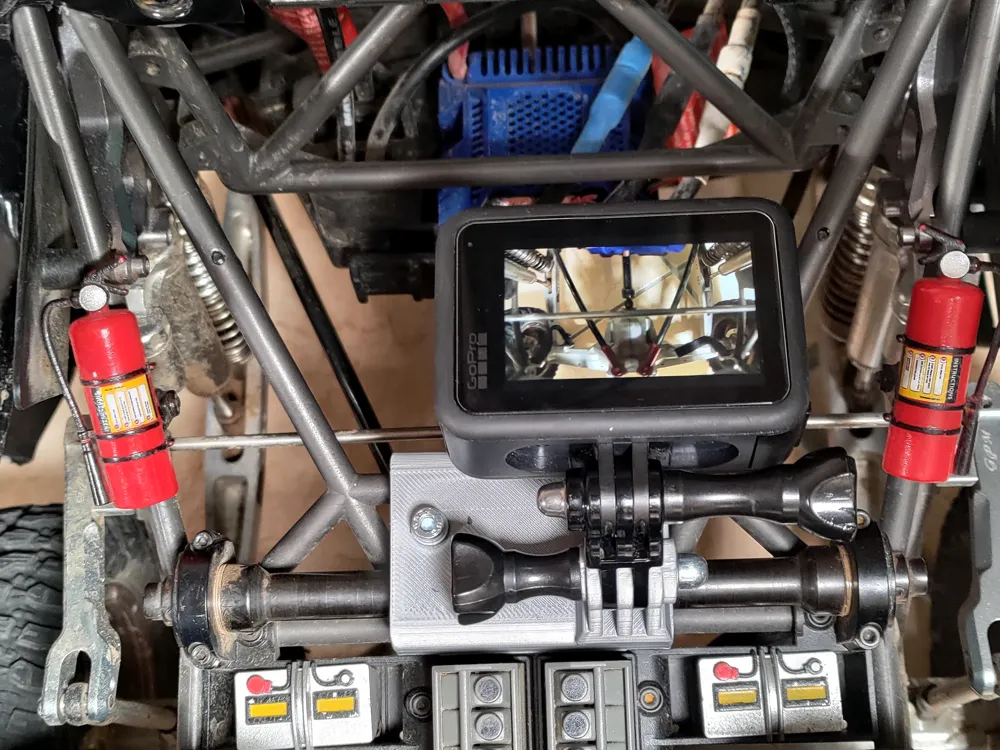

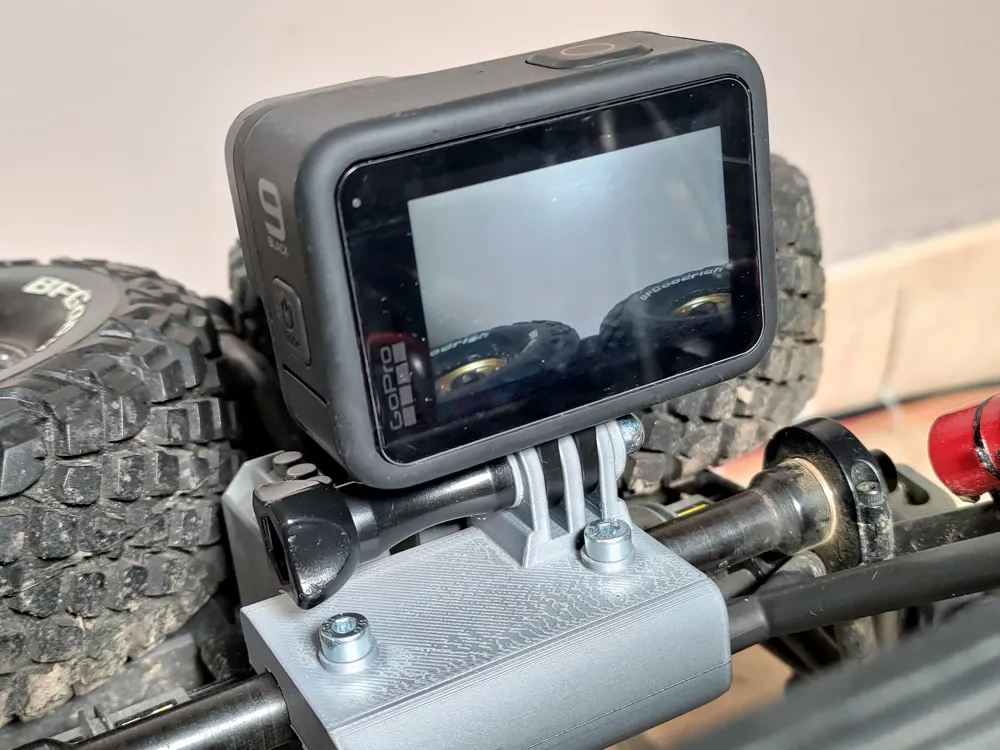

- Horizontal use and center of the GoPro lens to film either backwards (bracket C), or the suspensions and driveshaft (bracket B), It is recommended to use a short or long mini extension for a better viewpoint.

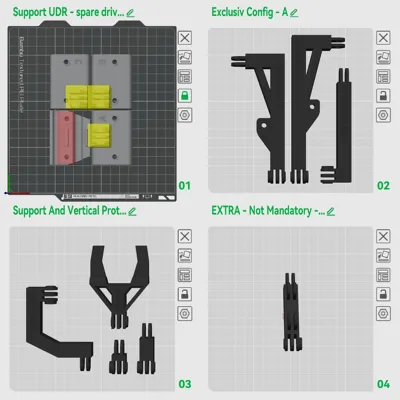

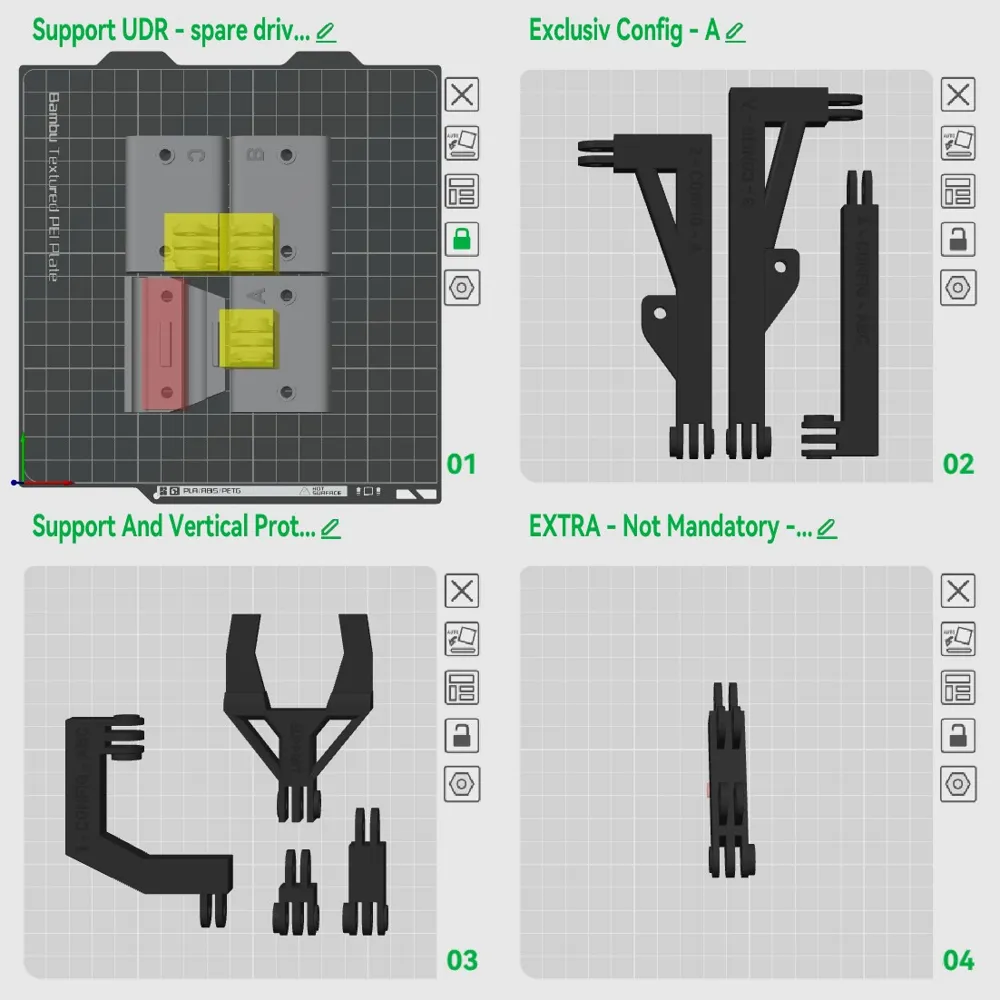

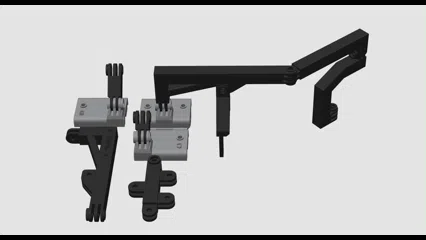

- List of 3D Printable Parts in the Kit:

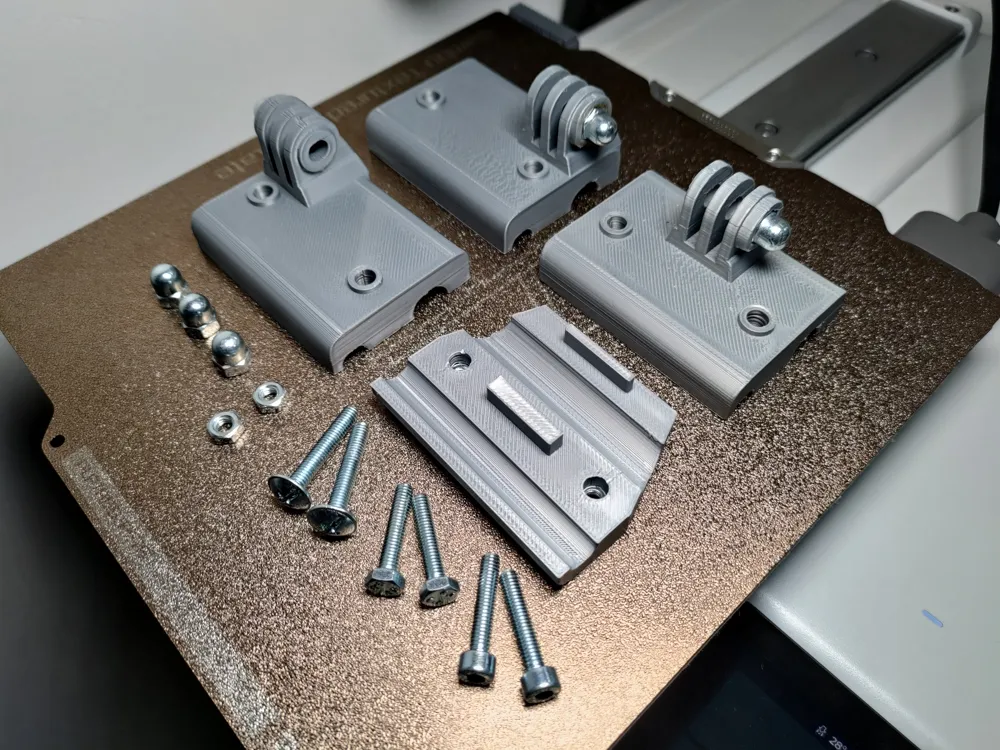

Plate - 1

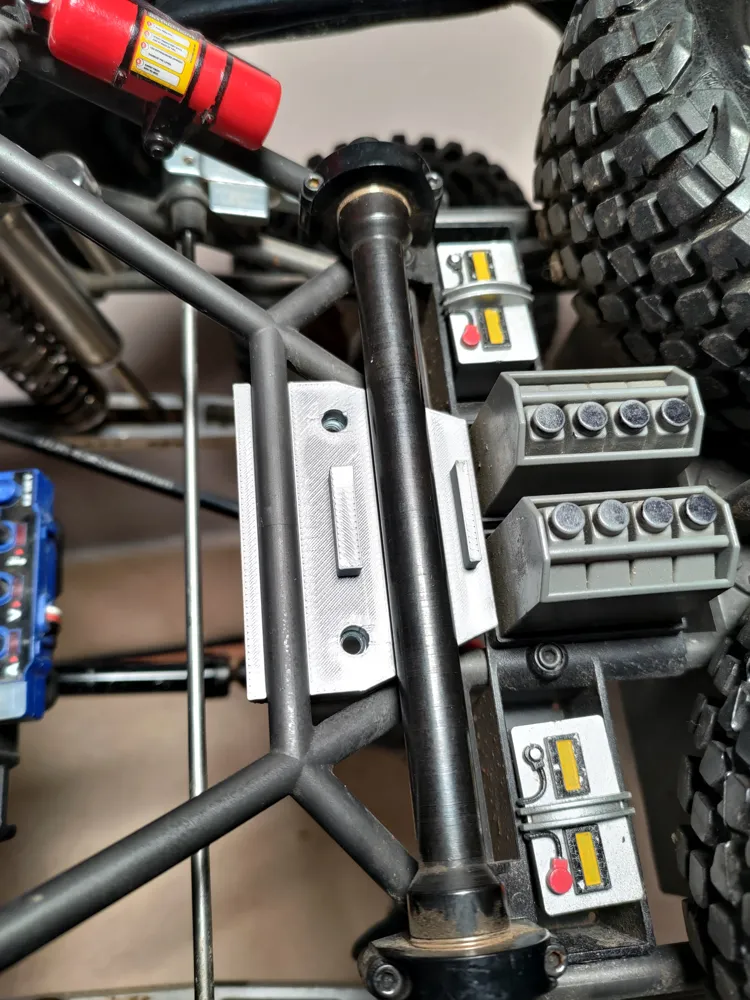

x1 : Bracket attachment.
x3 : Bracket (Configuration: A. B. C.)

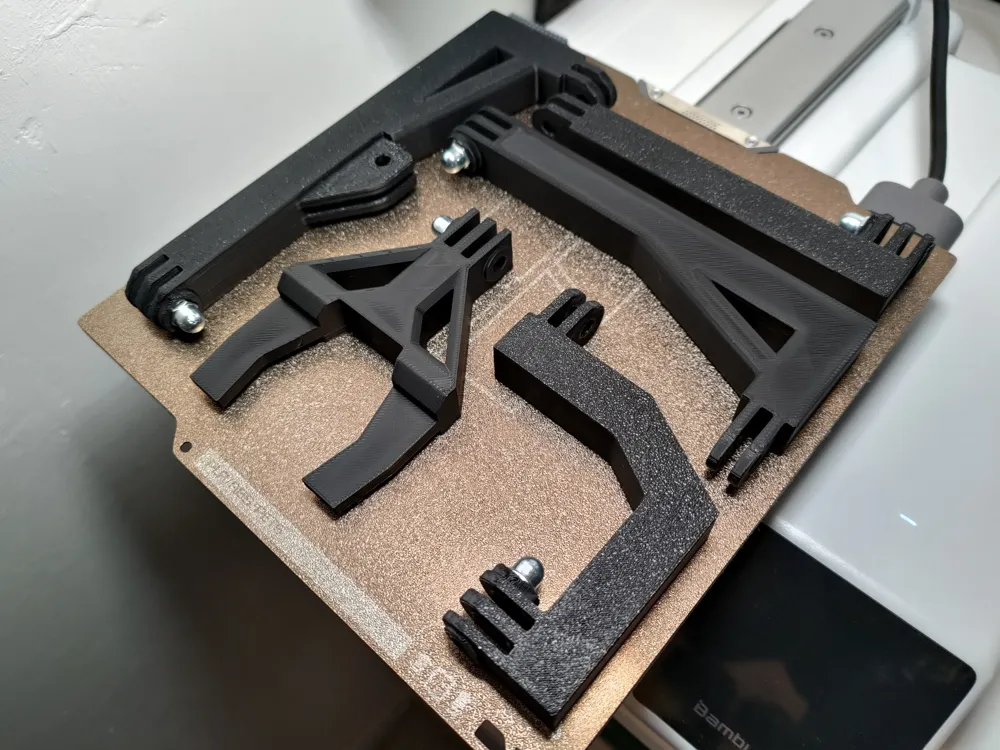

Plate - 2
x1 : Horizontal Extension (Configuration: A. B. C.)
x1 Long Crane (Configuration: A.)
x1 Short Crane (Configuration: A.)
Plate - 3
x1 : Bracket (must be used with parts 2 and 3)
x1 : Vertical Cage (Configuration: A. B. C.)
x1 : Long Mini Extension*
x1 : Short Mini Extension*
Plate - 4
x1 : EXTRA, Height Adjustment.
*best use when combined with bracket A.B.C.
⚠️let the plate cool down before removing the 3D printed parts⚠️
