Modular Window Exhaust Adapter (for 100mm/80mm/75mm/50mm ventilation ducts | Rainproof and Anti-interference Design)

🚀 Model Introduction: Modular Window Ventilation Duct Adapter

This is a functional enhancement model that perfectly solves the challenge of venting ducts out of windows

• ✨ Core Features and Innovations

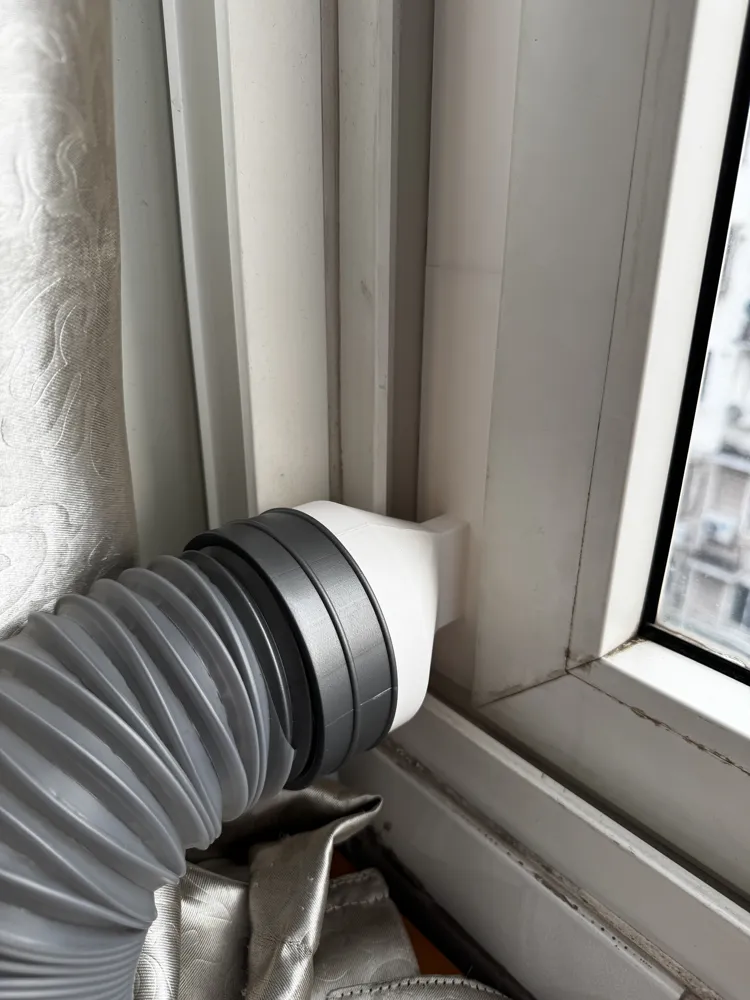

• 🌬️ Dedicated Ventilation Duct Adapter: Features a newly designed interface compatible with standard 100mm ventilation ducts for a seamless connection
• 💧 Rainproof Design: The adapter outlet adopts a downward-sloping structure, effectively preventing rainwater backflow and protecting the indoor environment

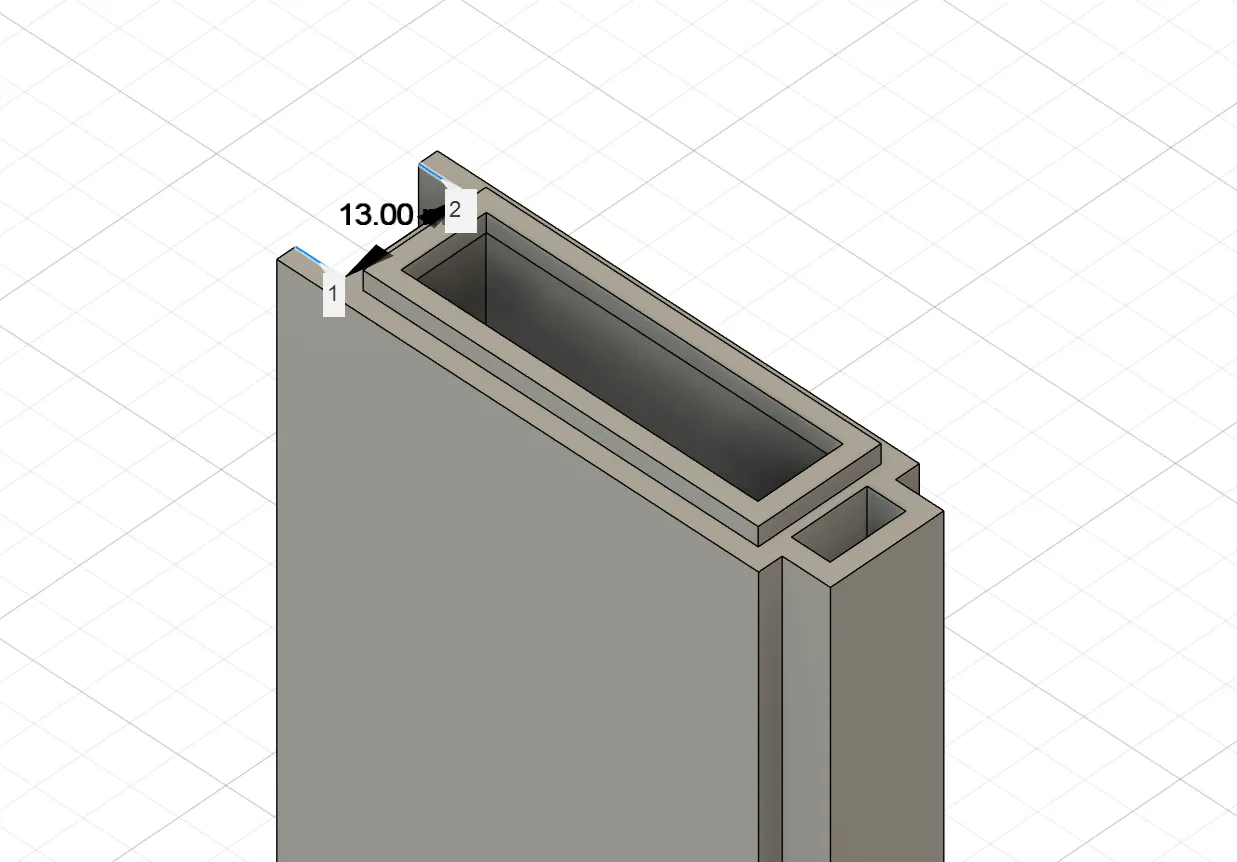

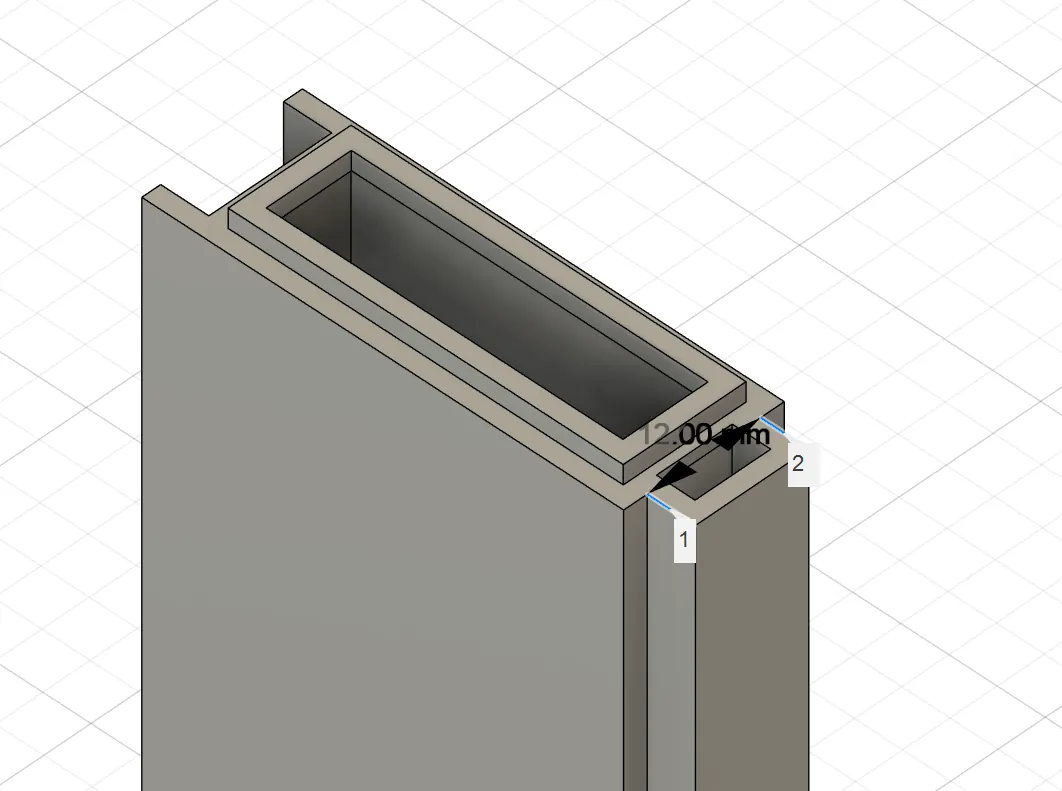

• 📏 Flexible Window Height Adaptability: Modular design, with each middle section measuring 200mm in height. Recommended installation process:

1. 🖨️ Segmented printing: Print a small number of middle sections first
2. 🧩 Pre-assembly measurement: Pre-assemble on the window and check the remaining height
3. 🎯 Precise supplemental printing: Print the final section based on the measurement results to achieve a perfect height fit

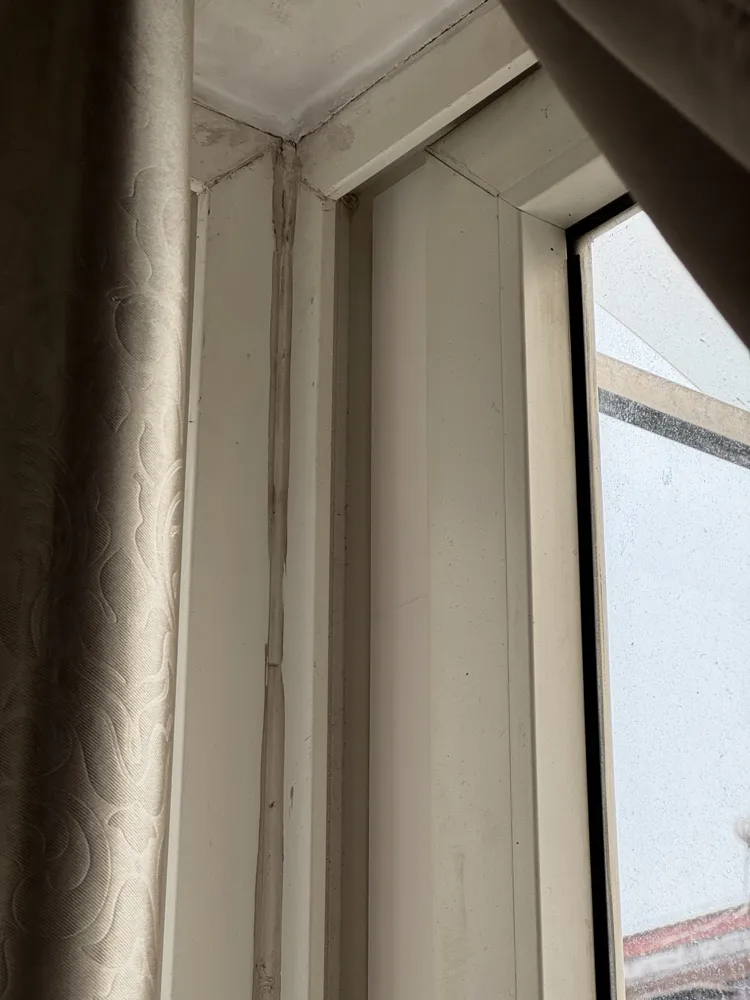

4. 🛡️ Obstacle avoidance design: The duct section extending out of the window has sufficient length, effectively preventing interference with the window's left and right structures

 🛠️ Printing and Installation Guide

   Material recommendation: PETG material is recommended for both strength and weather resistance.
   Nozzle specification: A standard 0.4mm nozzle is sufficient for perfect printing.
   Important installation tips:
      🔒 Upper section fixation: To ensure safety, all connections in the upper section are recommended to be glued to prevent accidental detachment when opening the window.
      🔓 Lower section flexibility: The bottom two connection points are recommended not to be glued for easy adjustment and removal
