Description

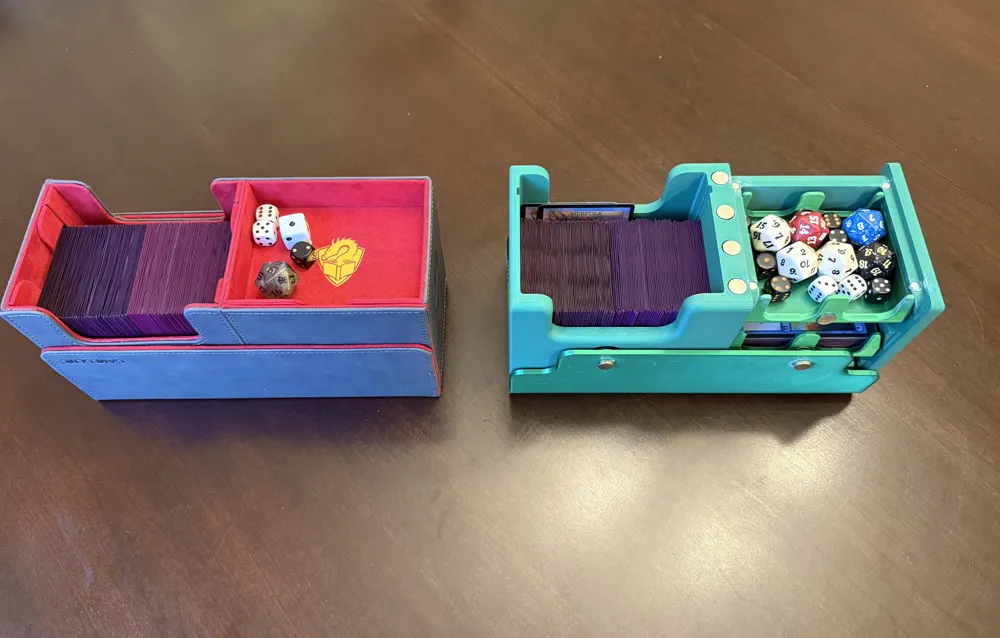

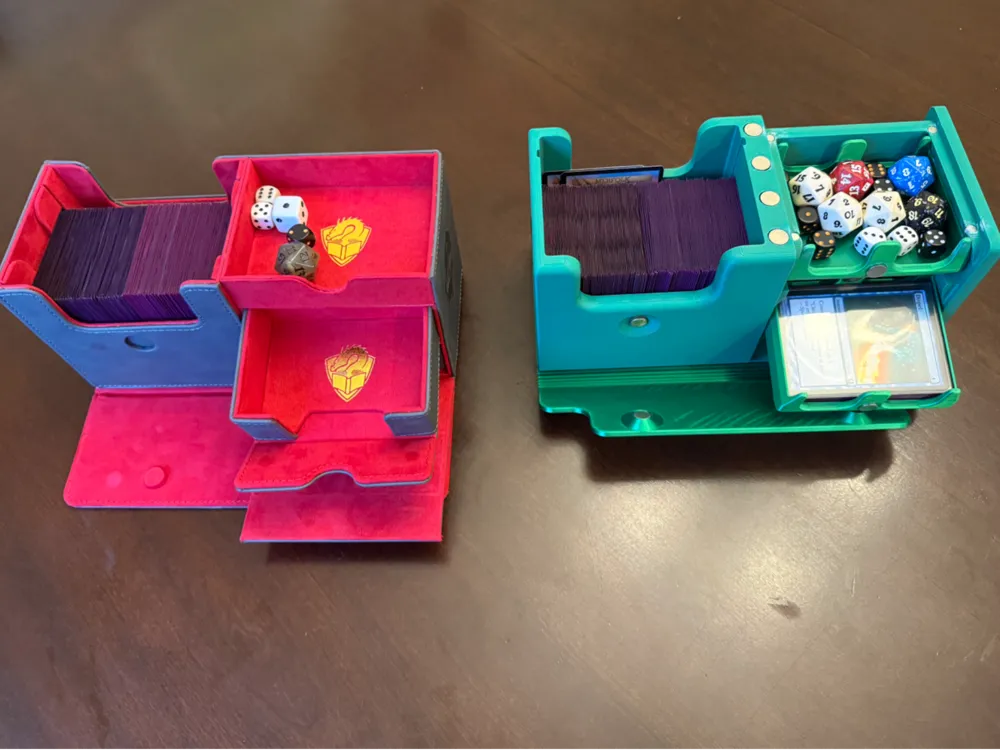

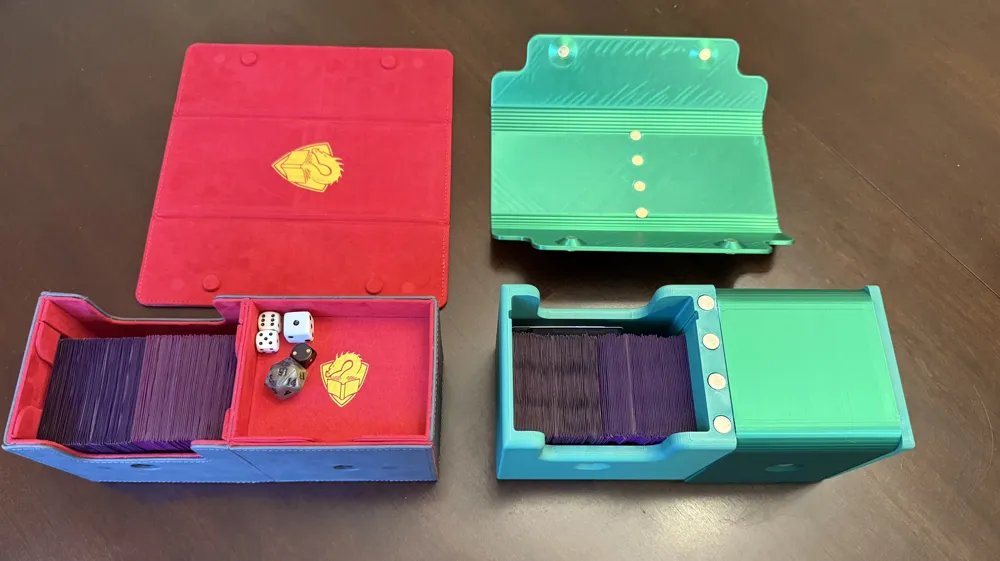

Based on Gamegenic The Academic XL 133+ Deckbox



Has all the same features and functionality:

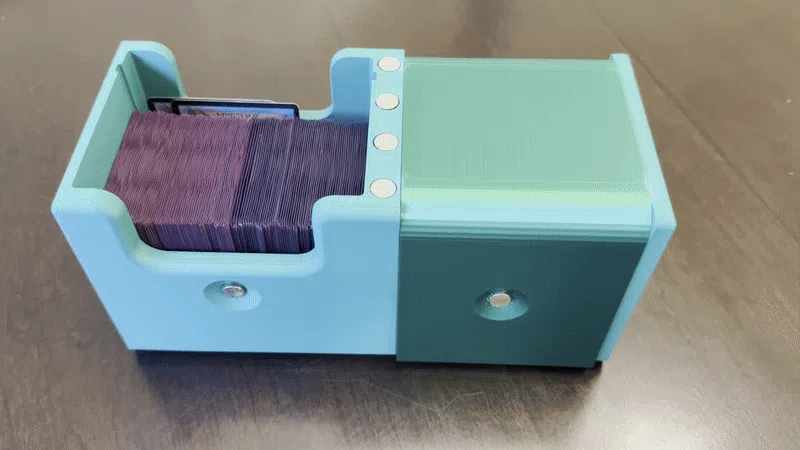

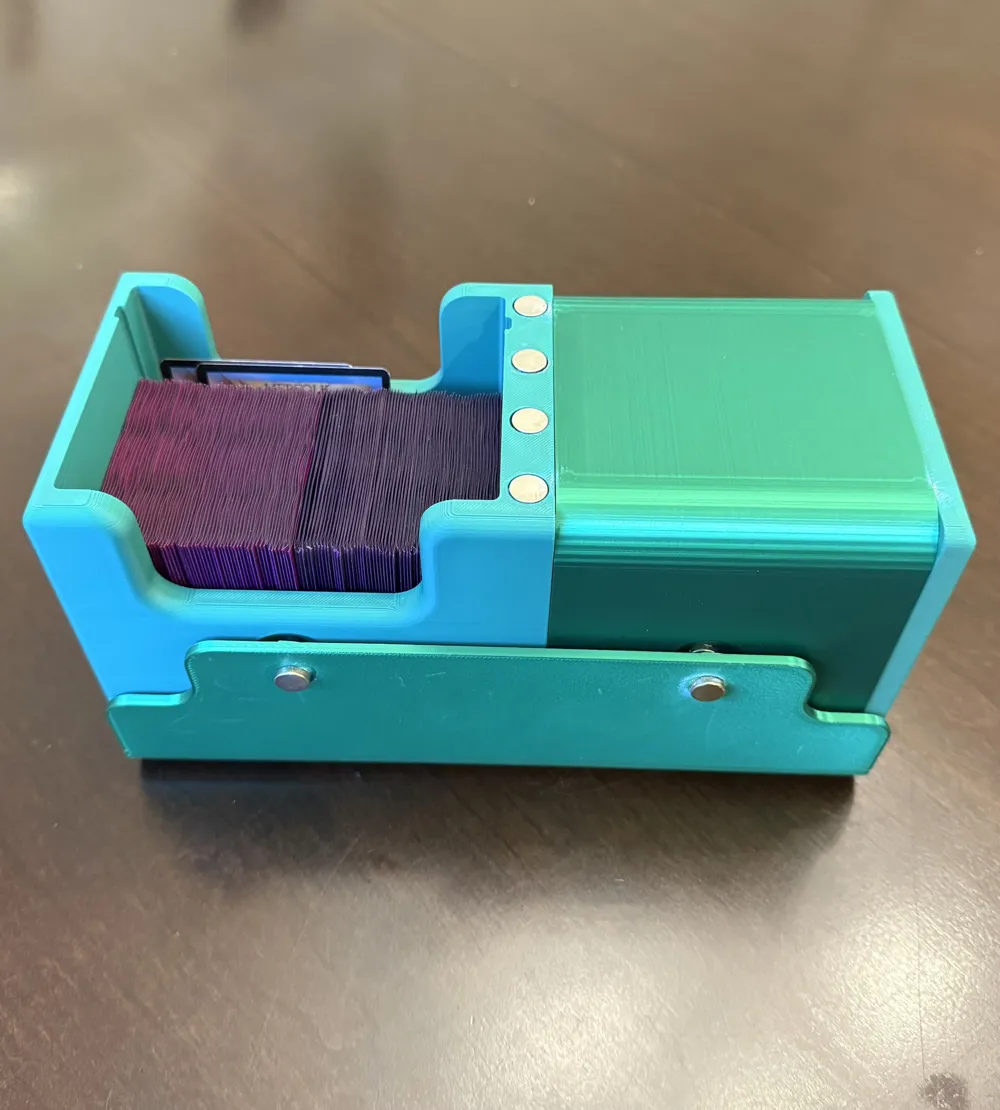

  • Single deck storage area which can comfortably fit double (or even triple) sleeved 100 card commander deck
  • Removable insert/divider in main compartment - place for a commander in hard fit sleeve or tokens

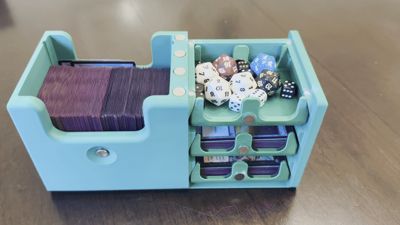

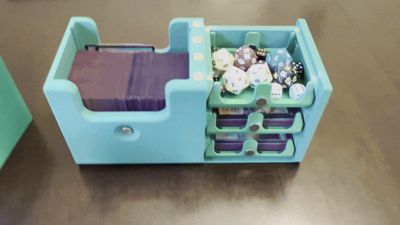

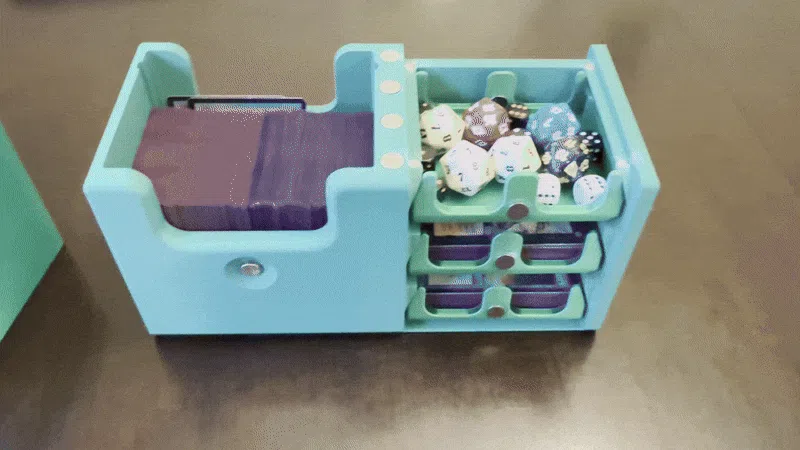

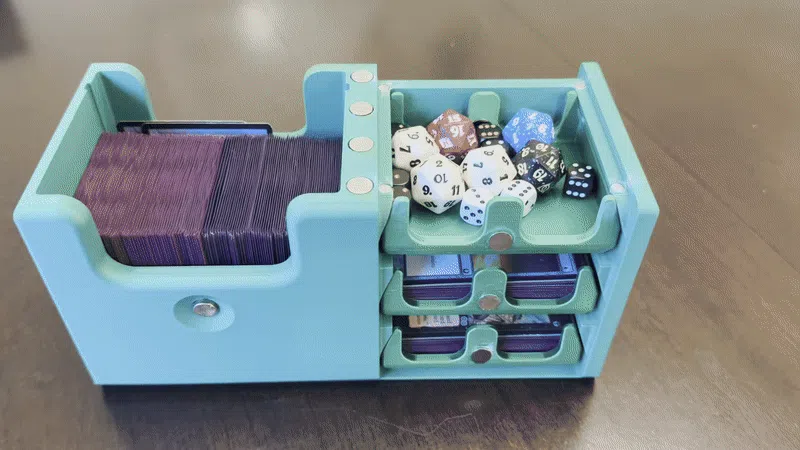

  • Second half with removable trays

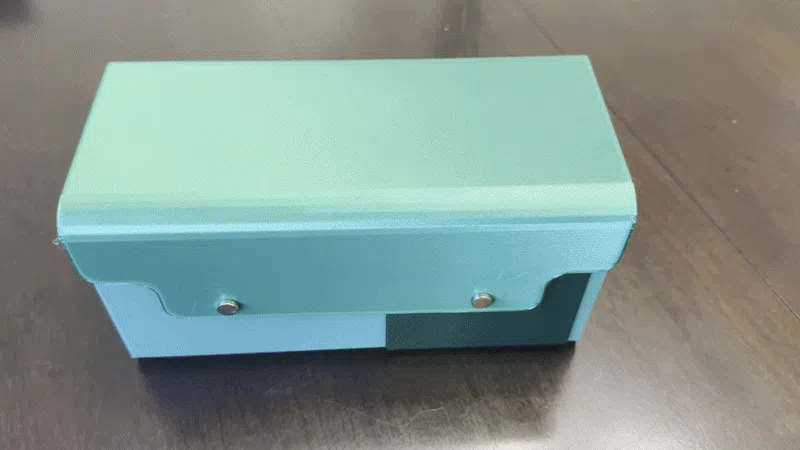

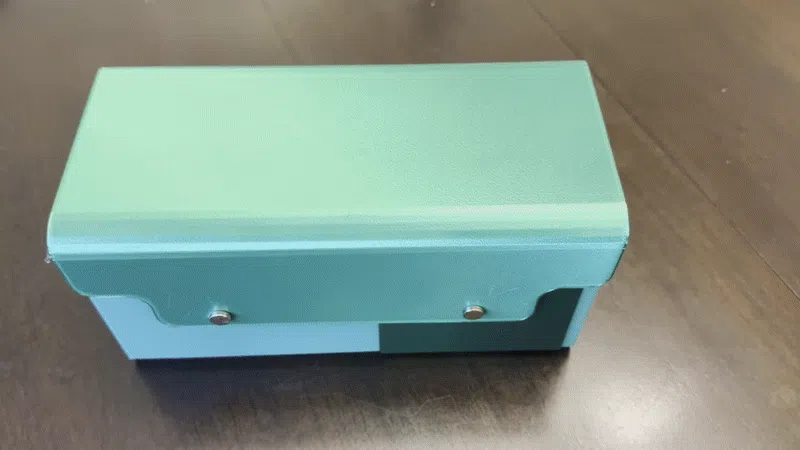

    • Lid to cover trays

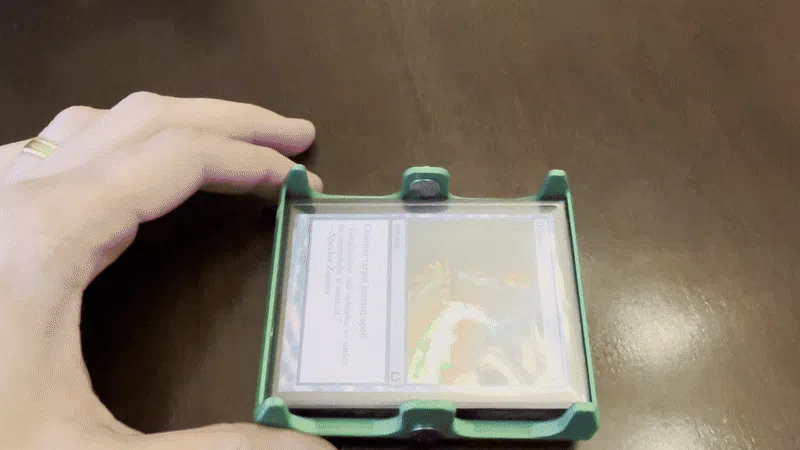

    • 3 sets of trays

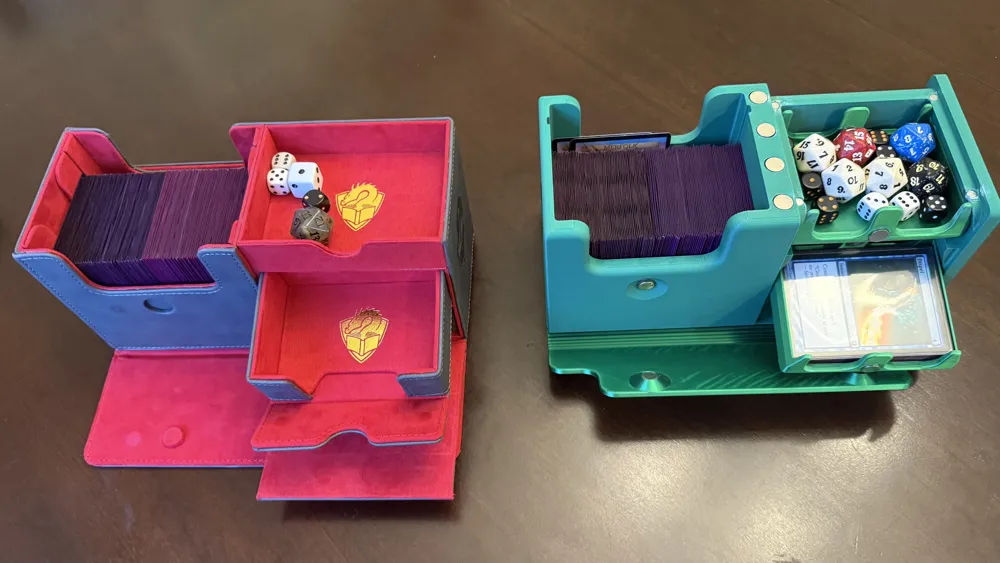

      • Designed to slide out and tilt for easy access
      • 3 different styles
        • Open sides for less material and easiest card removal access
        • Loose sides for sleeved cards or dice
        • Snug sides for sleeved cards which wont fall out

Magnets Required (all magnets require glue):

12x 10x3mm (2 on box, 2 on OUTSIDE only of Inner Lid, 8 on Outer lid (4 inside, 4 outside)

2x 10x1mm (2 on INSIDE only of Inner Lid)



Optional Magnets:

8x 10x3mm (4 on top of box and middle of outer lid)

  • Helps keep the lid snug and prevent it from falling off when flipped or tilted

12x 10x3mm (4 on the bottom of each tray)

6x 3x3mm (tray shelf region - 4 on top, 2 on second and bottom shelves)

  • Allows trays to tilt better and slide into place in a satisfying way

12x 10x3mm (4 on middle tab of each tray)

  • Allows any tray to be middle shelf tray and better hold inner lid snug to box



Future Improvements:

  1. Adjusting magnet nub height so the magnet itself
  2. Adding a locking feature
  3. Changing lids to be fully flexible and slide on track
  4. Change tray shelf design to hold more cards
  5. Change trays to have lids that snap into place
  6. Snap in magnets
  7. Embedded magnets
