Screw Connectors for Light Weight SKADIS
IP Report
Print Profile(1)
20mm length, 0.12mm layer, 2 walls, 15% infill
Designer
53 min
2 plates
Open in Bambu Studio
Boost
503
1930
88
19
1.2 k
753
Released
Description

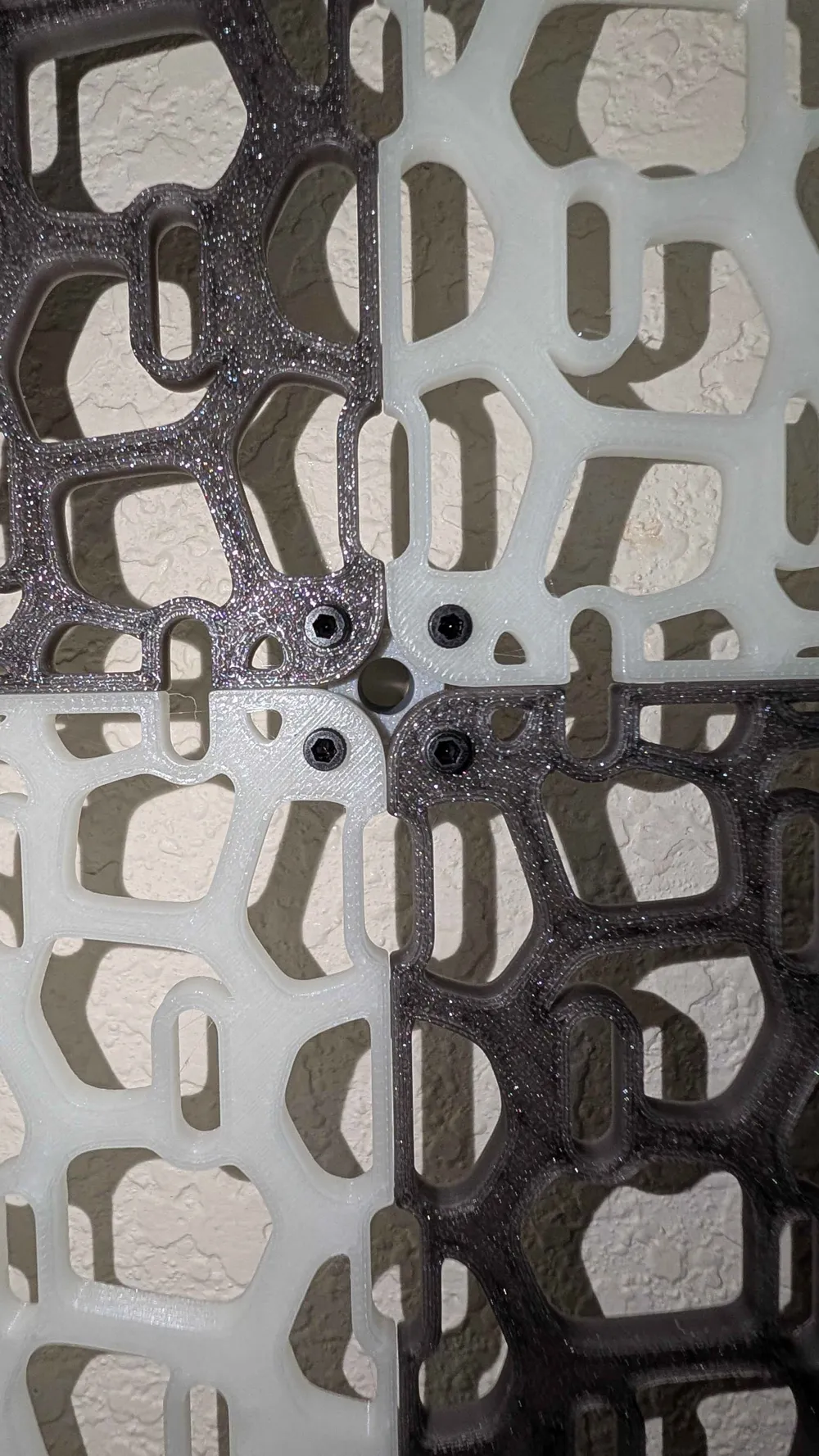

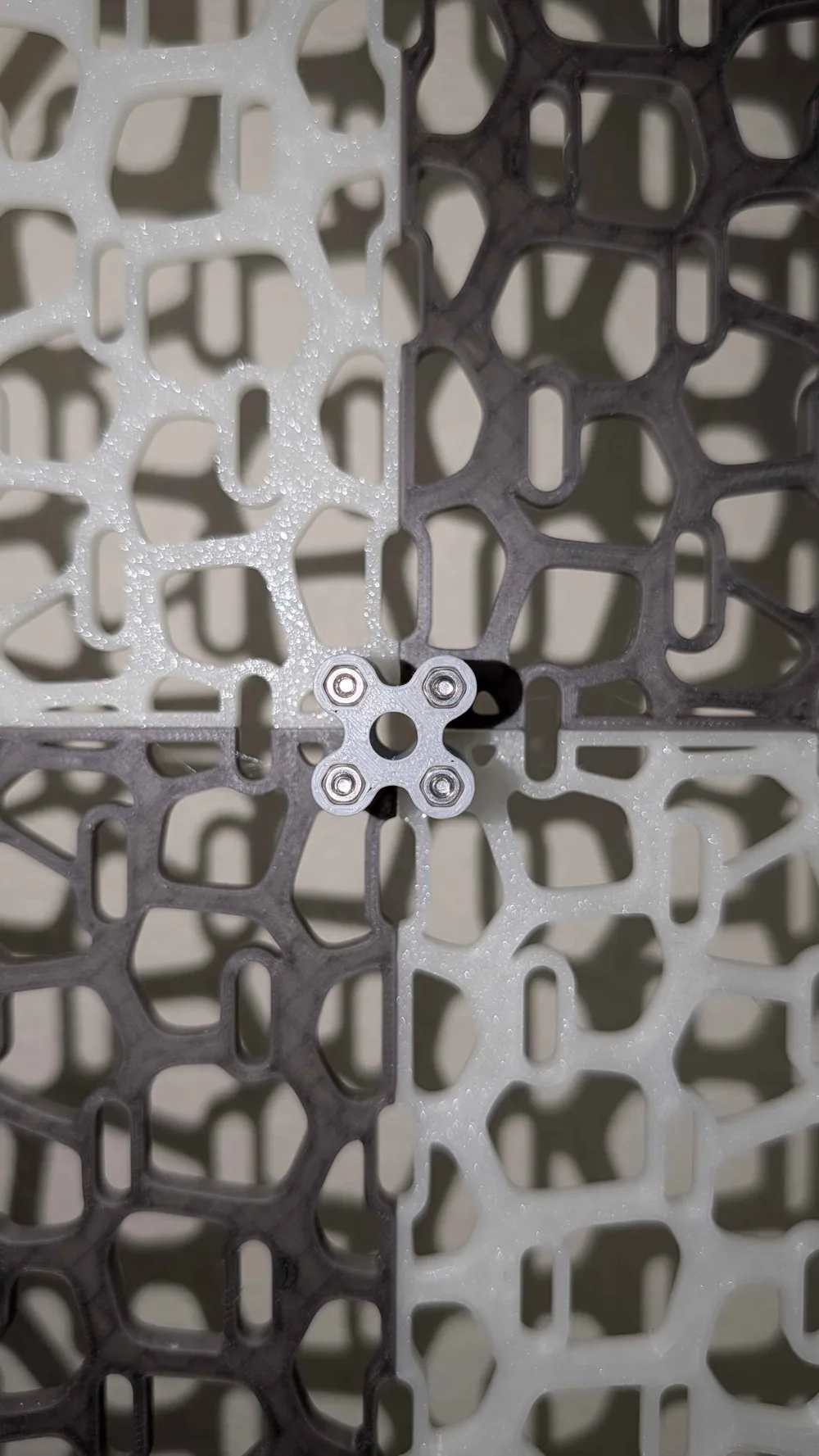

These are connectors designed to be compatible with Gabb.99's Light Weight SKADIS IKEA

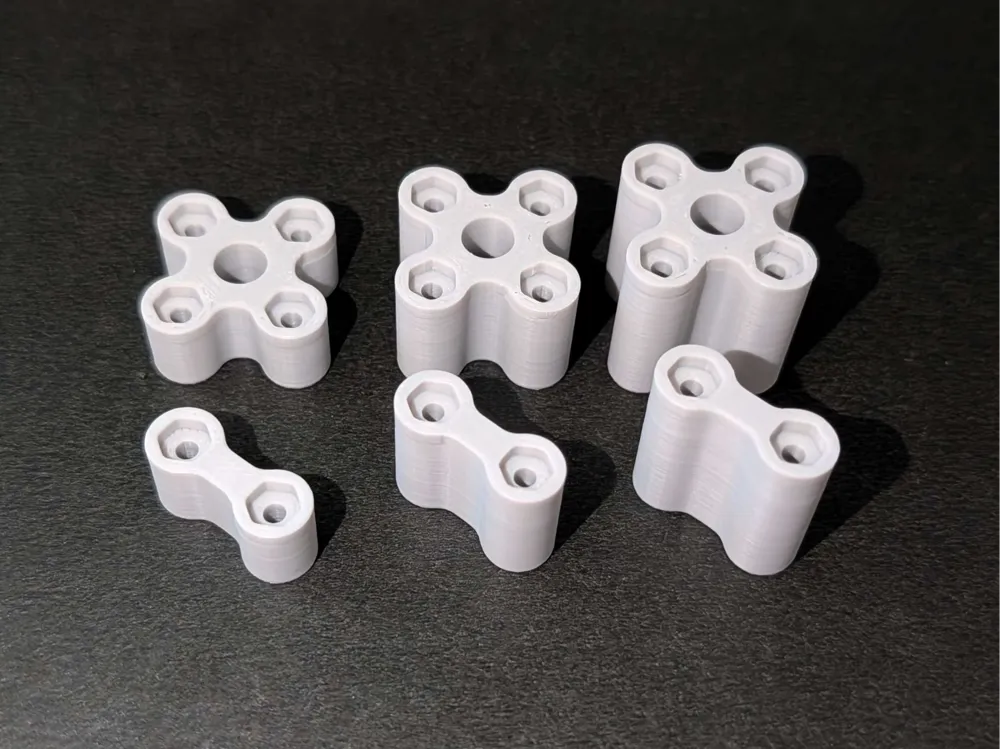

I've designed 2x2 and 4x4 connectors with lengths that are customizable. You will need m2.5 screws that are 5mm longer than the connector you print. For example, I printed 20mm connectors and used m2.5 x 25mm screws. Make sure to double check which screw you purchase, I bought the wrong screws 3 different times!
*Edit - 10/25/2025
I've added a single spacer to the customizable option. Enjoy!
Boost Me (for free)
If this helped you in anyway, a boost would help me <3
