Description
Content has been automatically translated.
Introduction
Note: This model has no firing function! It cannot shoot! It is for structural study only.
Additionally: The project is temporarily on hold due to printer issues. This is the latest version. You are welcome to modify and optimize the model. If you have any other questions, please feel free to message the author.
Furthermore, printed parts require some sanding to achieve the best assembly results. It is recommended to use with a file.

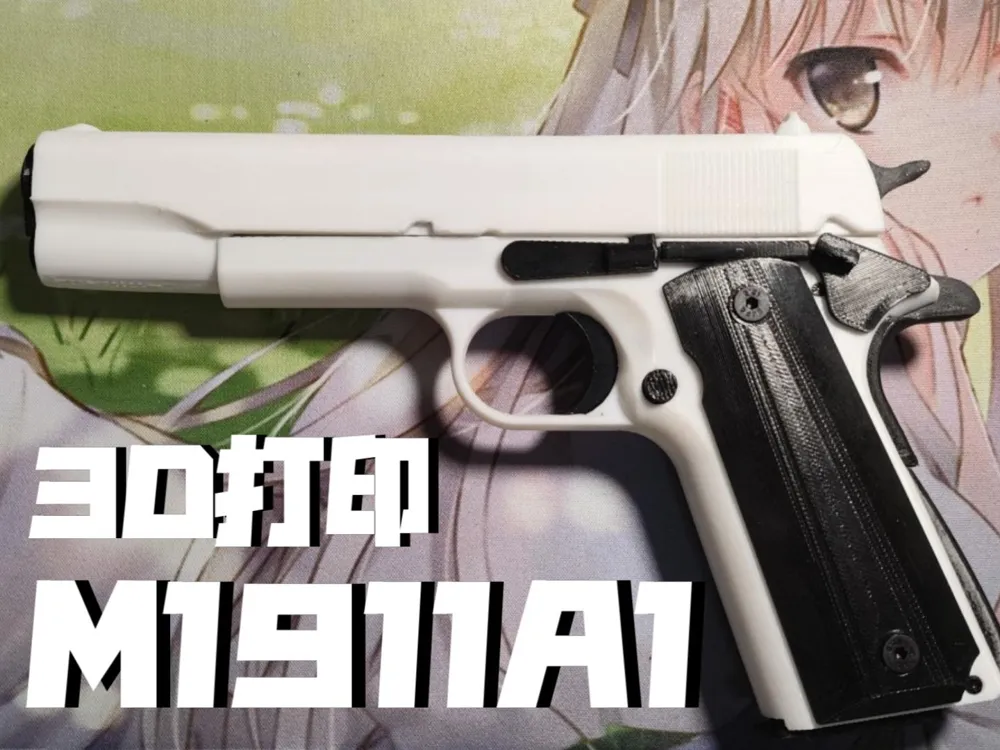

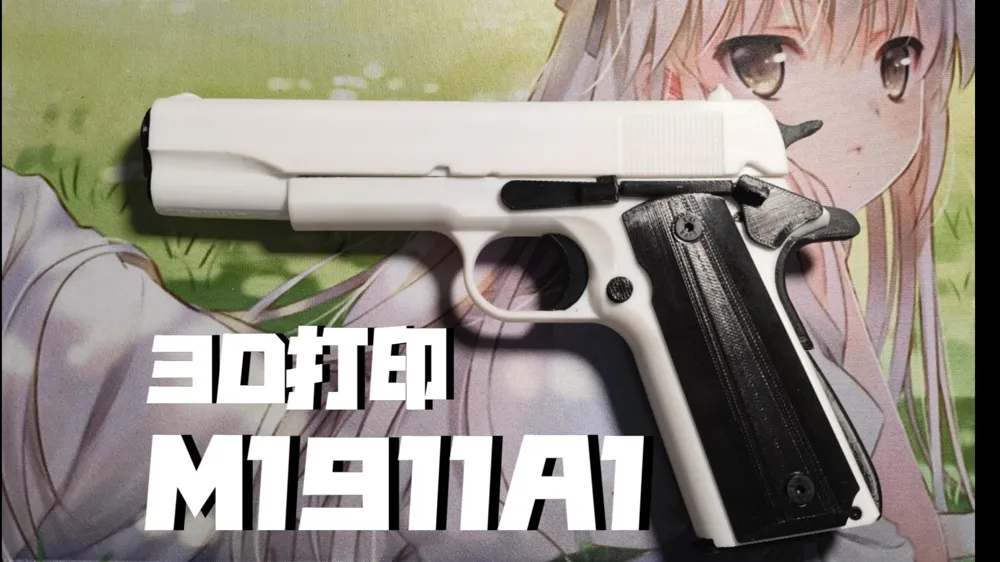

M1911A1 pistol full structural model, with tolerance and functional modifications made to the original model.
Parts
| No. | Name | Type | Specification | Quantity | Reference Price |
|---|---|---|---|---|---|
| 1 | Recoil Spring | Spring
| 0.6 * 9 * 100 | 1 | ￥0.54 |
| 2 | Hammer Spring | 0.5 * 6 * 40 | 1 | ￥0.23 | |
| 3 | Firing Pin Spring | 0.5 * 5 * 30 | 1 | ￥0.23 | |
| 4 | Safety Spring | 0.3 * 2 * 10 | 1 | ￥0.23 | |
| 5 | Magazine Release Spring | 0.3 * 3 * 15 | 1 | ￥0.19 | |
| 6 | Magazine Spring | 1.0 * W30 * H8 * L110 | 1 | ￥9.00 | |
| 7 | Hammer Pin | Cylindrical Pin | Phi2 * 8 | 1 | ￥0.03 |
| 8 | Flat Head Hex Socket Screw | Screw | M4 * 6 | 4 | ￥0.07 |
| No. | Name |
|---|---|
| 1 | Screwdriver |
| 2 | File |
| 3 | Sandpaper |
Demo Video
Boost Me (for free)
Thank you for your support
