Description
Introduction

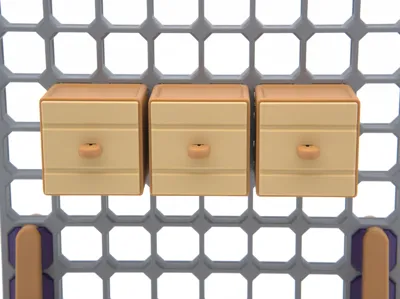

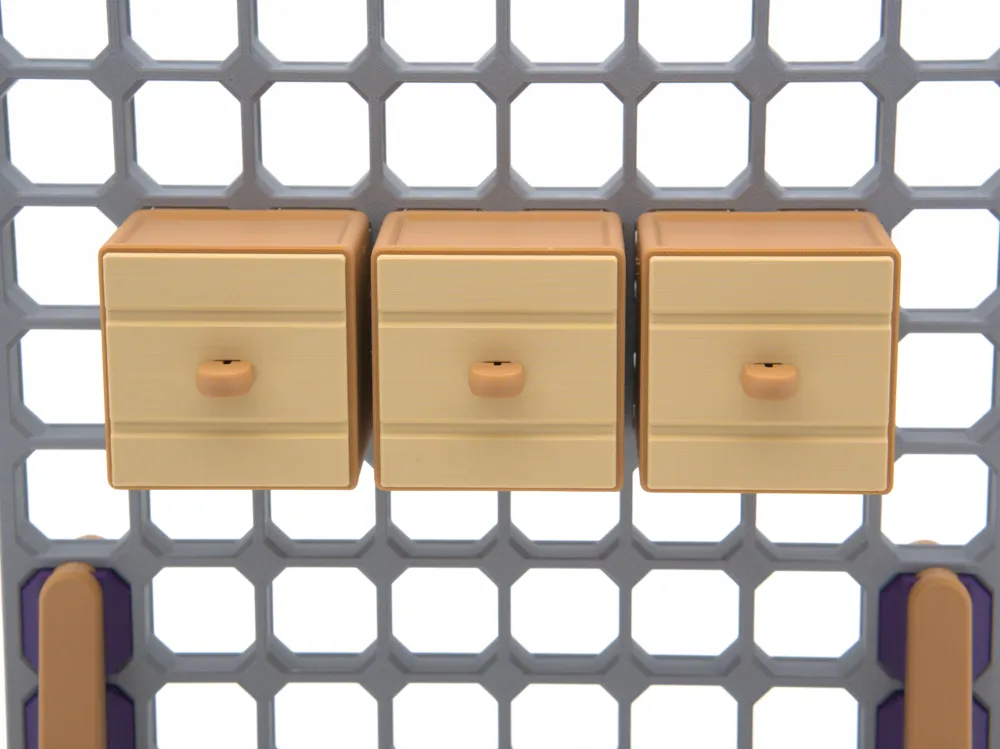

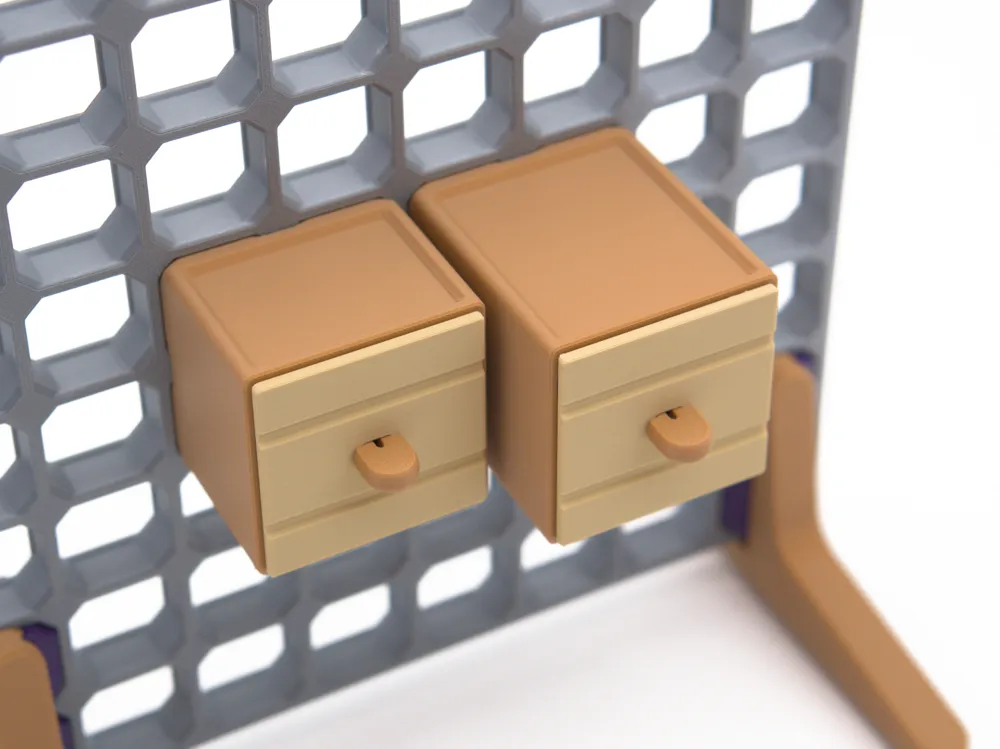

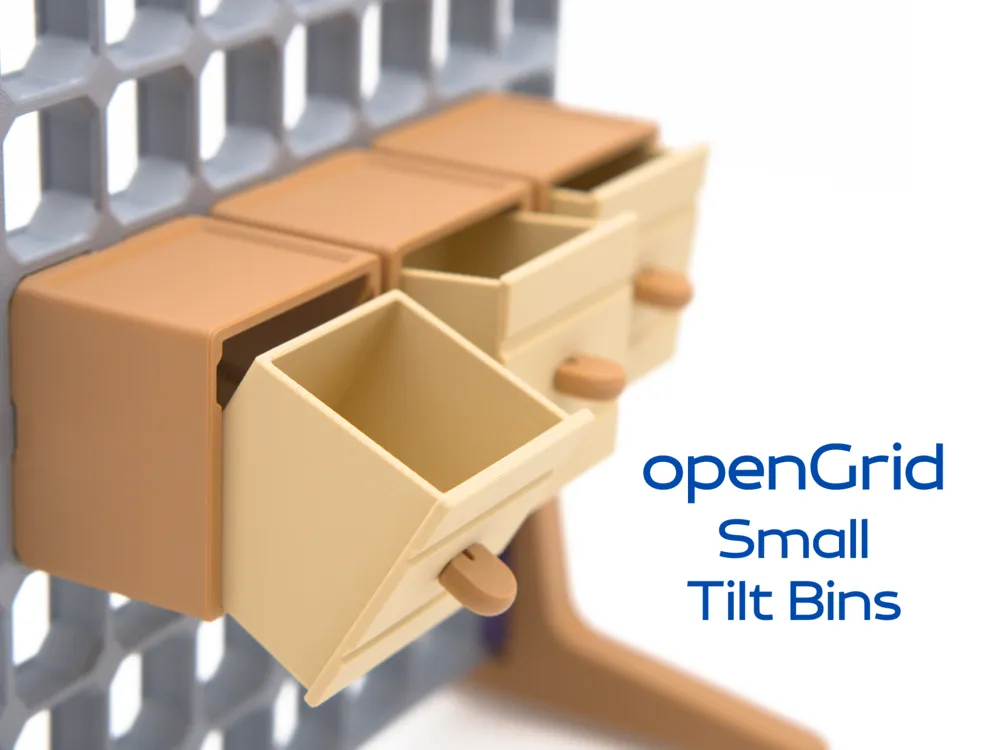

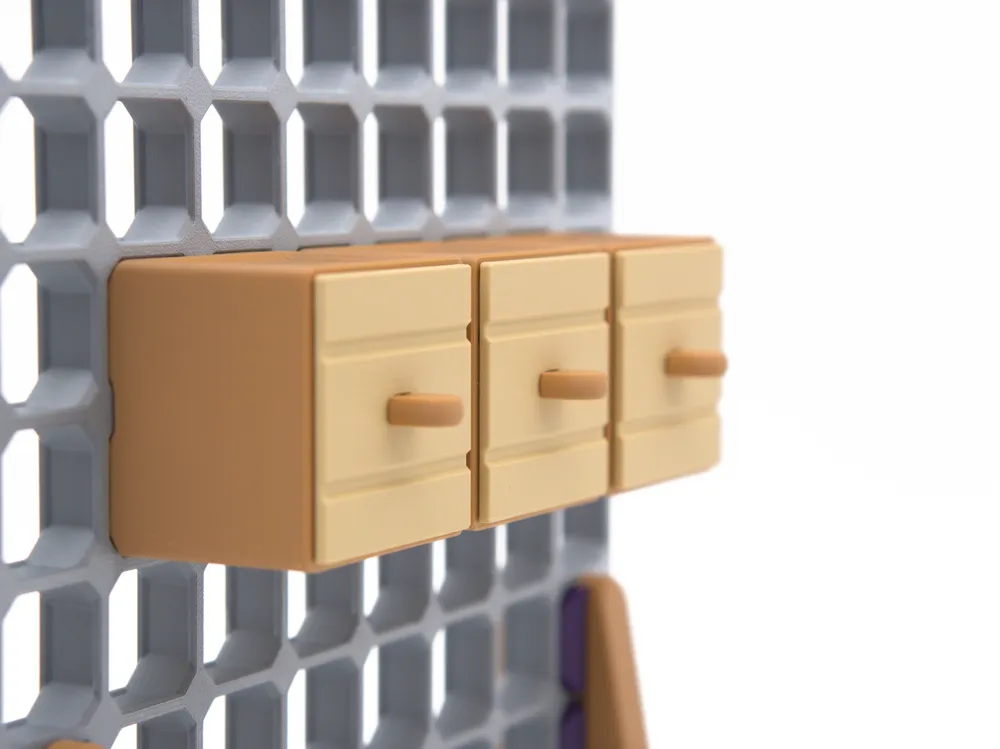

Small storage drawers for openGrid:
- Compatible with openGrid, openGrid Lite and openGrid Heavy (pictured)

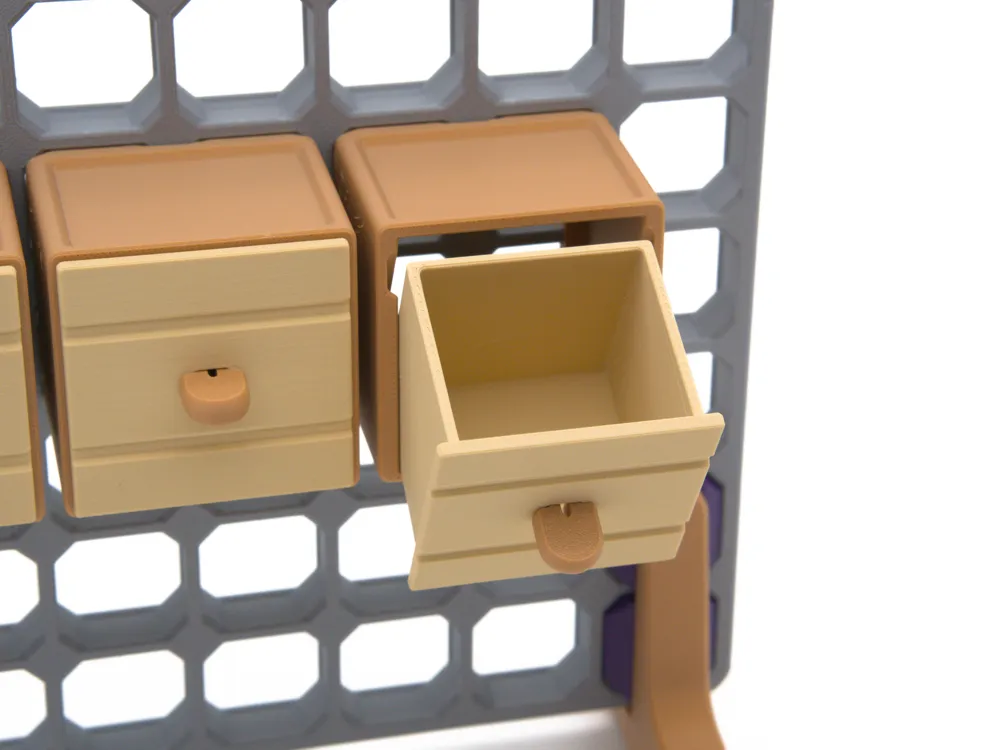

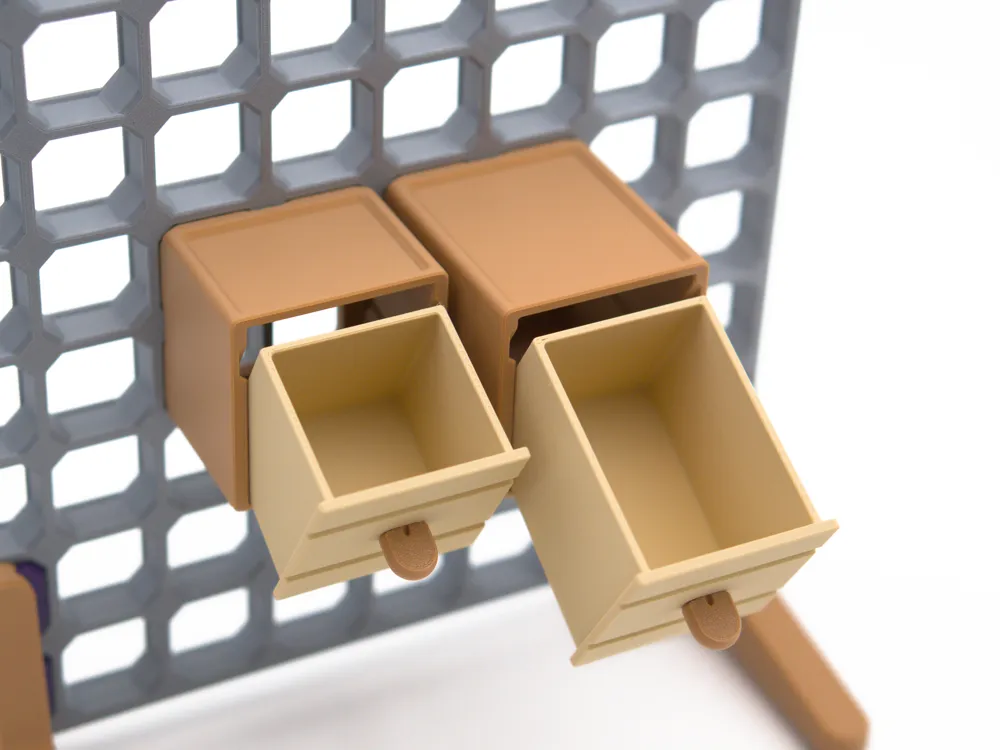

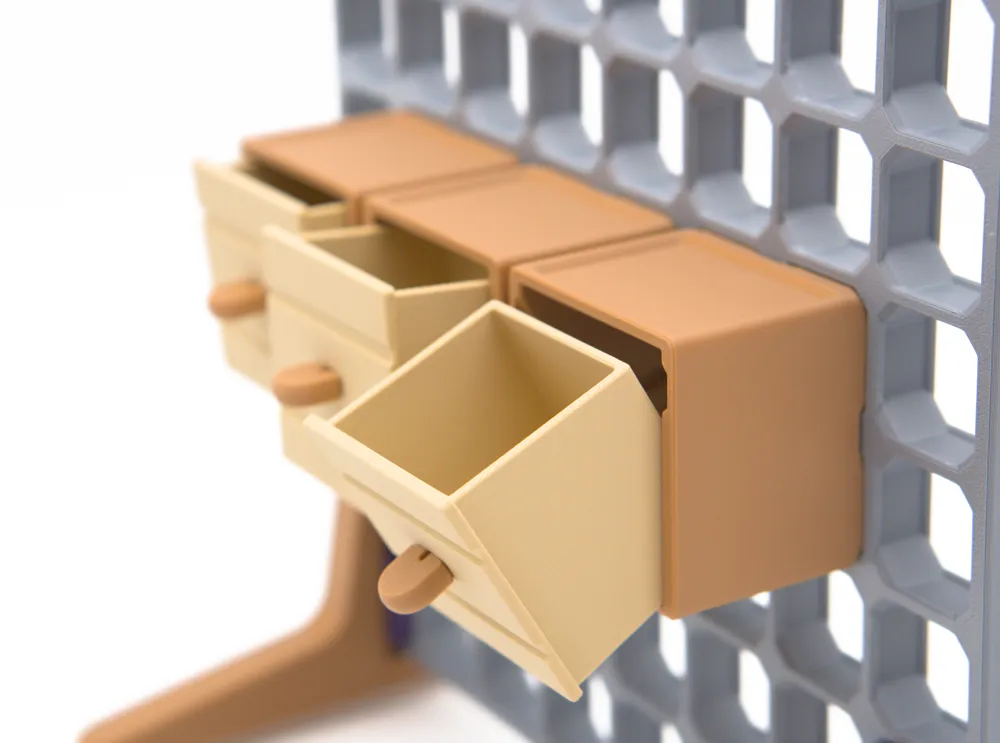

- Drawers slide and tilt when opened to maximise storage space (compared to tilt-only bins) and allow easy access inside (compared to slide-only bins)
- Simple design with only two main pieces (plus drawer pull)
- Designed to print completely support-free with easy overhangs and minimal bridging for no waste printing
- Super easy assembly and drawer removal

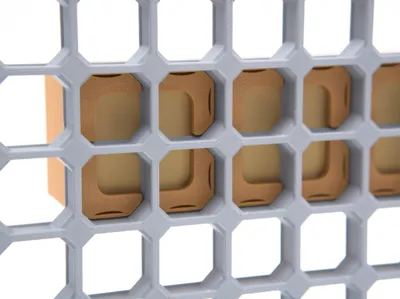

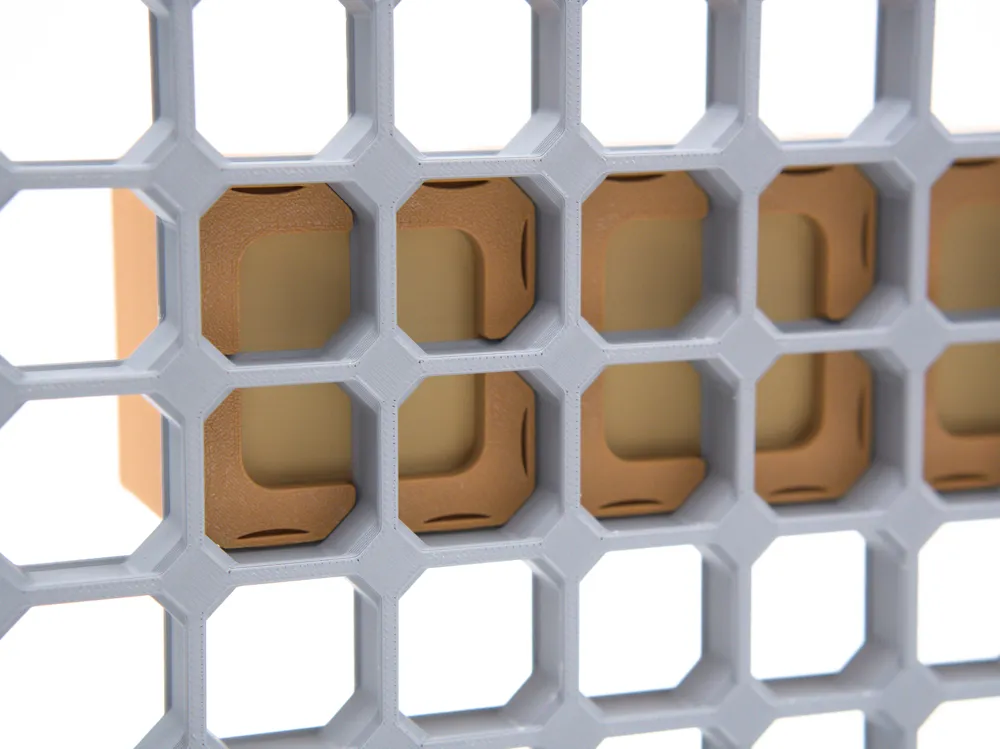

- Integrated attachment clips - no need for additional adapters - just press into the grid
- Lips on top face allows second use as a shelf
- 2 length variants - short (only 46g) and long (only 61g)
Printing Tips
Parts are designed with generous gaps but if the drawer movement is too tight, it is likely that your filament diameter is larger than usual (example, 1.79mm instead of 1.75mm). Adjust your flow rate to correct this, not the part scale.
Change log
Update 1 - 27/09/2025

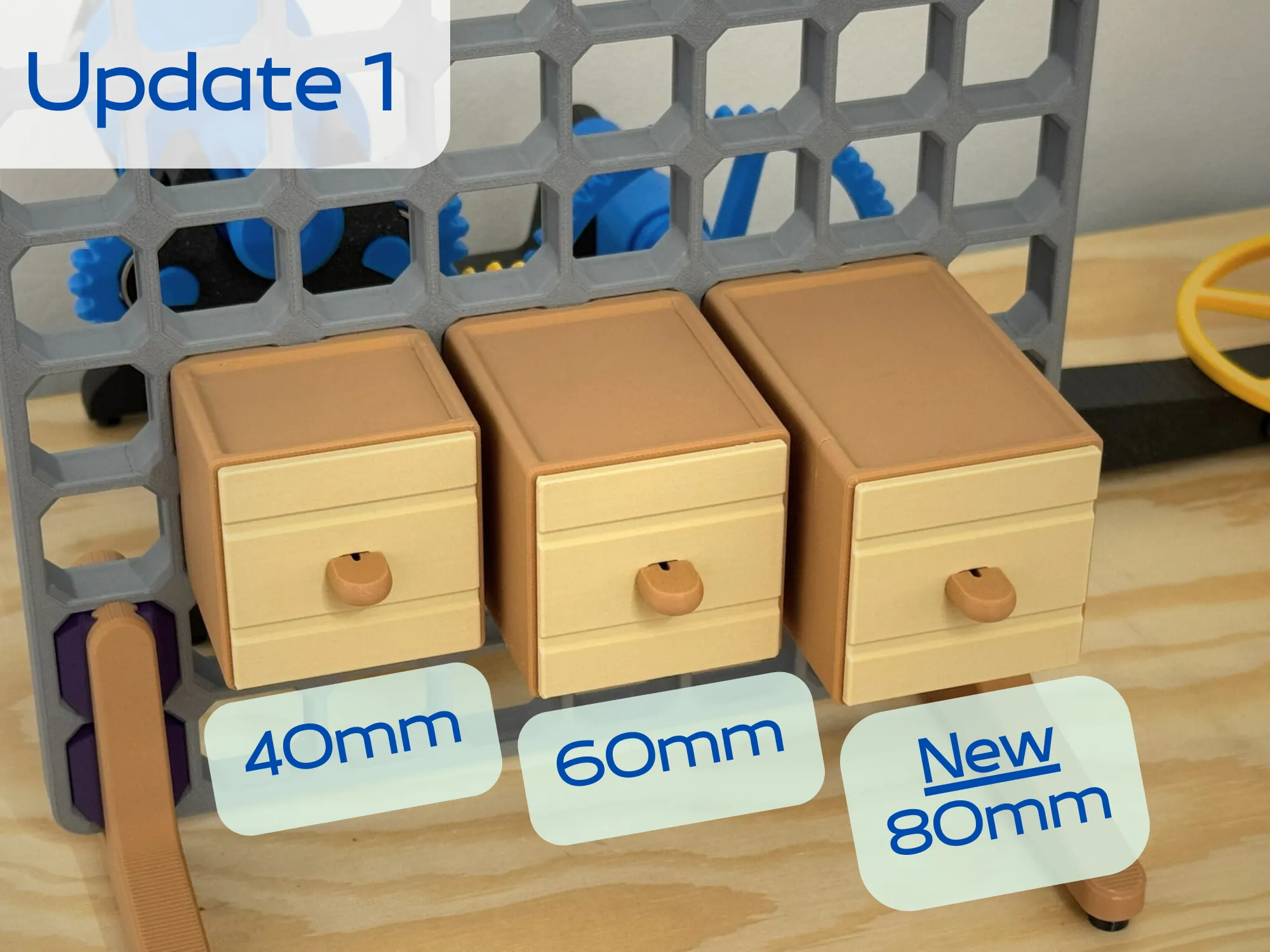

- Bins renamed from “short” and “long” to “40mm” and “60mm”.
- New 80mm bin added.

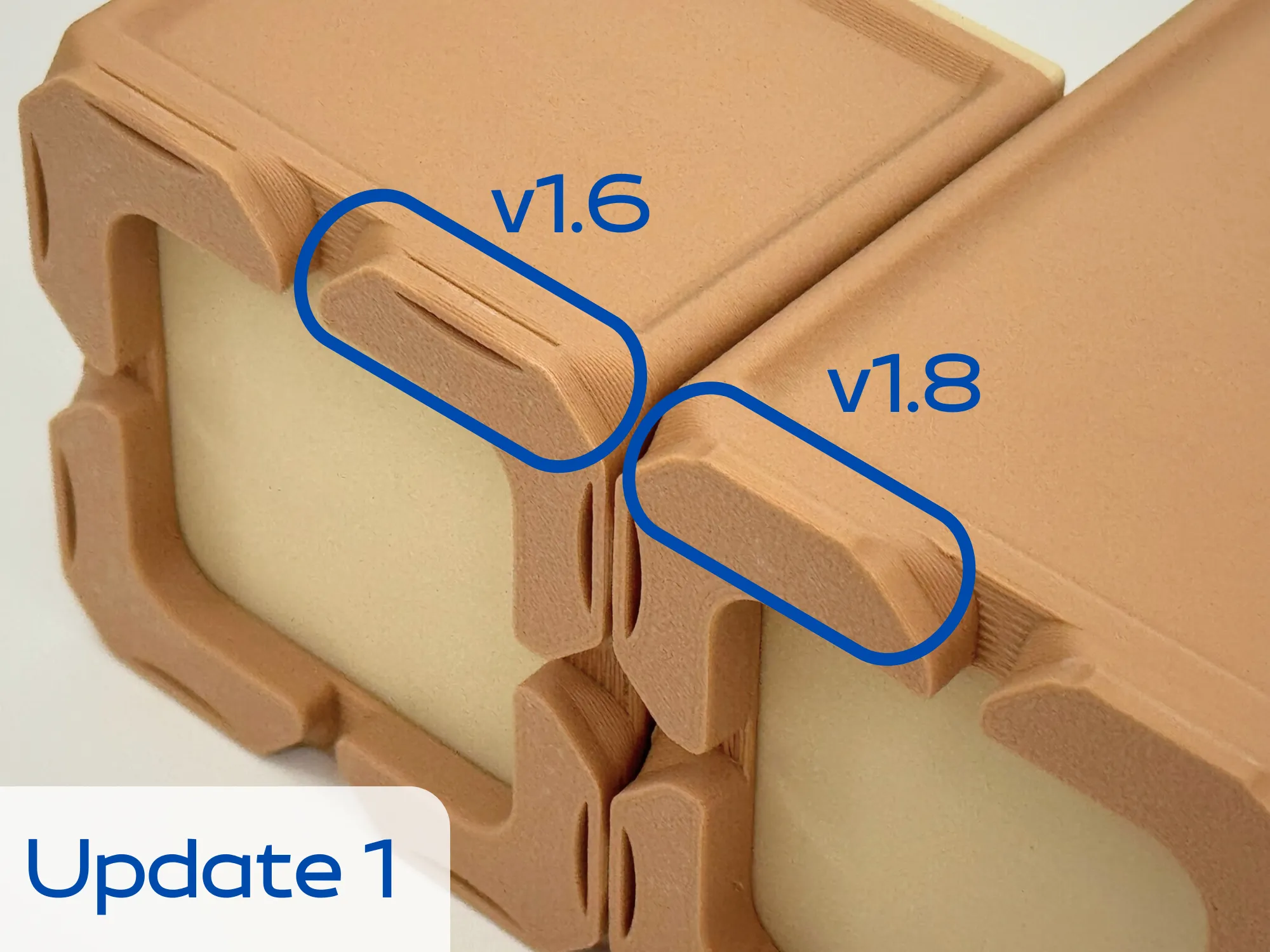

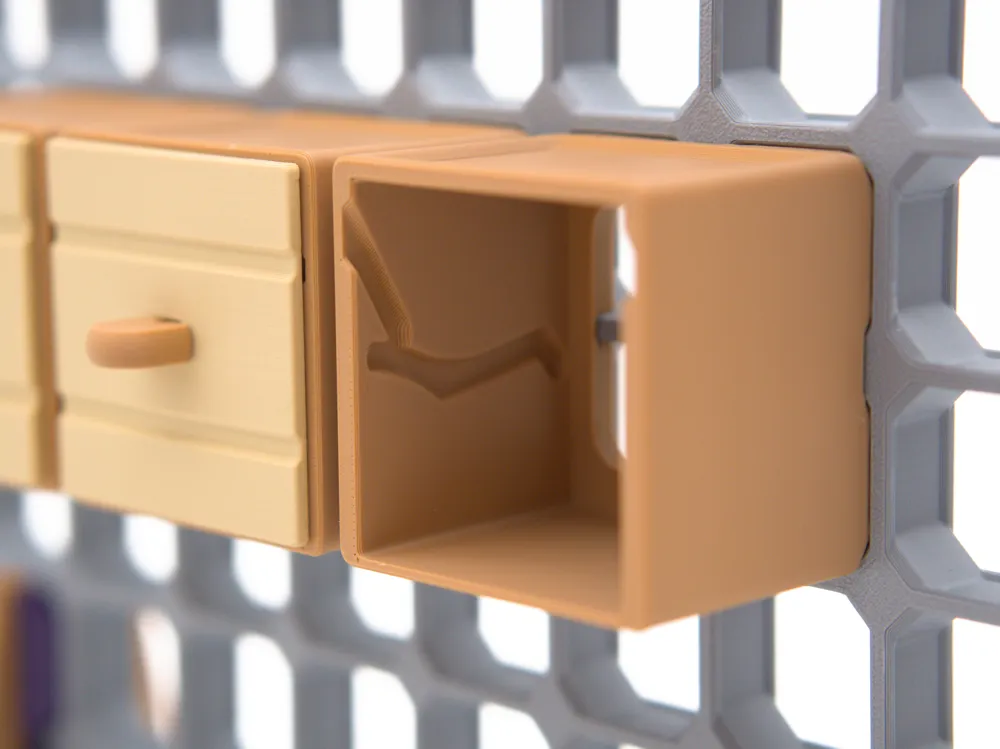

- Retention clip geometry updated for significantly better holding, especially for longer bins (young children are savage!).
- Minor change to bin clearance slope for slightly easier drawer closure.
Further Resources
Check out this collection for related openGrid models and the official openGrid subreddit for questions and inspiration.
Credits to David D for the base openGrid system. If you are new to this, check out his website openGrid.world
