"Foxbat 76" 3-inch FPV drone
Print Profile(1)
Description

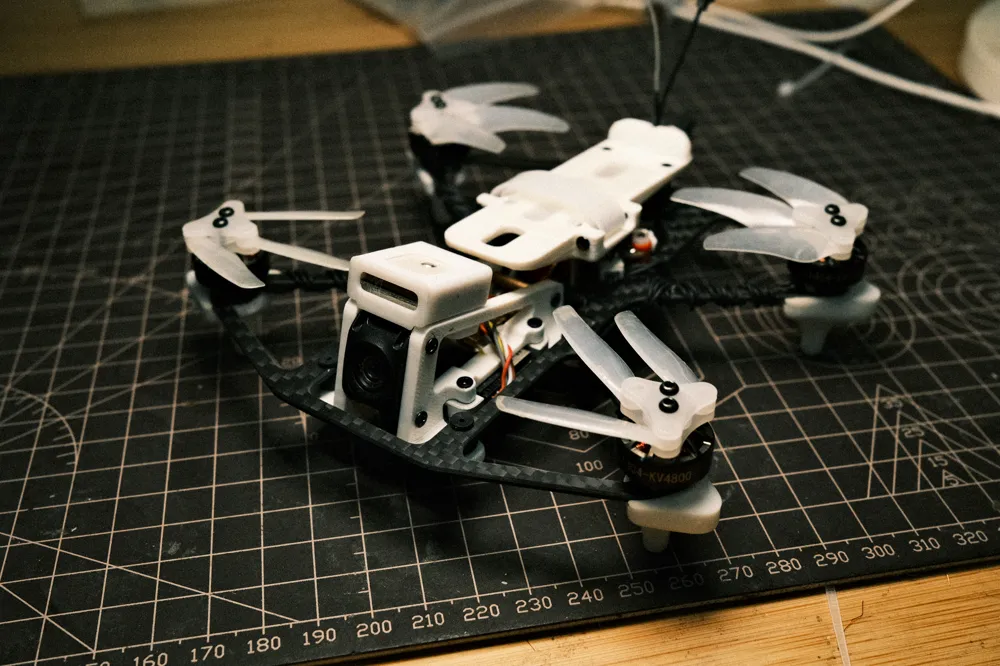

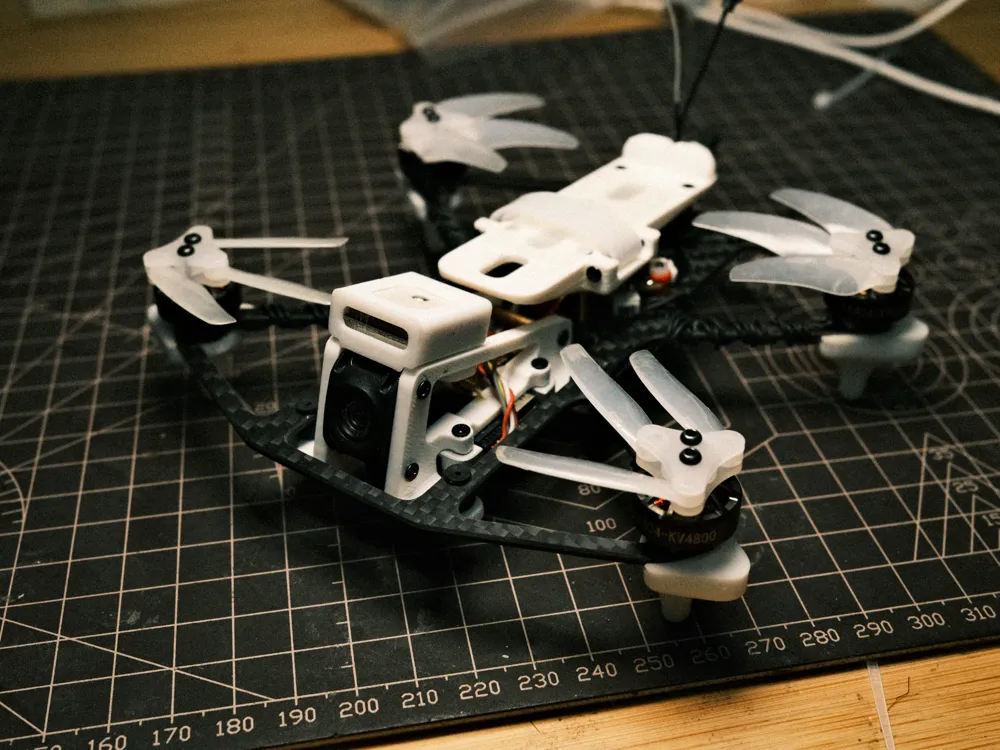

"Foxbat 76" 3-inch O4 mini FPV drone frame, with an integrated shock absorption design, perfectly solves the problem of O4 mini video transmission stabilization failure
Test flight electronic setup as follows:
Video transmitter —— DJI O4 lite
AIO —— Jinhang GHF 435 V2 2-4s built-in ELRS
Motors —— HappyModel EX1404 4800KV
GPS —— Beizheng 181
Other accessories:
Flywoo VTX damping balls * 4
M2 *22 countersunk screw * 1 (VTX module)
M2 *12 countersunk screw * 4 (VTX module)
M2 inner diameter * 7mm copper tube bushings * 2 (VTX module)
M2 *22 countersunk screw * 4 (battery frame)
M2 *18 countersunk screw * 2 (battery frame)
2mm thick 20mm wide adhesive anti-slip pad (battery frame)
M2 lock nuts * 4 (battery frame)
M2 nylon nuts * 8 (AIO)
M2 * 10 countersunk screw * 4 (AIO)
Test flight video: New 3-inch frame "Foxbat 76" test flight_Bilibili_bilibili
Introduction video:【Open Source Frame Share】Foxbat 76 3-inch Toothpick Frame_Bilibili_bilibili
