Carpuride W603 Flush Mount
IP Report
Print Profile(1)
One color, 0.2mm layer, 4 walls, 20% infill
Designer
2 h
1 plate
Open in Bambu Studio
Boost
19
28
5
1
50
24
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description

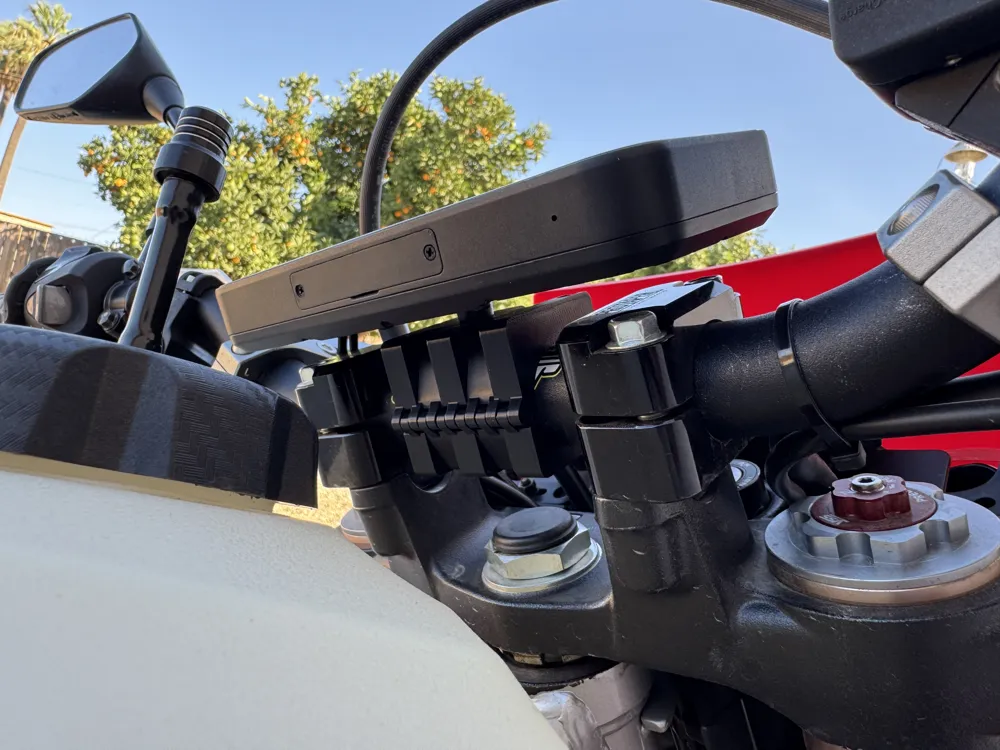

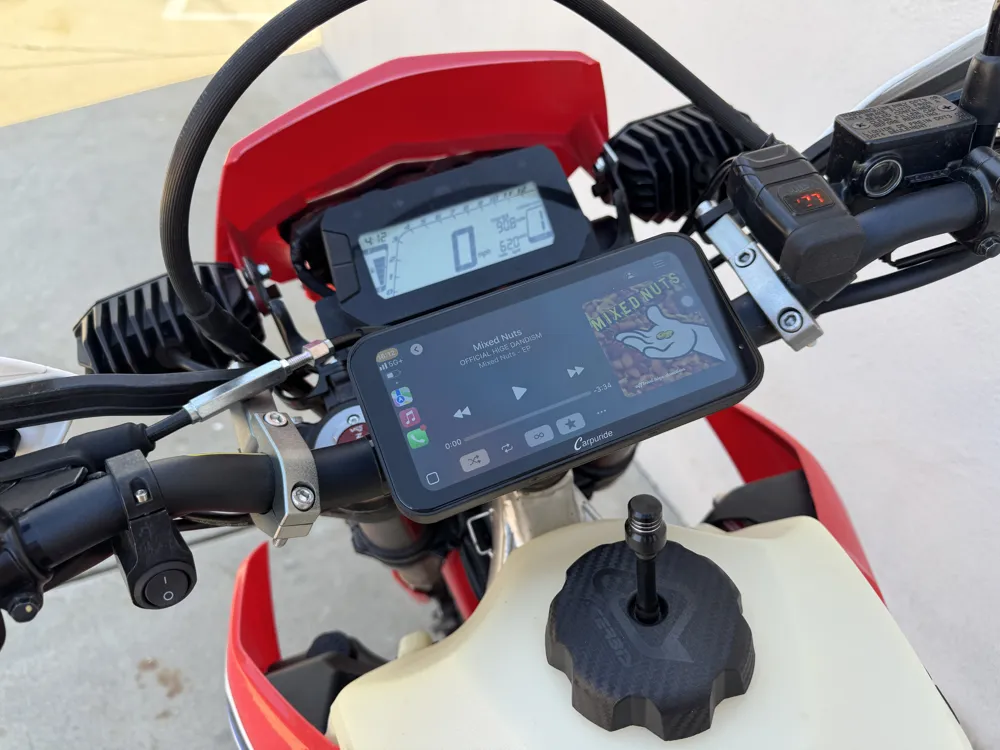

This is a bar clamp to flush mount a Carpuride W603 CarPlay unit to 1 1/8th inch motorcycle handlebars.

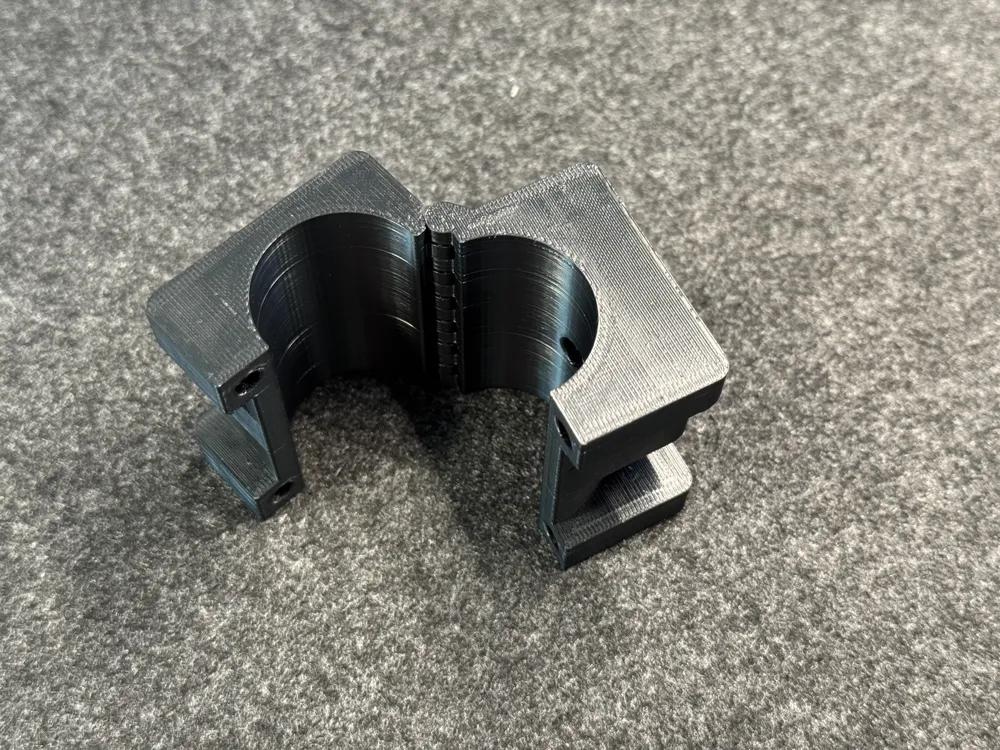

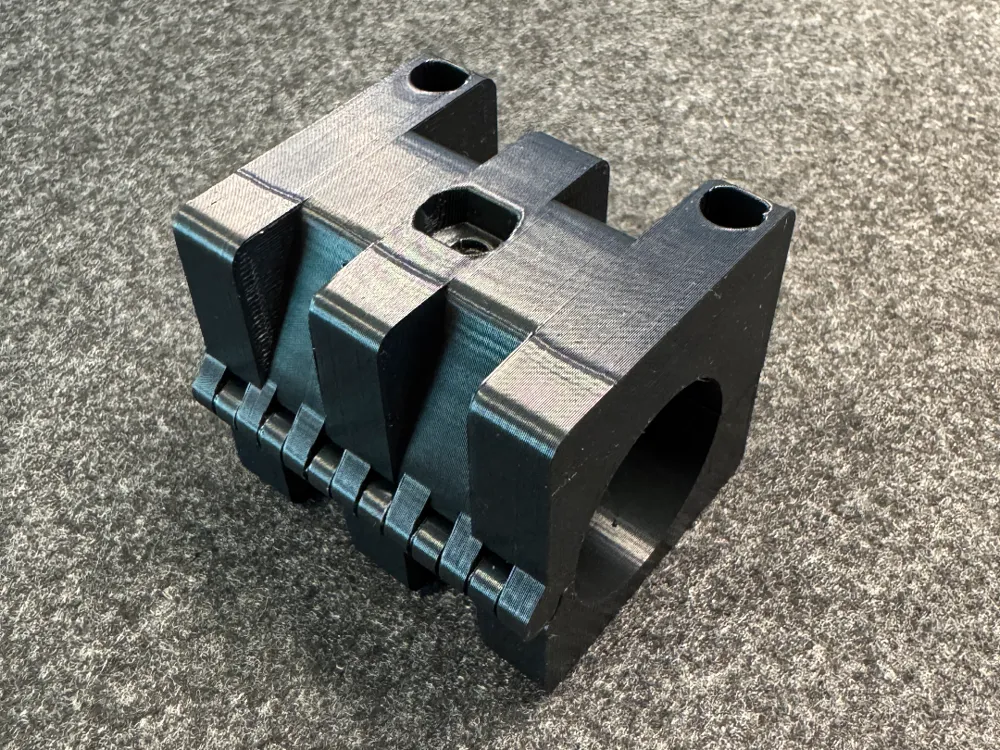

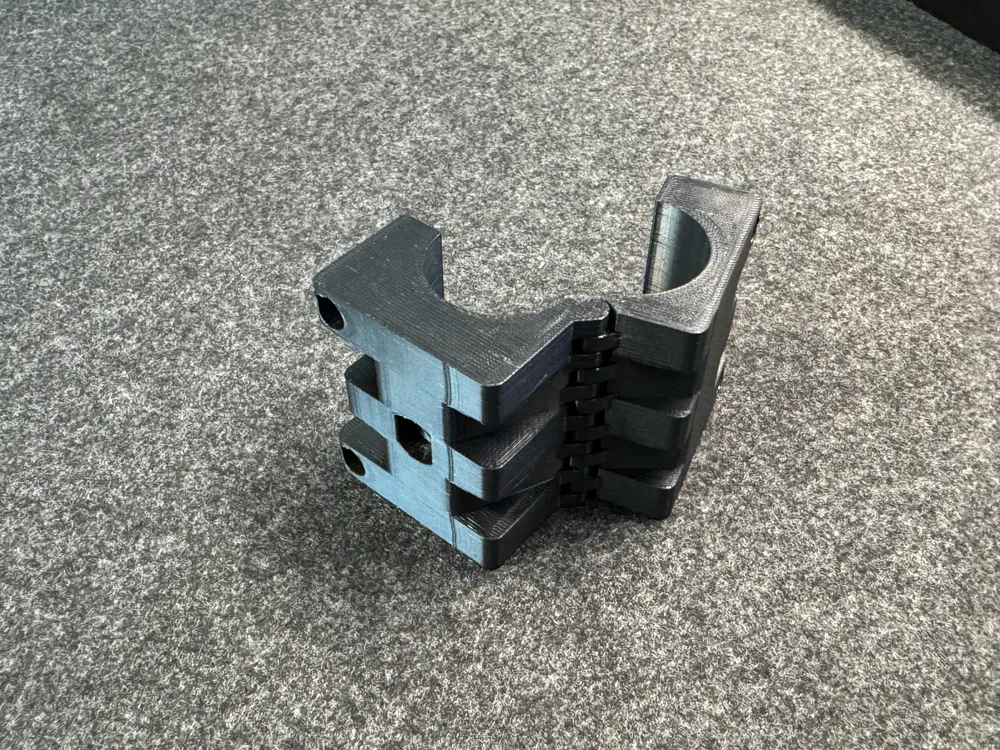

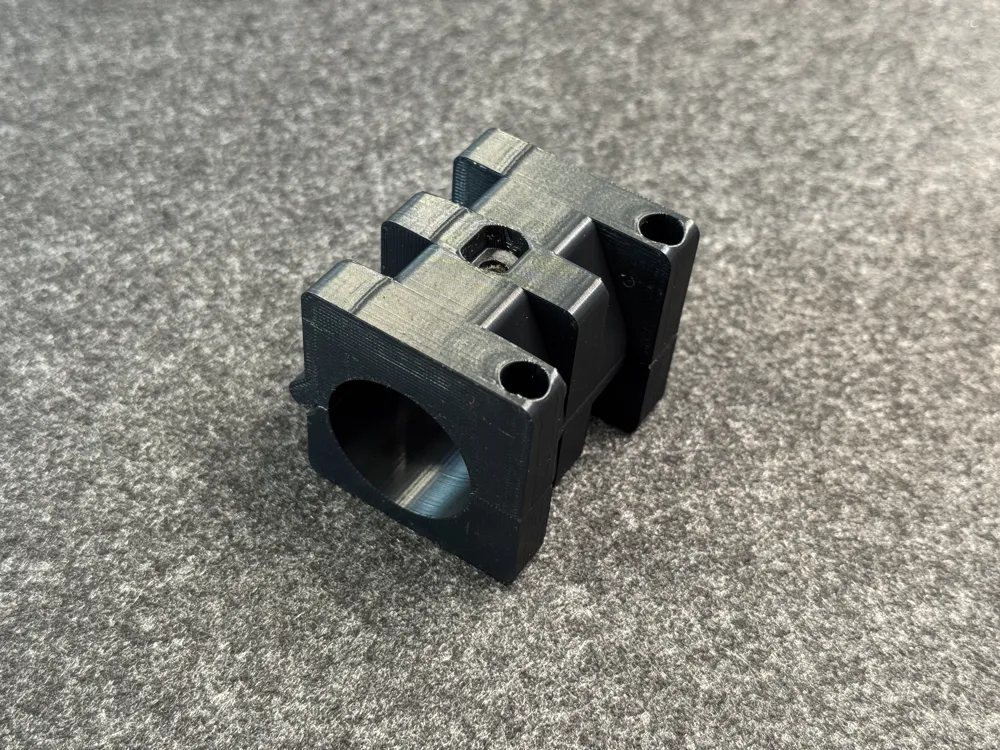

It is a print in place hinged clamp that bolts directly to the CarPlay unit and clamps to the bars. You will need:
1x M4 x 10mm machine screw (bolts to the unit)
2x M4 x 20mm machine screw
2x M4 heat set threaded inserts
(See BOM for compatible hardware from Maker's Supply)
Assembly:

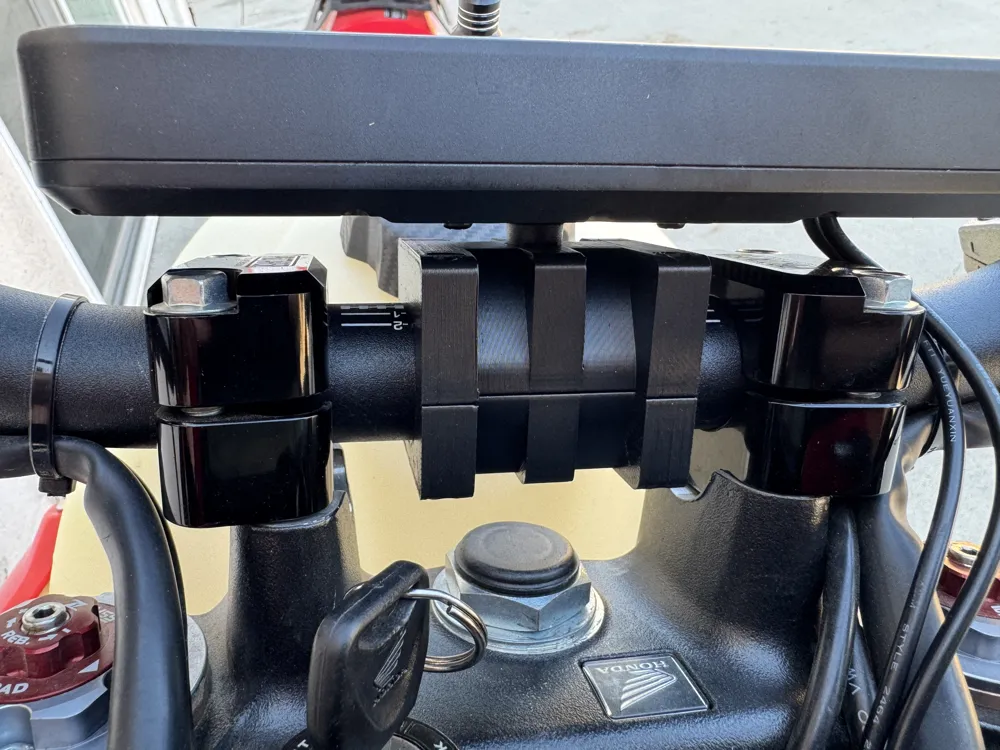

The threaded inserts go into the same side that the unit bolts to (the top), otherwise you will not have room to access the bolts to tighten them. The M4x10 machine screw is used to bolt the W603 unit to the mount first. With the unit already attached, mount the clamp to the bars and insert the M4x20 machine screws up from the bottom and tighten.
