Glock Rear Sight Press Pusher
IP Report
Print Profile(1)
0.2mm layer, 10 walls, 15% infill
Designer
5.4 h
1 plate
Open in Bambu Studio
Boost
35
128
10
1
74
26
Released
Description

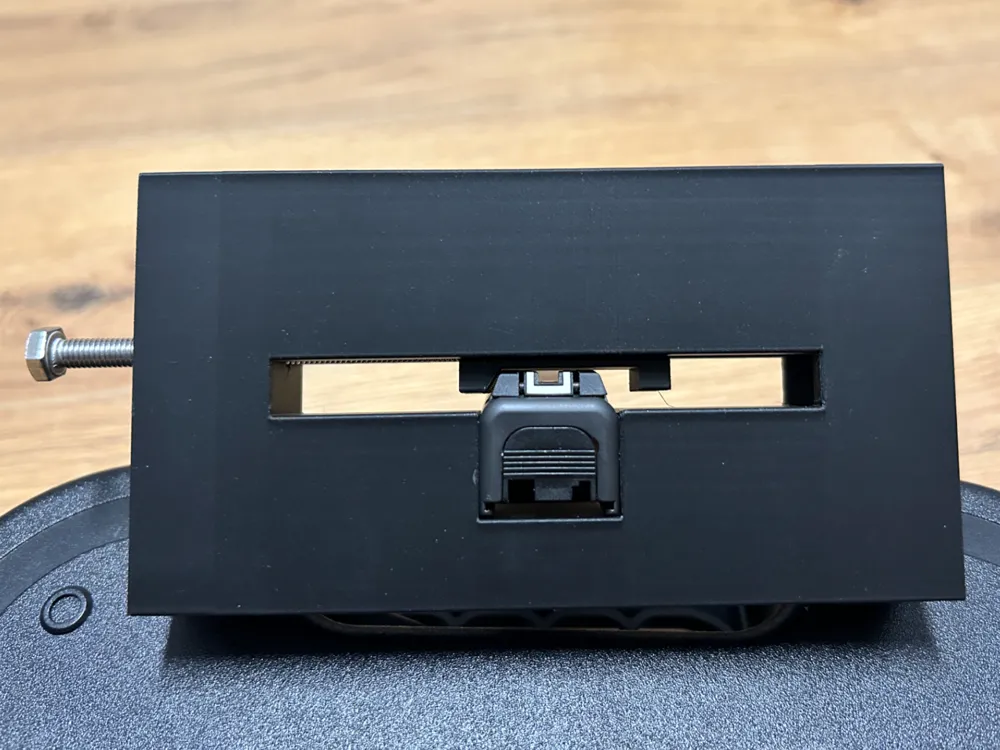

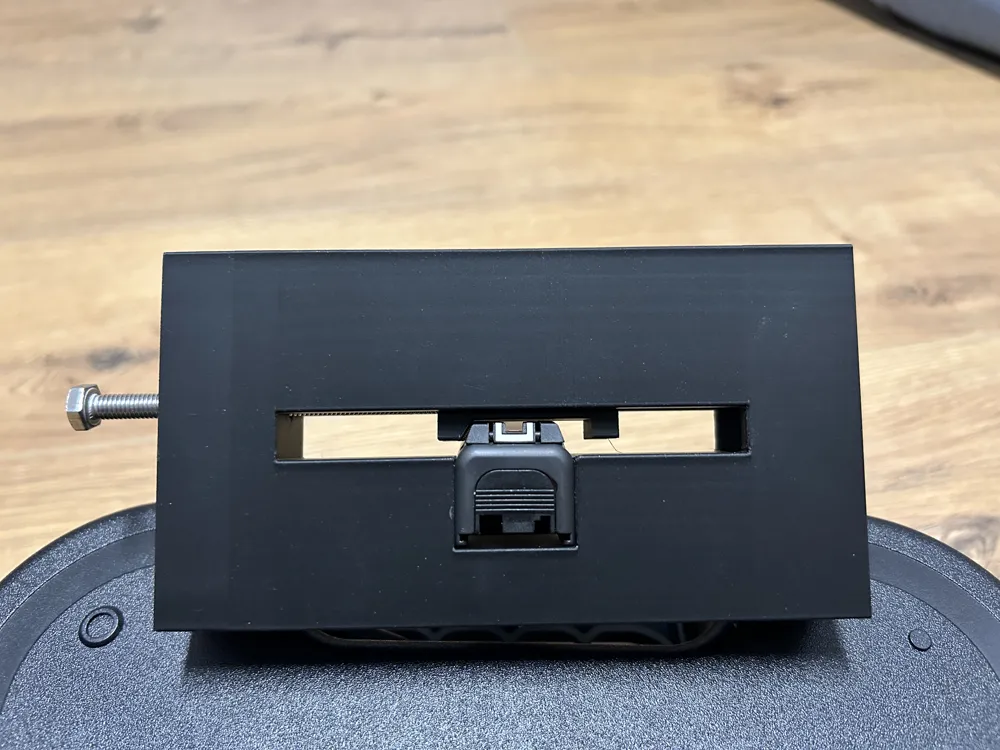

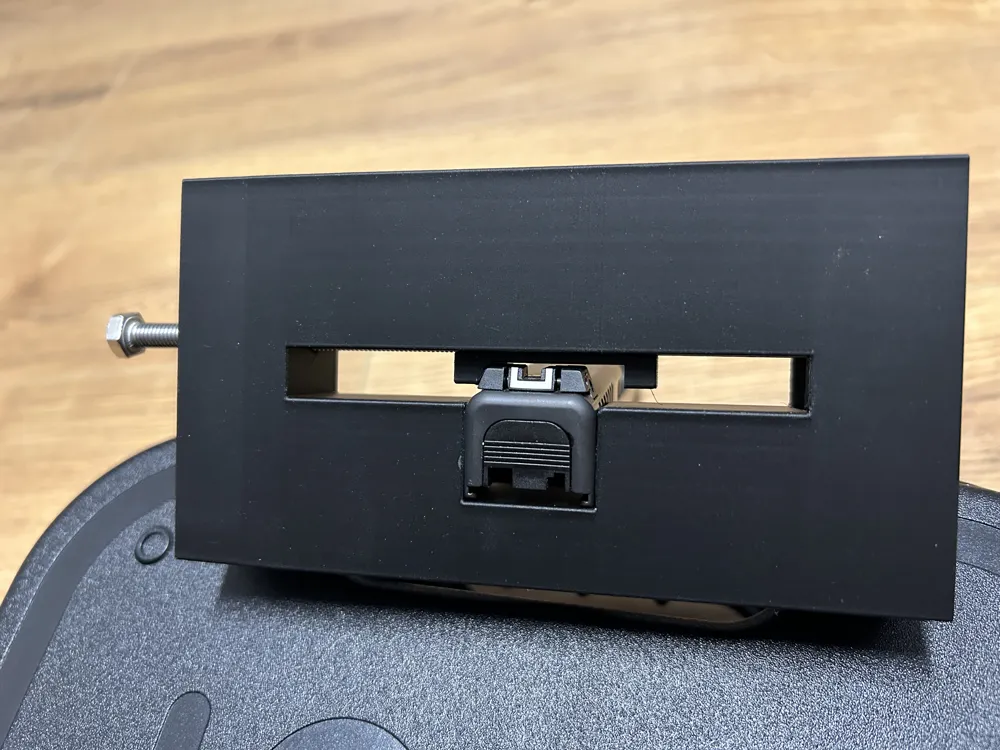

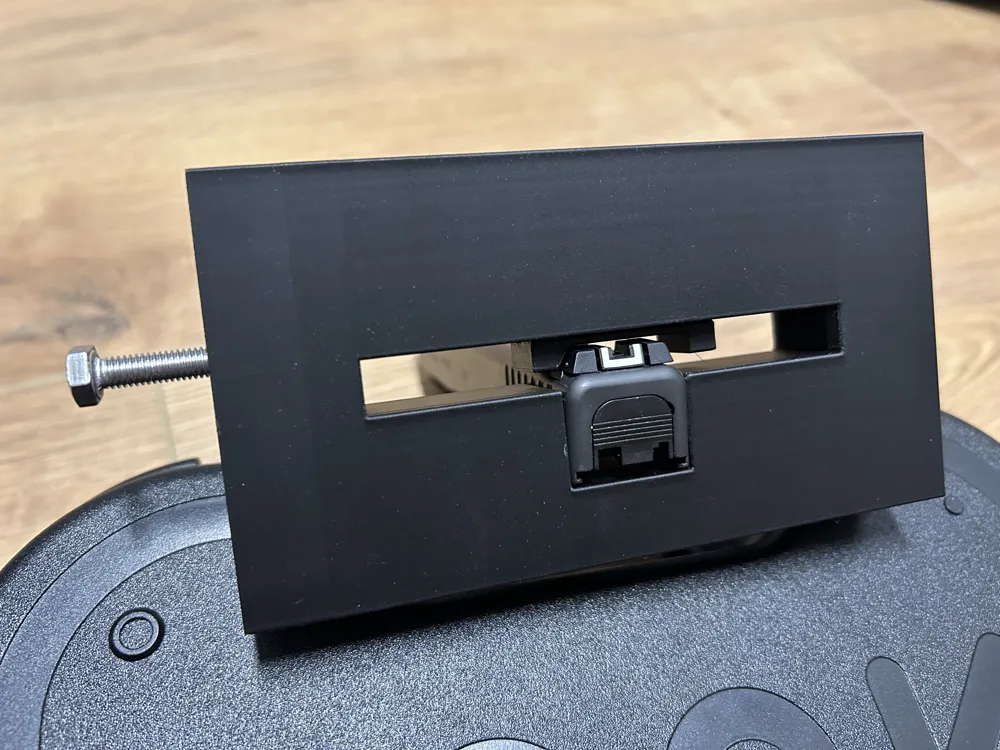

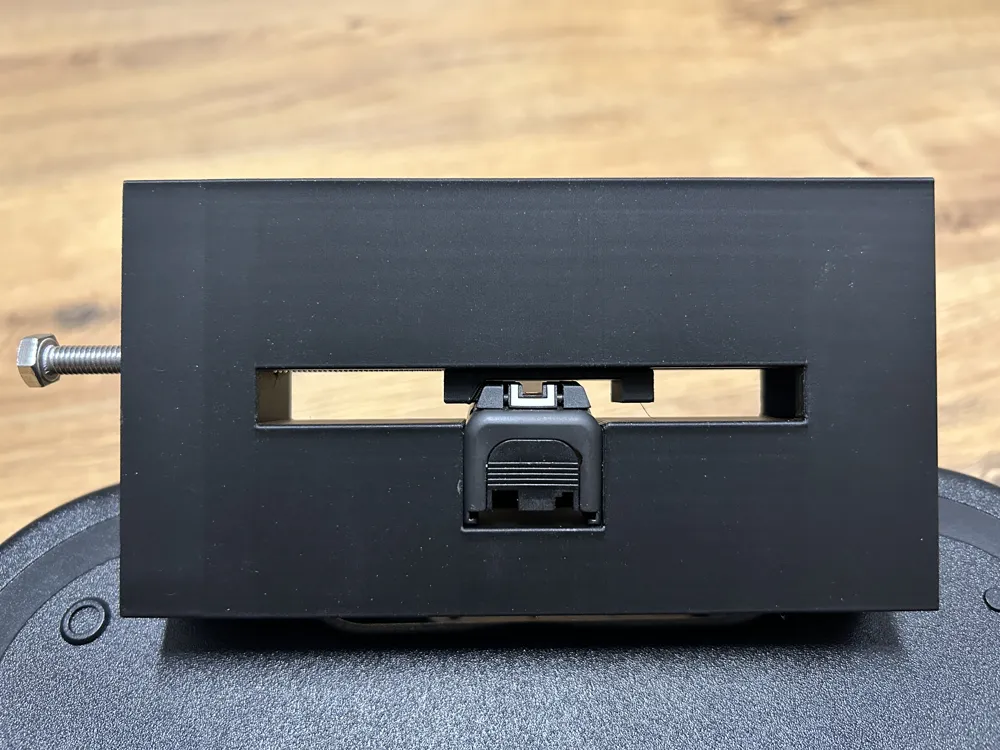

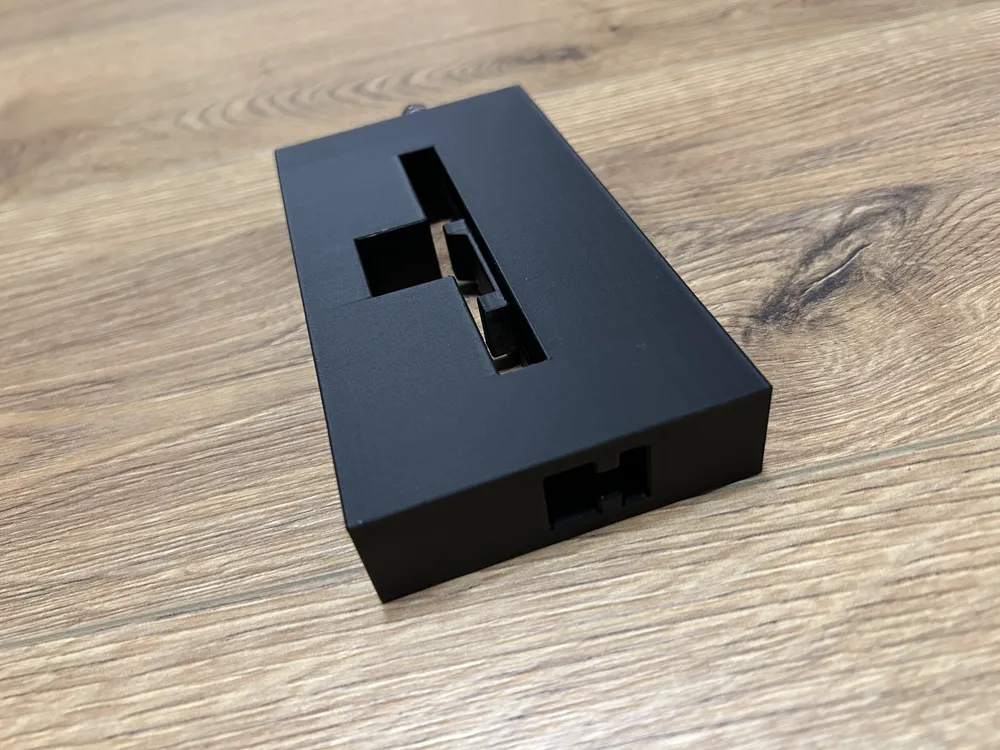

This tool is designed for Glock pistols with a slide height of 21.5 mm and a width of 25.5 mm.
It is used for adjusting the rear sight, as well as for pressing it out and back in again.
Mounting plates for an Aimpoint can also be slid on with it.
Needed parts:
1x hexagon screw M6 x 80 mm DIN 933
1x hexagon nut M6 DIN 934
A short break is set at layer 78 to insert the hex nut!

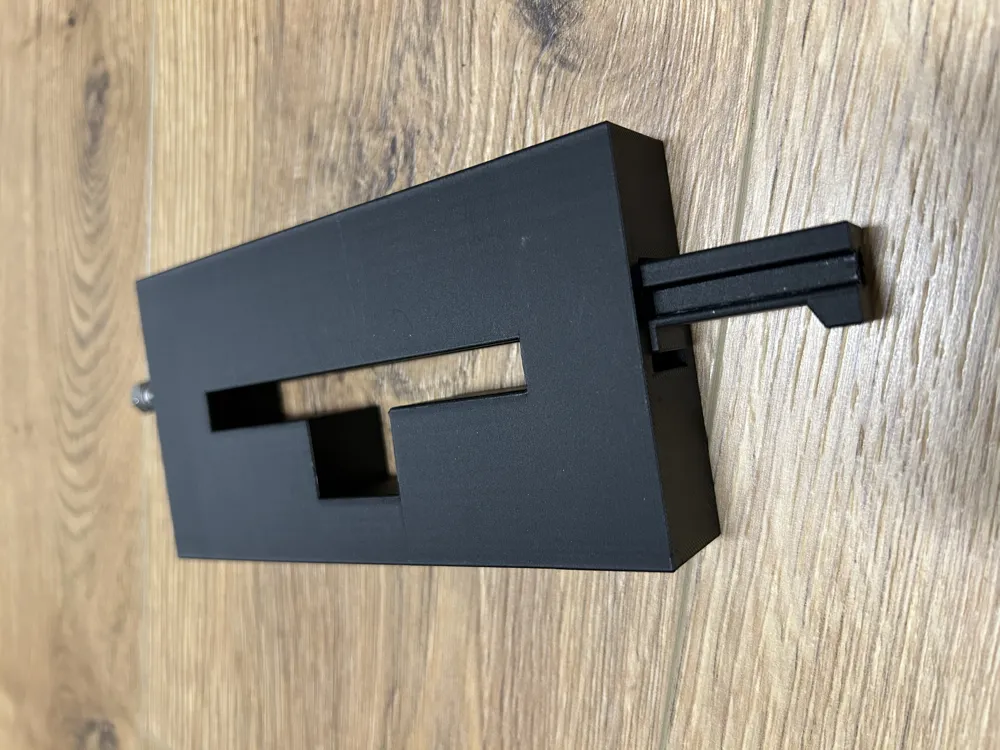

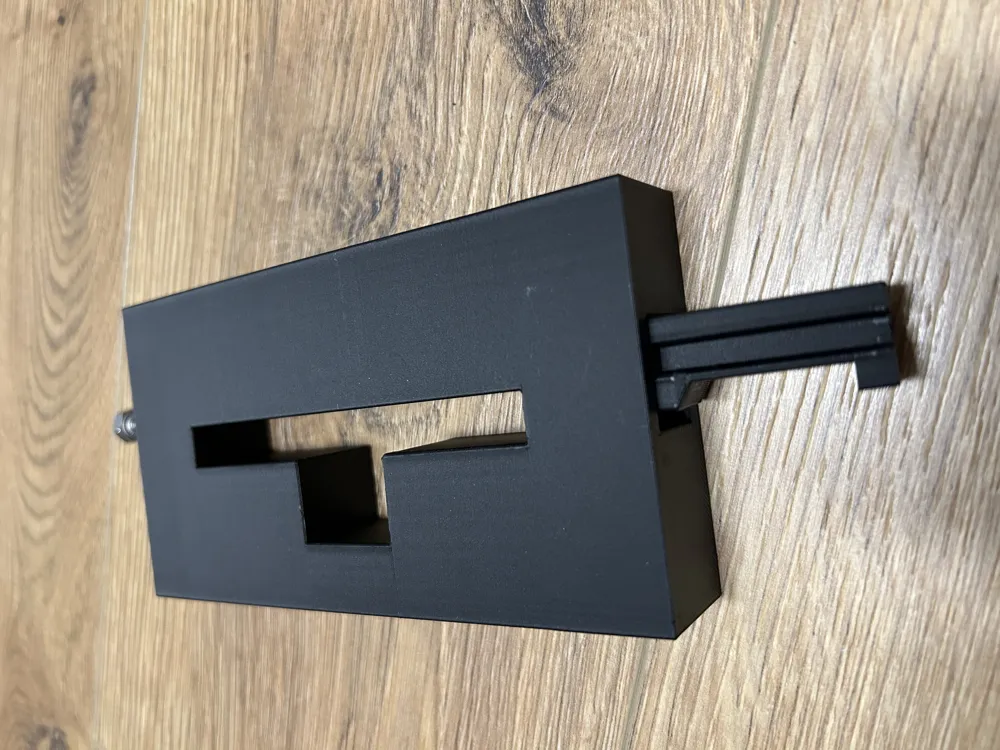

I have uploaded the slider as a separate part in case it needs to be adjusted.
