UV-K5 and UV-K5(8), 2nd Version, Antenna Support
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 100% infill
Designer
16 min
1 plate
Open in Bambu Studio
Boost
10
29
1
0
19
16
Released
Description
Content has been automatically translated.

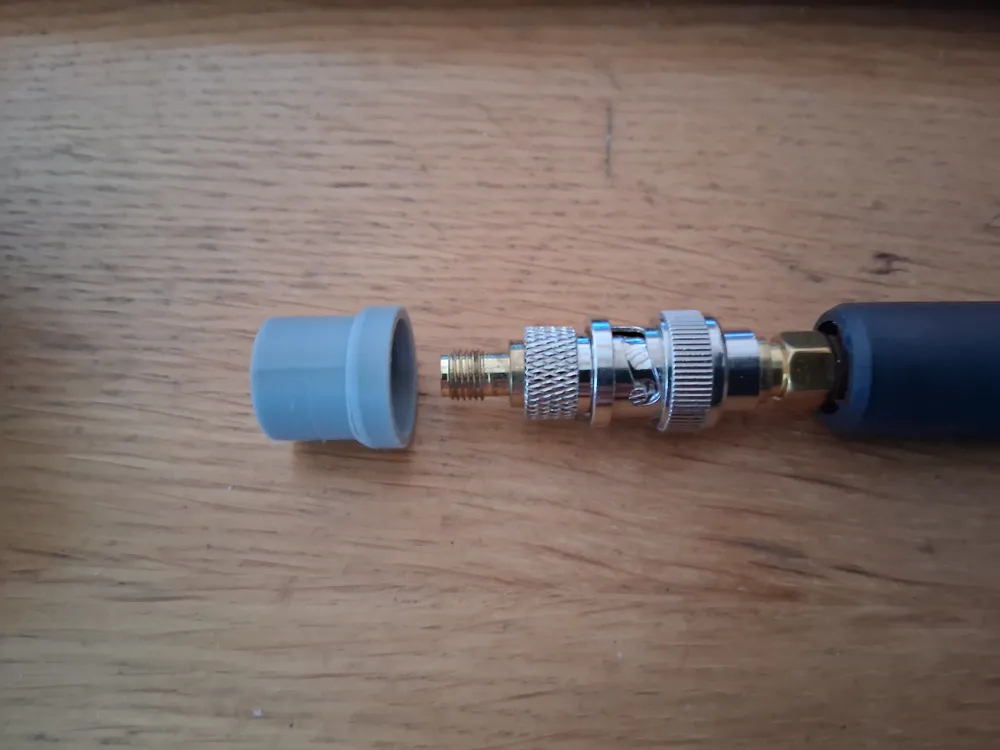

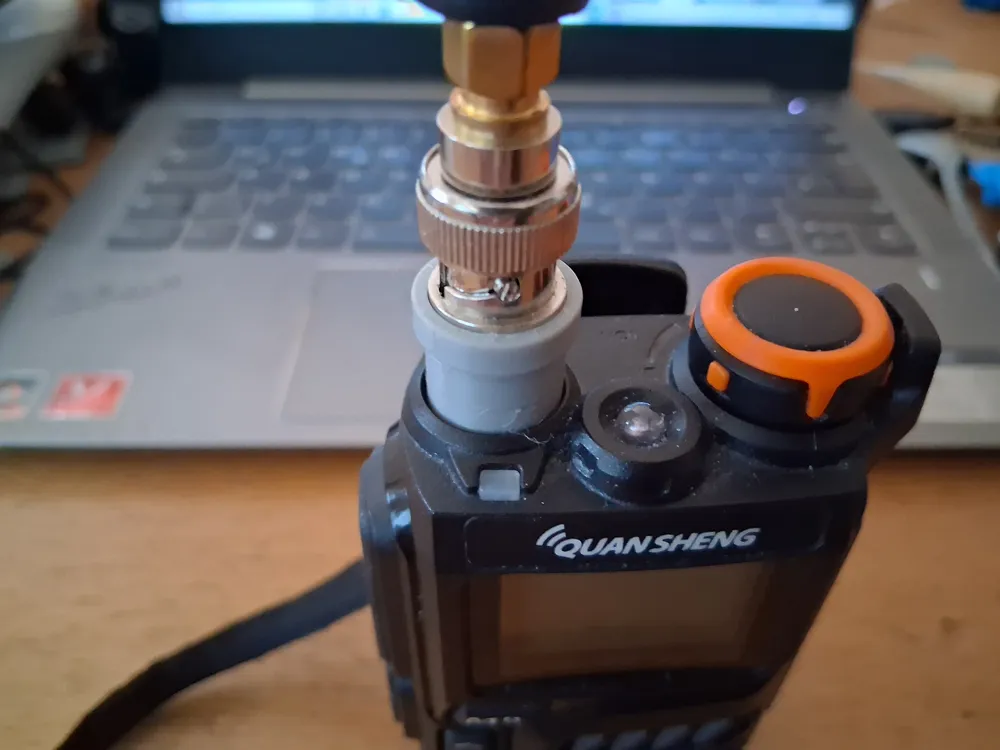

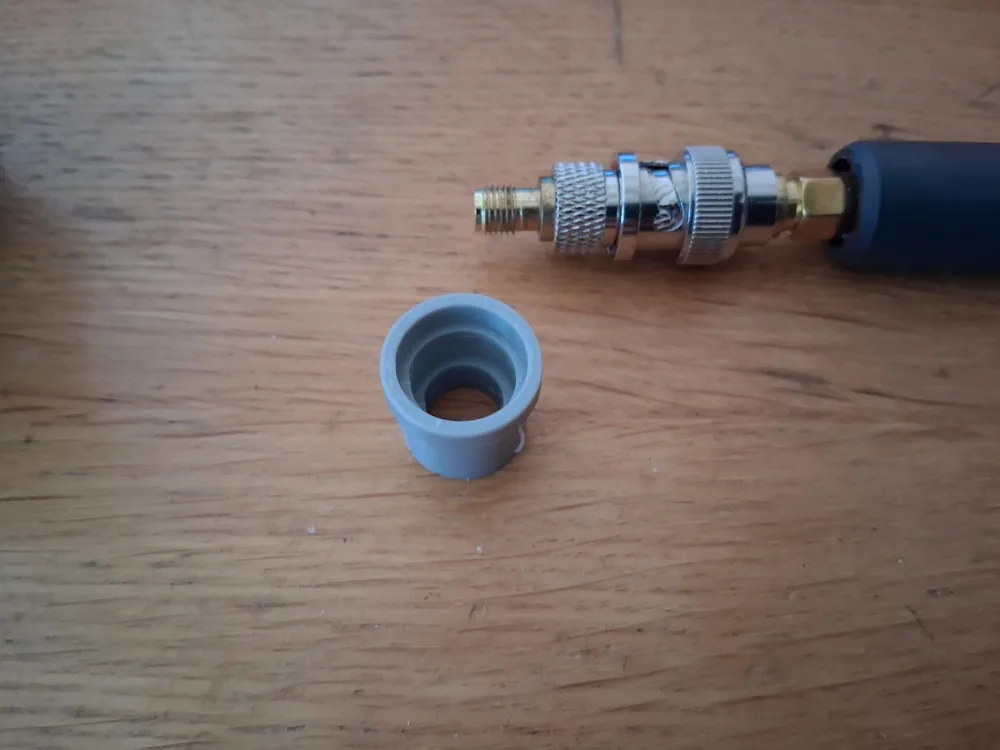

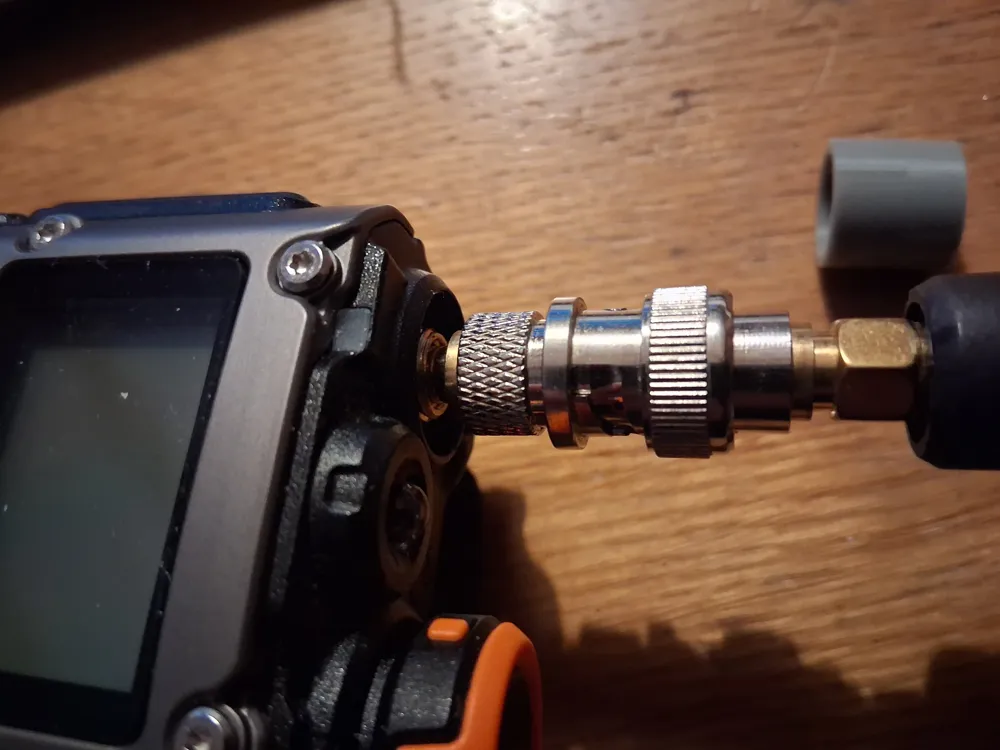

Antenna support for the Quansheng UV-K5 radio when using the pictured SMA/BNC adapter (may also fit other Quansheng/Baofeng devices). The support is designed to prevent damage to the radio's connector if physical force is applied to the antenna. It makes the delicate transition from the SMA adapter to the device a somewhat more compact unit.
In this 2nd version, the 1.5mm locking height of the BNC connector was also taken into account.
