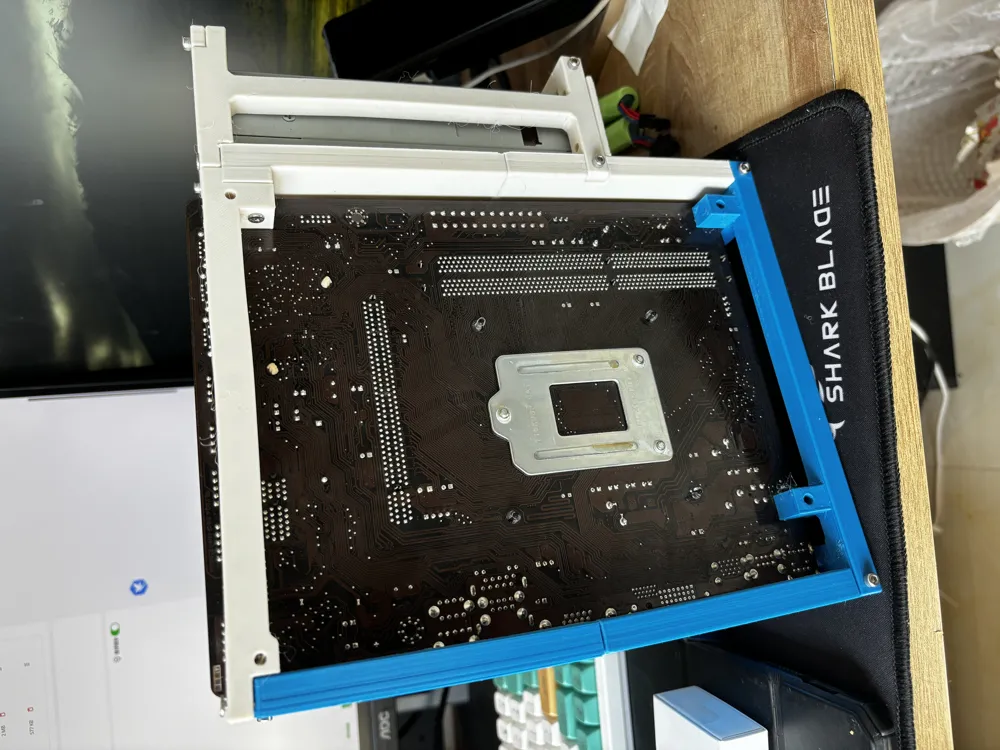

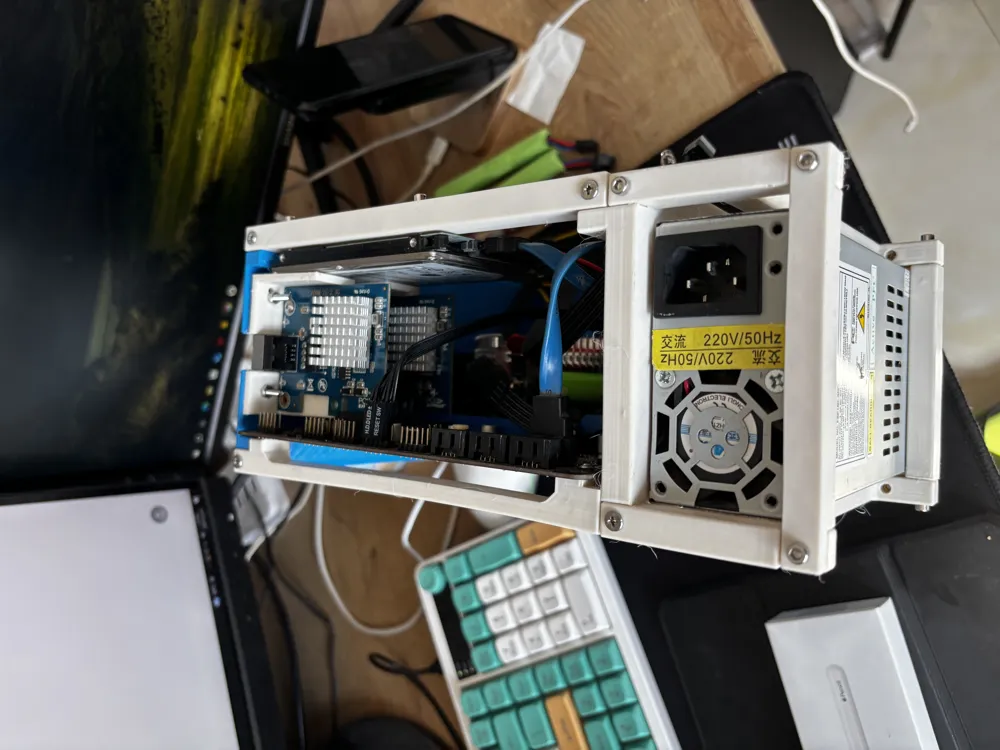

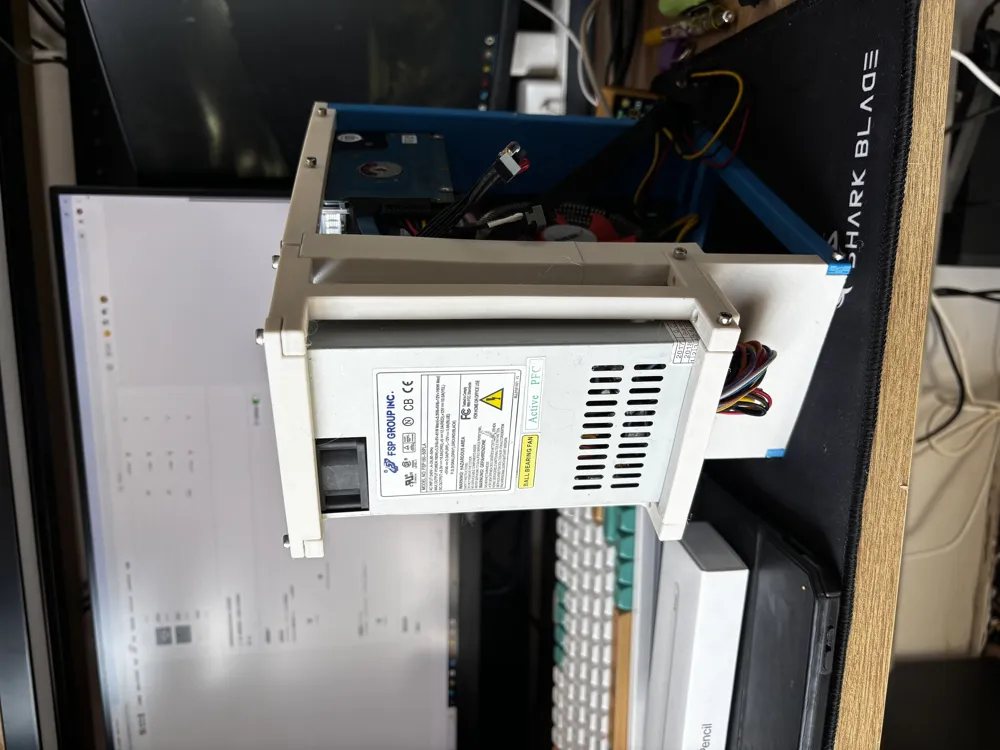

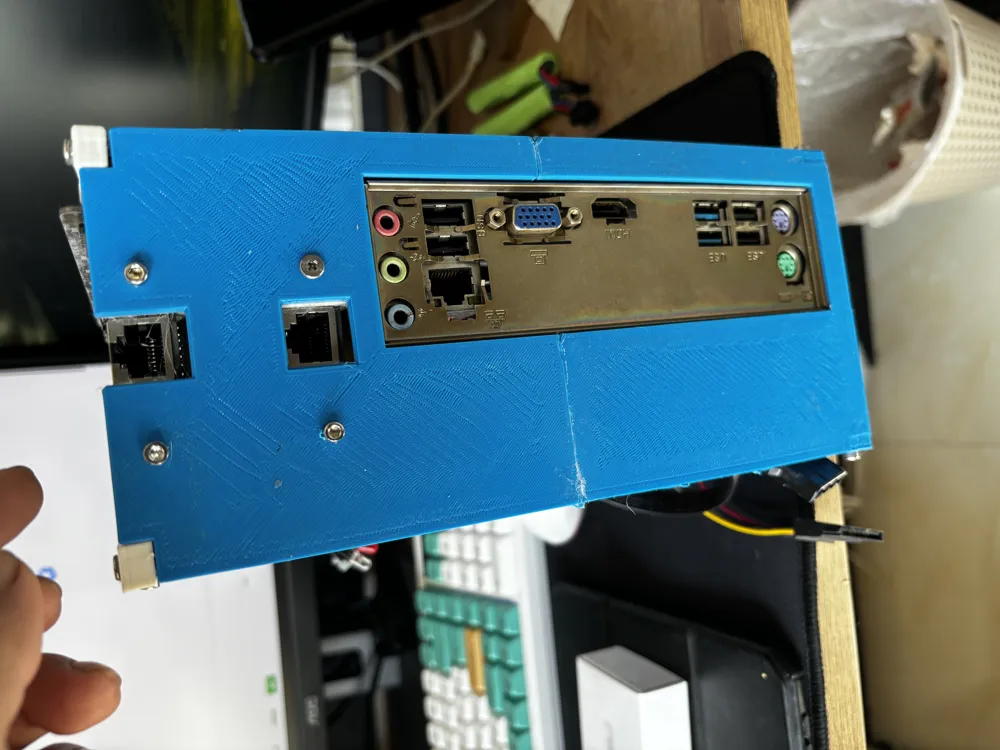

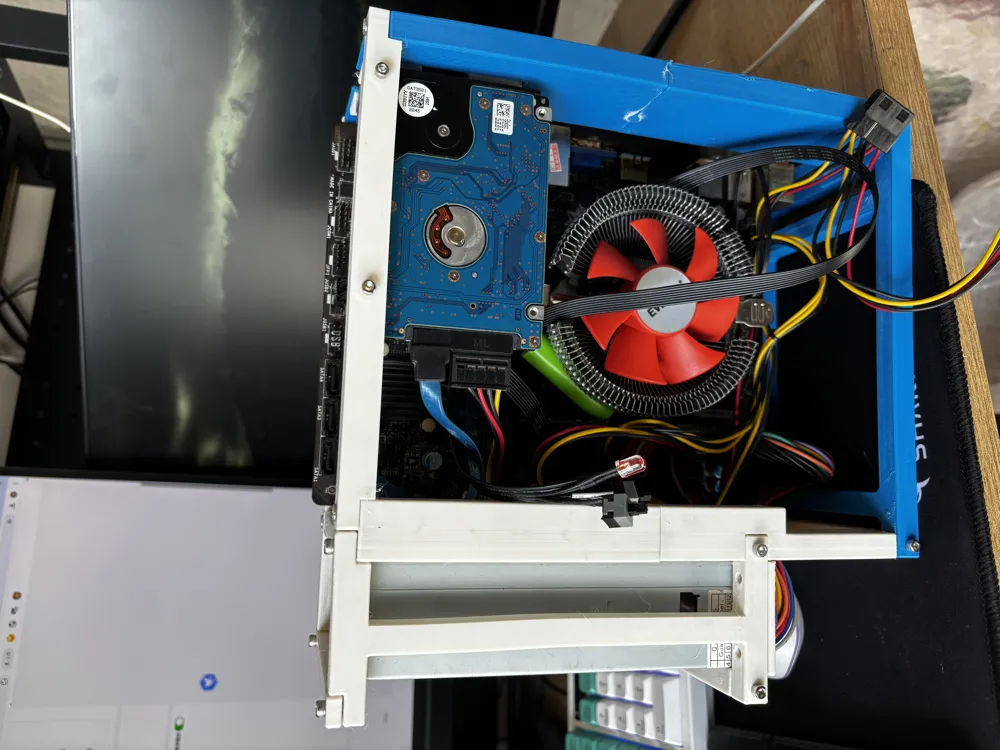

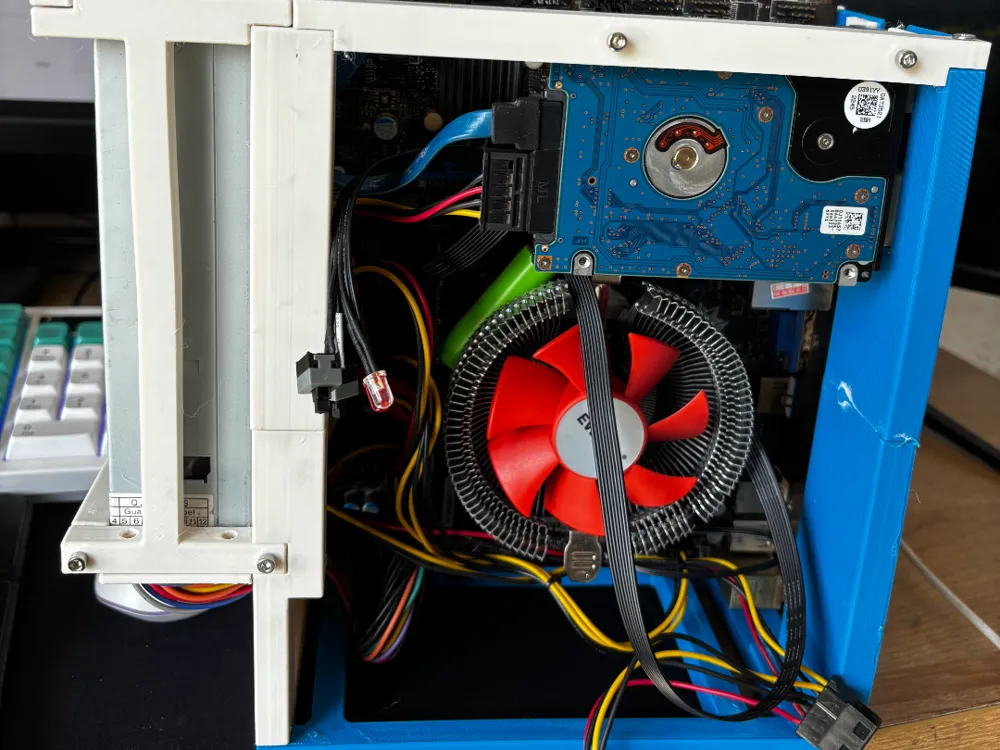

The motherboard of this host chassis frame is an H81M-E33 motherboard, with a motherboard frame size of 22.6*17.3cm. Some screw holes might not be perfectly accurate but it can be assembled. The hard drive and switch positions were not made, and can be drilled later. Also, the power supply uses a 1u power module, which is external. I added two 2.5G network cards into the x16 and x1 PCIe slots, intending to use it as a soft router.
