FIber Laser Coin Jig 10-50mm Fiber Laser Fixture
Print Profile(1)
Description

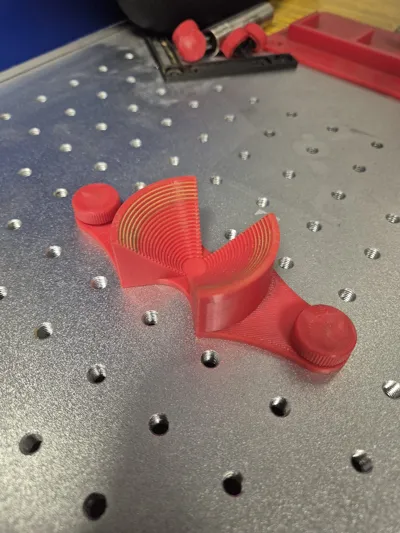

This fixture was designed to place round, disc-shaped objects – such as coins or pendants – easily, quickly, and repeatably on the bed of fiber laser engravers.
In my case, the model was printed in PETG, but of course, other filaments can be used as well. If you are doing deep engraving, the coin may become quite hot – in that case, a heat-resistant filament is recommended.
The fixture fits standard base plates with M6 screws and a 25 mm hole spacing.
It is suitable for coins with a diameter between 10 and 50 mm. The steps are in 1 mm increments, so the available sizes are 50, 48, 46, 44 … and so on.
