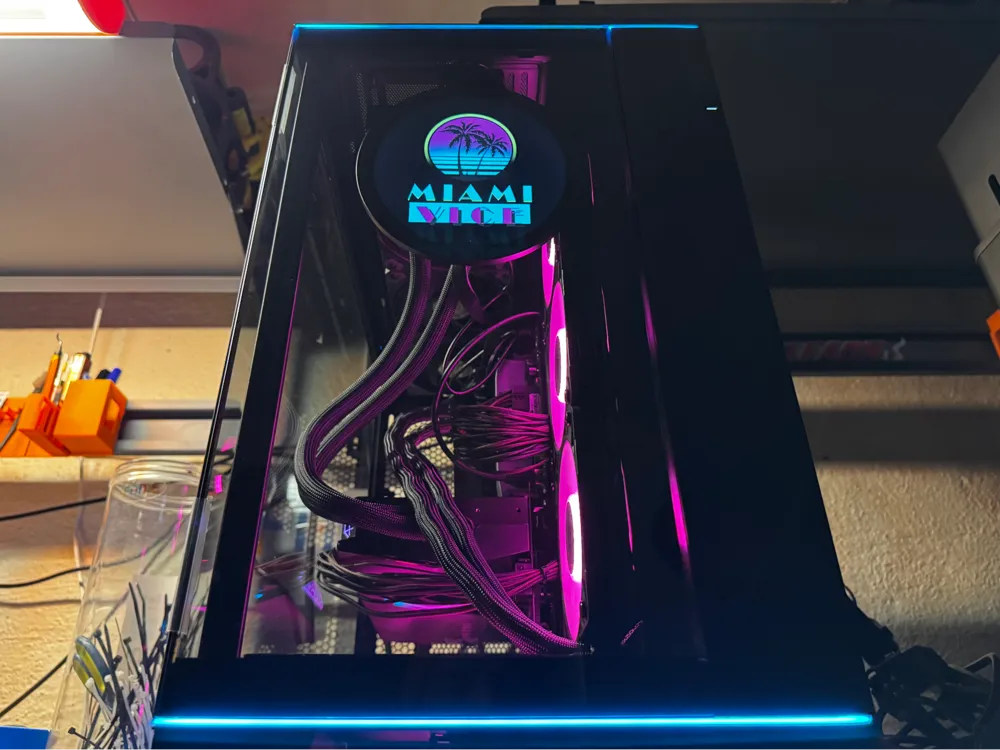

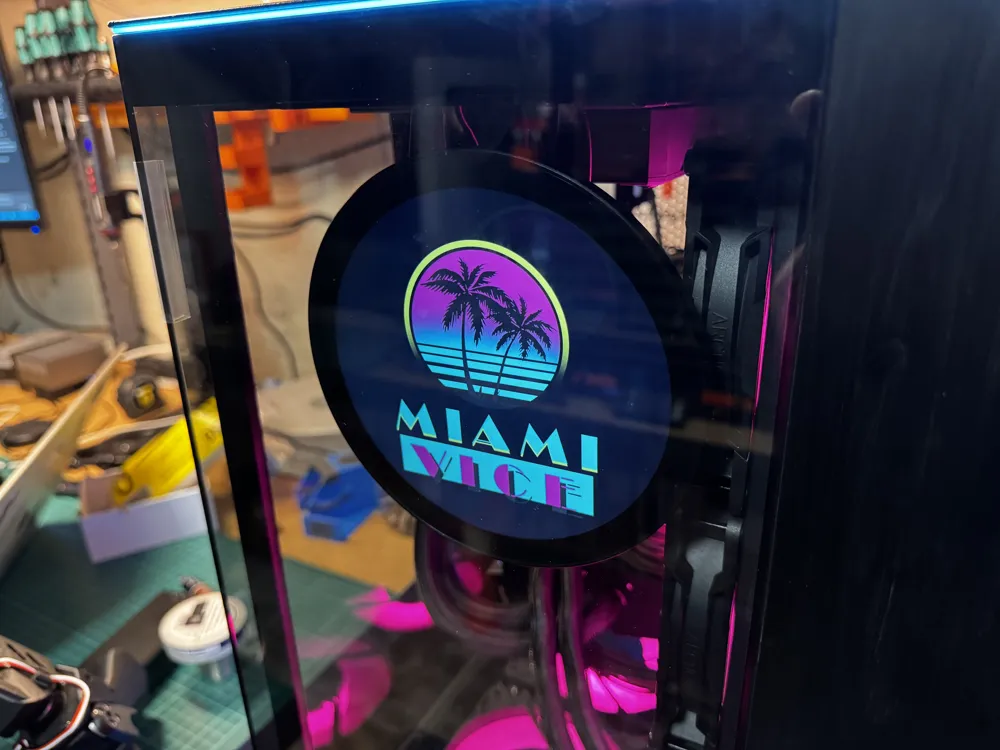

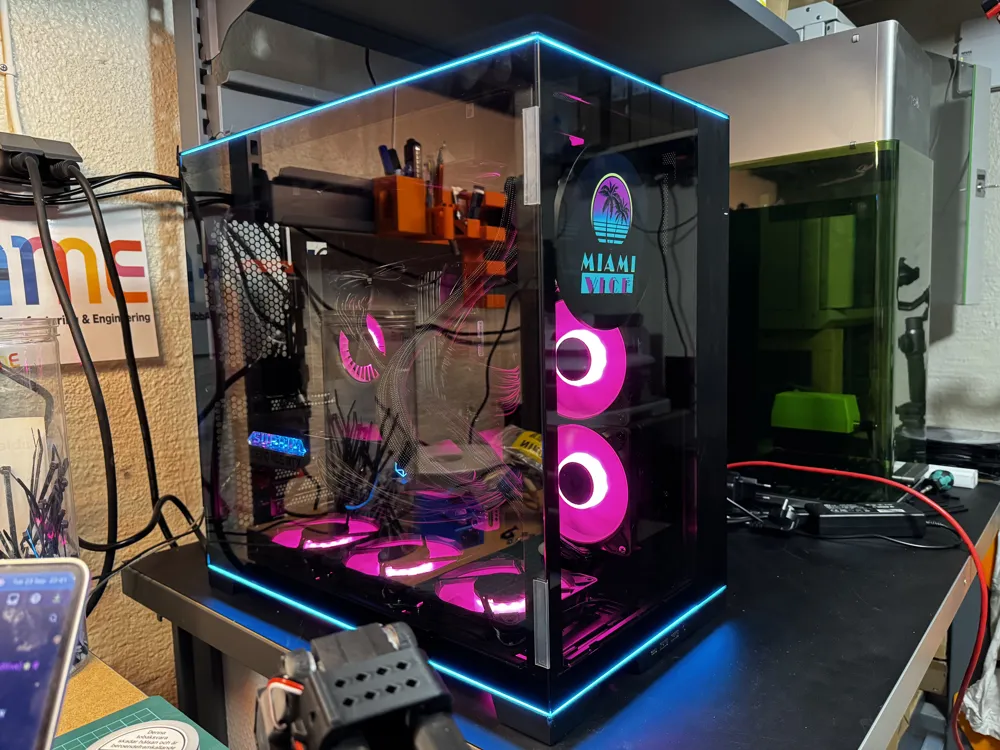

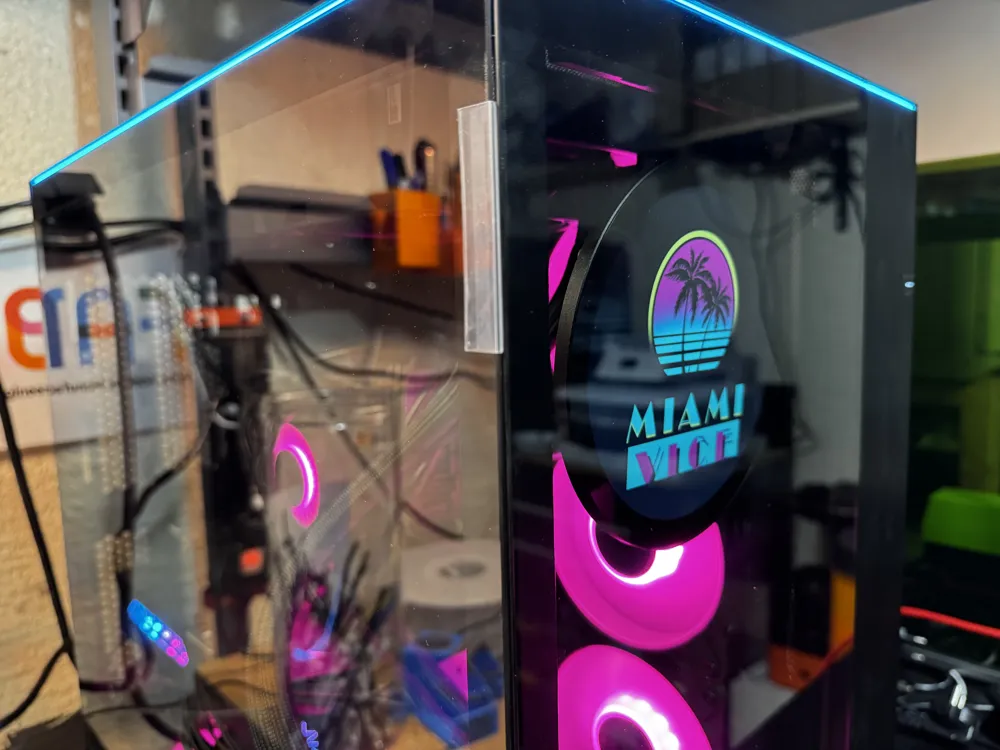

Waveshare 5" Round LCD Mod For Lian Li O11D
Print Profile(1)
Description
This is a simple case mod for the Lian Li O11D. My specific one is the O11D Dynamic EVO RGB - I guess it fits others in the series but I am not sure - the top appears to have the same mounting points on the others in the series. Print it first and check if you are not sure before buying an LCD.
I do not think this will fit if you have a 420 radiator installed up top, but if you have a 360 or smaller up there it will fit.
To fix this kit you need, in addition to the case:
- The Waveshare 5" round LCD kit - fortunately it comes with cables that are long enough!
- M4 or M4S heat set inserts. Ruthex or CNC Kitchen work perfectly.
- 4x M4x12 screws
- Two of the flattish M4 screws from the Lian Li kit for the case
Instructions:
- Install the two heat set inserts in the holes in the top with a soldering iron
- Plug the USB and HDMI cables in the top of the mount

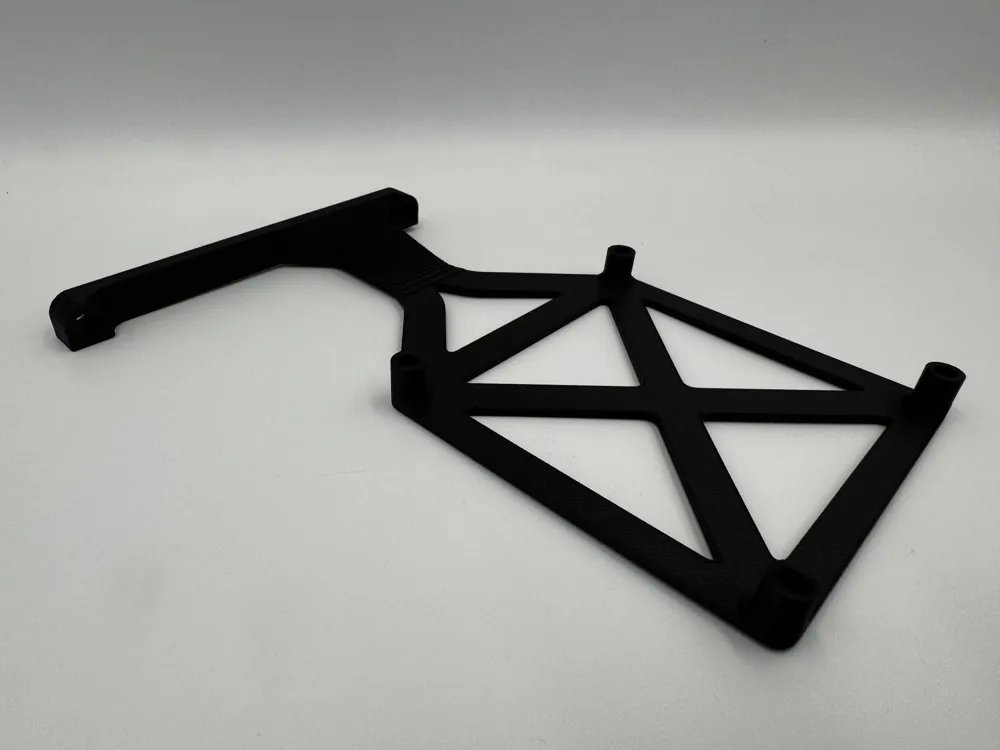

- Attach the mount to the back of the screen using the M4X12 screws
- Disassemble your case and mount this at the front of the radiator/fan mounting area at the top with the flatting M4 screws.
- Above where your motherboard ports are in the back of the case there is a plastic cap. pop that off and thread the cables out through it.
- Secure cables as necessary inside the case
- Plug in cables and reassemble case
