Thermaltake 600 8.8 inch lcd

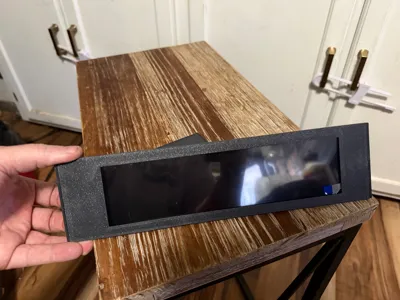

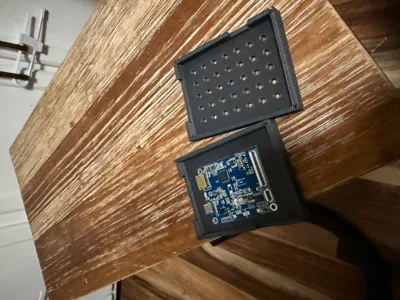

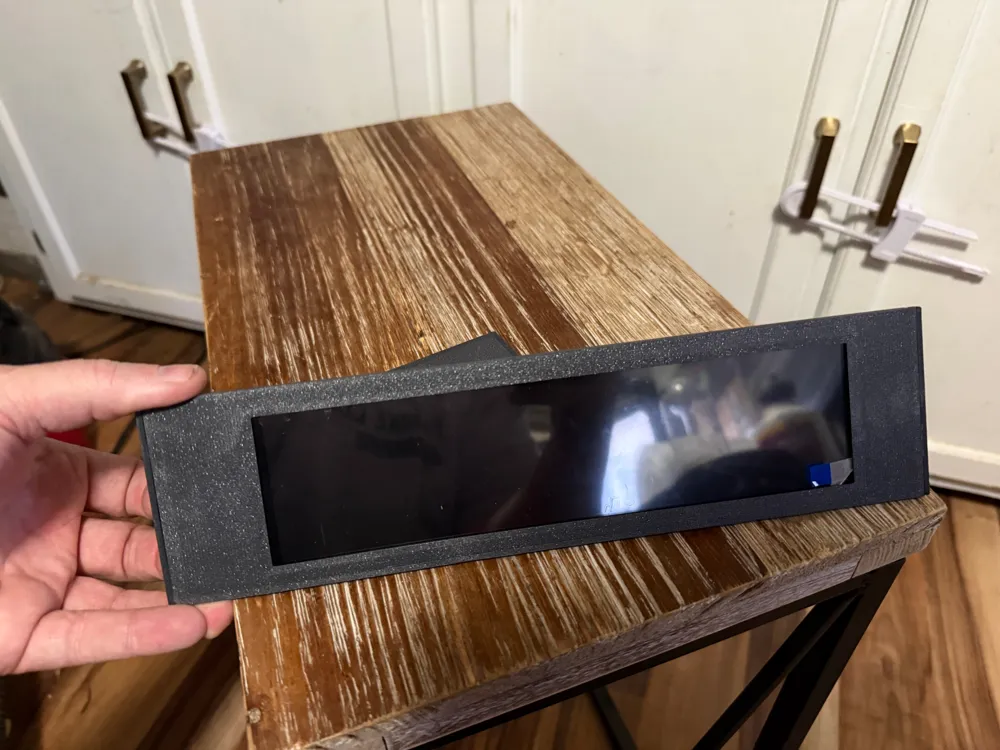

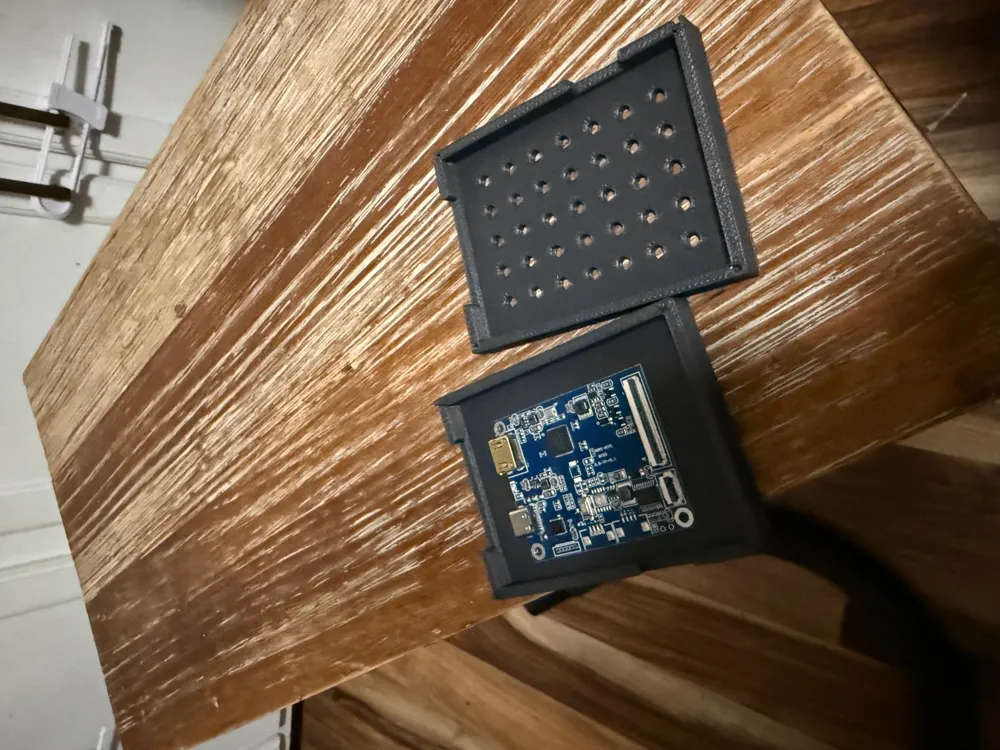

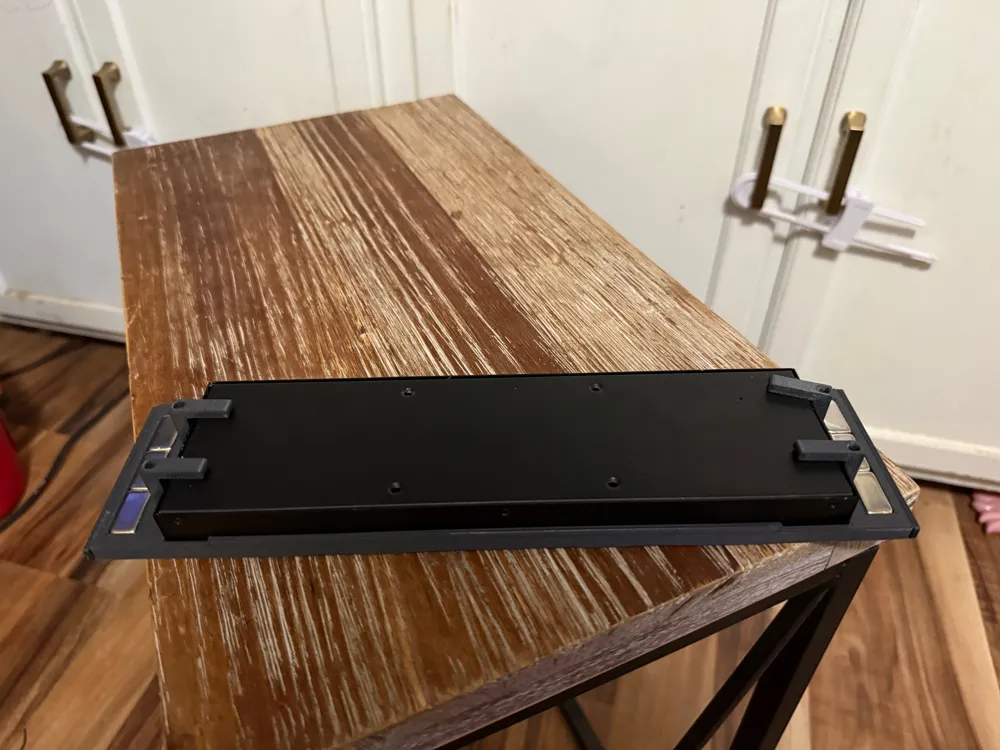

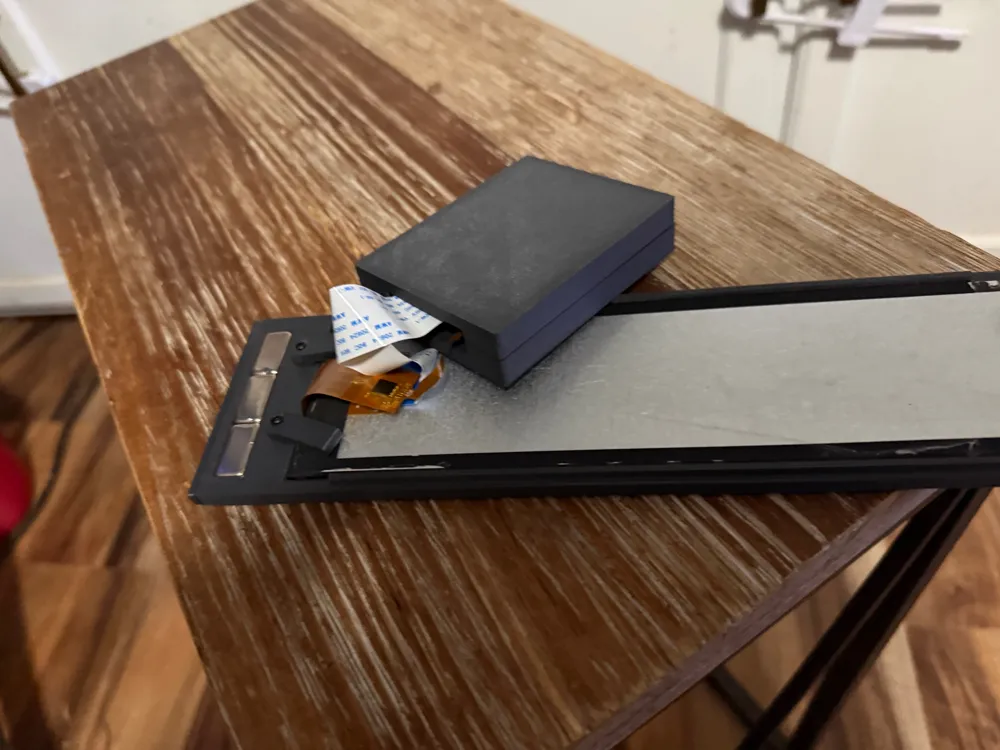

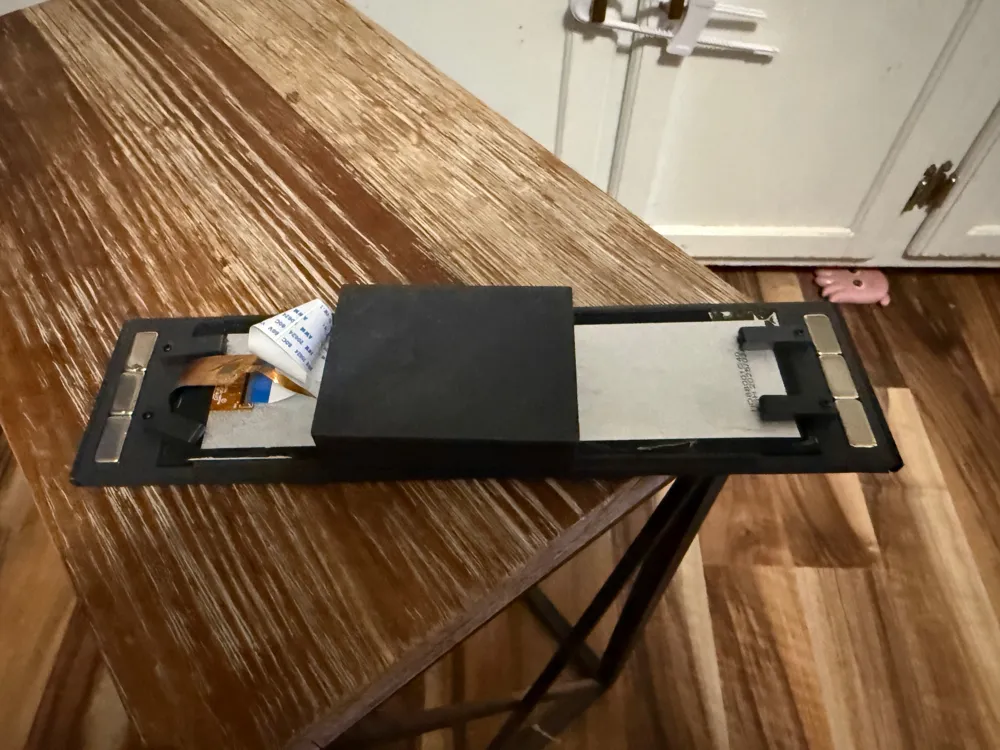

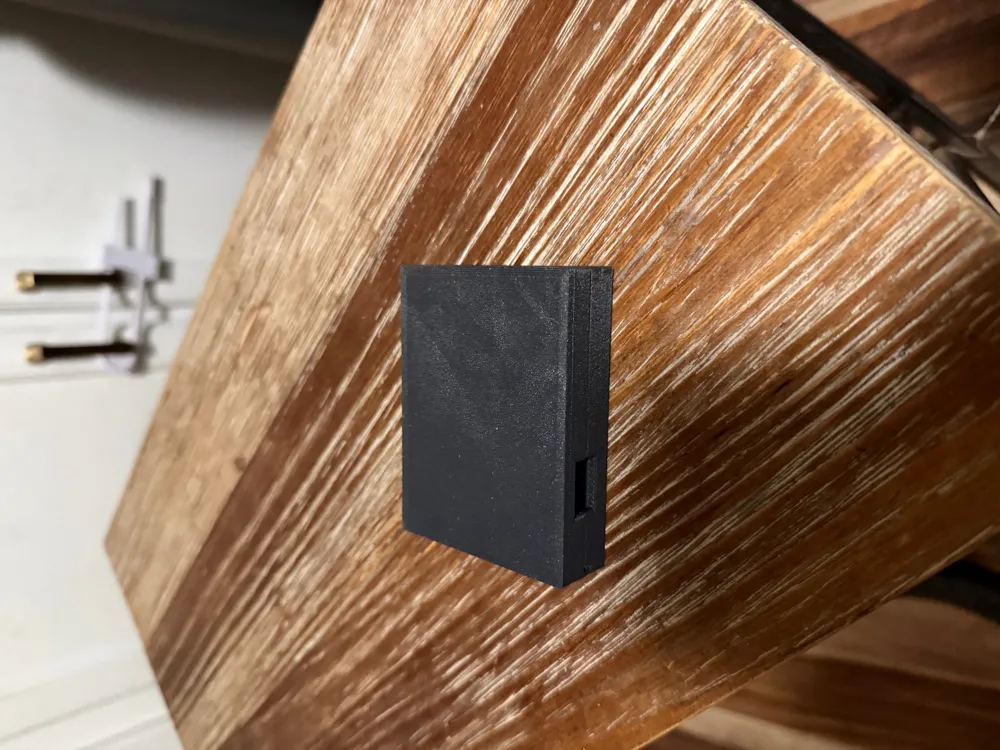

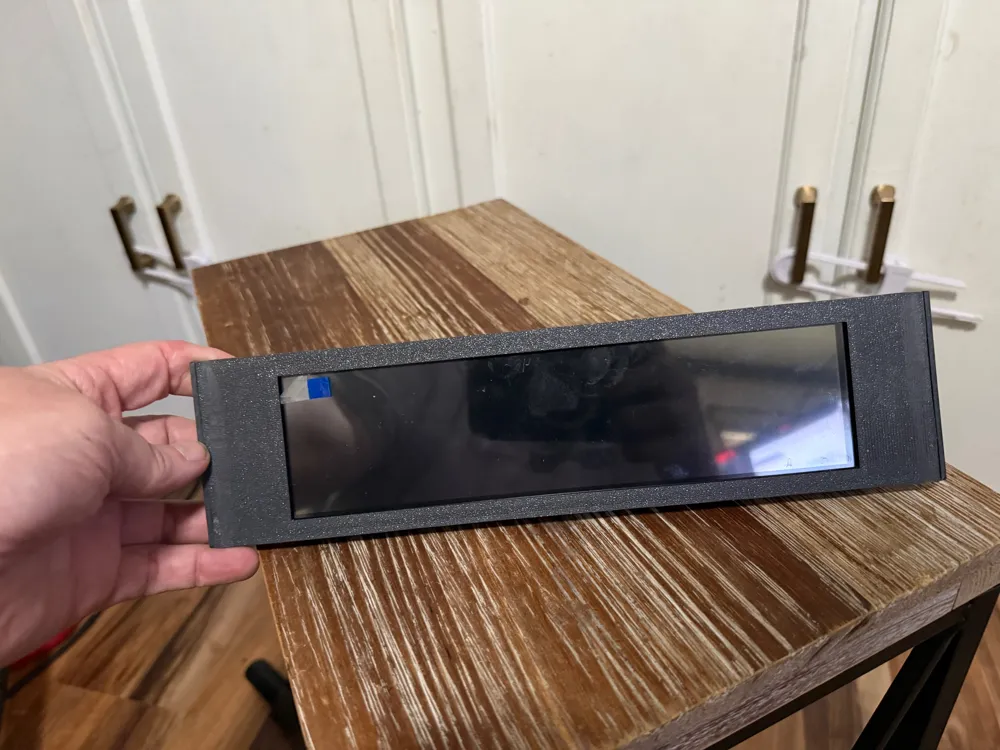

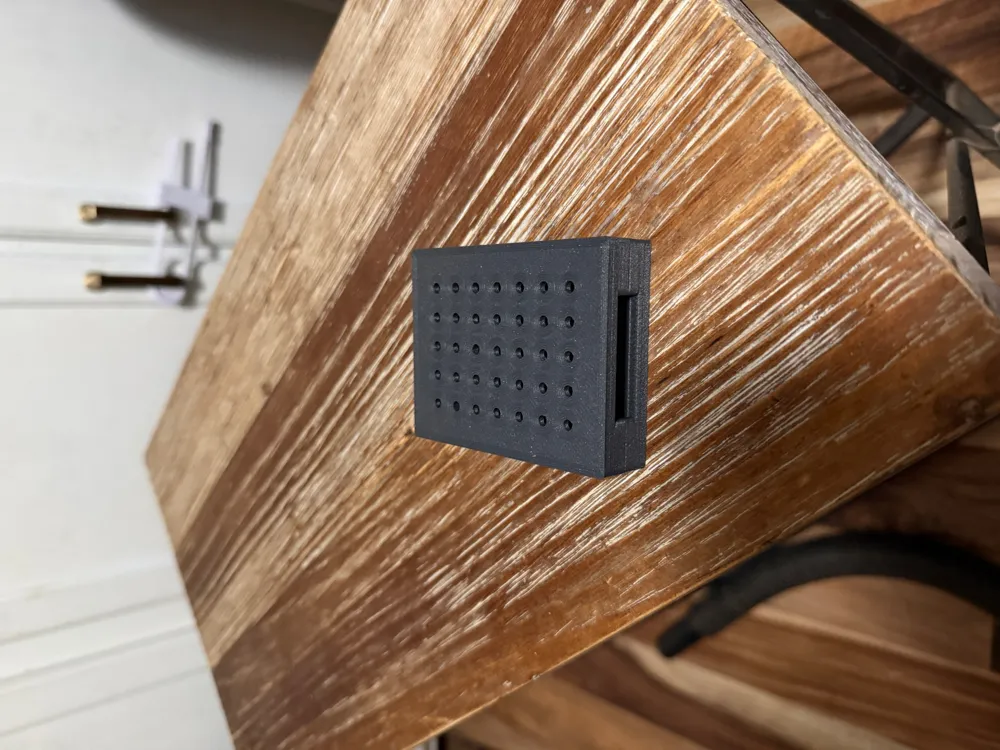

This is a remix of Azeotrope LCD case panel for the Thermaltake 600 computer case.  Remixed and PETG-CF per a friends request.  They upgrade the panel to support a 8.8" LCD link below to LCD that was used.  Added larger magnets, now hold in case better.  Added ledge to better support LCD top and bottom.  Included PCB box from AlexandraT at thingaverse.  Created retainer clips to held in by M2 screws to better secure the LCD to the case panel.

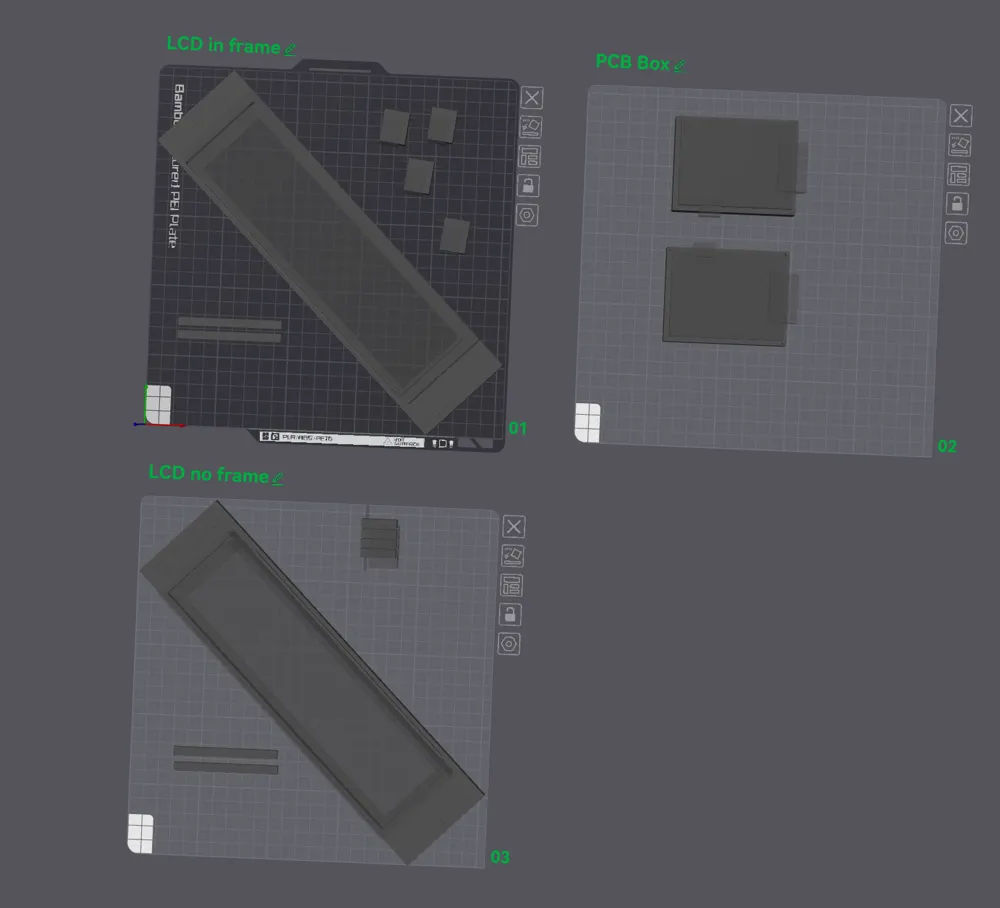

Sized everything to print on a single plate, reduced total length of case panel by 5mm and created 2x - 2.5mm shims that get glued to each end of the panel.

Printed on P1S with no issues.  Printed 100% infill for strength on parts.

BOM:
8.8" LCD touchscreen
PETG-CF
8x M2x4mm Heat inserts per frame
4x M2x16mm screws for LCD w/frame case panel
4x M2x8mm screws for LCD only case panel
6x 20x10x3mm magnets per panel (less will support as well)

Case panel credits to Azeotrope: https://makerworld.com/en/models/1072957-lcd-screen-mod-thermaltake-tower-600-computer-case?from=search#profileId-1063245

PCB Box Credits to AlexandraT: https://www.thingiverse.com/thing:7114414

Magnets: https://www.amazon.com/dp/B0F2T5ZV57?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

LCD: https://www.amazon.com/dp/B0C5CJSM3B?ref=ppx_pop_mob_ap_share

PETG-CF: https://us.store.bambulab.com/products/petg-cf?p=W3sicHJvcGVydHlLZXkiOiJDb2xvciIsInByb3BlcnR5VmFsdWUiOiJUaXRhbiBHcmF5ICAoMzExMDEpIn0seyJwcm9wZXJ0eUtleSI6IlR5cGUiLCJwcm9wZXJ0eVZhbHVlIjoiIn0seyJwcm9wZXJ0eUtleSI6IlNpemUiLCJwcm9wZXJ0eVZhbHVlIjoiMSBrZyJ9XQ%3D%3D

Heat Inserts: https://www.amazon.com/ruthex-Threaded-Insert-pieces-ultrasound/dp/B088QJG676/ref=sr_1_3?crid=1YMQAYSLCLOPA&dib=eyJ2IjoiMSJ9.xdALoPtiTEHOa2hm75FHI964tuc2VRRZAZuv0lBB_UIQ5TX5Nkl6BRMBJUG8Z2nDM61twJYKS8W_pS9F6QfreRbMnP4azZG9fd8CrBsKl5hYZDTYXeZOKdjnHz8Sk2beOZR3rVxPVHPqb07tJzKyanrZdGqipqfRNyTlXJBavpHCQWMYj8SIYp4WtFYcIIlp_376jJYfKbpXsZahcodpFwDyLY2Yr1XDQAter99Ox7c.lvhYf5NcaxpZfIA3LmKfUKY32ITvRyfb_uD35VteKqQ&dib_tag=se&keywords=2mmx4mm+heat+insert&qid=1758594284&sprefix=2mmx4mm+heat+insert%2Caps%2C186&sr=8-3

M2x8mm Screw: https://www.amazon.com/Pieces-Socket-Screws-Sutemribor-Threaded/dp/B0CXQ3R4DV/ref=sr_1_3?crid=1ZDEM4T3SDRW8&dib=eyJ2IjoiMSJ9.YGT0ZZ50K1M5UvJ9mRqFZIx_aOKMK3mDNqaHsPswOxQvfrgRbuuA0L_FsnjXEl3WP3hoQuVmzmUHaDnvAyu-5vSaUklng6cIHRWd6AzfK6CyUWq1-nHHfEgRepWRDi209ABjSUXWE-Q6ZqkQfjddGVYecbwqjDzl6NzqR-n2q-uuyQl-751bHCml0n0kxpP0dflNVd4xlqbBPMj6Nzf6viDygSXWJFNEiBdnA1g9P-k._Hw_qRizti9eYHHmbU1RrTTpST25KUnjaZ_k1beBoRU&dib_tag=se&keywords=m2x20mm%2Bscrews&qid=1758594365&sprefix=m2x20mm%2Caps%2C192&sr=8-3&th=1

M2x16mm Screw:  https://www.amazon.com/Pieces-Socket-Screws-Sutemribor-Threaded/dp/B0CXQ3Q8SL/ref=sr_1_3?crid=1ZDEM4T3SDRW8&dib=eyJ2IjoiMSJ9.YGT0ZZ50K1M5UvJ9mRqFZIx_aOKMK3mDNqaHsPswOxQvfrgRbuuA0L_FsnjXEl3WP3hoQuVmzmUHaDnvAyu-5vSaUklng6cIHRWd6AzfK6CyUWq1-nHHfEgRepWRDi209ABjSUXWE-Q6ZqkQfjddGVYecbwqjDzl6NzqR-n2q-uuyQl-751bHCml0n0kxpP0dflNVd4xlqbBPMj6Nzf6viDygSXWJFNEiBdnA1g9P-k._Hw_qRizti9eYHHmbU1RrTTpST25KUnjaZ_k1beBoRU&dib_tag=se&keywords=m2x20mm%2Bscrews&qid=1758594365&sprefix=m2x20mm%2Caps%2C192&sr=8-3&th=1
