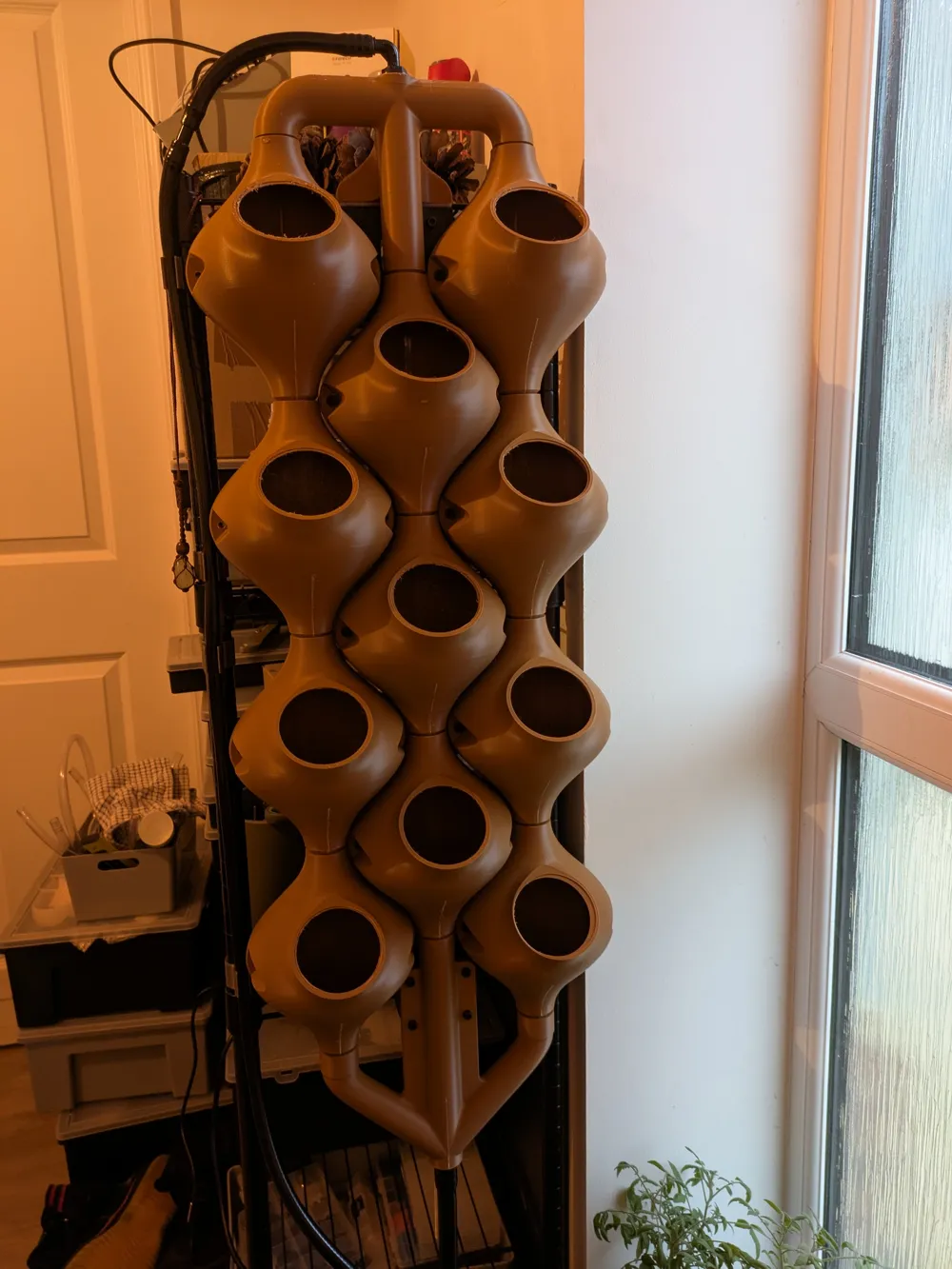

Vertical Hydroponics System (VHS)

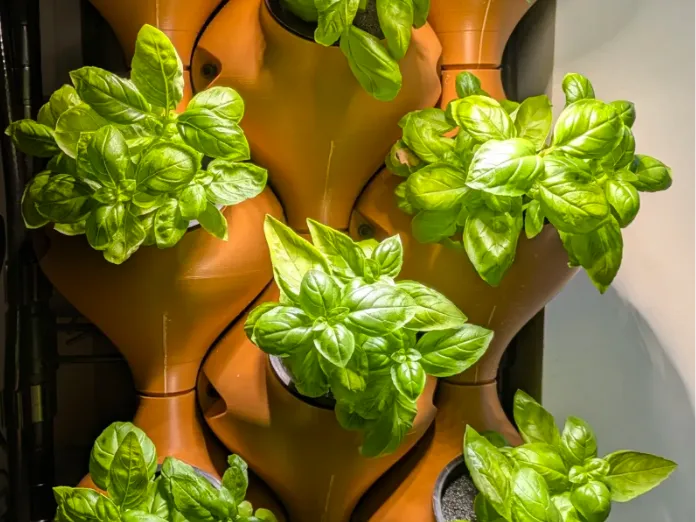

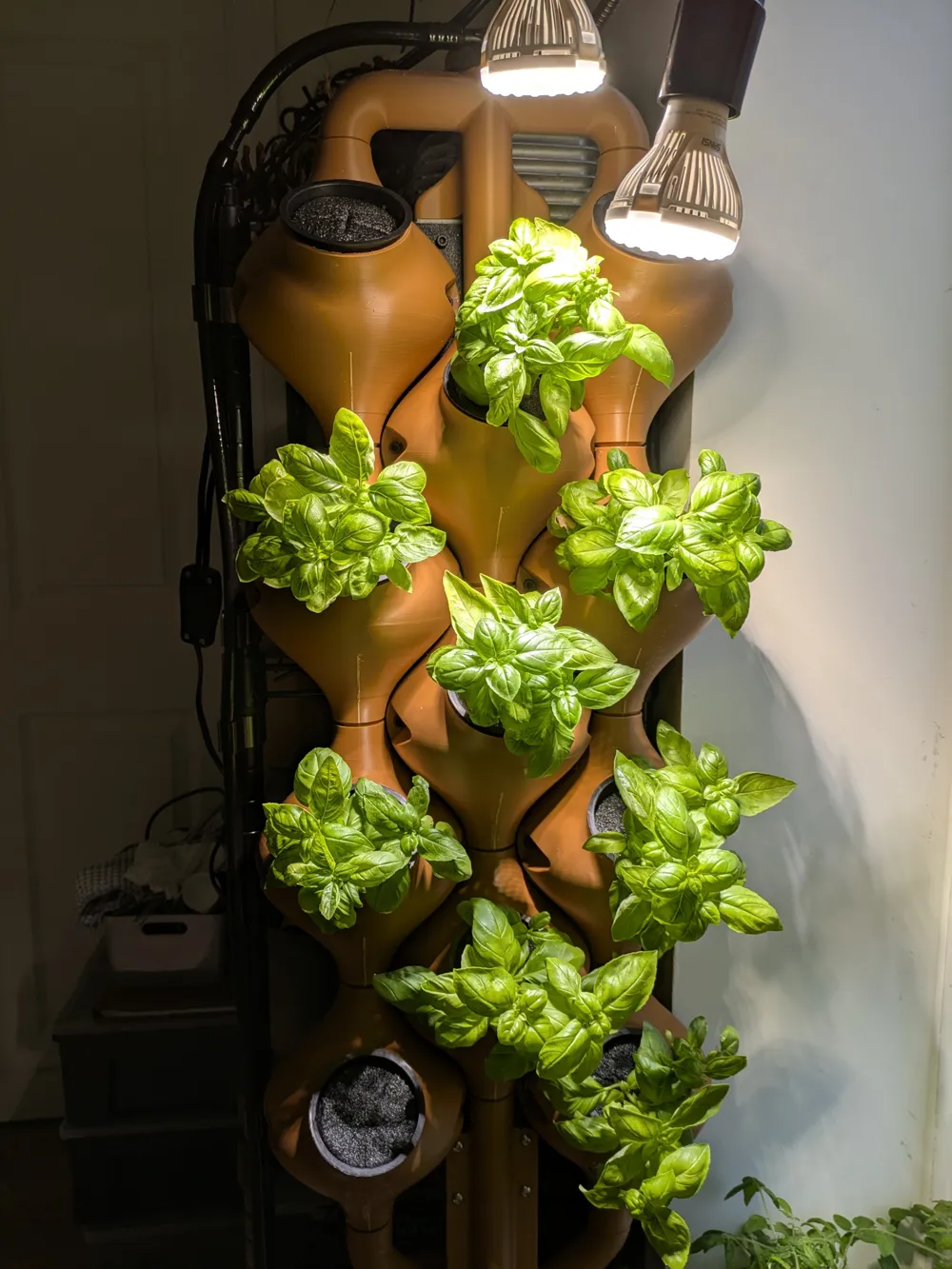

Experimental vertical hydroponics system I have designed for growing Herbs indoors.

Things you will need for the assembly:

• M5x40 button head cap screws (x18)
• M5 nuts (x18)
• M8 threaded bar (730mm minimum)
• M8 nuts (x8)
• M8 washers (x8)
• ½ inch BSP hose adapter fittings for the inlet and outlet manifolds, I use 10mm hose for the inlet, 16mm for the outlet.

• 3 inch Net cups (x11)



Some print in place sacrificial layers will need to be removed:

1. FRAME - Holes for the M8 threaded bar - Use an 8mm drill bit
2. TOP MANIFOLD - Centre feed tube - Use a flat ended screwdriver or countersink bit
3. PODS - Top of net cup socket and mounting holes - Use a sharp blade.

CHANGE LOG 14/6/26:

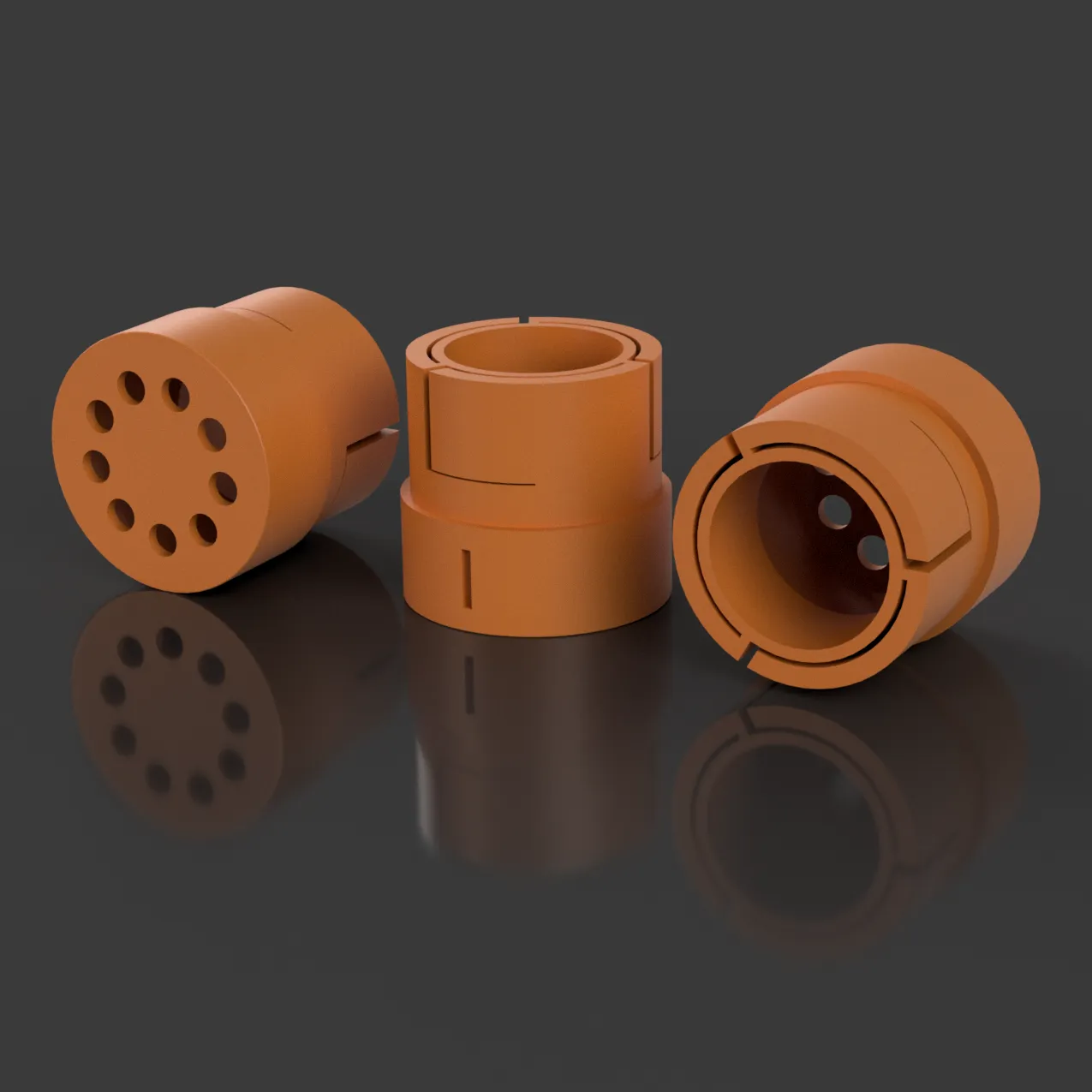

Net Cup Print Profile added.

CHANGE LOG 21/4/26:

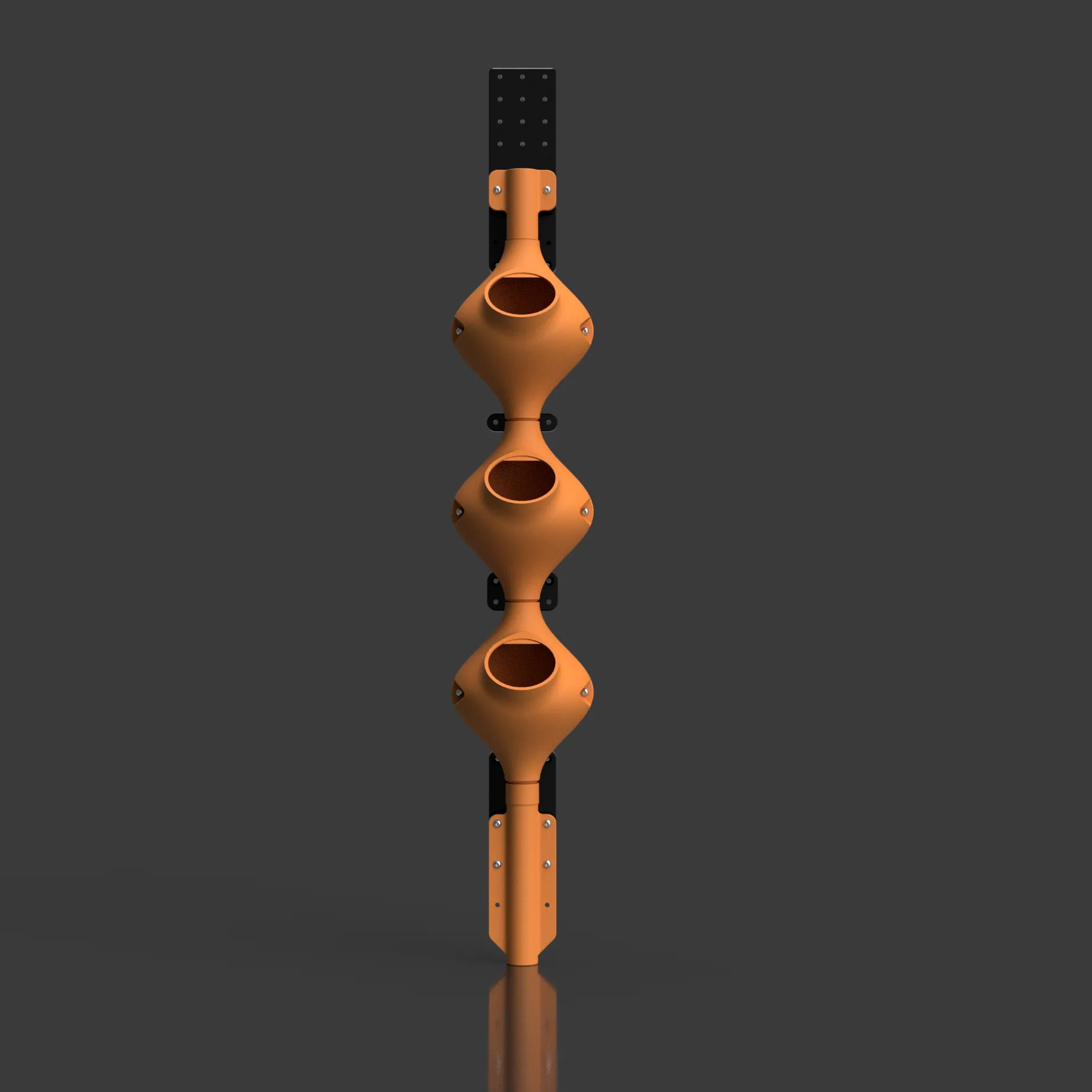

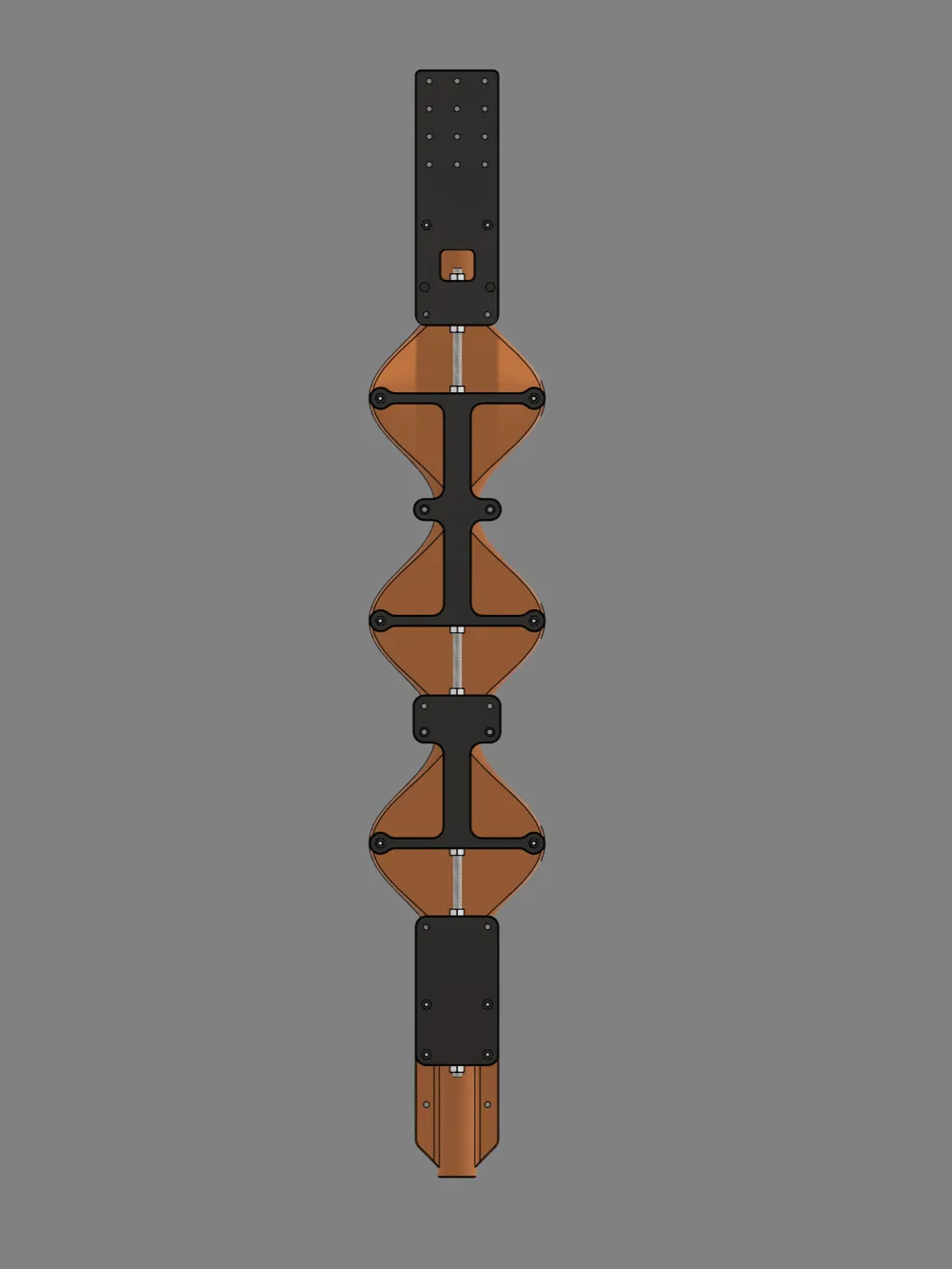

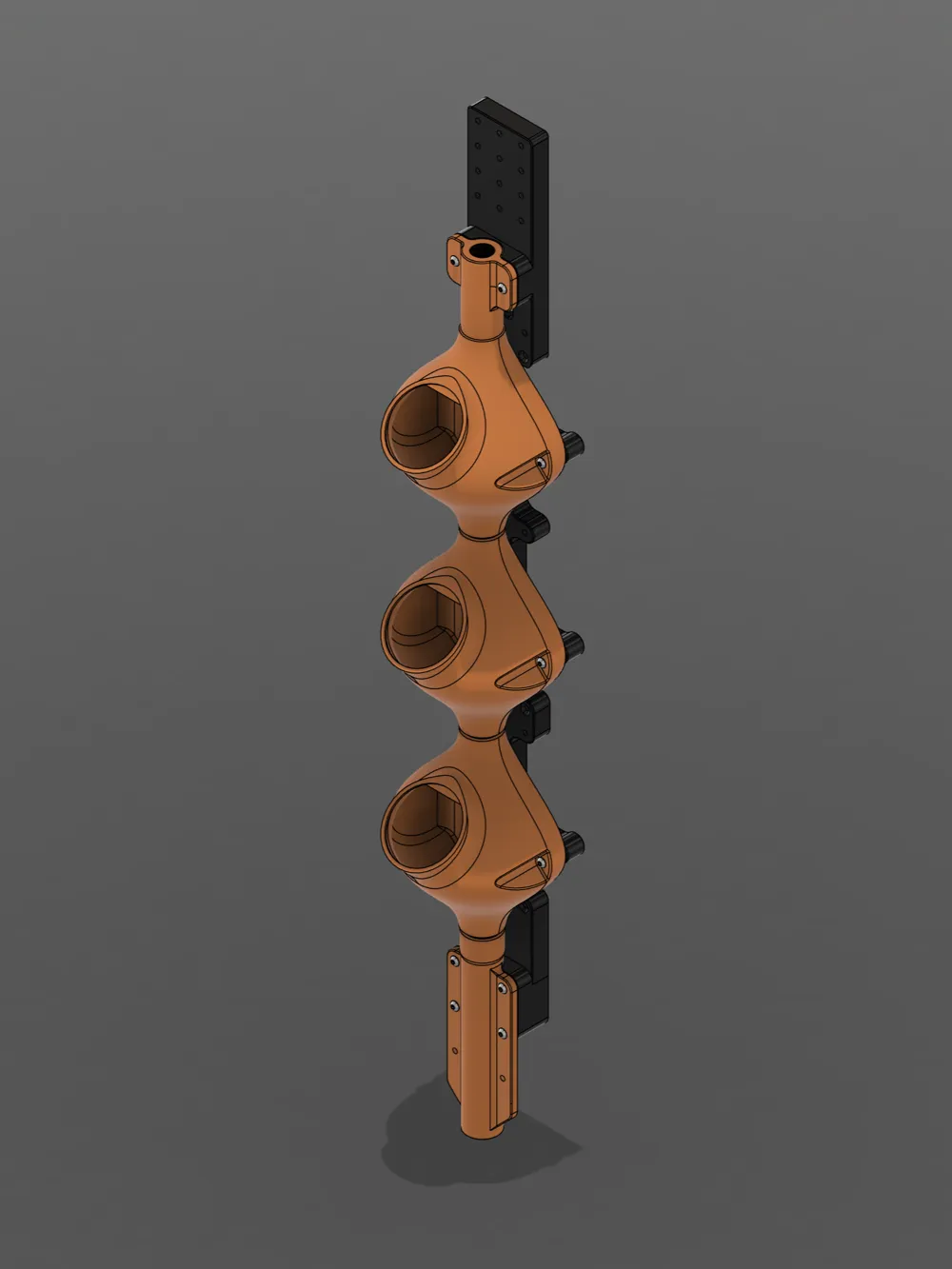

Added an independent column of pods with a rear frame that can be used as is or to join two Vertical Hydroponic Systems together.

Hardware needed:

• x11 M5x40 buttonhead screws
• x11 M5 nuts
• x1 M8 threaded bar
• x8 M8 nuts

If joining two systems together you will need:

•  x4 M5x40 buttonhead screws
•  x4 M5 nuts.

CHANGE LOG:

Update to the TOP Manifold agitators, the centre agitator is marked.

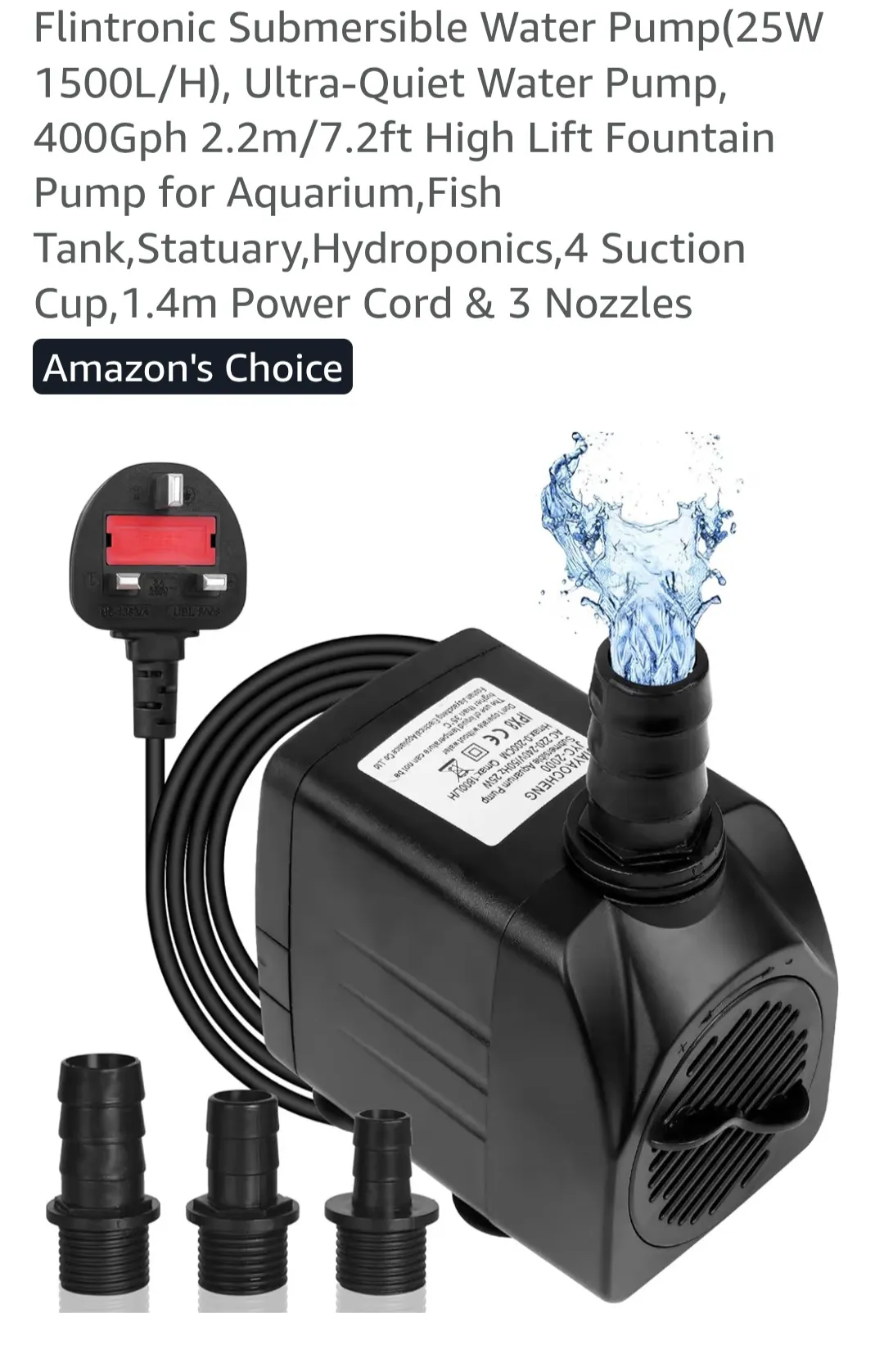

Here is the pump I have been using without any issues:

I recommend using at least 25W

Thank you for the interest and support!

If you would like to buy me a coffee for my efforts, you can do so @ paypal.me/handfullofnuts

Contact me if you would like to purchase this system for commercial use, I would be more than happy to release the STEP/CAD files for a small fee.
