Fig.(0) by Presq Studio – Open-Source Footwear Platform
The Fig.(0) is the first shoe design we are open-sourcing in collaboration with Bambu Lab. Developed by Presq Studio, this model is designed as a platform for customizability and footwear development — giving makers, designers, and innovators the tools to experiment, remix, and create their own future of shoes.
We are providing the US Men’s Size 10 files for this pair. If you require a different size, please use the scaling coefficient table below. Applying the correct scaling ensures an accurate and wearable fit.

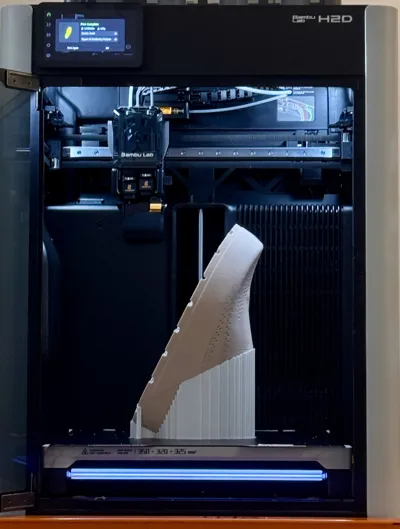

The sliced .3mf file included here is optimized for H2D printers, utilizing a matte TPE 85A, and PLA as the support material. This allows for clean and reliable prints. Sometimes the support adheres to the print, and we recommend a careful and patient removal.
Scaling Table
| Shoe Size (EU) | Shoe Size (US) | Last Length (mm) | Last Width (mm) | Uniform Scale (vs US 10 = 100%) |
| 36.5 | 6 | 243.58 | 84.61 | 85.87% |
| 37 | 6.5 | 246.98 | 85.96 | 87.06% |
| 37.5 | 6.5 | 250.26 | 87.32 | 88.23% |
| 38 | 7 | 253.55 | 88.67 | 89.41% |
| 38.5 | 7.5 | 256.95 | 90.03 | 90.58% |
| 39 | 7.5 | 260.24 | 91.39 | 91.77% |
| 39.5 | 8 | 263.53 | 92.74 | 92.95% |
| 40 | 8.5 | 266.92 | 94.1 | 94.12% |
| 40.5 | 8.5 | 270.21 | 95.46 | 95.3% |
| 41 | 9 | 273.5 | 96.81 | 96.48% |
| 41.5 | 9.5 | 276.89 | 98.17 | 97.65% |
| 42 | 9.5 | 280.18 | 99.52 | 98.83% |
| 42.5 | 10 | 283.47 | 100.88 | 100% |
| 43 | 10.5 | 286.86 | 102.24 | 101.18% |
| 43.5 | 10.5 | 290.15 | 103.59 | 102.34% |
| 44 | 11 | 293.44 | 104.95 | 103.53% |
| 44.5 | 11.5 | 296.84 | 106.3 | 104.70% |
| 45 | 11.5 | 300.13 | 107.66 | 105.89% |
| 45.5 | 12 | 303.41 | 109.02 | 107.07% |
| 46 | 12.5 | 306.81 | 110.37 | 108.26% |
| 46.5 | 12.5 | 310.1 | 111.73 | 109.44% |
| 47 | 13 | 313.39 | 113.09 | 110.63% |
| 47.5 | 13.5 | 316.78 | 114.44 | 111.81% |
| 48 | 13.5 | 320.07 | 115.8 | 113% |
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
