Elegant Dual-Stage Planetary Gearbox
Print Profile(2)
Description
Boost Me (for free)
Hi everyone! If you like this project, please consider to boost me with that that kind of rocket 🚀"It needs to be pointy. Round is not scary. Pointy is scary"
⚠ Printing Notes (Important)
Ensure that your 3D printer and print bed are clean and properly prepared before printing.
As with many gear-based prints, the parts are stuck together right after printing. Gently rotate the gears until they loosen and start moving freely.
Applying a small drop of oil can improve smoothness.
The more the gears run, the better and smoother the gearbox will perform over time.
Do not resize the model it might not work

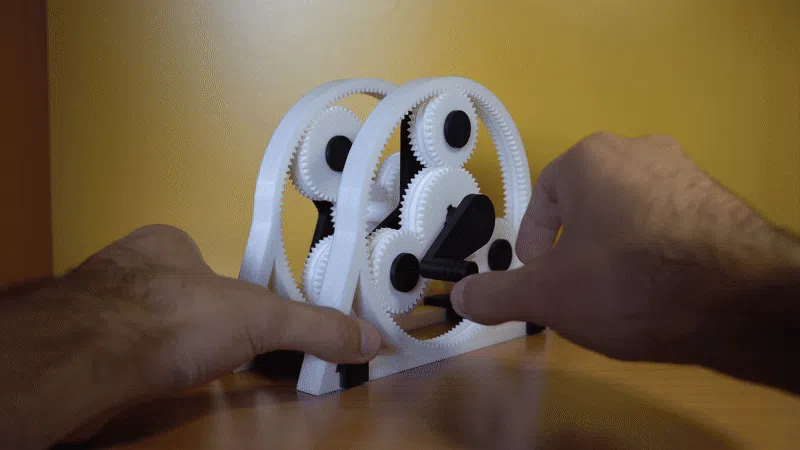

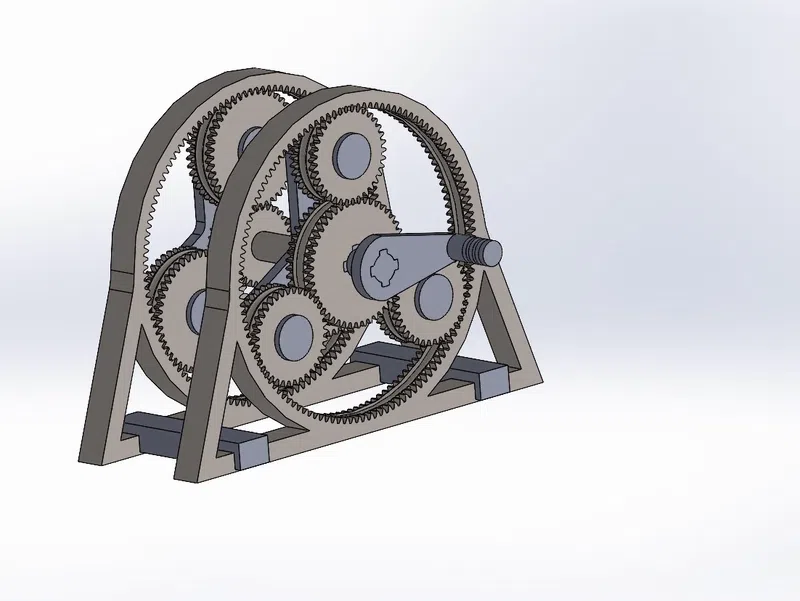

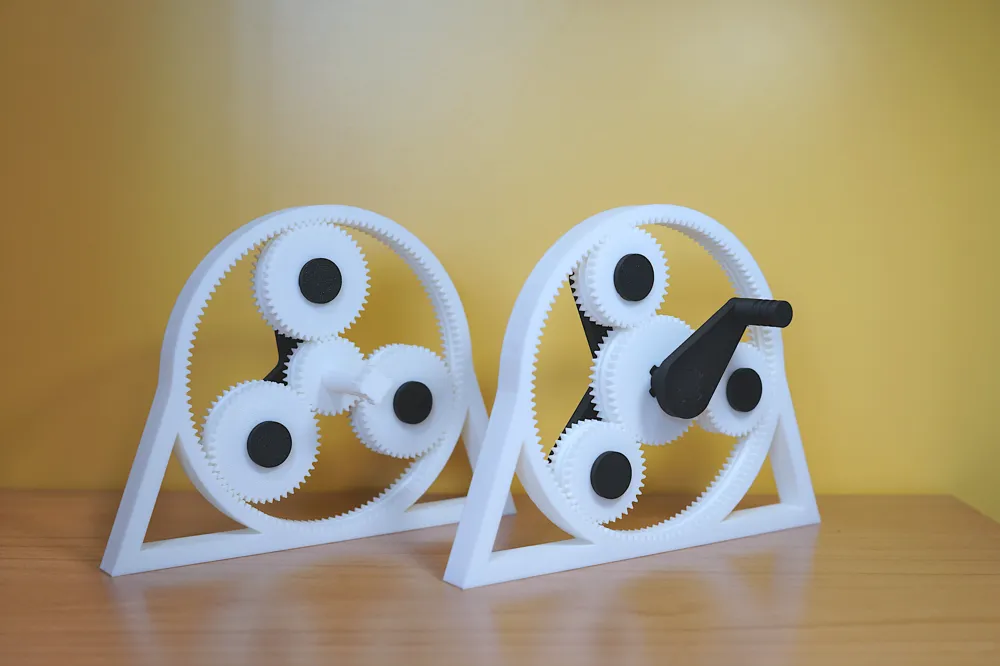

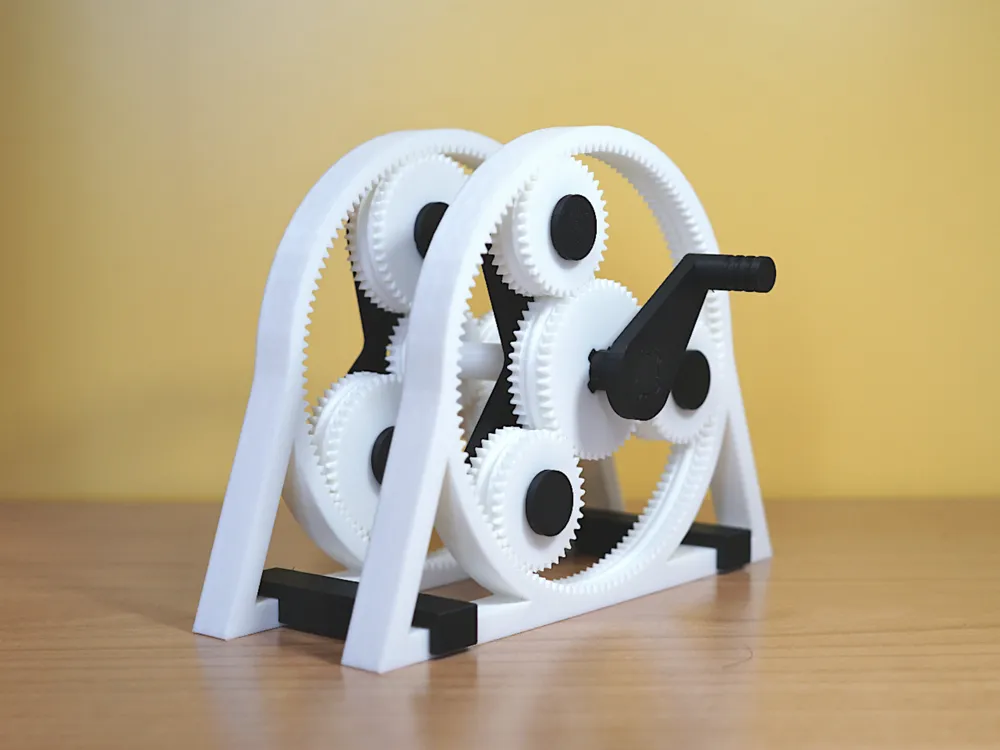

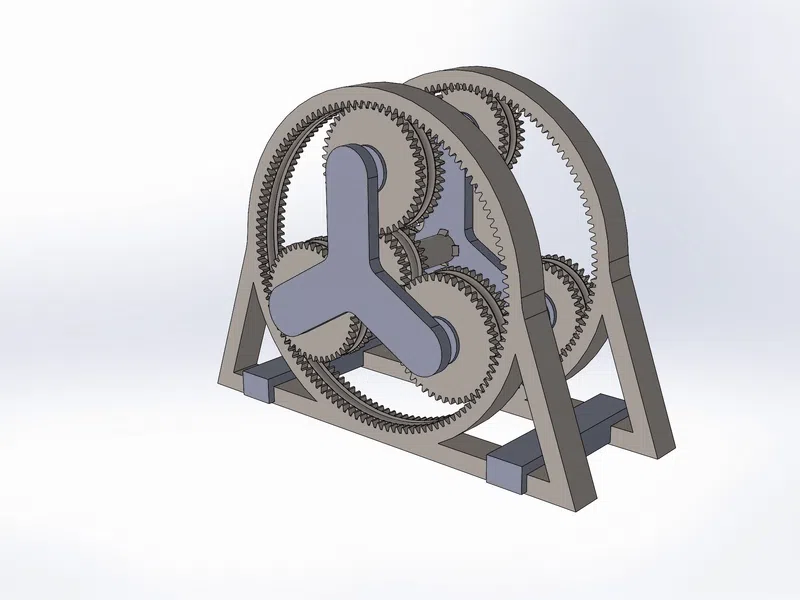

This model is a Double-Stage Planetary Gearbox (15:1), carefully designed and realized with passion. A planetary gearbox transmits motion through a central sun gear, multiple planet gears, and an outer ring gear, achieving high torque in a compact design.
Key Features:
Two-stage reduction:
Stage 1 → 3:1 reduction
Stage 2 → 5:1 reduction
Total reduction ratio: 15:1
Fully functional → demonstrates speed reduction and torque multiplication.
Desk-friendly aesthetics → not only an engineering model, but also a beautiful decorative object for your workspace or collection.
Educational value → ideal for learning and demonstrating how planetary gear systems work.
I truly hope you enjoy this project as much as I enjoyed creating it. ✨
It’s a blend of mechanical precision and visual appeal, designed to be both functional and aesthetic.
