XIAO nRF52840 & Wio-SX1262 Kit Case 18250 battery
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
4.3 h

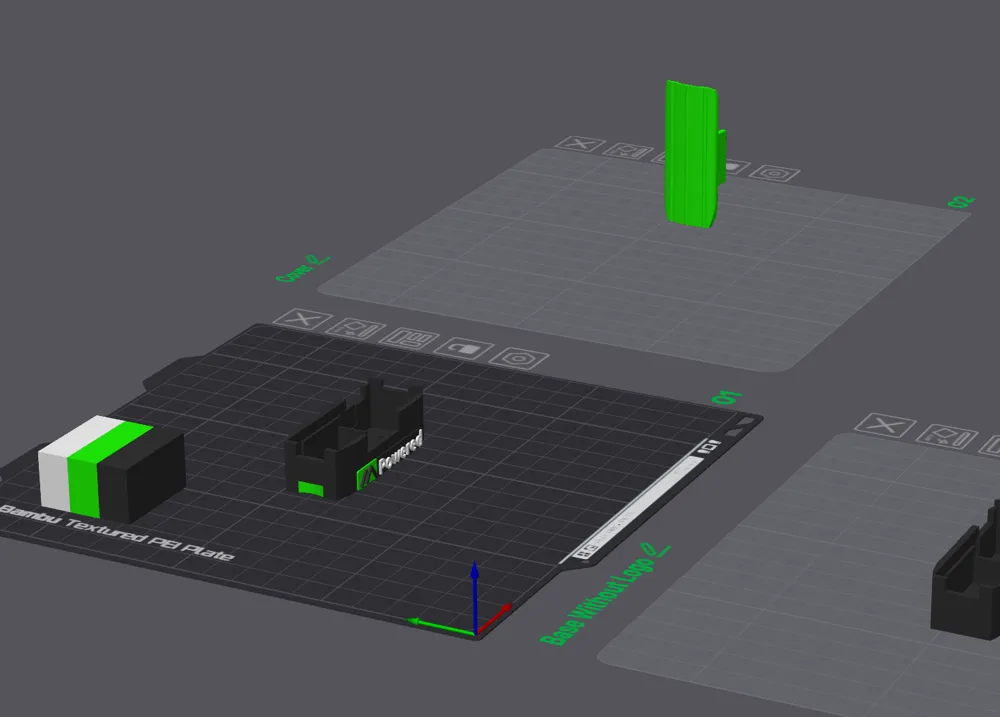

3 plates
Open in Bambu Studio
Boost
9
27
3
0
28
19
Released
Description

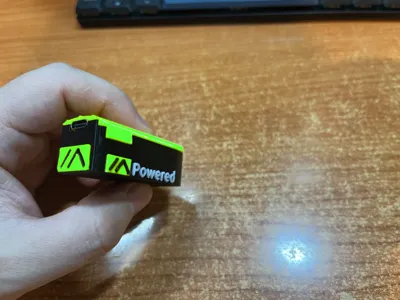

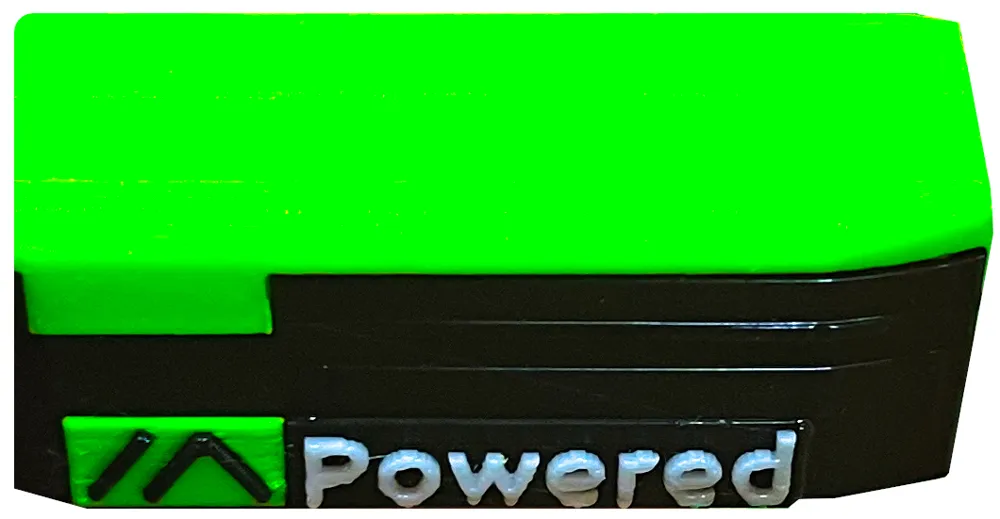

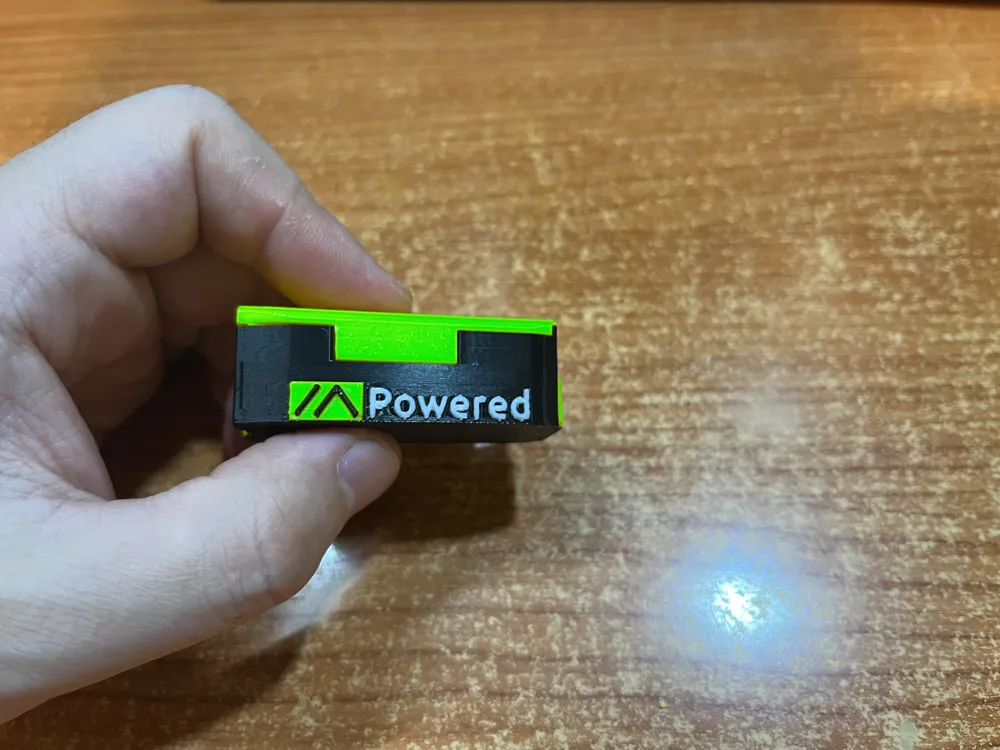

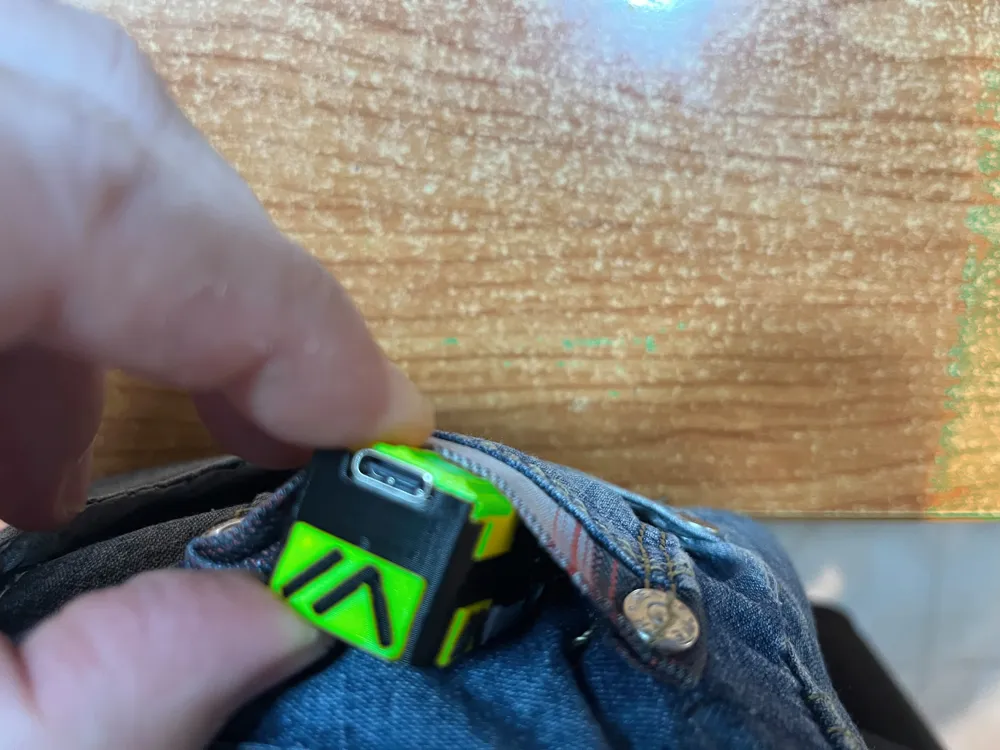

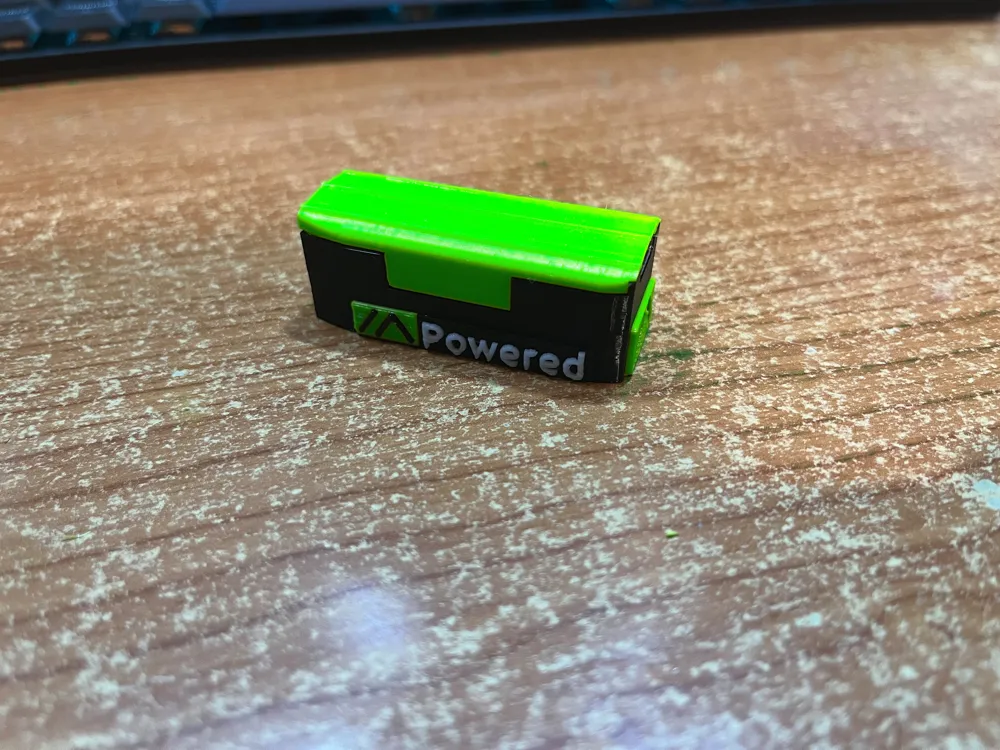

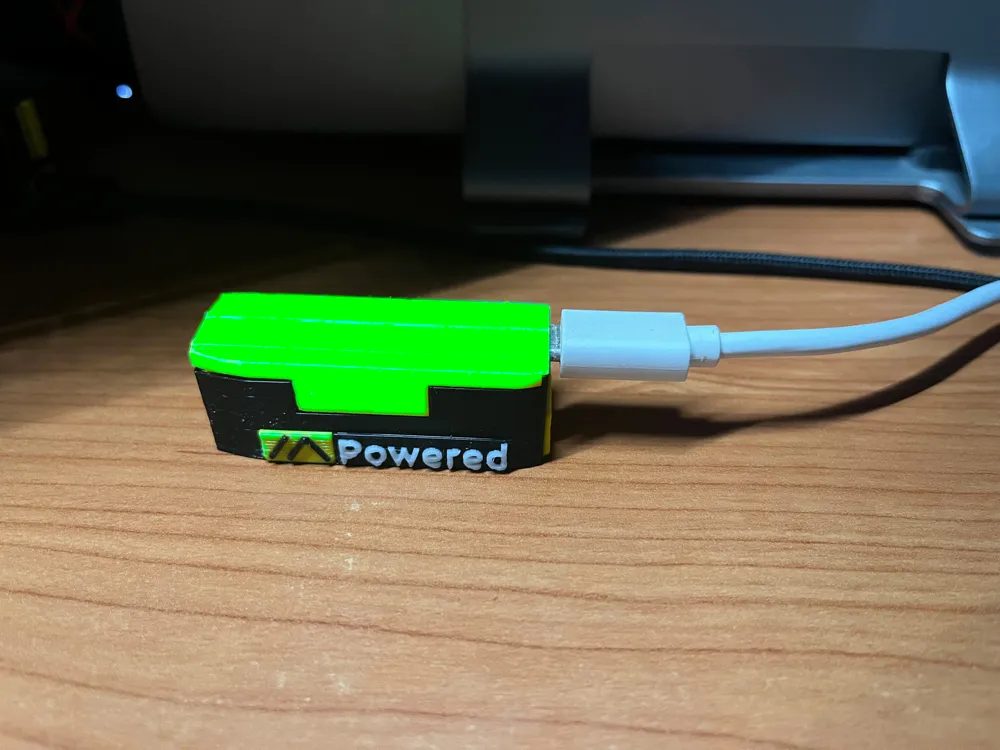

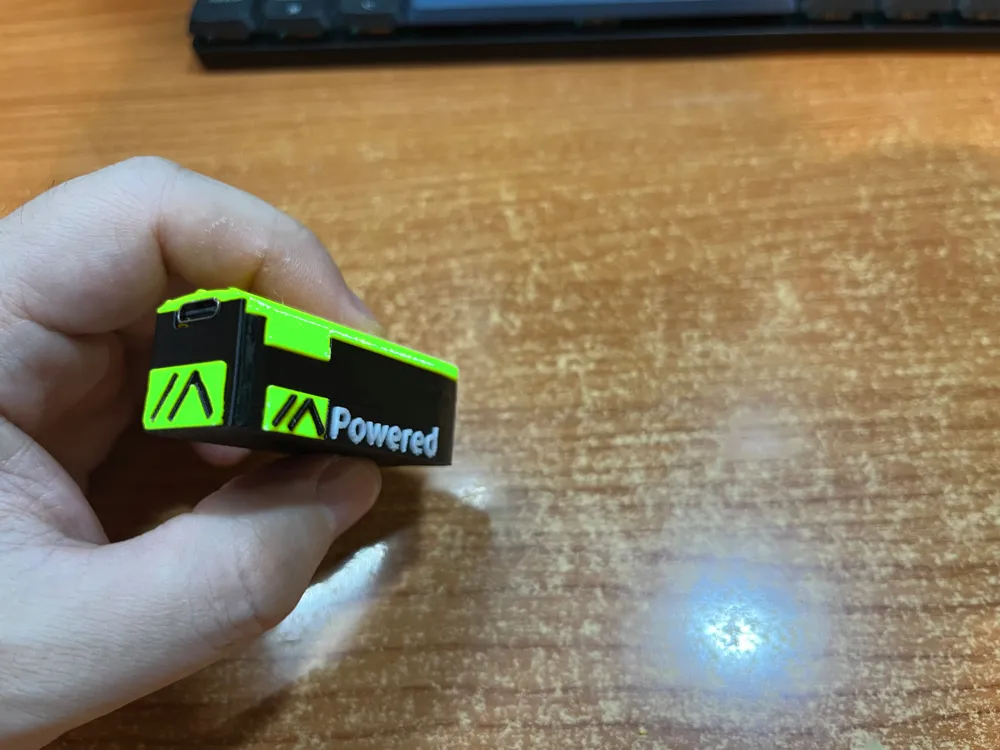

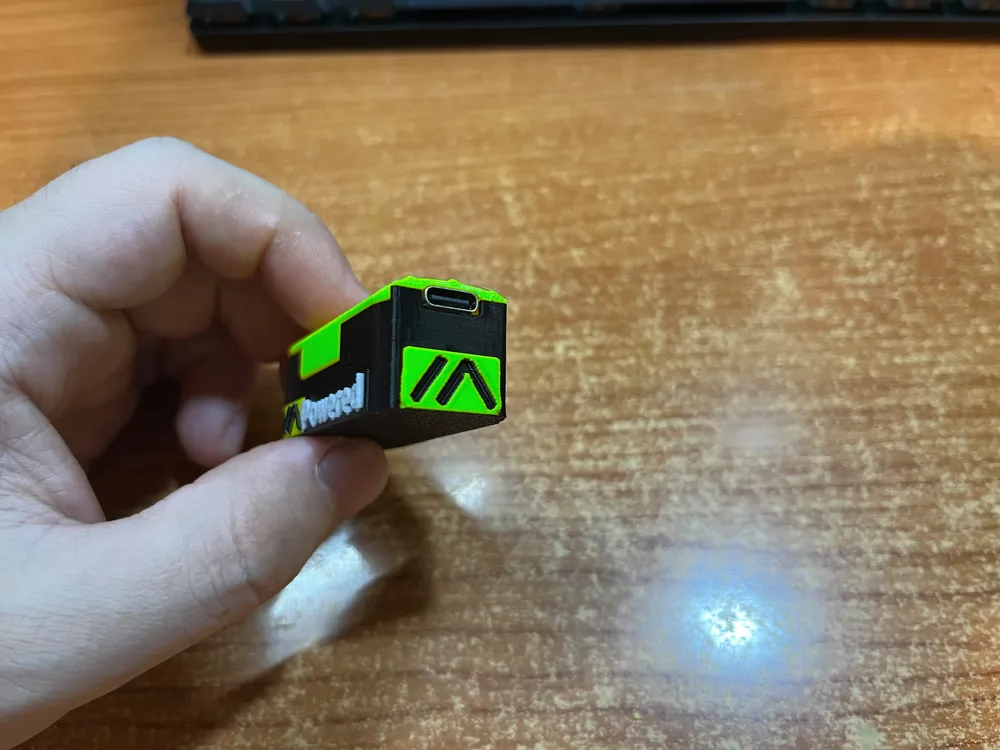

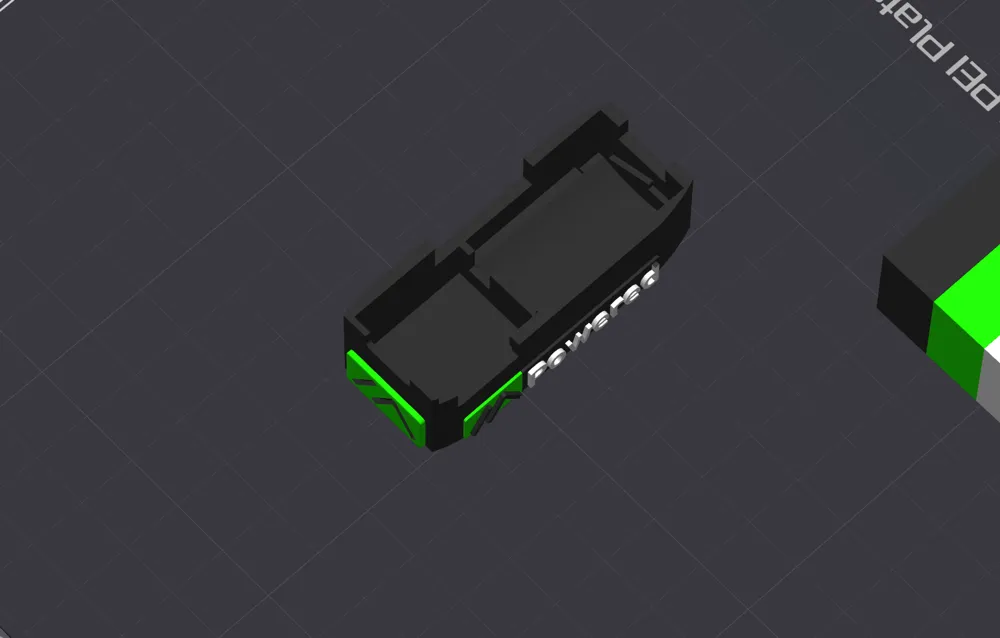

A minimalist case for the XIAO nRF52840 & Wio-SX1262 kit. It is designed to be small and portable using the internal antenna.

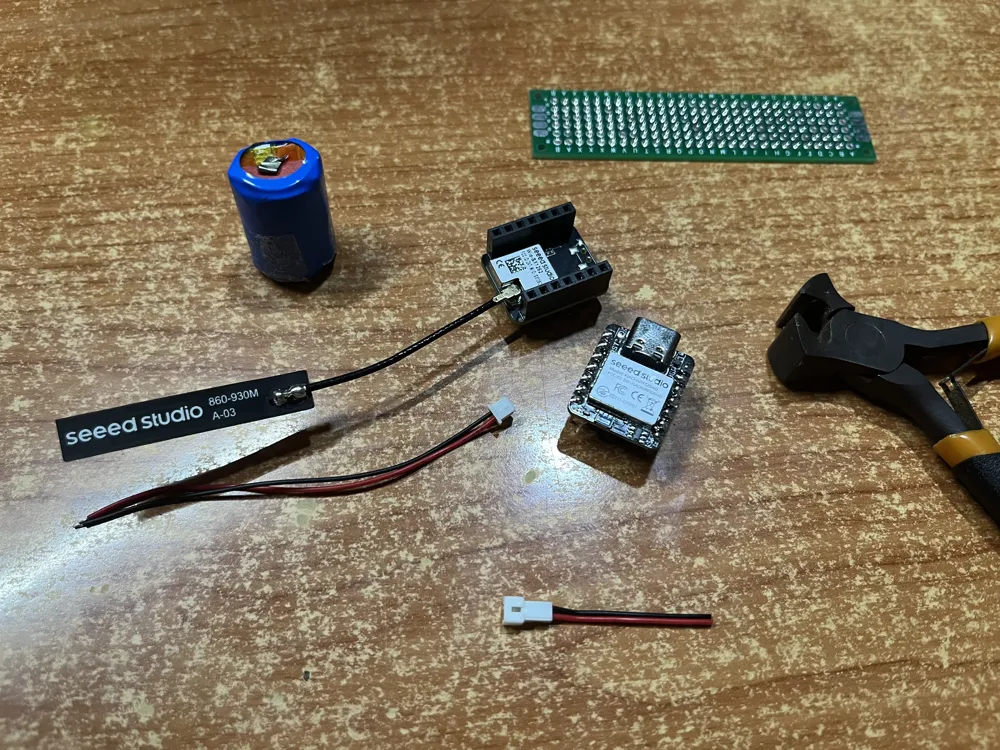

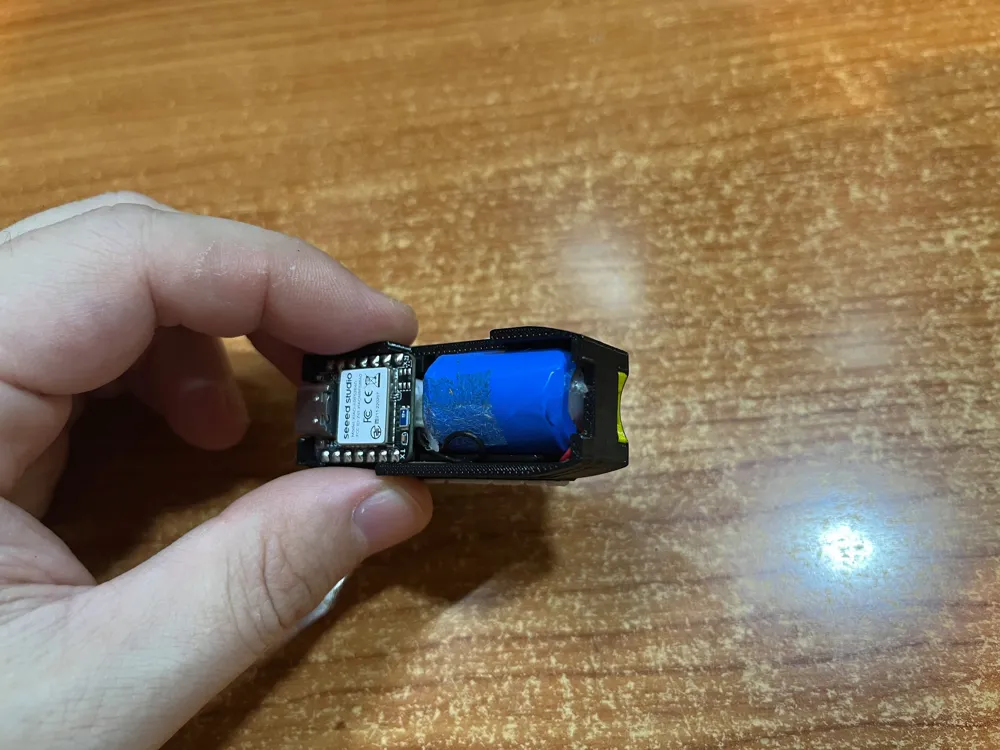

It is designed for a 650mAh 18250 battery, which is enough to power this hardware for several days using Meshtastic.

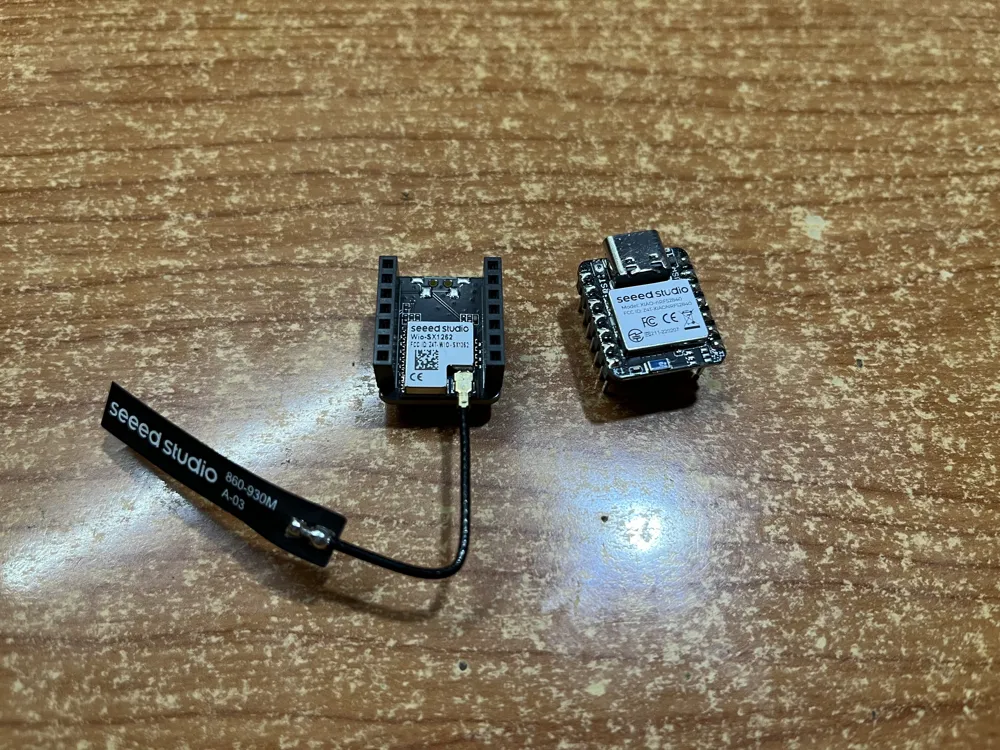

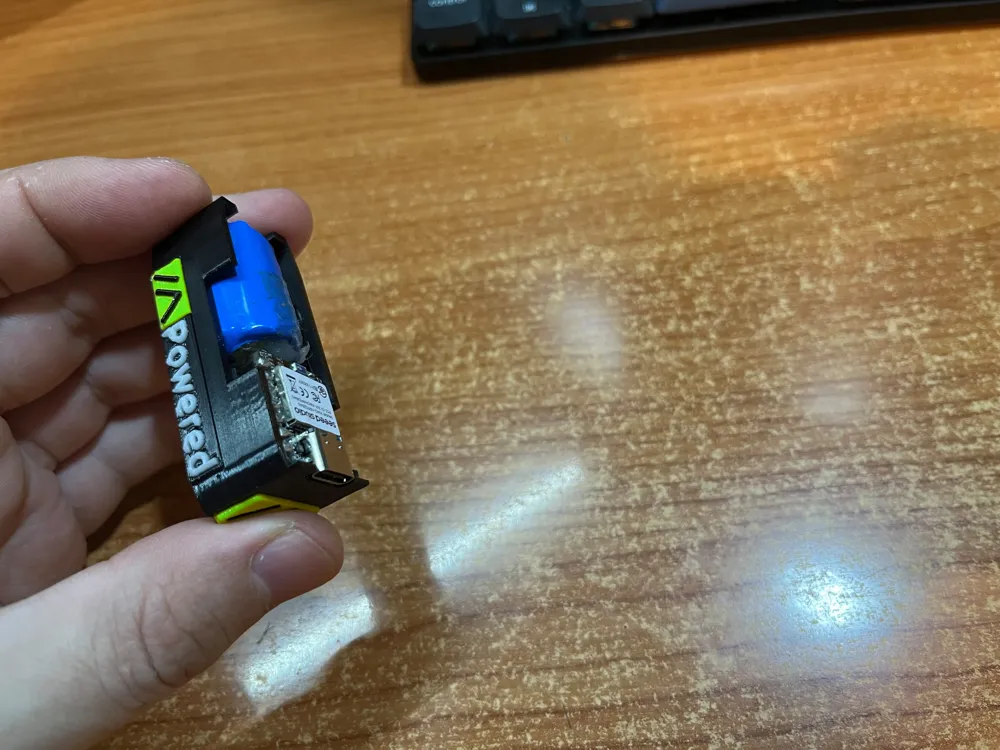

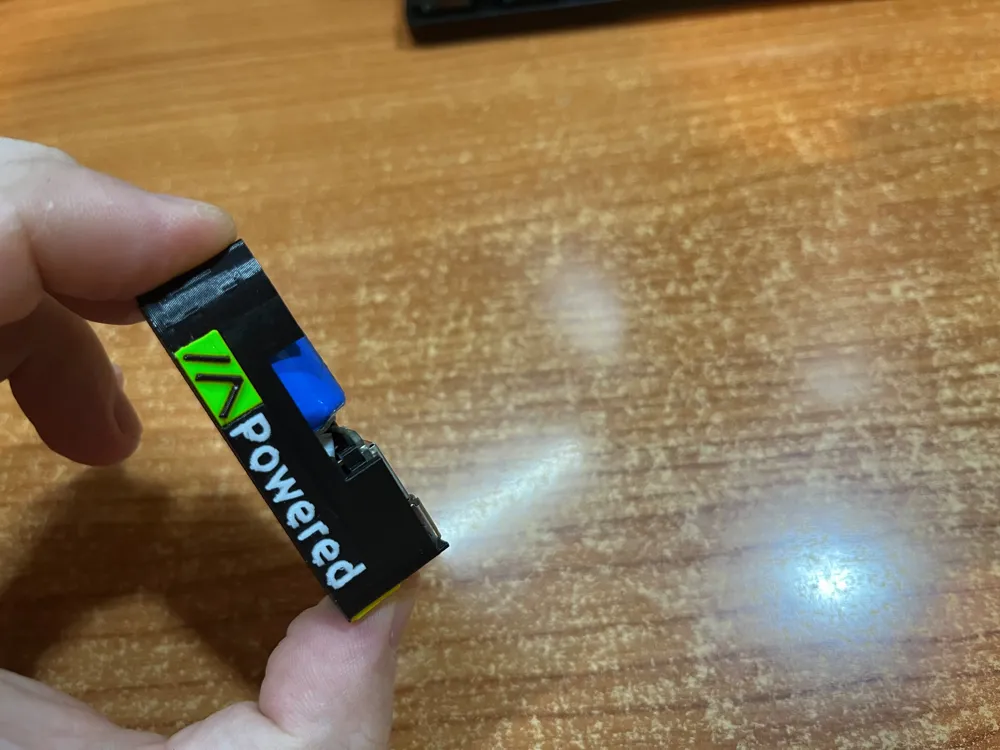

To fit the modules, it is necessary to cut the pins of the LoRa module, thus reducing the size considerably.
I recommend printing at a layer height of 0.16mm or less.

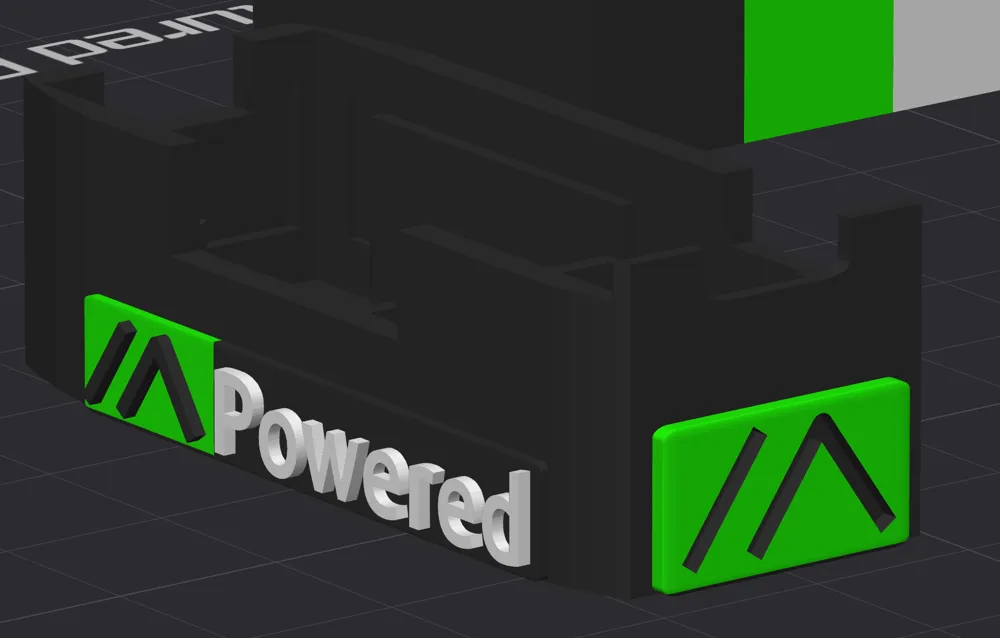

The parts have been reinforced as much as possible, reducing the size.

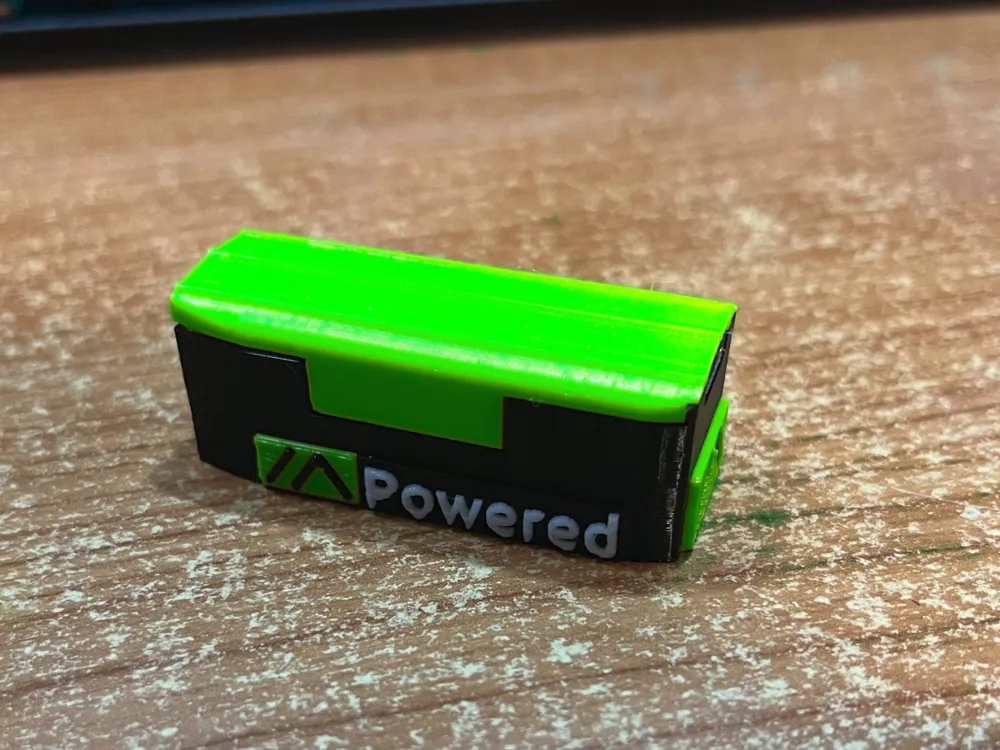

The cover could cause problems. However, using tree support, they have printed perfectly at 0.16mm with just a few tweaks using a craft knife for the excess tree.
