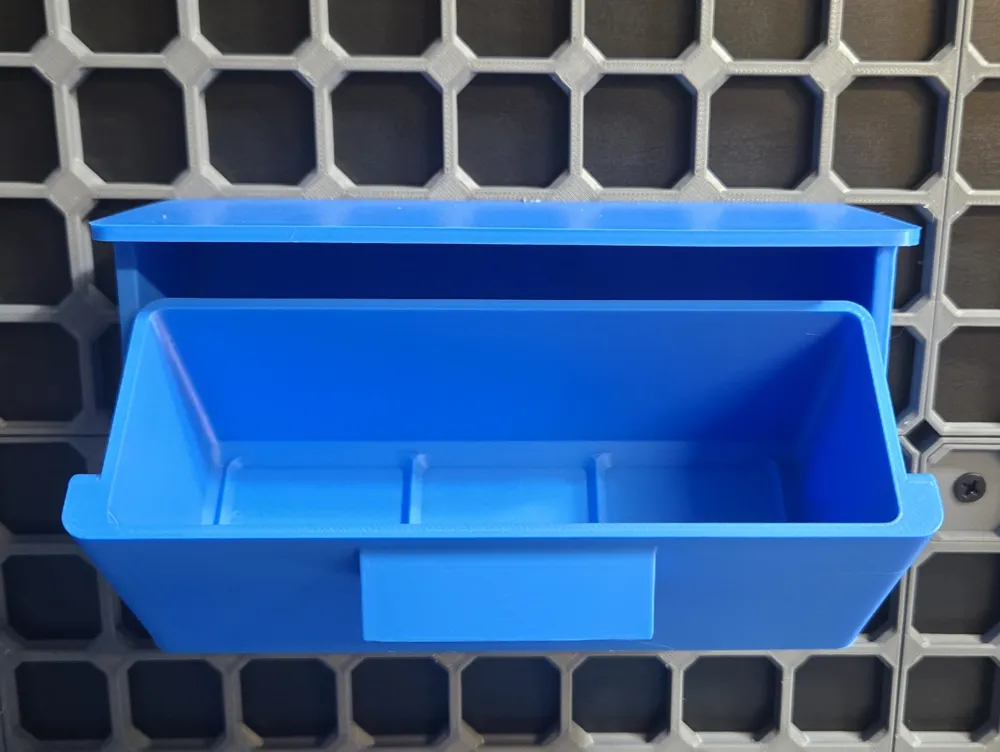

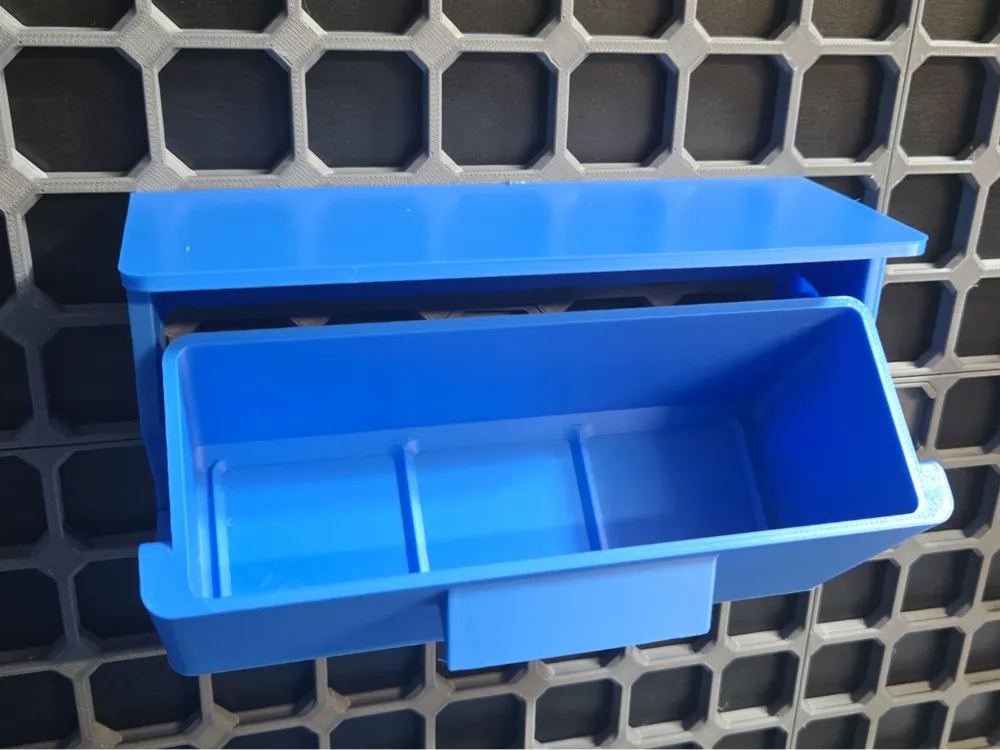

Tilted Drawer for OpenGrid (Gridfinity 1x3)

Looking for some Gridfinity tilt bins for your opengrid setup? You've found the right place.

I've been experimenting with my opengrid setup, and wanted to try some tilt bins, but couldn't find any, so I remixed a few models merging the best of each together. The main difference is the mount is setup to mount right up to OpenGrid and the screw holes were removed from the back of the mounting component.

Features:

• 1x3 Gridfinity Bins
• Tilt design

Print/Assembly Notes:

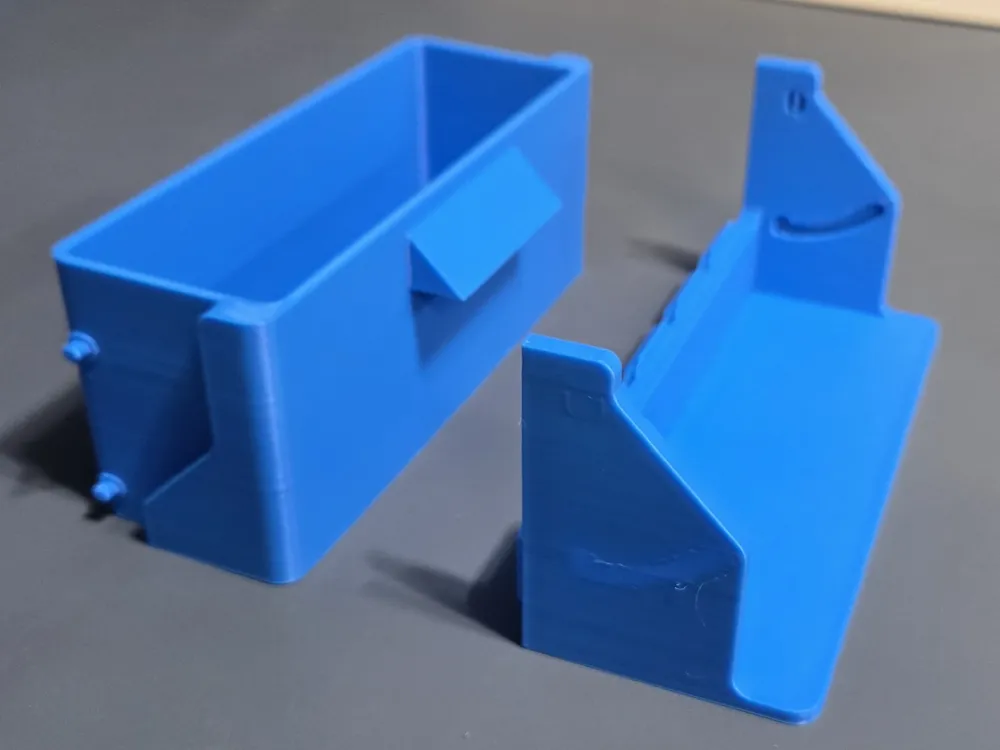

• Insert the bin into the bottom 2 holes first
• Then gently slip the top 2 pins in one side at a time, walls aren't the thickest so be careful with how far you bend it.

Updates:

• 11/7/2025 - Support Blockers added to opengrid mount points, simplifies support removal

Print Profile Notes:

Nozzle: Suggest 0.4mm nozzle for precision fit
Wall Loops: 3 wall loops on 0.4mm nozzle, 0.6mm nozzle not recommended due to decreased layer adhesion.
Layer Height: Suggest 0.16 or 0.20mm to maximize strength (0.2mm default for speed)
Infill:  10% gyroid
Brim: None on textured build plate. Consider brim for smooth PEI plate.
Color: Any

Material: PETG/PETG-HF, Note: PLA too brittle and will likely crack when assembling
Print Orientation: Print flat surface down on printbed
Supports: Snug 30 Degree
3d Printers: Should be printable on any printer.
