Description

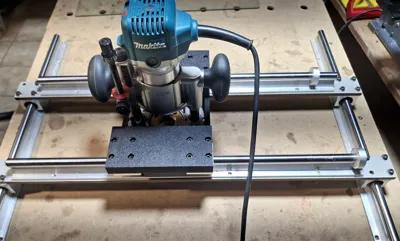

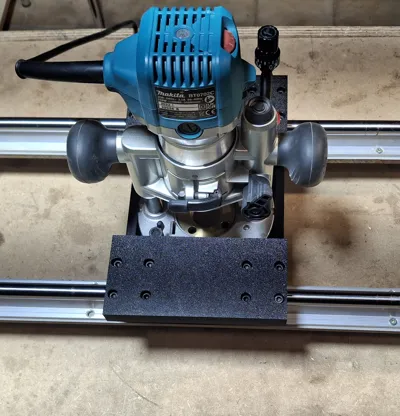

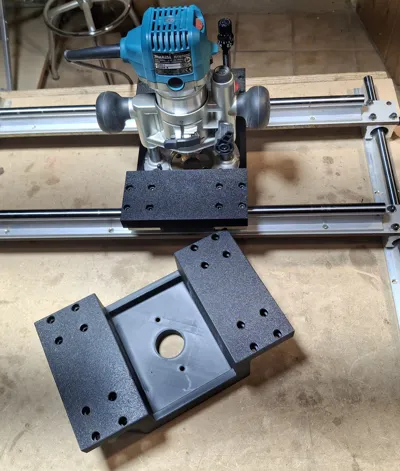

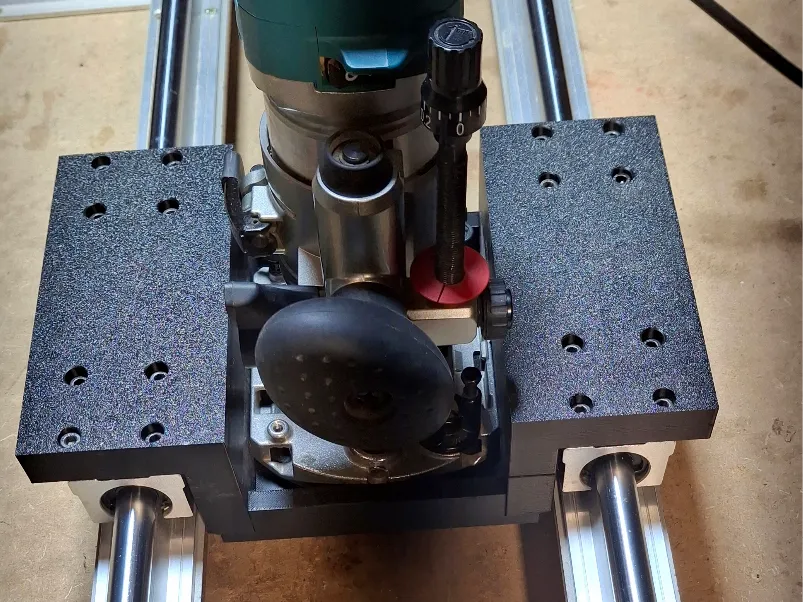

Router sled for use with the router Metabo RT0700 / RT0702 for planing wood

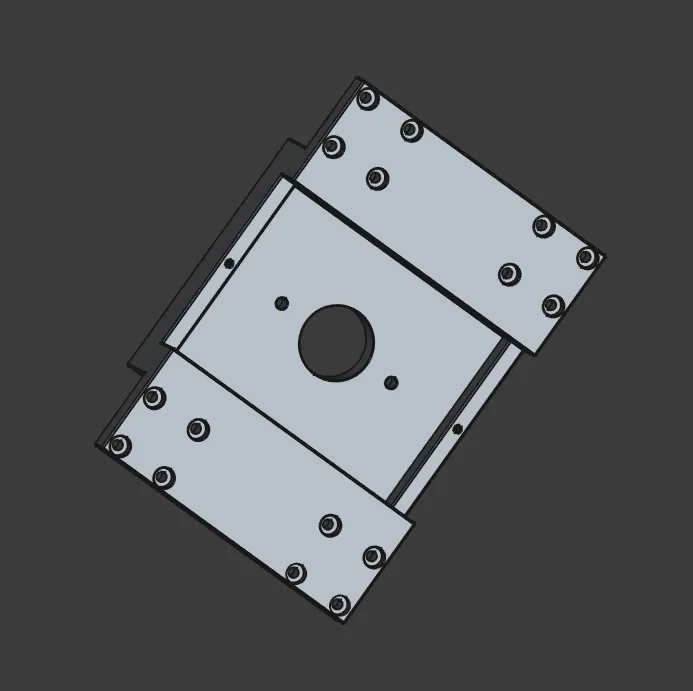

The router sled is specifically designed for the combination Makita RT0700 / RT 0702 with a linear guide SBR16. The holes are precisely fitted for the corresponding bearing blocks
Mounting
Fixing of the router with two screws from below

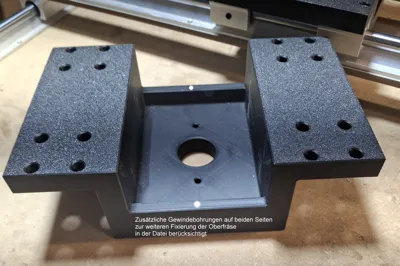

Additional clamping at the upper edge possible via one or two small outriggers (thread available)
Important note
The use of the router bodies manufactured with the provided data is exclusively at your own risk. Any liability of the provider for damages or consequential damages is excluded
3D Printing Settings
When printing the router sled I used 100 percent infill made of PETG. This allows additional mounting holes to be created later for other attachments or machines if necessary
I would be very happy about a good rating or even a boost
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
