Dà Hēiyáng General Expansion Module - Designed for PL18Ultra
Print Profile(1)
Description

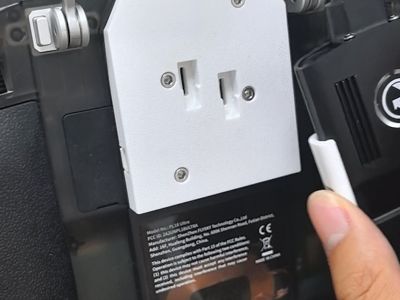

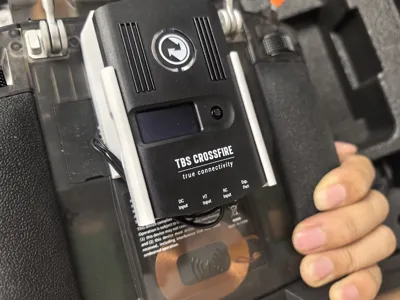

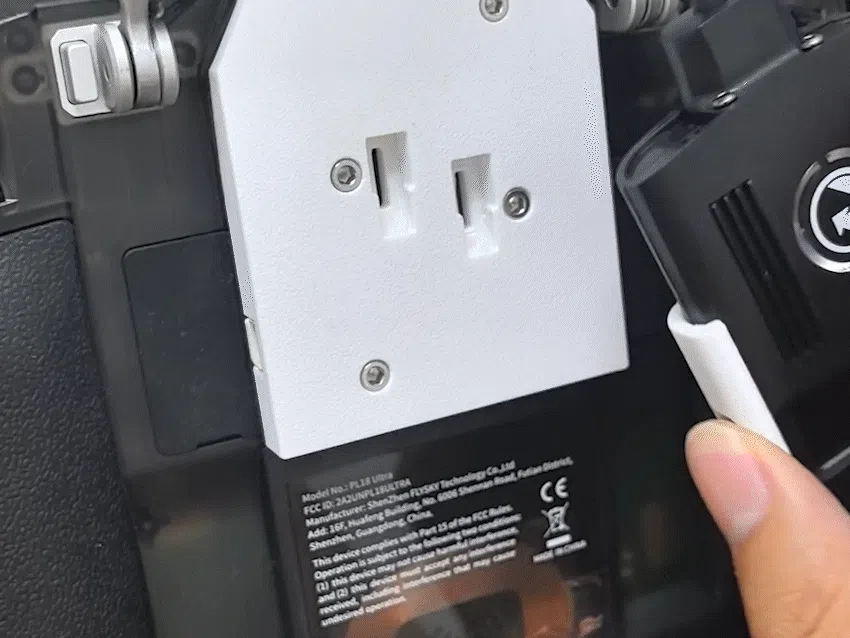

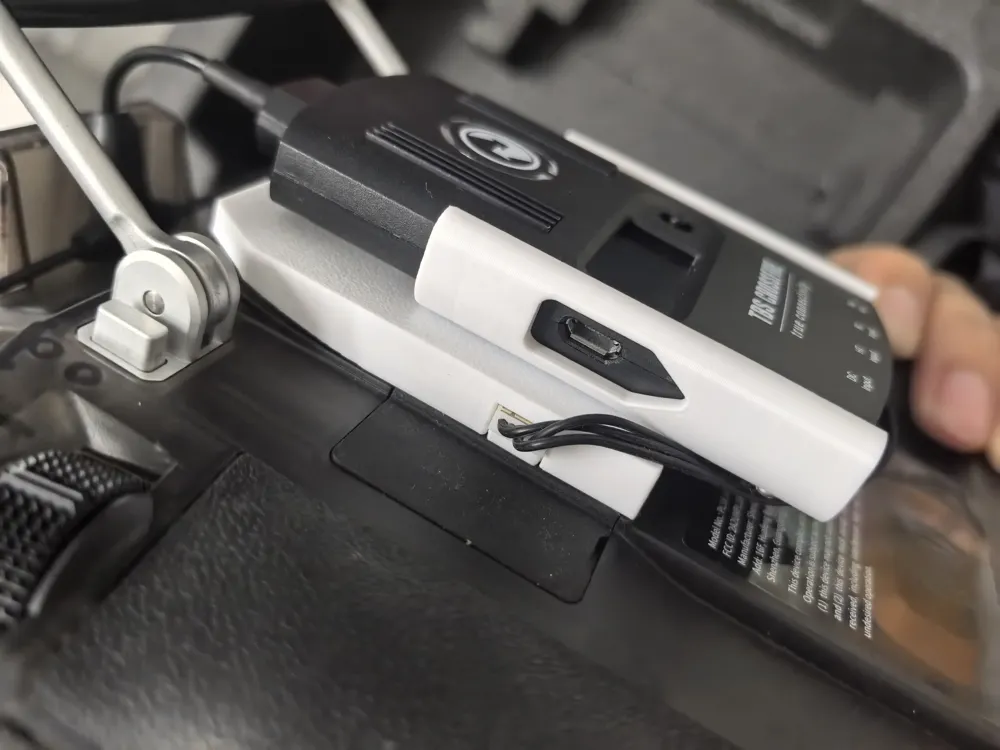

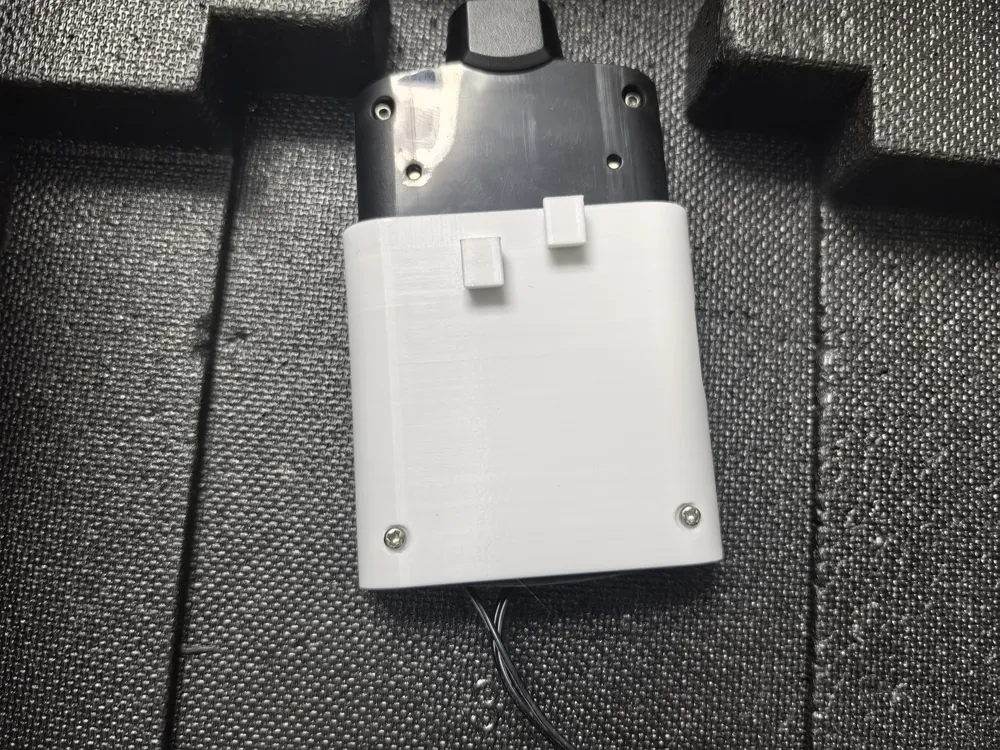

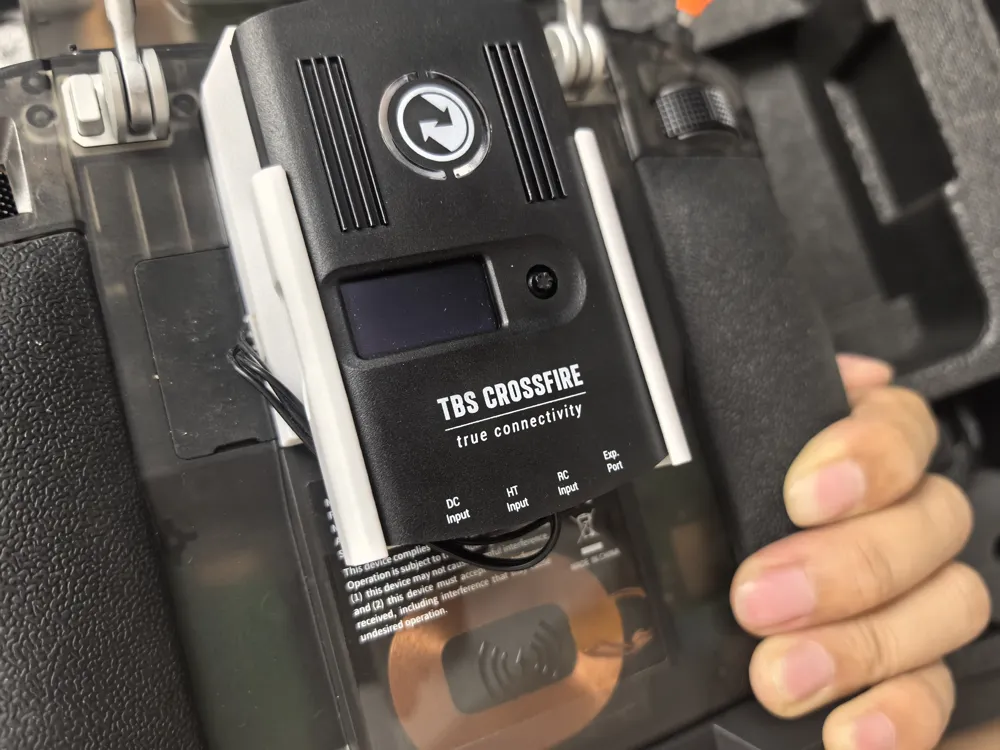

I designed a brand new expansion module for the Dà Hēiyáng high-frequency head, to adapt my designed PL18Ultra high-frequency head expansion module (https://makerworld.com.cn/zh/models/1584673-fu-si-pl18ultra-nomadgao-pin-tou-tuo-zhan-mo-kuai?from=search#profileId-1731771) If you use the Dà Hēiyáng high-frequency head and also an ELRS high-frequency head, then it is highly recommended you print this. If you only use the Dà Hēiyáng high-frequency head, I have also designed an expansion module specifically for Dà Hēiyáng (https://makerworld.com.cn/zh/models/1550678-fu-si-pl18-ultra-da-hei-yang-tuo-zhan-mo-kuai#profileId-1690810) If you download the new expansion module, you will need to purchase the following accessories for installation:
1. 5023800600 connector (The Dà Hēiyáng kit should include the corresponding connecting wire; you will need to cut other wires and only keep the CRSF signal wire)
2. 5023800300 connector (The Dà Hēiyáng kit should include the corresponding connecting wire; you will need to cut other wires and only keep the power+ and power- wires)
3. 5-pin 1.25 pitch SMT horizontal patch plug + terminals + housing
4. Round head M2*12 self-tapping screws *2
Boost Me (for free)
