Retaining piece for Hi-Lift car jack

Print Profile(1)

All
X1 Carbon
X1
H2D
P1P
X1E
H2D Pro
A1 mini
P1S
A1
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
45 min
1 plate
5.0(4)

Open in Bambu Studio
Boost
7
19
4
0
30
22
Released

Description

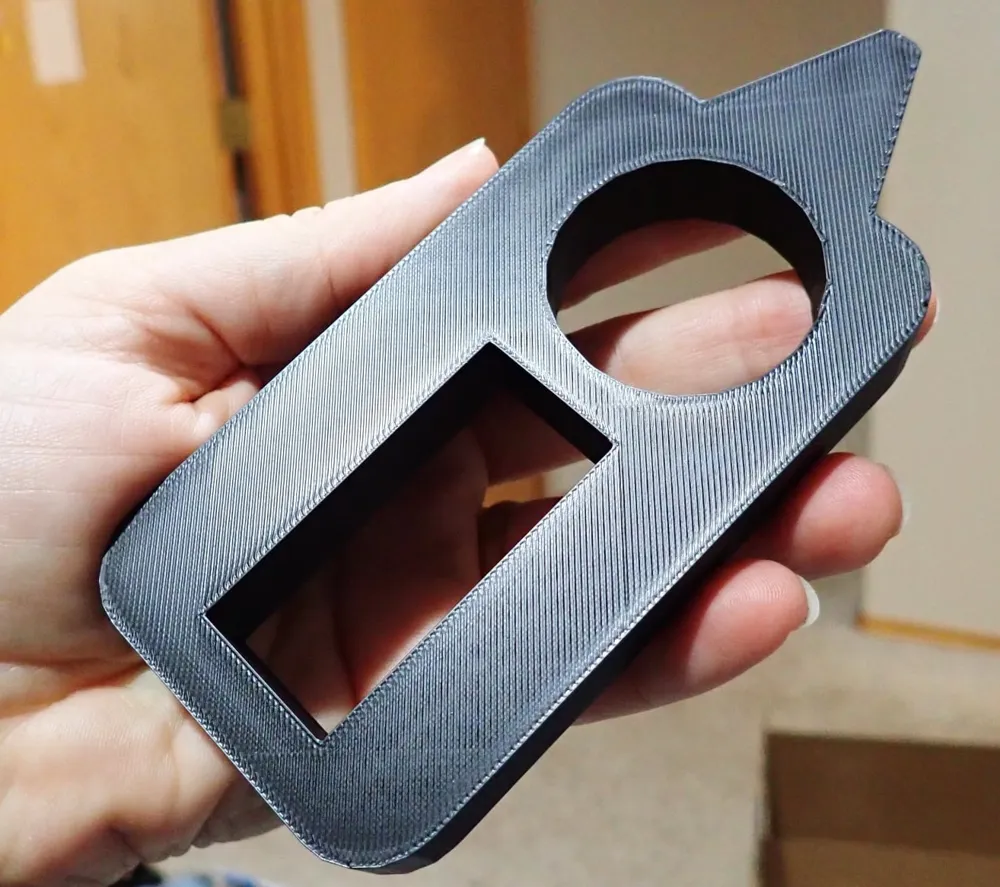

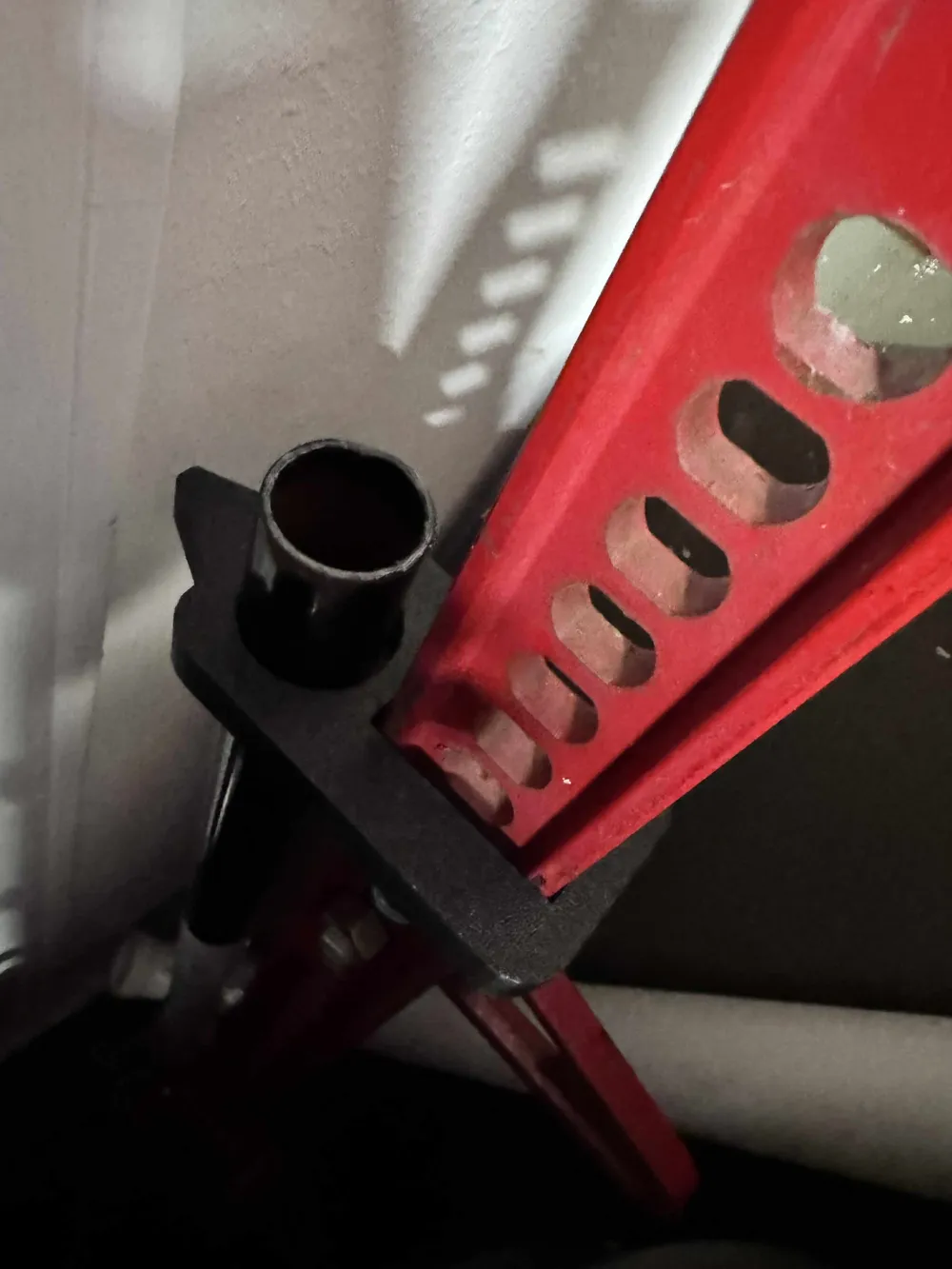

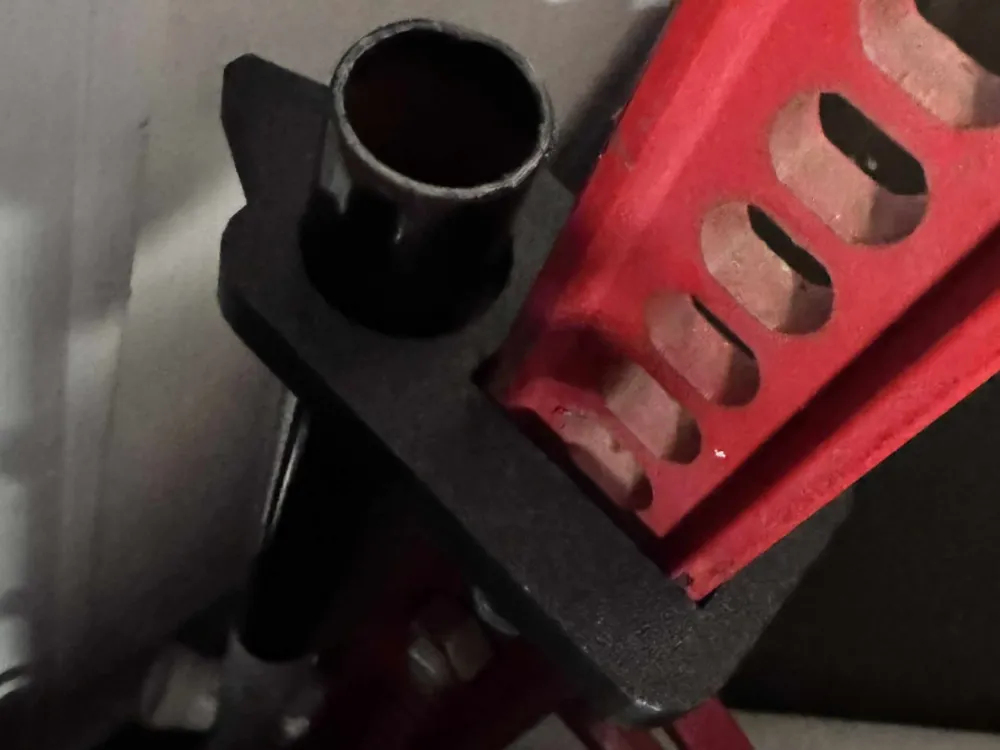

My brother has a Hi-Lift jack in his car and it has a very long handle for leverage.  He needed a piece that would slip over the two pieces of the jack when it's stored to keep them from rattling.  This simple print did the job.  It is 15mm thick; you can adjust that in Bambu Studio but make sure the other dimensions (135.8x60.1mm) stay the same to keep the internal holes from changing size.  The rectangle needs to be 50x22 mm and the round hole needs to be 32 mm or greater.  This hole is set to 35mm.



This was printed in PLA as he's not expecting temperature problems; if you print in something else you may need to allow for shrinkage.
