Nemesis Retaliation Player Board

Change Log

9/29
This should be the final update! If you're already able to play without any issues, there's no need to rebuild it from scratch.

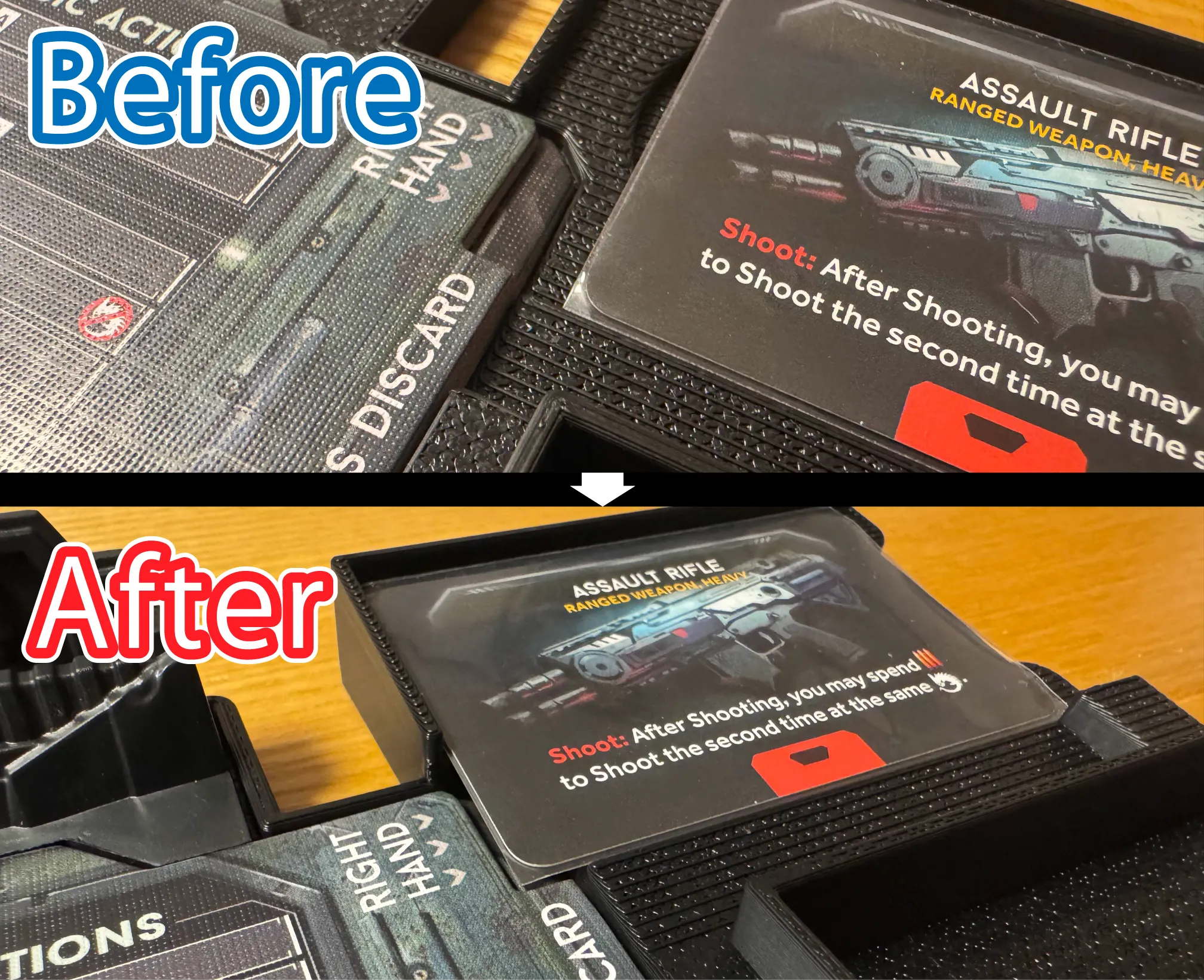

After actually playing, I realized that due to height constraints, heavy item cards couldn't be inserted sideways. So I raised their placement by 4mm.
I also narrowed the armor token area by 1.5mm on each side to make card removal slightly easier (though the difference wasn't very noticeable).

9/22

Corrected an issue where some corners were not rounded. Additionally, the objective card placement area was expanded 2mm deeper to fit within the board(`playerboard_left v2 x1.stl` only).

* * *

This text is machine translation.

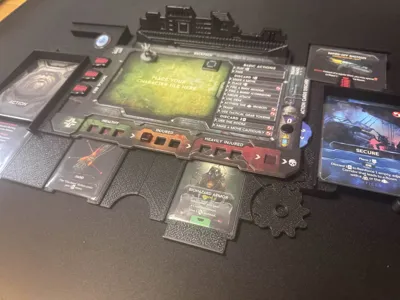

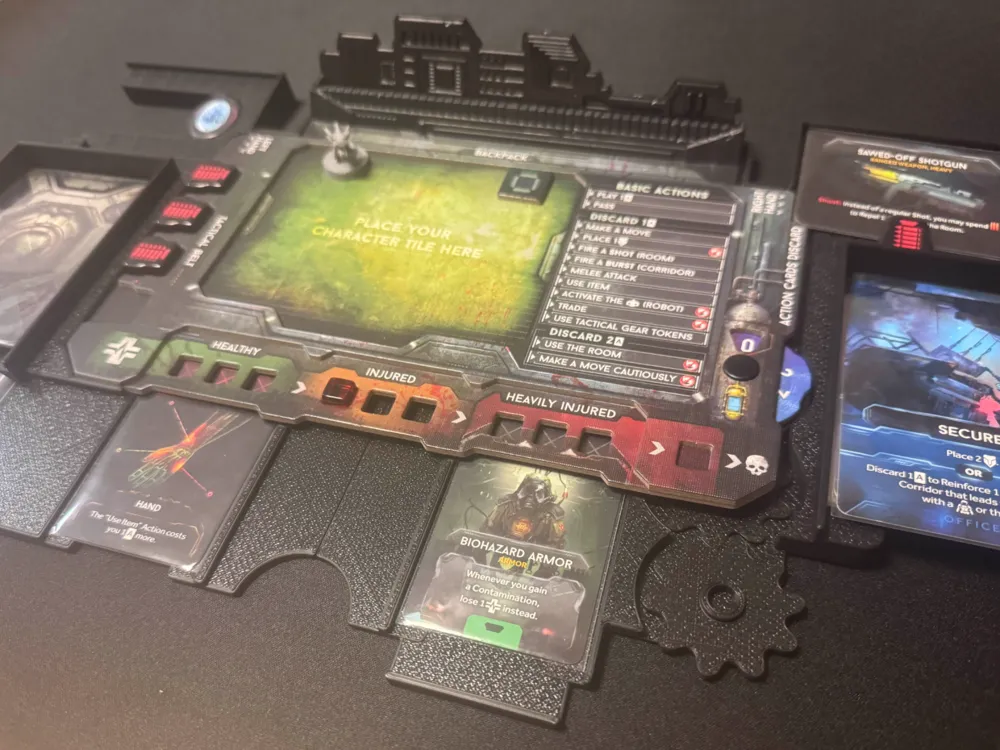

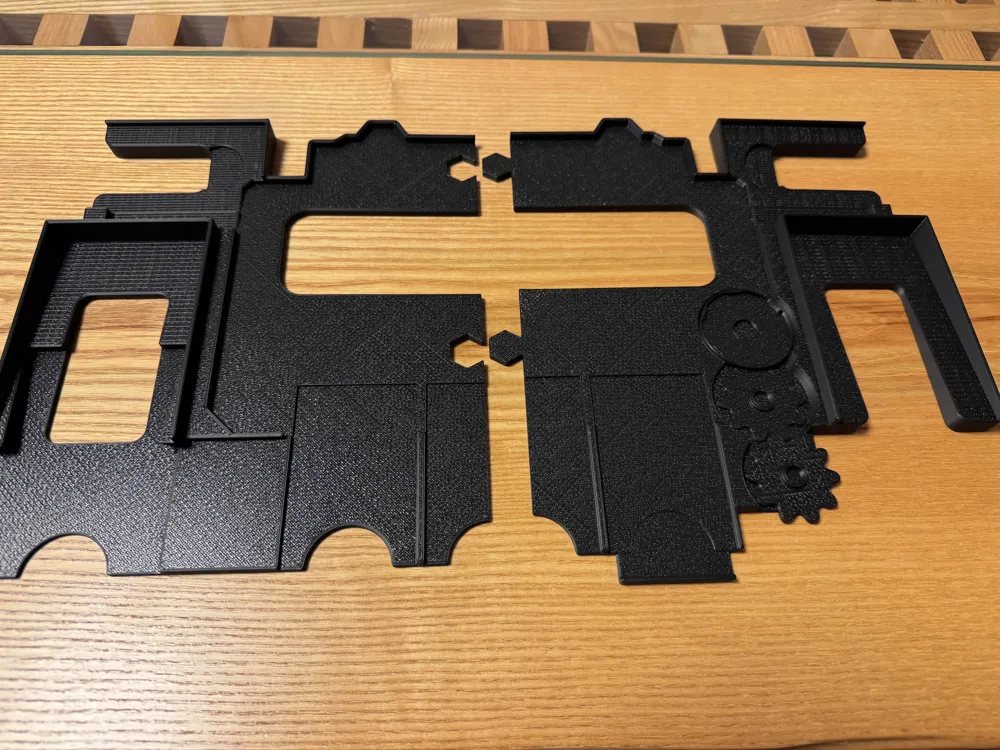

This board is for placing the player boards, action cards, and other components for Nemesis Retaliation.

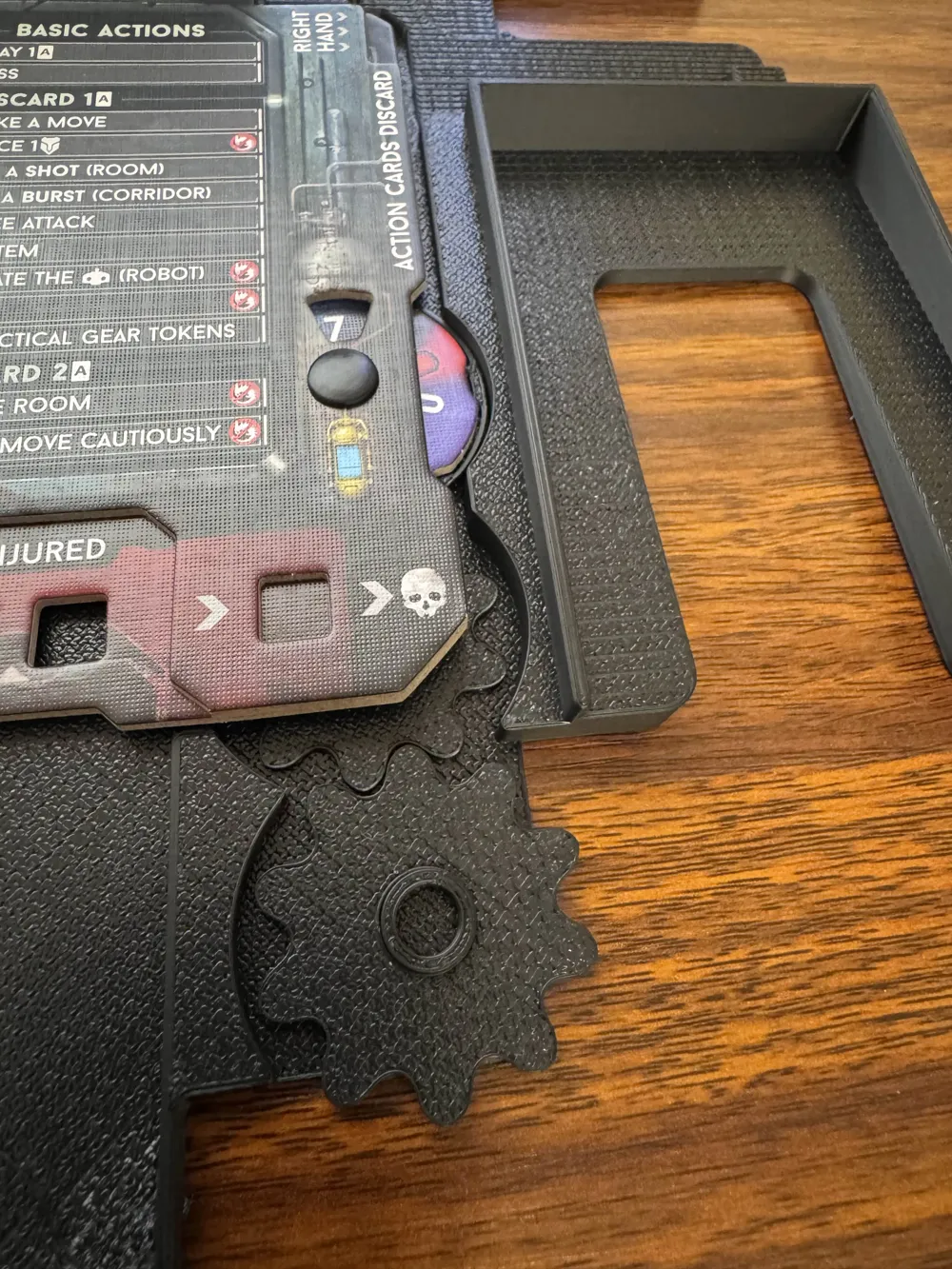

Due to the placement of the action card discard pile, rotating the oxygen gauge was difficult. Therefore, gears are used to allow rotation from beneath the discard pile.

About the Gears

・The difference between `gear2_B x2.stl` and `gear3 x1.stl` is the thickness of the gear. When fitting into the board, use gear2 (1mm) in the center and gear3 (2mm) on the bottom. Insert the gear until you hear a click.

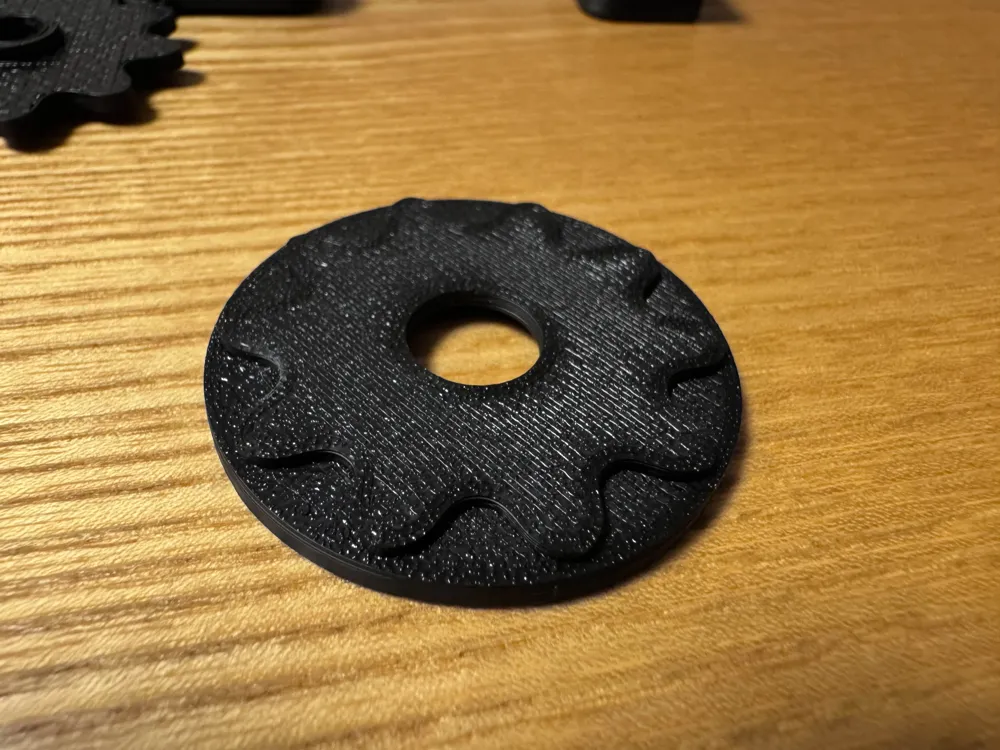

・Since clean printing with supports was difficult, attach `gear1_A x1.stl` to one of the `gear2_B x2.stl` pieces using adhesive (see 4th image).

・One issue with this gear system is that it takes a bit of effort to fit the oxygen gauge into the gear during setup. Additionally, if the player board is significantly warped, the gauge cannot be turned correctly. Please note when printing.

* * *

Japanese Ver

　このモデルはNemesis Retaliationのプレイヤーボードやアクションカードなどを置くためのボードです。

　アクションカード捨て札山の関係上酸素ゲージを回すのが困難だったため、歯車を用いて捨て札下部で回せるようになっています。

歯車について

・`gear2_B x2.stl`と`gear3 x1.stl`の違いは歯車の厚みです。ボードにはめ込む際は真ん中をgear2（1mm）、下側をgear3（2mm）にしてください。歯車はカチッと音がするまではめ込んでください。

・サポート付きでもきれいに造形することが困難だったため、`gera1_A x1.stl`は`gear2_B x2.stl`のうちの1個と接着剤で接着してください（画像4枚目）。

・この歯車システムの問題点として、セットアップの際に酸素ゲージを歯車にはめ込むのに多少手間取ります。また、プレイヤーボードが大きく反っていると正しくゲージを回すことができません。印刷の際はご留意ください。
