Modular exhaust duct for tilt windows
Print Profile(1)
Description
Hello,

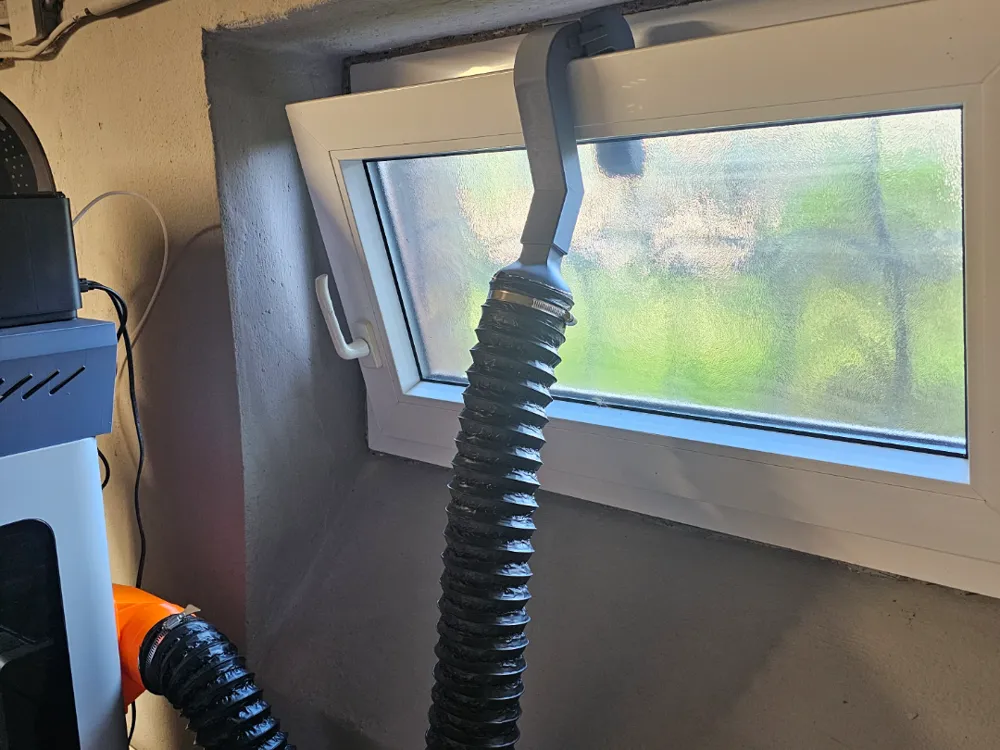

my version of an exhaust duct for tilt windows.
The width is adjustable between 71 mm and 90 mm.

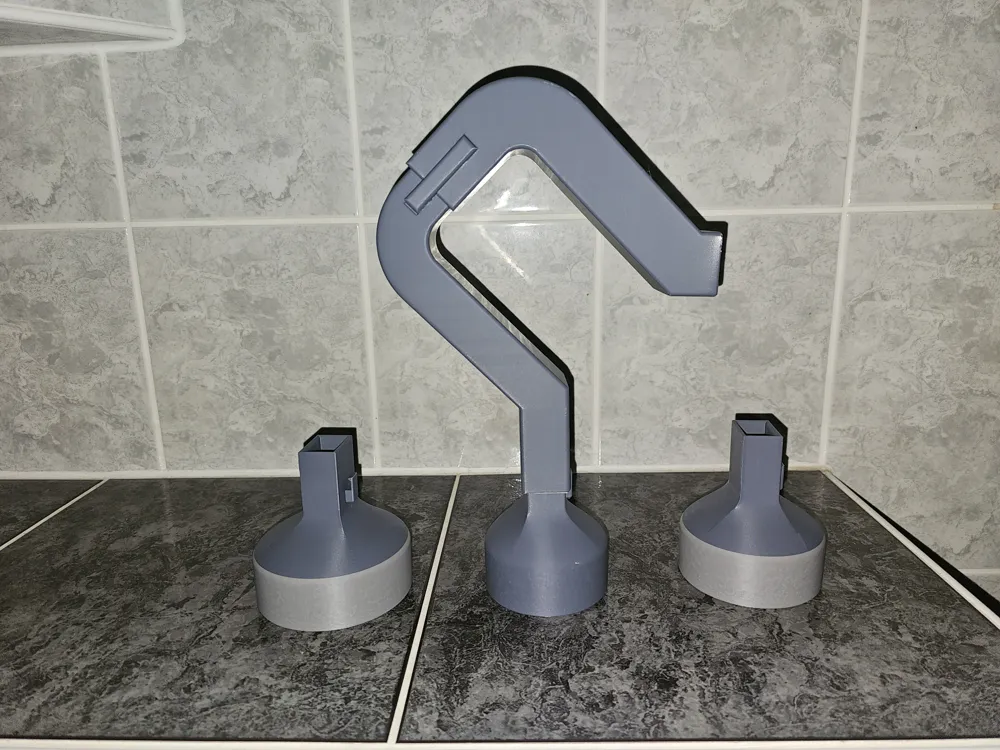

Adapters for 80 mm, 90 mm, and 100 mm hoses are included.
Assembly is, I believe, self-explanatory.
DN 50 adapter with an outer dimension of 49 mm added.
Printed with H2D. Individual parts can be printed with the A1 mini (adapters).
When printing the ducts, ensure good bed adhesion!
Questions and suggestions are welcome in the comments.
Upon request, a 150 mm adapter has been added.
If this is to be used for a mobile air conditioner, please ensure that the filament is suitable for the high exhaust temperatures
suitable! I cannot guarantee whether the duct is suitable for the high airflows of a mobile air conditioner, as the cross-section of the duct was deliberately chosen to be small.
Upon request, another adapter has been added. Diameter 57 mm. Creality probably uses this format for their laser engravers.
