Philips 3000x Charging Station

This charging station is NOT for the original charging cable. You will have to craft your own USB cable. The plug replica has 3.2mm holes (adjustable). Into these holes, I inserted 3mm brass tubes. Again, into these, I pushed speaker wire (it just fit), which I stripped 1cm at the top (do NOT twist!). The pins from the shaver's connector then press into this wire. For me (!), the positive pole was on the right side when viewed from the front. I ASSUME NO LIABILITY IF IT'S DIFFERENT FOR SOMEONE ELSE! Please measure the polarity on the original cable yourself and solder a USB plug to the other end.

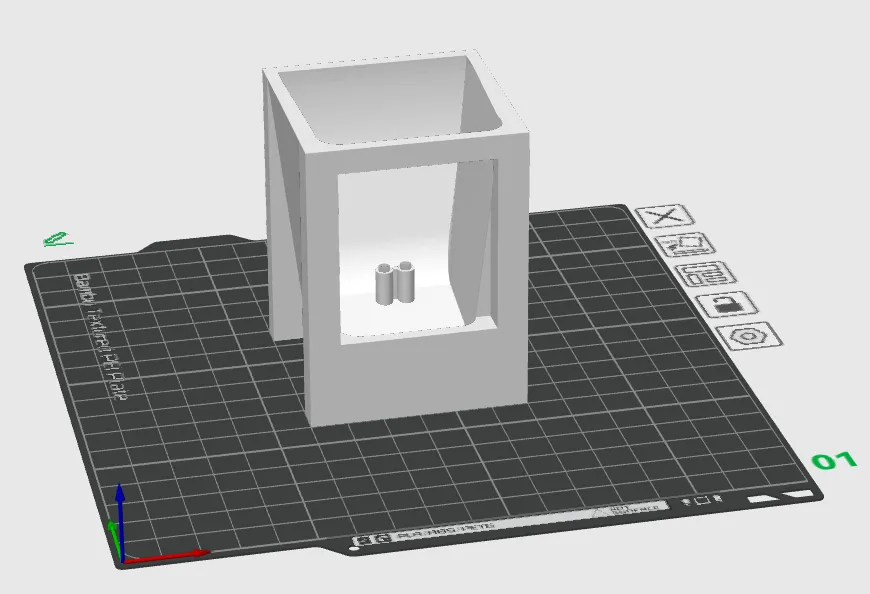

I remodelled the bottom part of the shaver in Blender to then cut out the model from the cube in Bambu Studio. Unfortunately, 'measuring' in Blender is quite complicated for a beginner (I just don't get it), so the shell turned out a few millimeters too large due to the cut-out model. It is therefore recommended to glue some foam rubber (door seal) to the back wall of the shell so that the shaver can lean against it.
