Power Cooling Lucky Miner LV07

The Luckyminer LV07 comes from the factory with a 40×20-mm BY402012MB. It typically only manages ~5 CFM (≈ 8.5 m³/h) at 1.44 W (12 V × 0.12 A) and ~24 dB(A).
This mount replaces the side cover and accommodates an 80×80×25 mm fan – ideally the Noctua NF-A8 PWM (up to 32.7 CFM, 0.96 W, 17.7 dB(A)). Result: much more airflow, significantly quieter, more efficient.

🚀 Why this upgrade?

• Massive Airflow Gain: ~6–7× more volume flow than the 40-mm stock fan.
• Less Noise: Larger rotor = lower RPM for the same throughput → audibly quieter.
• Better Temperatures: Fewer hotspots, more stable hash rates in continuous operation.
• Higher Efficiency: More cooling per watt – saves energy and protects bearings/electronics (PWM).
• Reversible & clean: No drilling on the LV07; mount uses existing screw points.

🐝 Design

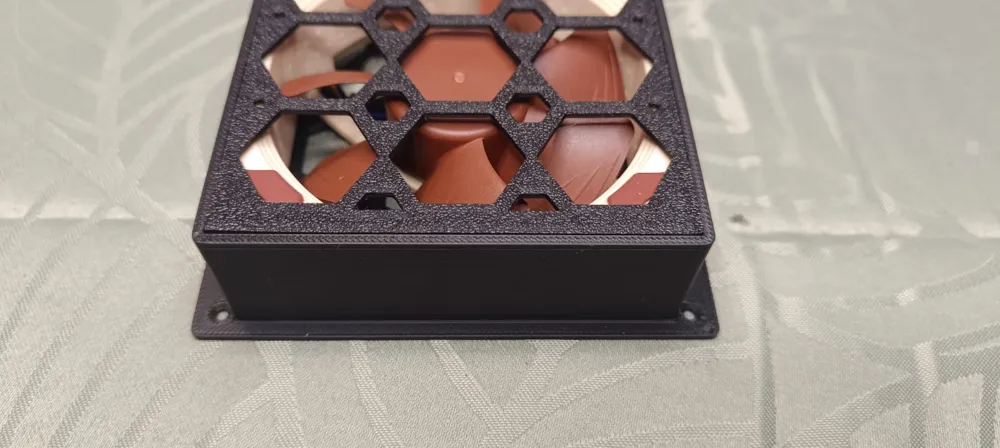

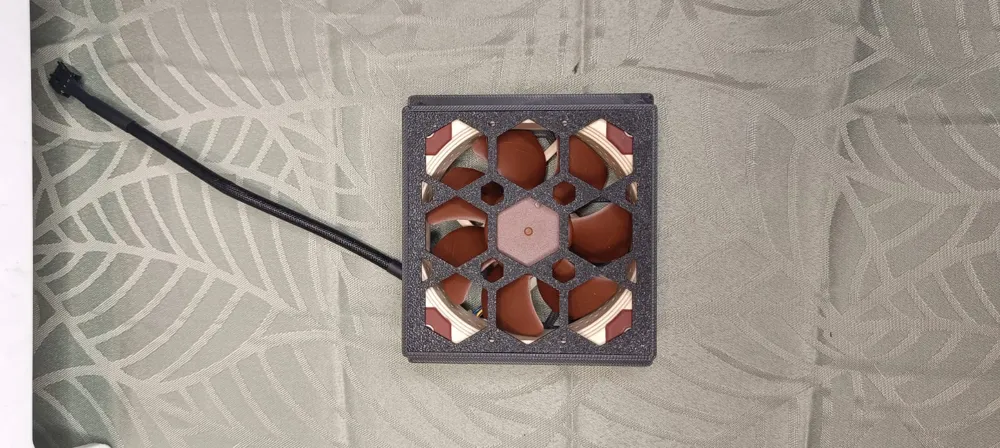

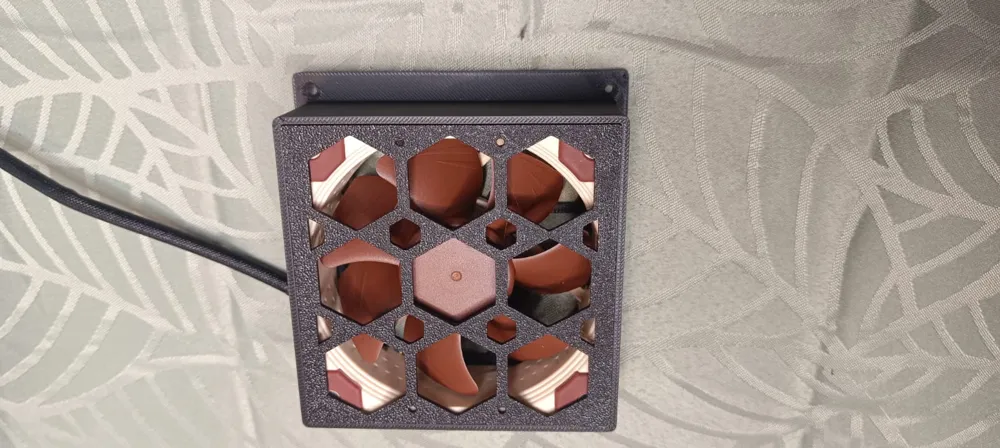

• Honeycomb Grille: High open area + stiffness → low inlet losses, less whistling/turbulence.
• Shroud/Spacing: Small air duct reduces short-circuit flow in the hub area and distributes flow more evenly over the cooling fins.

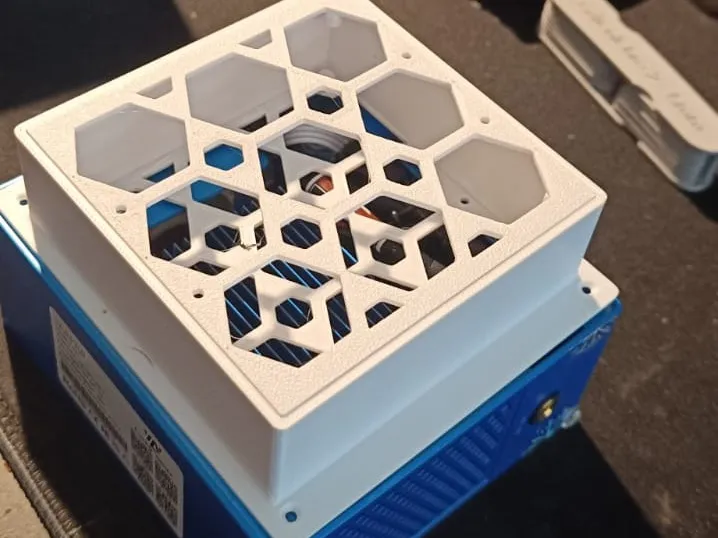

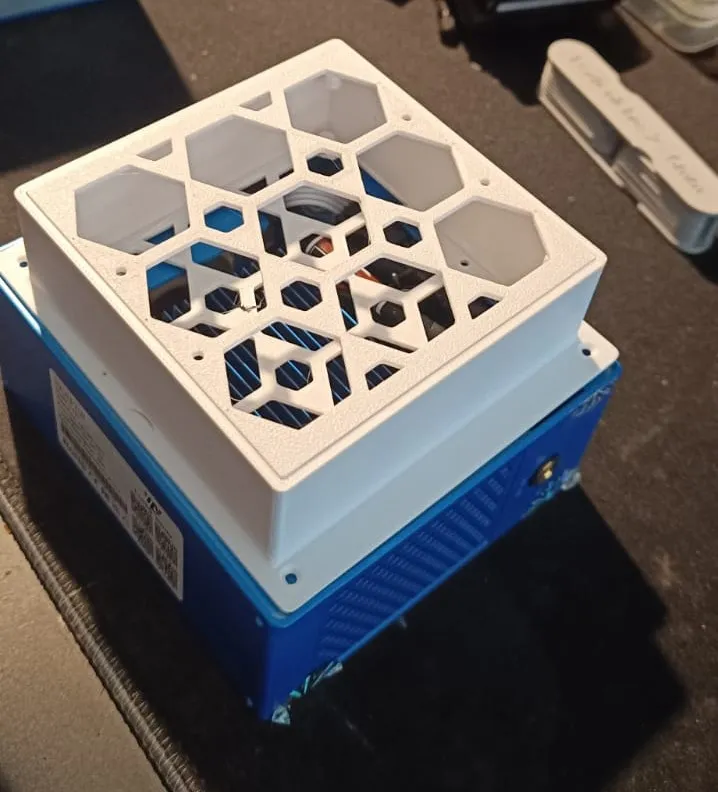

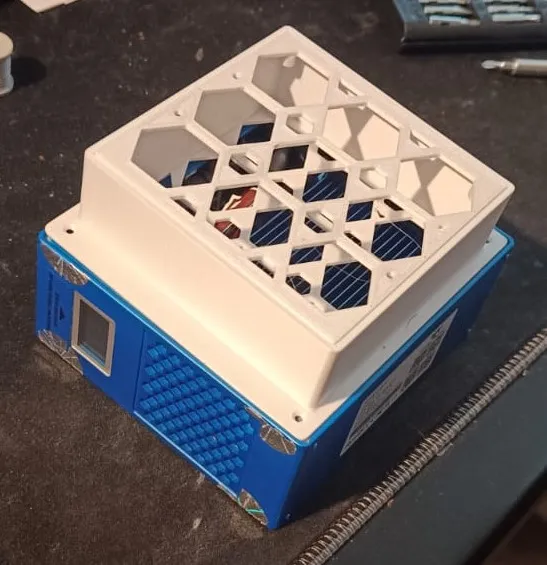

• Side Mounting: Direct fresh air intake instead of the original plate – better pressure build-up.

📊 Technical Comparison (typical data)

• BY402012MB (40×20): ~5 CFM | 1.44 W | ~24 dB(A) | Ball bearing, mostly 2-pin (fixed speed).
• Noctua NF-A8 PWM (80×25): 32.7 CFM (≈ 55 m³/h) | 0.96 W | 17.7 dB(A) (with L.N.A. ~13.8 dB(A) at 25.8 CFM) | SSO2 bearing, 4-Pin PWM.

Efficiency (Volume Flow/Watt):

• BY402012MB: ~3.5 CFM/W
• NF-A8 PWM: ~34 CFM/W → ~10× more efficient

🖼️ Diagrams – please insert here

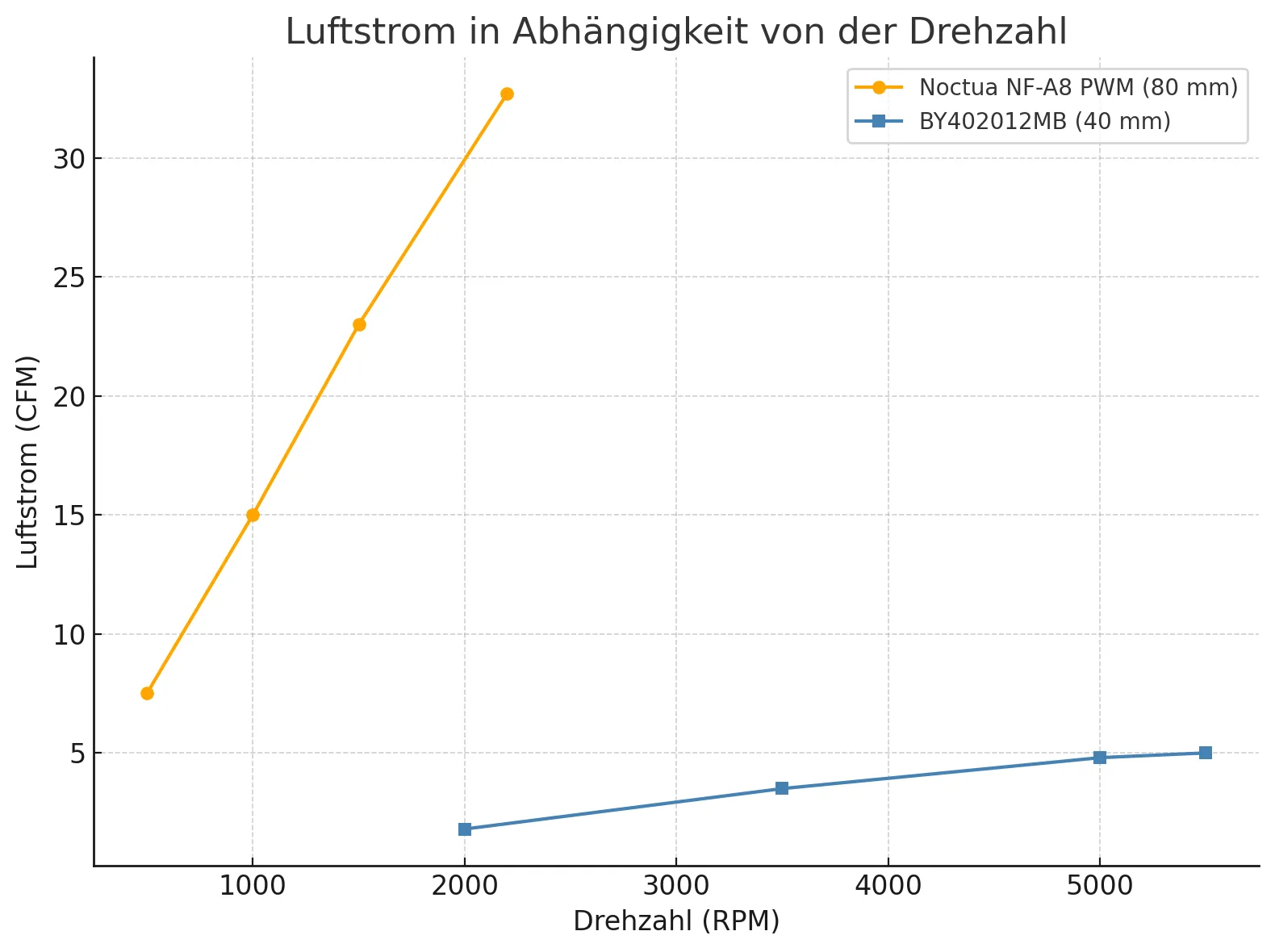

1) Airflow vs. RPM

Brief interpretation: The 80-mm fan already overtakes the 40-mm at ~1000 rpm. The 40-mm barely reaches 5 CFM even at its limit.

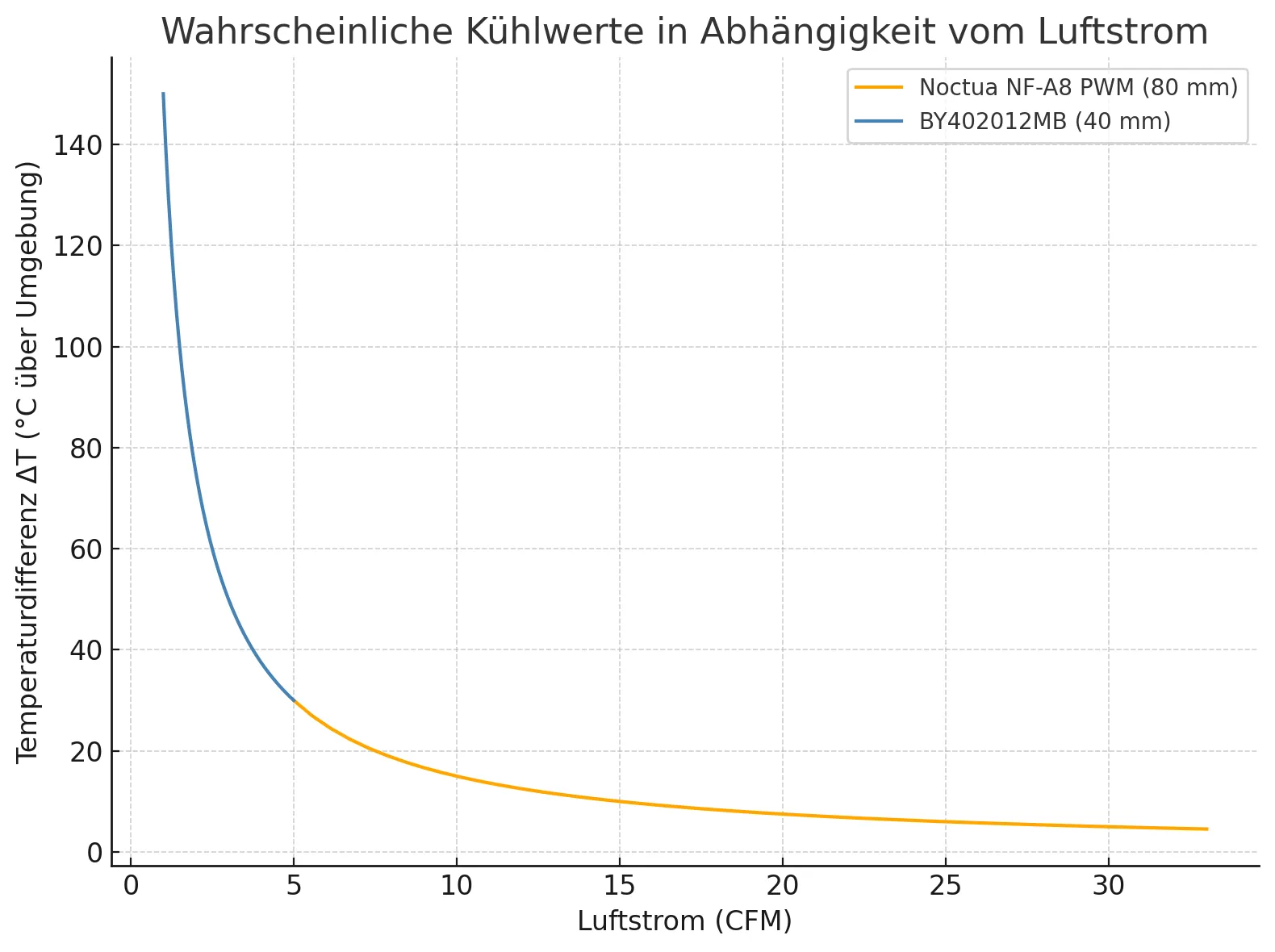

2) Probable Cooling Values (ΔT) vs. Airflow

Model assumption: ΔT ~ 1/Airflow, Reference ΔT≈30 °C at 5 CFM.
Brief interpretation: With 15–20 CFM (moderate NF-A8 speed), ΔT drops to ~10 °C; at ~32 CFM, ΔT approaches 5 °C.

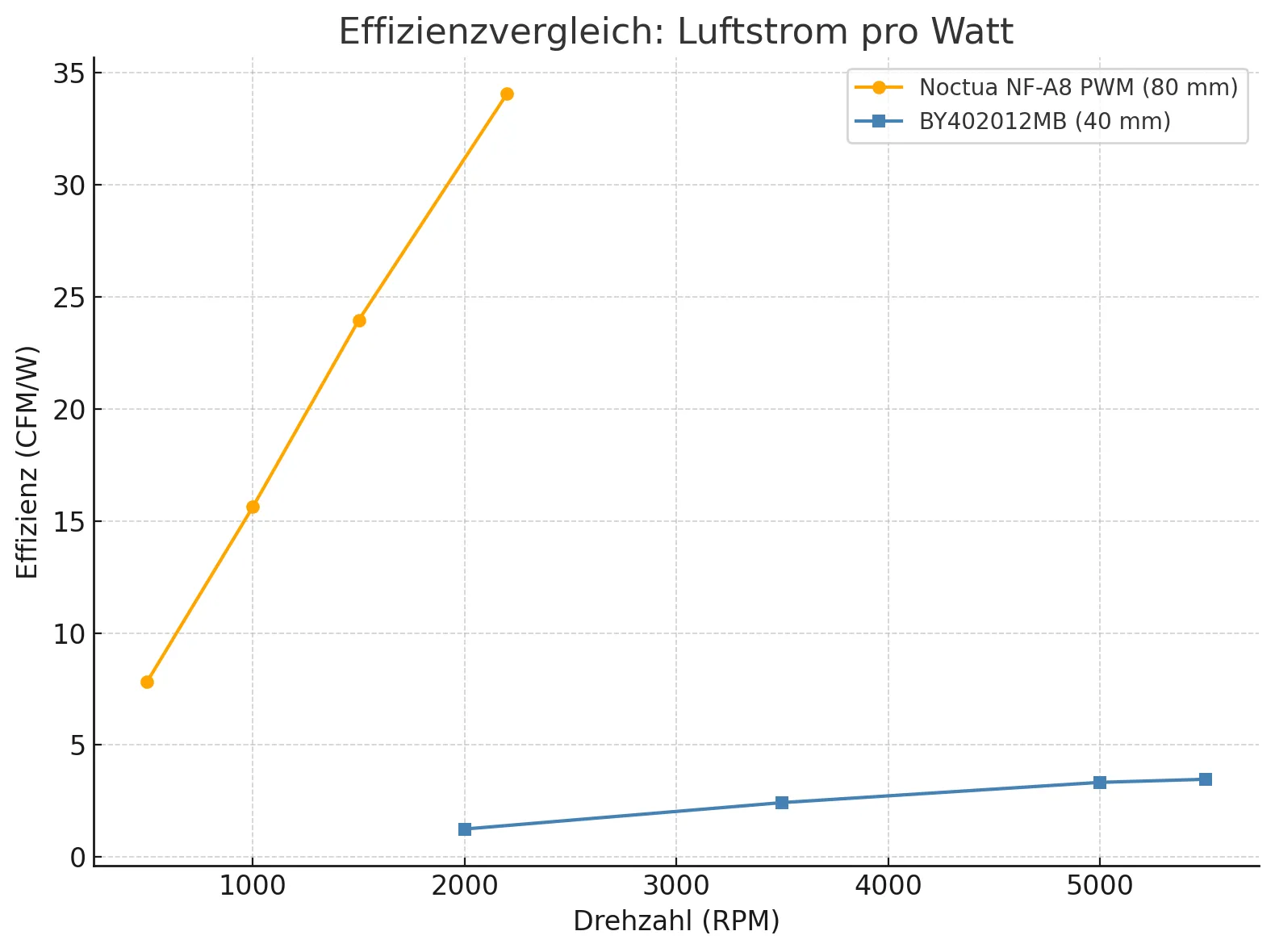

3) Efficiency (CFM/W)

Brief interpretation: The NF-A8 delivers many times more air per watt; thus cooler and more economical.

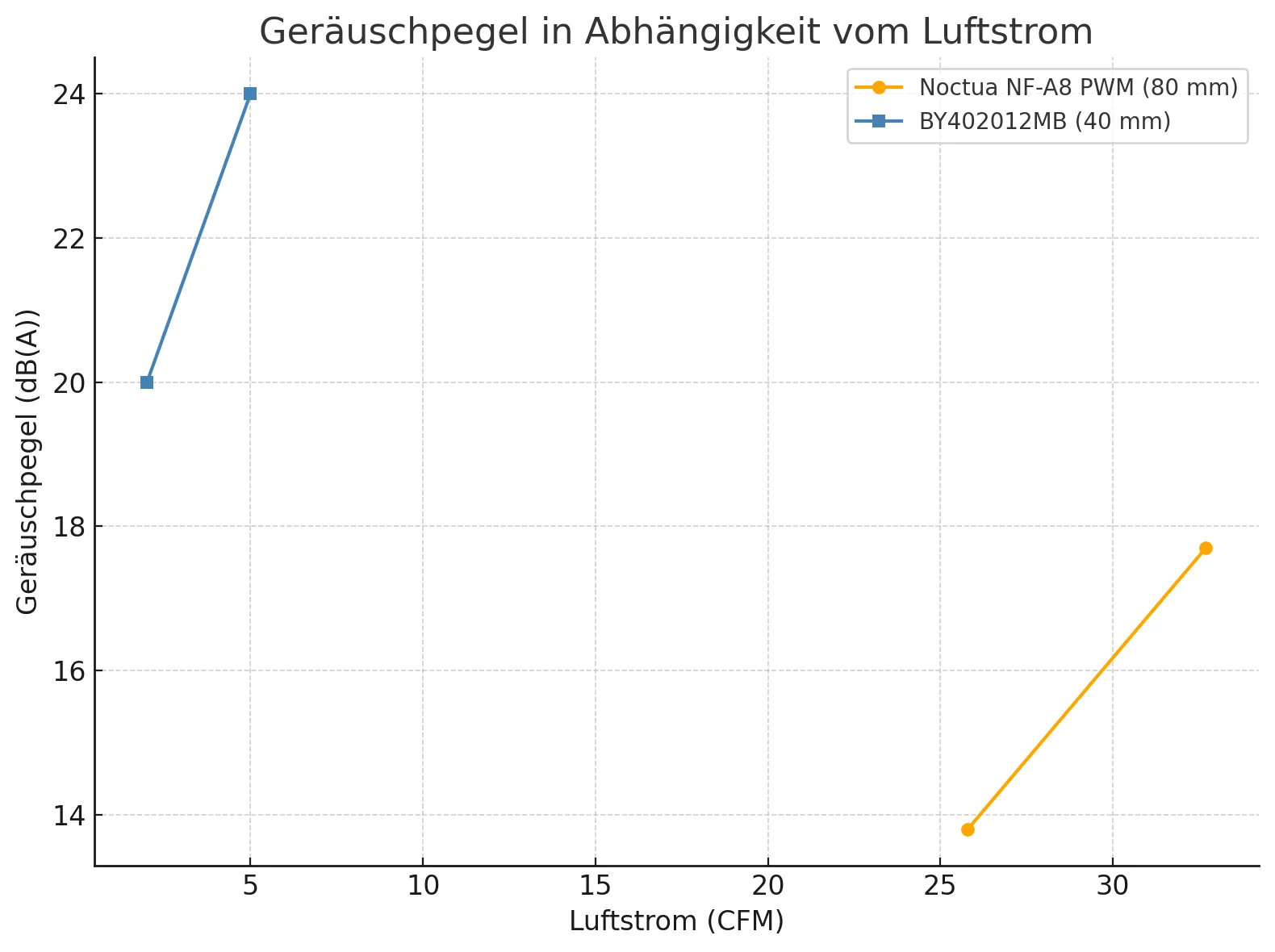

4) Noise Level (dB(A)) vs. Airflow

Brief interpretation: More air with less noise – the NF-A8 remains quieter than the 40-mm despite higher throughput.

🔧 Assembly

1. Disconnect power to the device.
2. Remove original side plate.
3. Place mount, screw it with existing screw points.

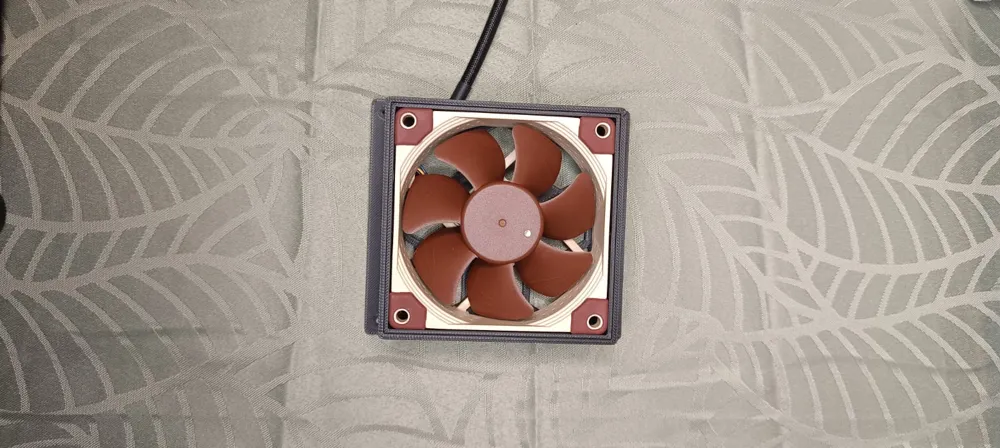

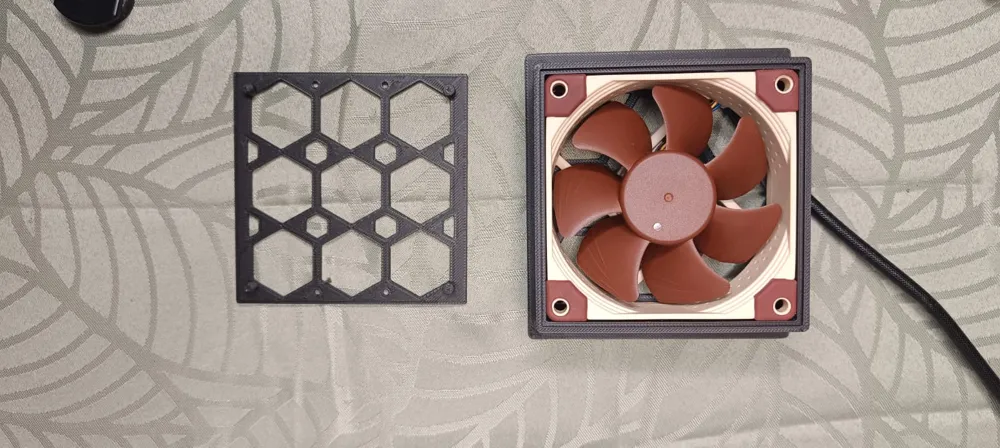

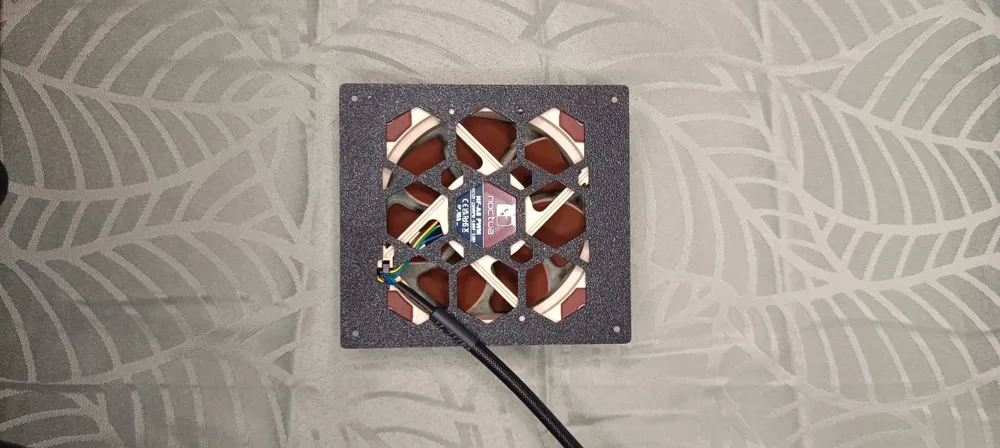

4. Mount 80×80×25 mm fan (Noctua NF-A8 PWM recommended).
5. Connect electrically (ideally 4-Pin PWM; alternatively regulated 12 V).
6. Test run, adjust PWM curve/voltage → Goal: desired ΔT at minimal noise.

🖨️ Printing Recommendations (for a robust part)

• Material: PETG (recommended for heat), ASA/ABS for higher ambient temp.; PLA only if ambient remains cool.
• Layer: 0.2 mm; Wall ≥ 3 perimeters; Infill 20–35 % (Gyroid/Hex).
• Orientation: Print so that the honeycombs are on top → better aesthetics/stiffness.
• Screw points: Optionally use short M3 heat-set inserts.

  🎯 Conclusion
• This upgrade addresses the LV07's bottleneck at its cause: more cross-section, more volume flow, lower RPM. Result: cooler, quieter, more efficient – and implemented cleanly and reversibly with this mount.
