Infinite length 8040 4040 horizontal extrusion
Print Profile(3)
Description

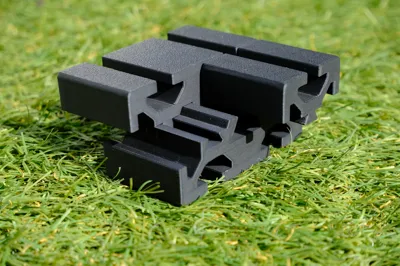

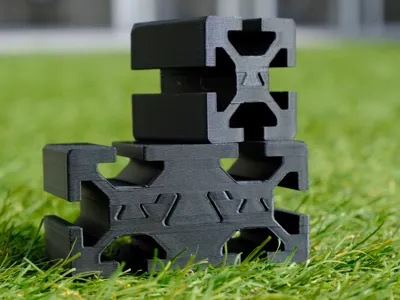

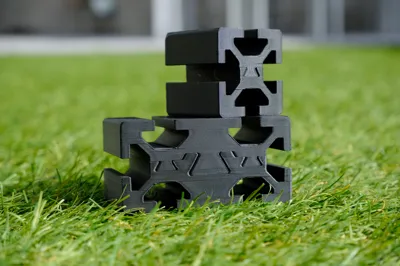

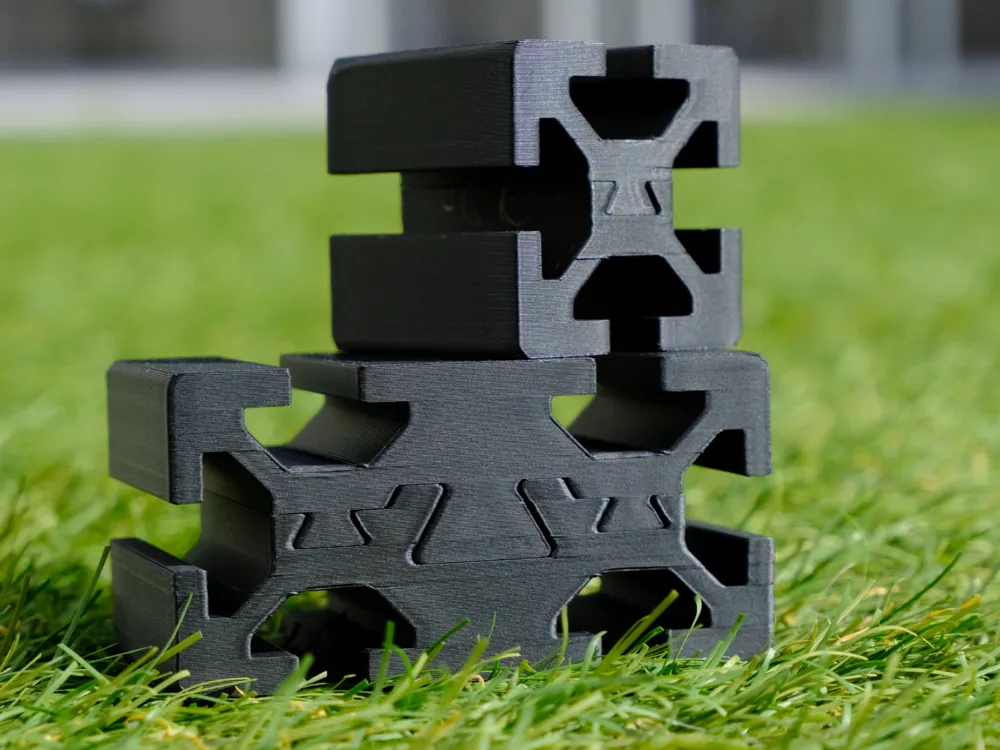

Horizontally printable 4040 and 8040 extrusion profiles designed with dovetail joints for infinitely stackable length. Overlap the profiles by 50%, then print half length pieces to cap things off. Add thin glue to keep it together.
- 8040 and 4040
- 250 and 125 mm lengths included
- For custom lengths: Uncheck “Uniform Scaling” and adjust Y value to desired length

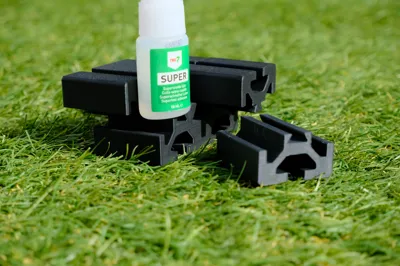

- 0.1mm clearance between parts so assembly goes smooth and there's some room for glue

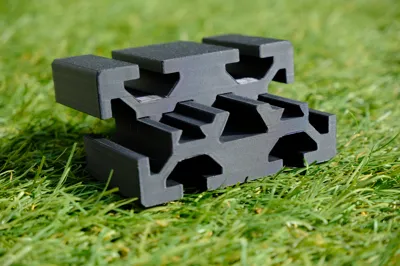

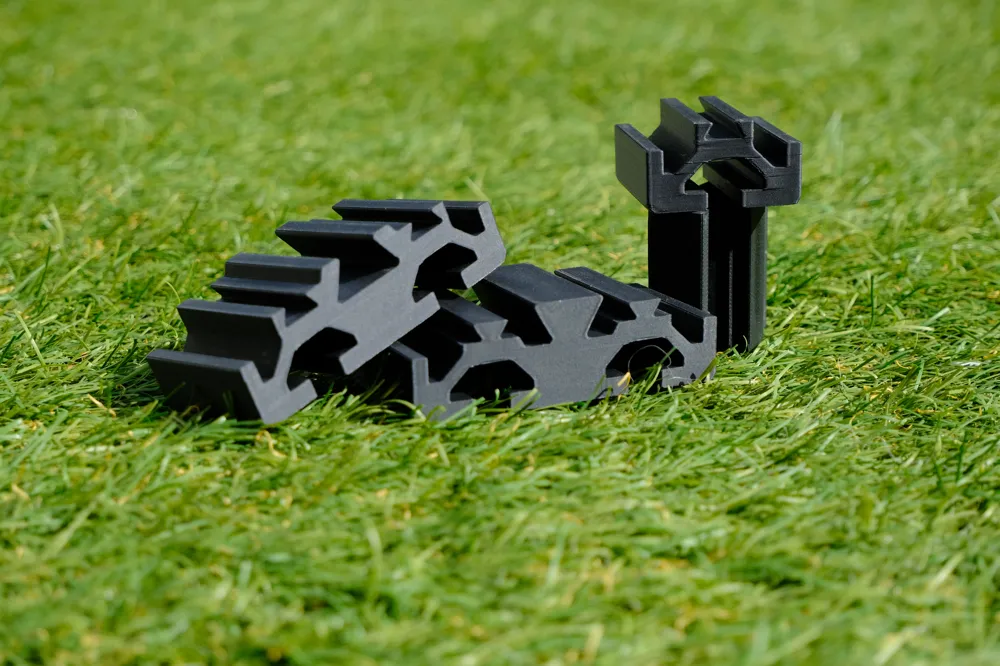

- Half-lap for infinite length (see assembly example image)
- No supports needed

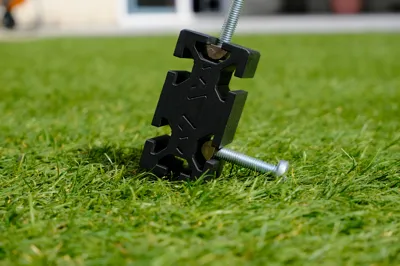

- Loads sprung T-nuts from sides and ends
- Very strong because of layer orientation, no need for more than 5 layer perimeters
Should you want to change clearance, OnShape model is available here: https://cad.onshape.com/documents/45d154bbfd45130f00cf19aa/w/ad3d621d5e6002f2e491567d/e/f61d50c84af1061d95dcdfaa?renderMode=0&uiState=68cd13be0b79c2bb2e963645
Comment or DM for other sizes.
